Model name

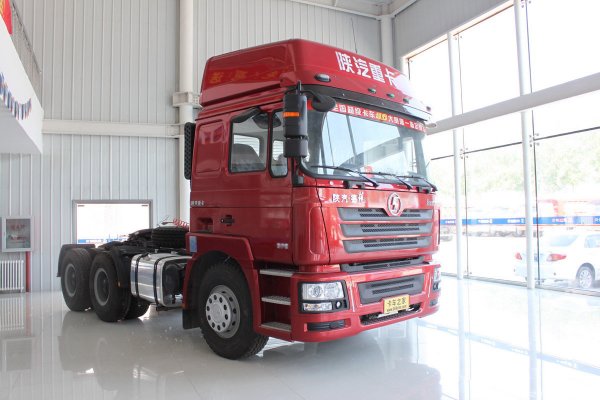

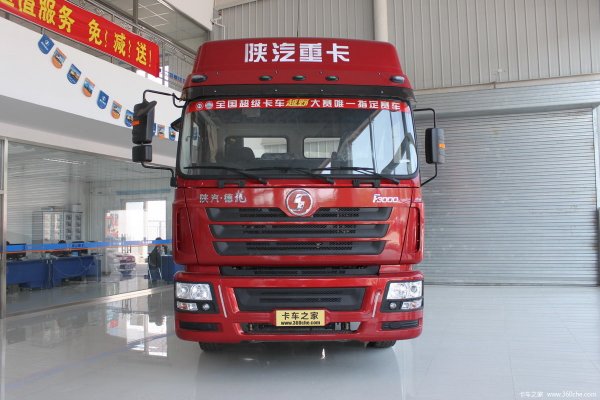

Shacman Delong F3000 tractor truck

Model

SX255NV324CR

Driving type

Right hand drive

Traction type

6×4

Color

optional

Weights

Rated payload weight(kg)

30000

Gross Vehicle Weight(kg)

25000

Curb weight(kg)

Approx.8800

Dimensions

Wheelbase(mm)

3175+1400

Overall dimension(mm)

Approx. 6850×2490×3980

Engine

Engine model

ISME420 30, 420HP, Cummins Engine

Emission standard

Euro 3

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

10.8 / Diesel

Max. output (kw)

309

Fuel Tanker（L）

400L+230L aluminum alloy fuel tank

Drive Line

Gearbox

12JSD00T-BQH50

12 speeds, 12 forwards, 2 reverse gear, manual geabox

Steering

Power steering

Brake

Air brake, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

Long top cab;

Can be tipped forwardly, with inner A/C and double sleeper bed

Standard configuration

Air container

Axle

Front axle

MAN 7.5T- drum brake

Rear axle

MAN 16T double reduction pneumatic brake, double reduction   driving axles with inter-wheel & inter-axle differential locks

Tire specification

Tire specification

12.00R20

standard tire,10 tires+1 spare part

Parameter

Economic speed/maximum speed   (km/h)

55～65/90

Max. Gradeability

35(%)

Rear overhang(mm)

725

Suspension

Leaf spring

Frame(mm)

850×300（8+5）
