Beiben NG80 Series 4x4 Off-road Cargo Truck, 300HP, 6.2m Cargo Box, Heavy Duty All-wheel Drive
No.:
Vehicle Type: Hot Sale Pickup
Brand Name: BEIBEN
Person in charge: Aria Dong
Cel: 8617667810120
Whatsapp: 86153364889276
E-mail: sales12@chinatruck.cc
FREE GET QUOTE
Details
The Beiben NG80 4x4 off-road cargo truck combines German-engineered reliability with 300HP power and a 6.2-meter cargo box, delivering exceptional traction and durability for mining, construction and remote logistics operations worldwide.
configuration：
Engine | Model | WP10.300E40 | ||
Power, max | 90 | |||
Max torque(Nm/rpm) | 1390/1200-1500 | |||
Emission standard | EURO 4 | |||
Fuel tanker capacity L | 300 | |||
Clutch | Model | GFX420, Single dry frictional disc,Hydraulic boosting | ||
Gearbox | Mode | 9JS150A | ||
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
Assistant brake | Engine exhaust brake | |||
Park brake | Potential springs pressing on middle and rear wheels | |||
Steering system | Model | TAS85 | ||
Frame of vehicle | Fish belly shape, variable width, variable section side beam structure | |||
Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||
Middle and Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||
Tyre | 12.00R20 | |||
Electrical system | Battery | 2X12V/135Ah | ||
Generator | 28V-35A | |||
Starter | 5.4Kw/24V | |||

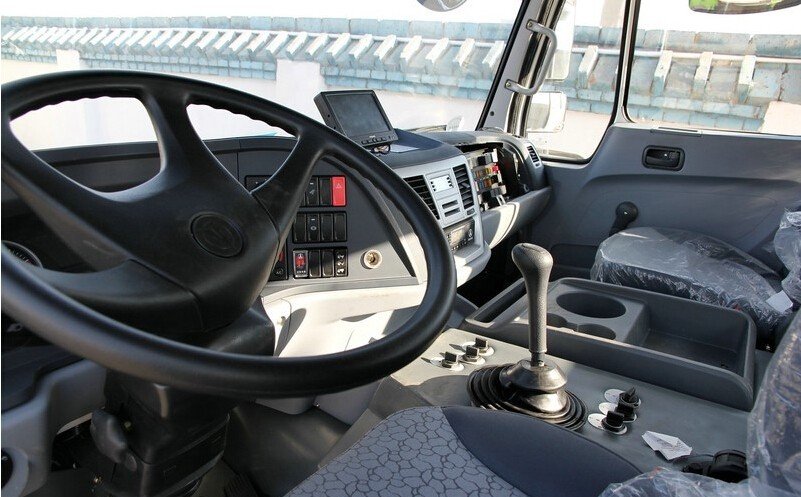

Cab | Short cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure.Inner A/C | |||
