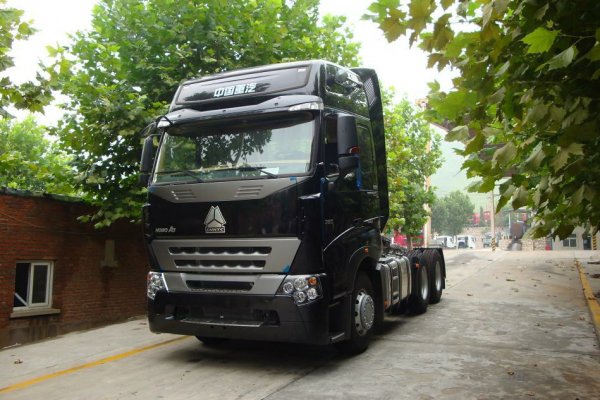

Hot sale HOWO SINOTRUK A7 tractor head truck

No.: George--004

Vehicle Type: Tractor Head

Brand Name: SINOTRUK

Sinotruk Trucks

Person in charge: George Jiang

Tel: 0086 532 6608 7516

Cel: 0086 181 5320 9771

E-mail: sales35@chinatruck.cc

FREE GET QUOTE

Details

15、

Person in charge: Mr. George Jiang
Tel: 0086-18153209771
Cel:0086-532-66087516
E-mail: sales35@chinatruck.cc
SpecificationsTractor Truck Driving Type 6x4GVW 32000kg
ModelZZ4257V3241V
EngineMake: SINOTRUK
Diesel: 4-stroke direct injection diesel engine
Engine model: WD615.57, Euro II emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 410 hp (302 Kw) at 2100 rpm
Maximum torque: 1600 Nm at 1100-1600 rpm
Number of cylinder:6
Displacement: 9.726 L
Bore: 126 mm
Stroke: 130 mm
Compression ratio: 17.5:1
Specific fuel consumption: 192 g/kwh
Engine oil filling quantity: 23 L
Cooling system filling quantity (long-term filling): 40 L
Thermostat with 71°C opening begin
Double-cylinder air compressor
Rigid fan

ClutchSingle-plate dry diaphragm-spring clutch, diameter 430 mm, hydraulically operating with air assistance
TransmissionFAST transmission, model 12JS160T, synchromesh, 12 forward & 1 reverse
Ratio: 14.26 9.78 6.70 4.58 3.77 3.11 2.58 2.13 1.77 1.46 1.21 1.00 13.66®
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleSteering with double T-cross section beam
Rear AxlesPressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles
Ratio: 4.80
Option: single reduction axles, ratio: 4.22
ChassisFrame: U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe, all cold riveted cross members
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 leaf semi-elliptic springs with bogie springs
Aluminum fuel tank: 350 I capacity with locking fuel cap, fitted to the off side of the chassis
Fifth wheel size: 2 inch
Option: 3.5 inch fifth wheel
SteeringZF power steering, model ZF8098, hydraulic steering with power assistance
Ratio: 26.2
BrakesService brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Option: ABS
Wheels & TyresRims: 8.5-20, 10 hole-steel
Tyres: 12.00-20 tube
Option: 12R20 tube, 12R24 tube and 12R22.5 tubeless
Driver's CabHigh deck cab, all-steel forward control, 70°hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated
windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and
ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn,
air conditioner and single bunk, with 4-point support fully floating suspension + shock absorbers with transverse stabilizer
ElectricsOperating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2x12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument PanelActive check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions in mmWheel base
Front wheel track
Rear wheel track
Front overhang
Rear overhang
Approach angle (°)
Departure angle (°)
Overall length
Overall width
Overall height
Height of fifth wheel above road
3200 +1400
1939
1800
1500
810
15
50
6800
2496
3668
1364
Weight in kgDead weight
Rated loading capacity at fifth wheel
Gross vehicle weight
Gross combination weight
Front axle loading capacity
Rear axles loading capacity
9180
22635
32000
70000
7500
2 x 16000
PerformanceMaximum driving speed (km/h)
Maximum gradeability (%)
Minimum ground clearance (mm)
Minimum turning circle (m)
Fuel consumption (1/100 km)
102
29
298
18.5
40
