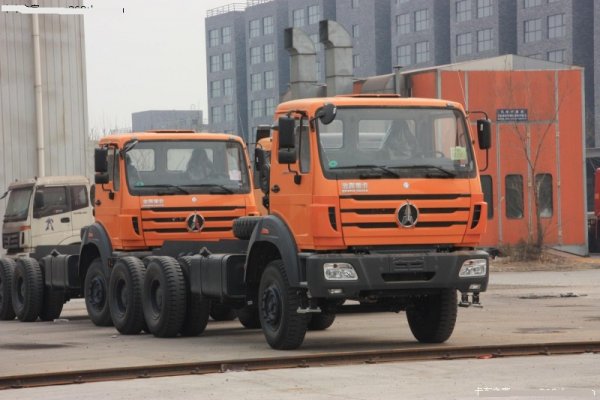

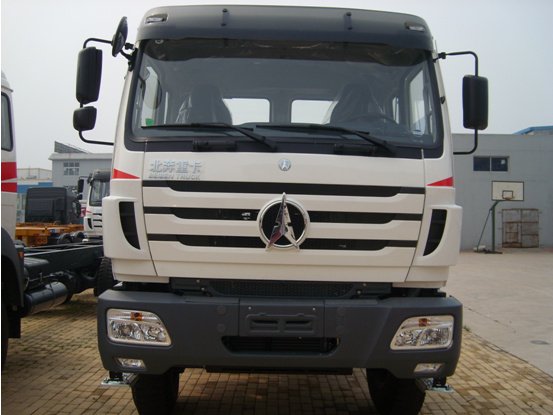

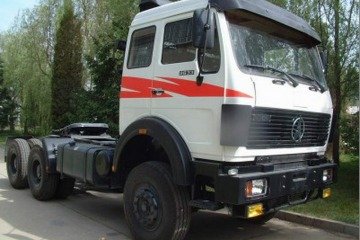

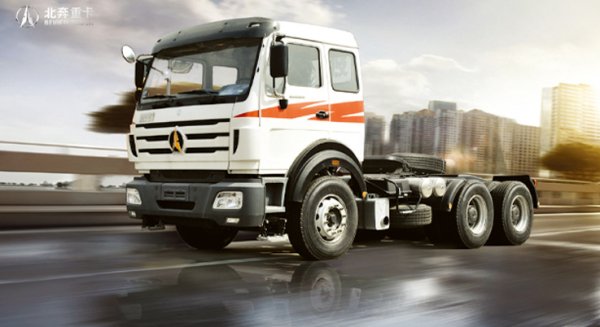

North Benz NG80 6x4 Tractor Truck Beiben brand prime mover

No.: Kobe 12 01

Vehicle Type: Tractor Head

Brand Name: BEIBEN

Beiben Trucks

Person in charge: Kobe Zhang

Cel: 0086 176 6971 7516

Whatsapp: 8617669717516

E-mail: sales30@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Mr.Kobe Zhang
Tel: 0086-532-66087516
Cel: 0086-17669717516
E-mail: sales30@chinatruck.cc

North Benz NG80 6x4 Tractor Truck Beiben cargo trucks trailer


Announcement Type

ND4253B34J

Drive Type

6X4

Wheelbase

34501450mm

Body length

6.935m

The width of the body

2.495m

Body height

3.43m

Total mass

25000 (Kg)

Curb weight

9200 (Kg)

Track

Front track: 1995    Rear track:1800mm

Front / rear overhang

1410/625 (mm)

Quality Trailer

39670 (kg)

semi-trailer saddle

15670

Approach angle

20 degrees

Departure angle

64 degrees

Engine

Engine Model:Weichai WP12.420E32,

Number of cylinders:6,

Fuel type:Diesel fuel

Displacement: 11596 ml

Emission standards:Country, three /Europe

Horsepower:420hp

Maximum output power:308KW

Transmission

Transmission Type:Fast Gear 12JS200T

shift modes: manual

Reverse gear:2
Forward gear number:12

Chassis

Description: Rear Axle rear axle allows load:18000KG
Final drive ratio: Suspension:
Spring: 13/13, 3/4

Tire

Number of tires:10+1( spare tire)

Tire Size: 12.00 R20

Tank

Fuel tank capacity:400L

5th wheel

3.5’’
