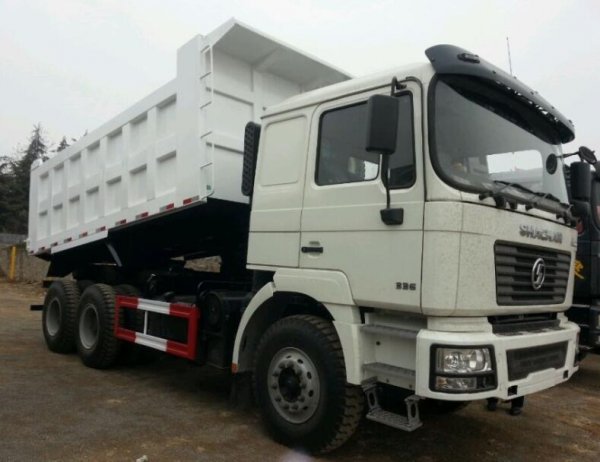

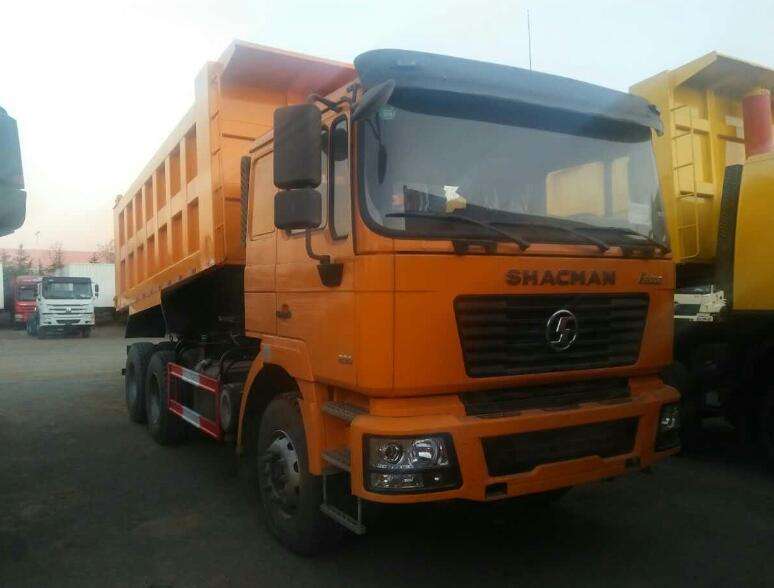

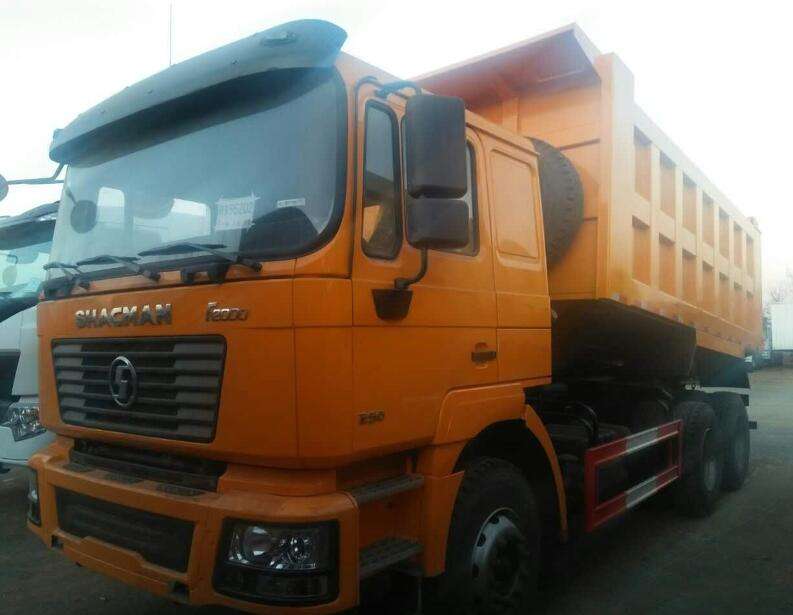

MAN Truck Technology SHACMAN F2000 6x4 10 wheeler Dump Trucks

No.: David-223

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: David Ma

Tel: 0086 532 6608 7516

Cel: 0086 181 5320 9783

E-mail: sales20@chinatruck.cc

FREE GET QUOTE

Details

MAN Truck Technology SHACMAN F2000 6x4 10 wheeler Dump Trucks


--Truck body from 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Standard color: White, Red, Yellow (Other color is optional)


Traction type: 6x4

Drive System: LHD(RHD is optional)

Cabin:F2000 Flat Cabin, one sleeper, Air Conditioner

Engine Brand:WEICHAI

Model: WP10.340E32  EuroII  Rated power :340hp

Engine displacement: 11.596 liters

Gearbox: FAST 9 Speeds (RT-11509C)

Clutch: Ф430 Diaphragm type

Steering: ZF technology

Axle: Front 7.5 Ton MAN axle; Rear 13 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h): 77

Tire: 12.00R20, 12R22.5

Fuel tank: 400L(Aluminum)

Kerb weight (kg): 12100

Total mass (kg): 31000

Wheel base (mm): 3800+1350

Dimensions(L*W*H)(mm): 8229x2500x3450


Dump body

5400x2300x1500mm,  Steel thickness (mm) :Bottom 8 , front6mm,side 6

Hydraulic lifting system: Middle lifting (HYVA front lifting is optional)
