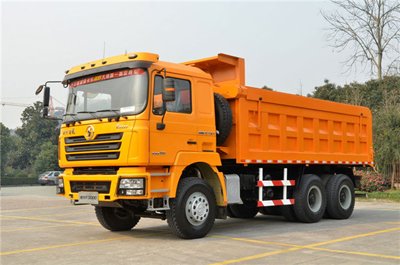

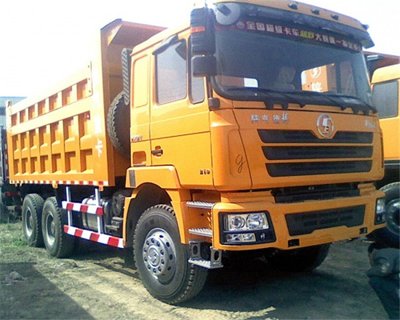

SHACMAN F3000 Tipper Cummins engine 6X4 DUMP TRUCK

No.: David-03

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: David Ma

Cel: 0086 176 6971 7515

Whatsapp: 8617669717515

E-mail: sales20@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Mr.David Ma

Tel: 0086-532-66087516

Cel: 0086-18153209783

E-mail: sales20@chinatruck.cc

SHACMAN F3000 Cummins engine 8X4 DUMP TRUCK


Traction type

6x4

Drive System

LHD/RHD

Cabin

F3000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

CUMMINS

Model

ISME345 30  EuroIII

Rated power

345hp

Engine displacement

10.8 liters

Gearbox

FAST 12 Speeds (12JSD180)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

9.5 Ton Man axle

Rear

16 Ton MAN double reduction axle, ratio:5.92

Max. running speed (km/h)

77

Tire

12.00R20

Fuel tank

400L

Kerb weight (kg)

12100

Total mass (kg)

25000

Wheel base (mm)

3575+1400

Overhang (mm) (front/rear)

1525/1530

Track (mm) (front/rear)

1939/1860

Approach / departure angle(°)

28/30

DimensionsL*W*H(mm)

Overall

8230x2490x3450

Dump body

5400x2300x1500(18.6cbm)

Thickness (mm)

Bottom 8 , front6mm,side 4

Hydraulic lifting system

Middle lifting
