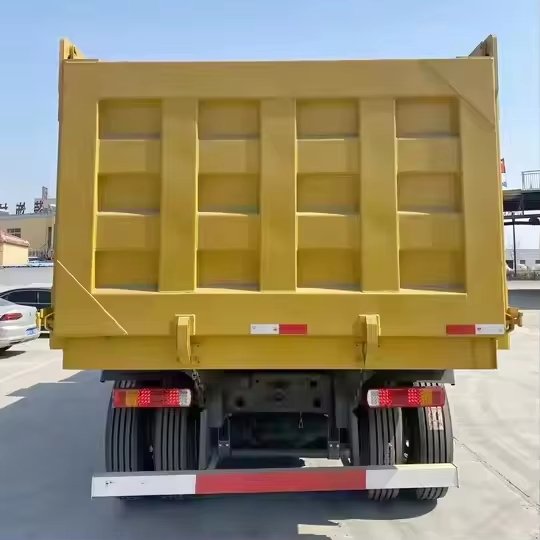

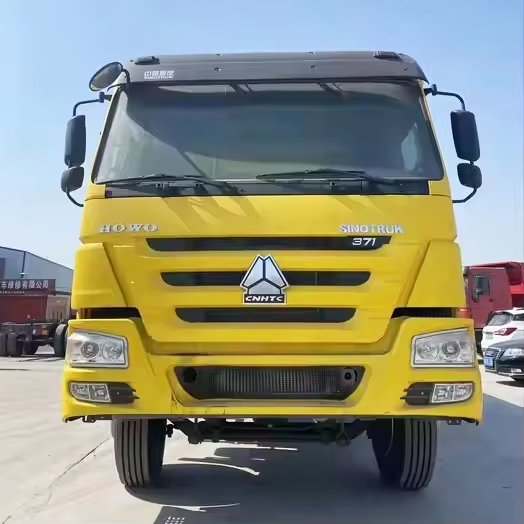

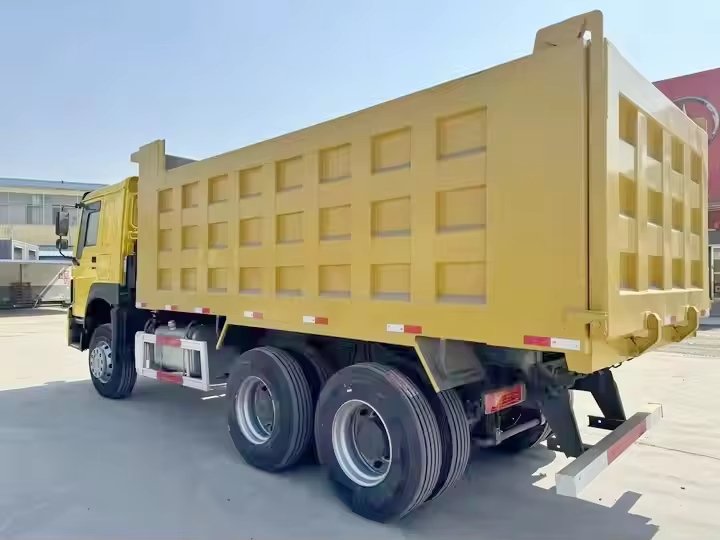

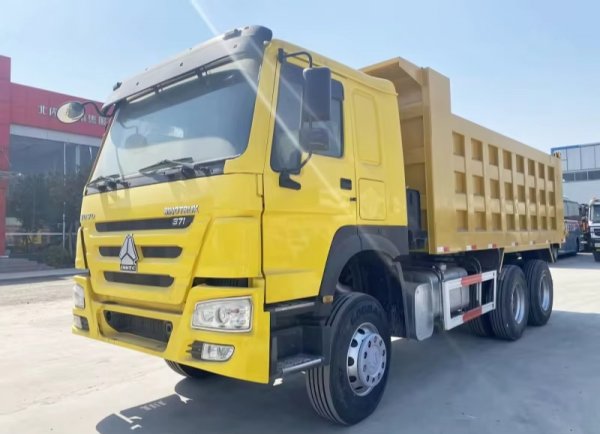

SINOTRUK Howo 371 Dump Truck

The SINOTRUK Howo 371 Dump Truck is designed for heavy-duty applications, offering robust performance and reliability. With its powerful engine, durable transmission, and advanced braking system, this truck is ideal for construction, mining, and transportation tasks.

Key Features

• Truck Brand: SINOTRUK Howo 371 Dump Truck

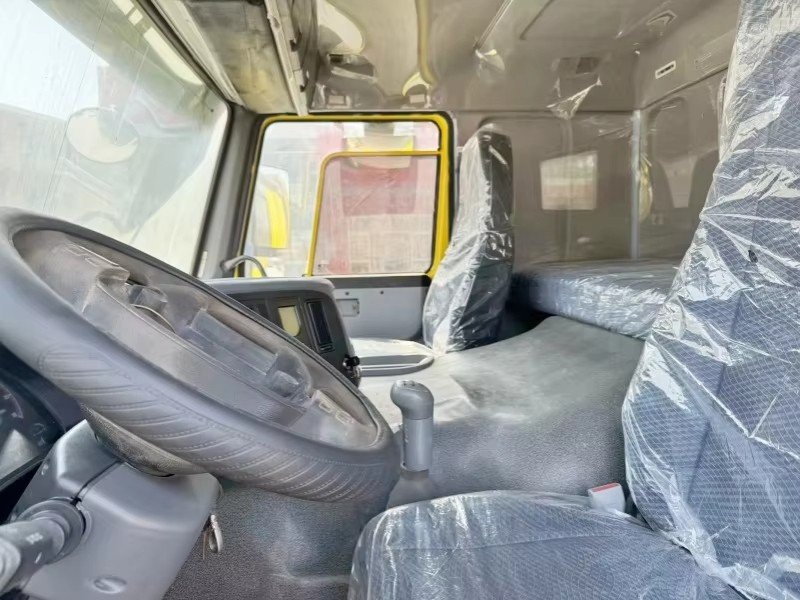

• Cab: HW76

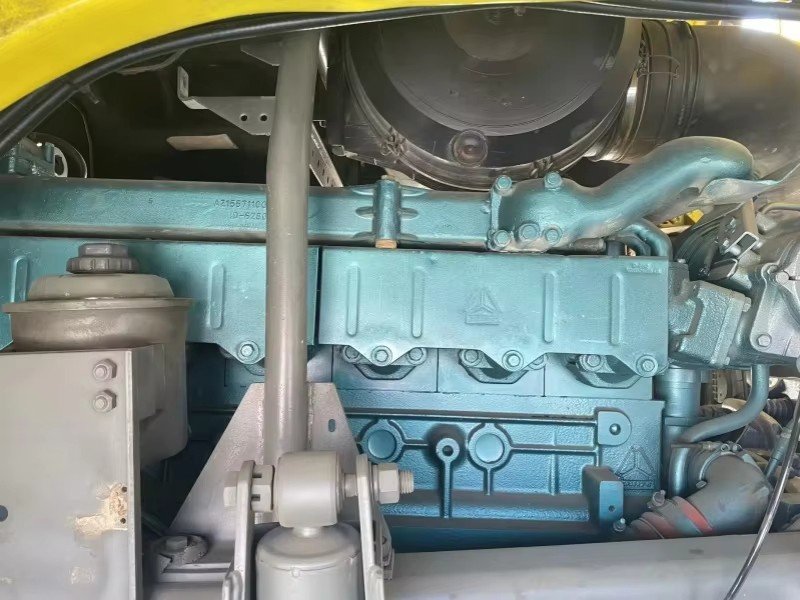

• Engine:

• Model: Euro 2 WD615.47

• Power: 273 Ps @ 2200 rpm

• Maximum Torque: 1500 Nm

• Displacement: 9.726 L

• Transmission: SINOTRUK HW19710 series 10 gears Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

• Clutch: Φ430 diaphragm spring Clutch, Hydraulic control air assisted.

• Front Axle: HF9 drum-type, rated load of 9t

• Rear Axle: HC16 double reduction (central reduction+wheel reduction), speed ratio: 5.73, 4.8

• Steering System: ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa

• Suspension:

• Steer Axle: Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer

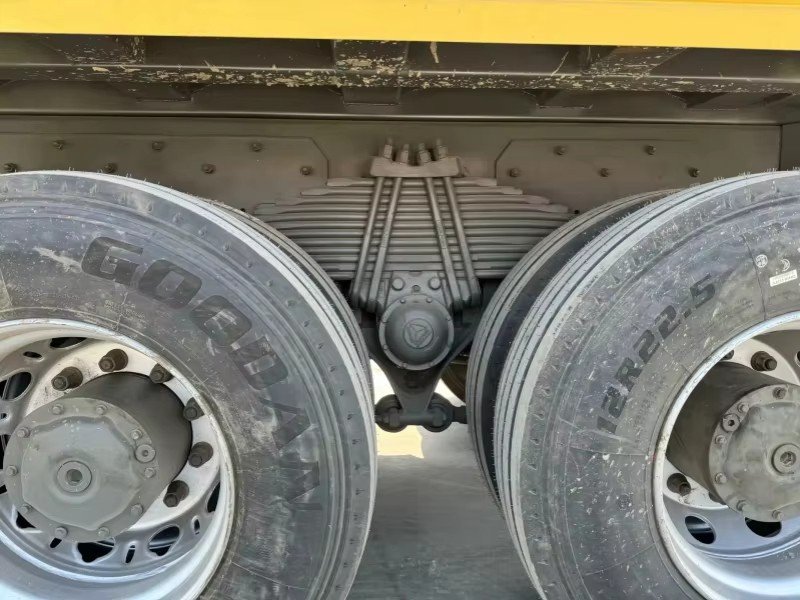

• Drive Axle: Front and rear leaf spring suspension, rear suspension is disconnected type with transverse stabilizer.

• Braking System:

• Service Brake: Dual-circuit air pressure brake

• Parking Brake: Spring storage energy without air

• Auxiliary Brake: Engine exhaust braking.

• Electric System:

• Voltage: 24V

• Generator: 2240W

• Batteries: 12V/165Ah, 2 pieces

• Starter Power: 24V, 7.5kW

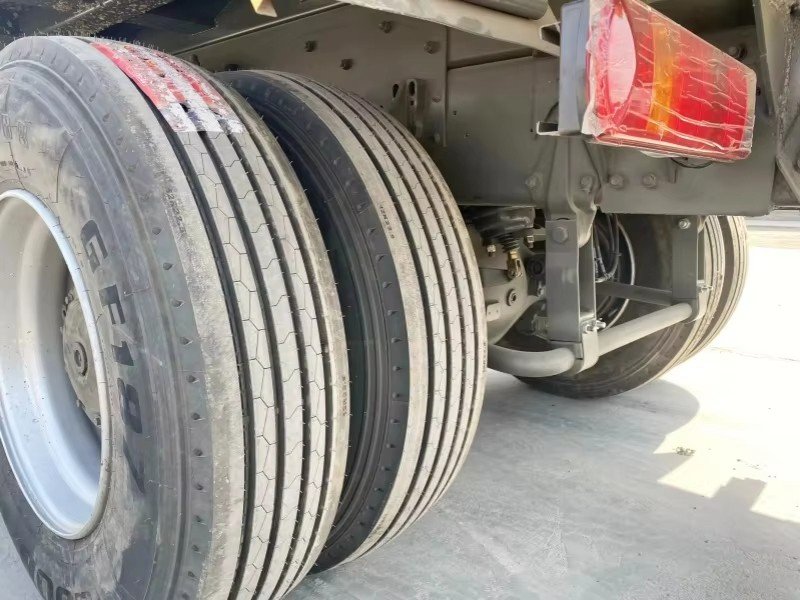

• Wheels & Tyres:

• Tyres: 12.00R20

• Optional: 12.00R24, 12.00-24

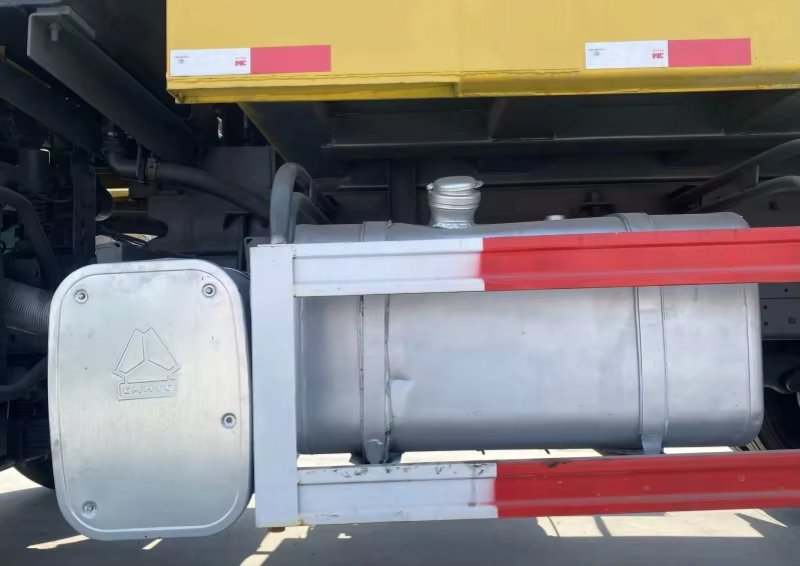

• Fuel Tank: Capacity 300 Liter

• Weights (kg): Curb weight (vehicle/chassis) 12170/8630; 12290/8660; 12450/8690; 12270/8710

• Gross Vehicle Weight: 25000 kg

• Rated Load: 12420~12700 kg

• Vehicle Dimensions (mm): Overall length x Overall width x Overall height (7545~8545)×2496×3170/3450

• Wheelbase: (3225~3825)+1350

• Front/rear overhang (vehicle/chassis): 1500/(1470/715); 1500/(1670/740); 1500/(1870/900)

• Wheel Track of Front Axle: 2041 mm

• Wheel Track of Rear Axle: 1830/1850 mm

• Performance:

• Maximum Speed (km/h): 79/83

• Maximum Gradeability (%): 20

• Minimum Turning Diameter (m): 15/16/17


Applications

• Construction site transportation

• Mining operations

• Heavy cargo hauling

• Infrastructure projects
