Product Description

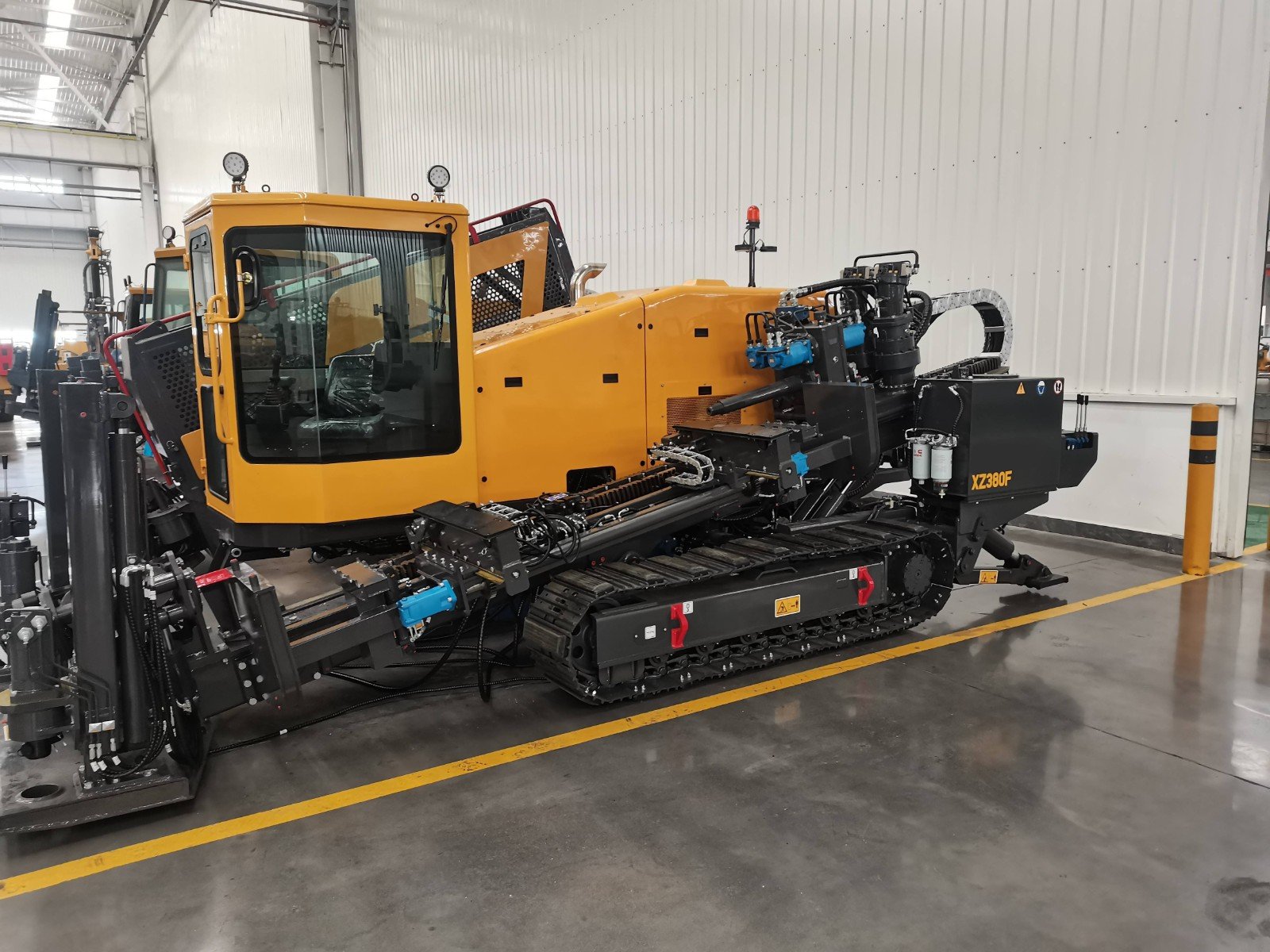

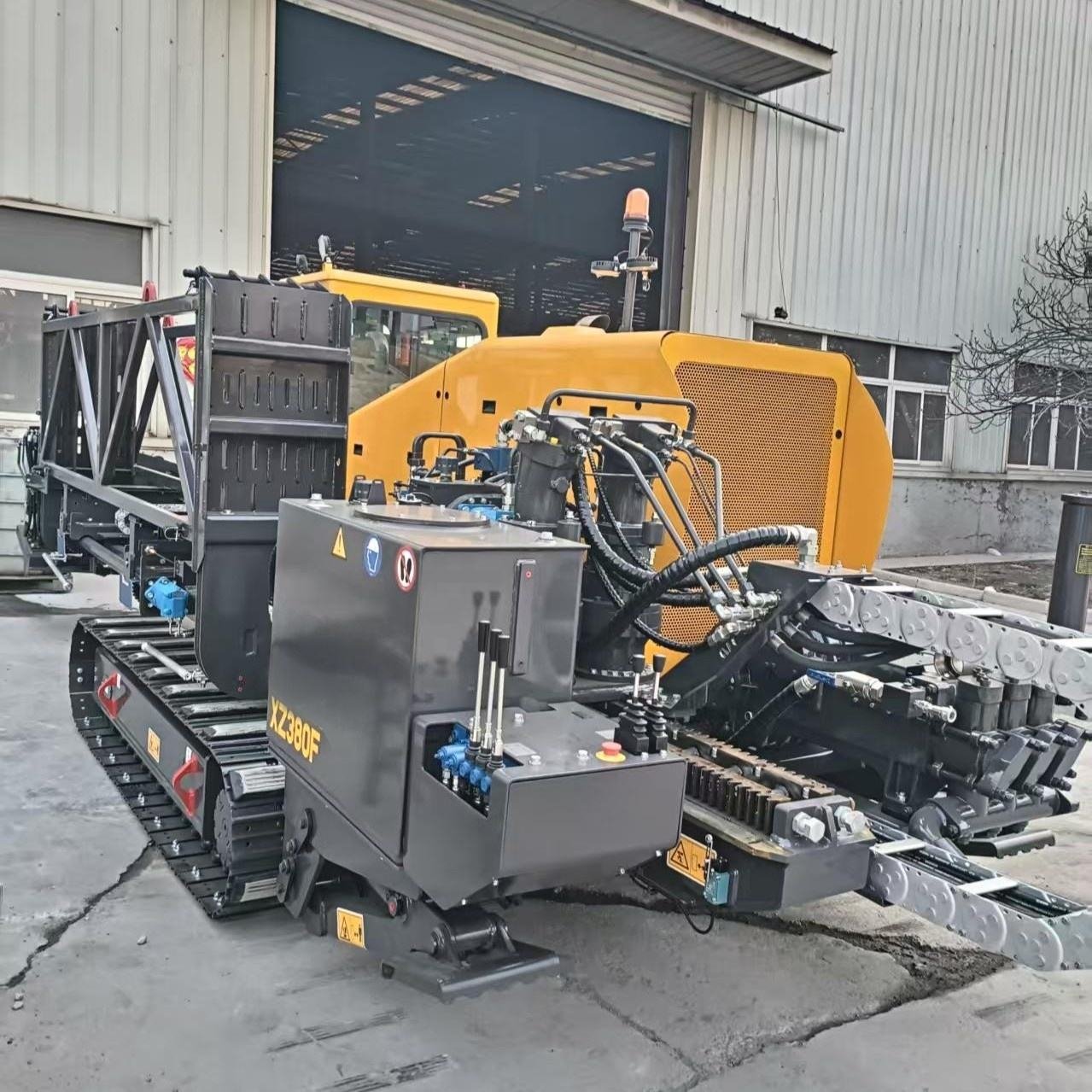

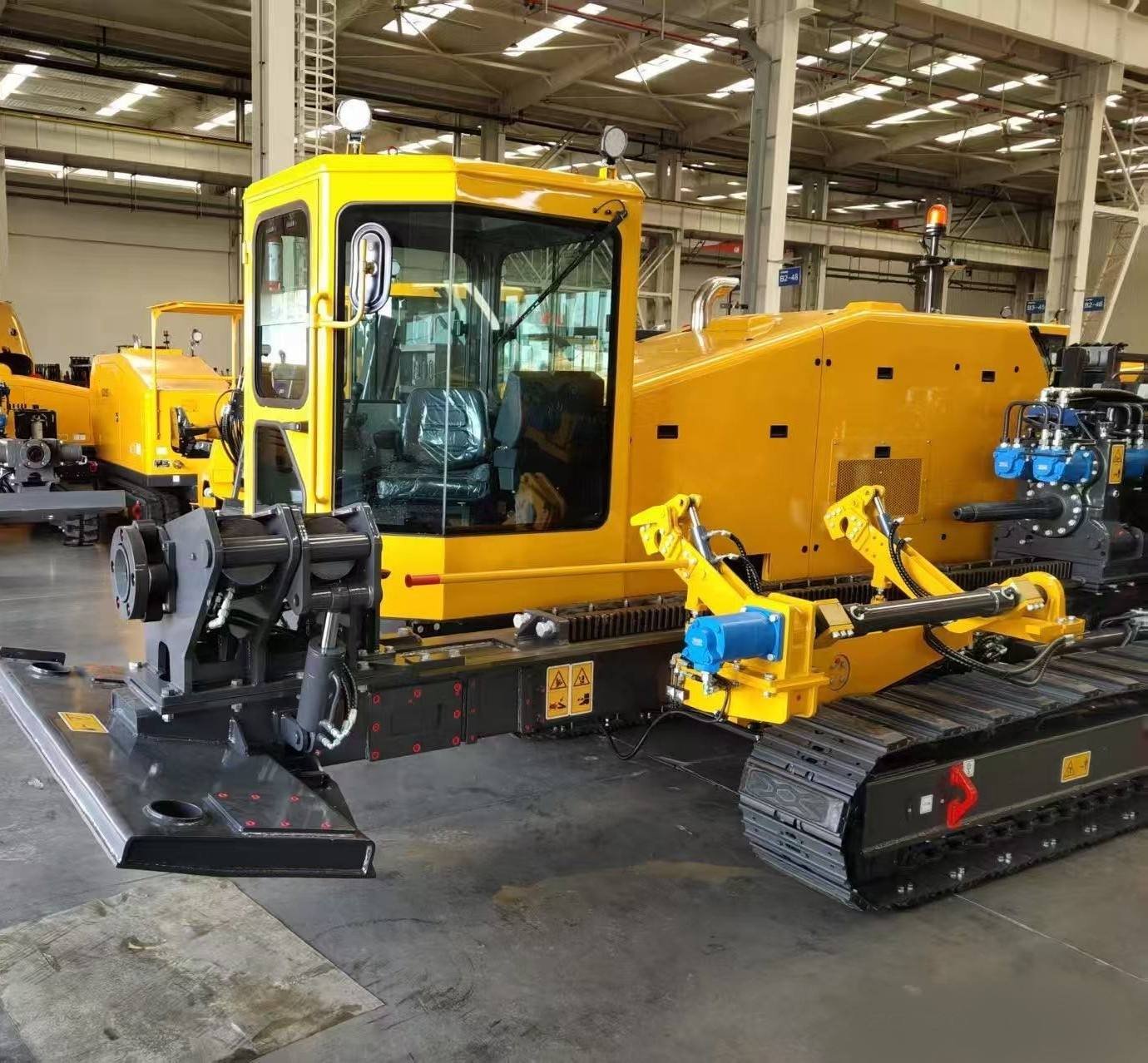

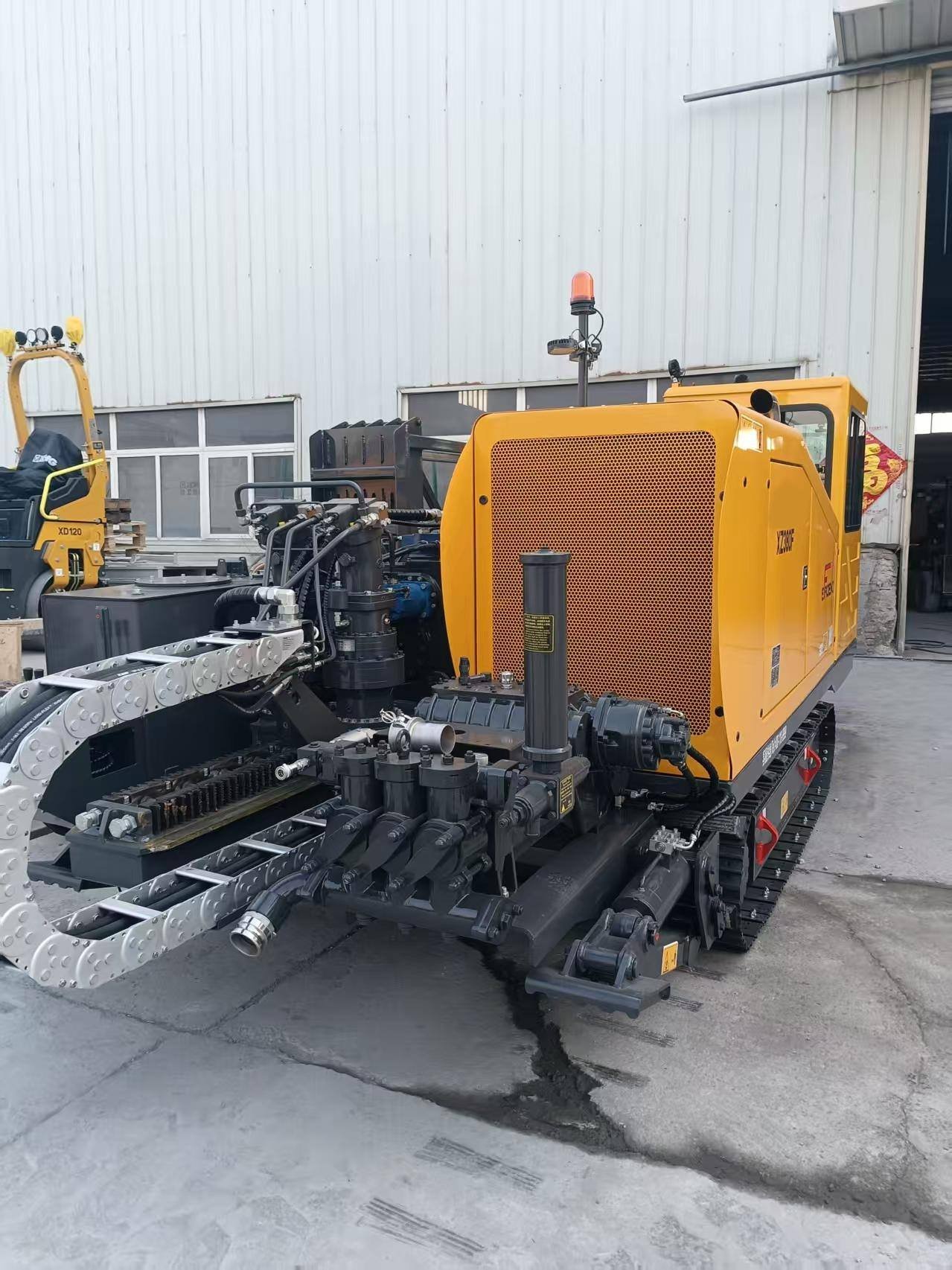

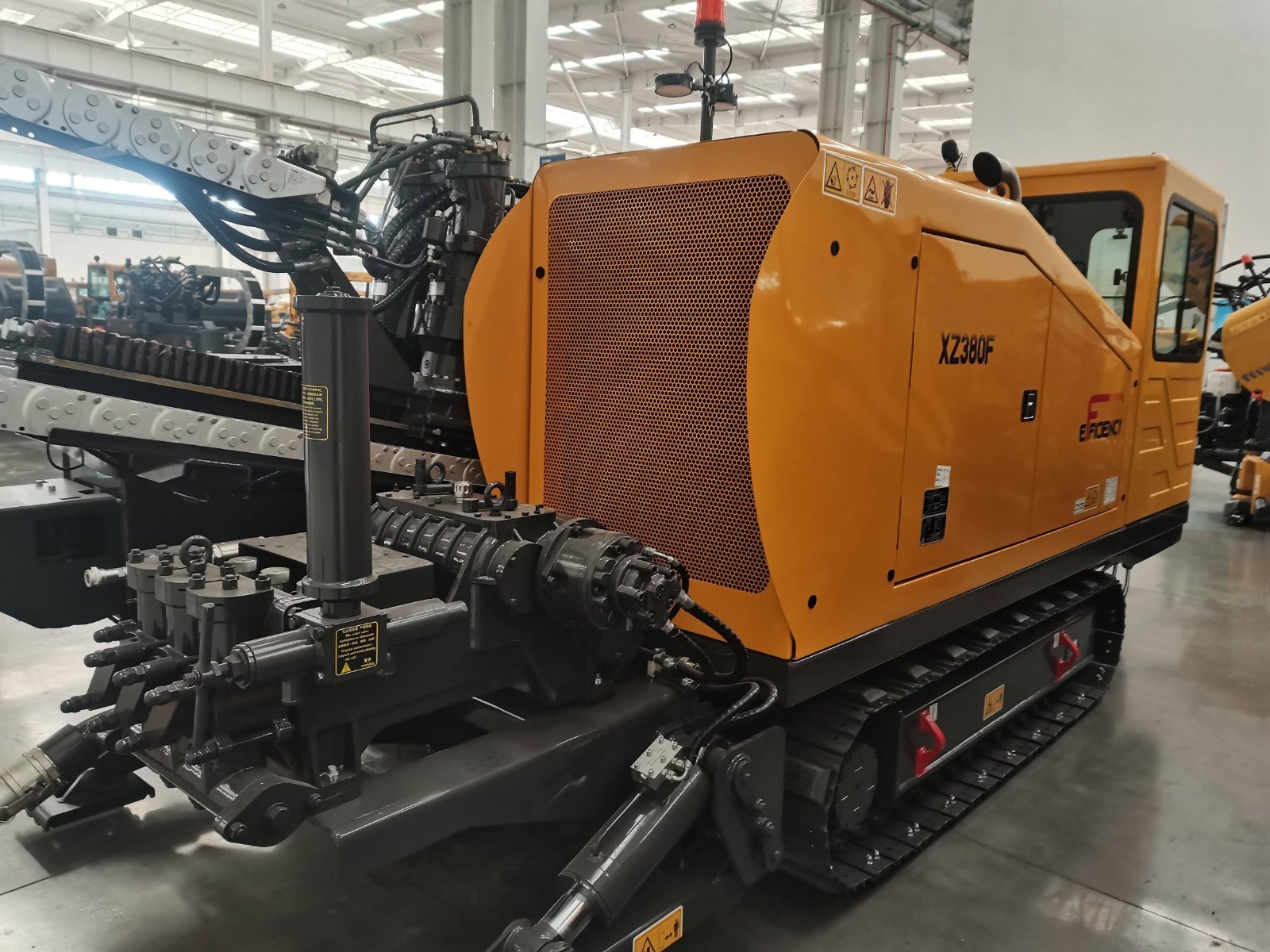

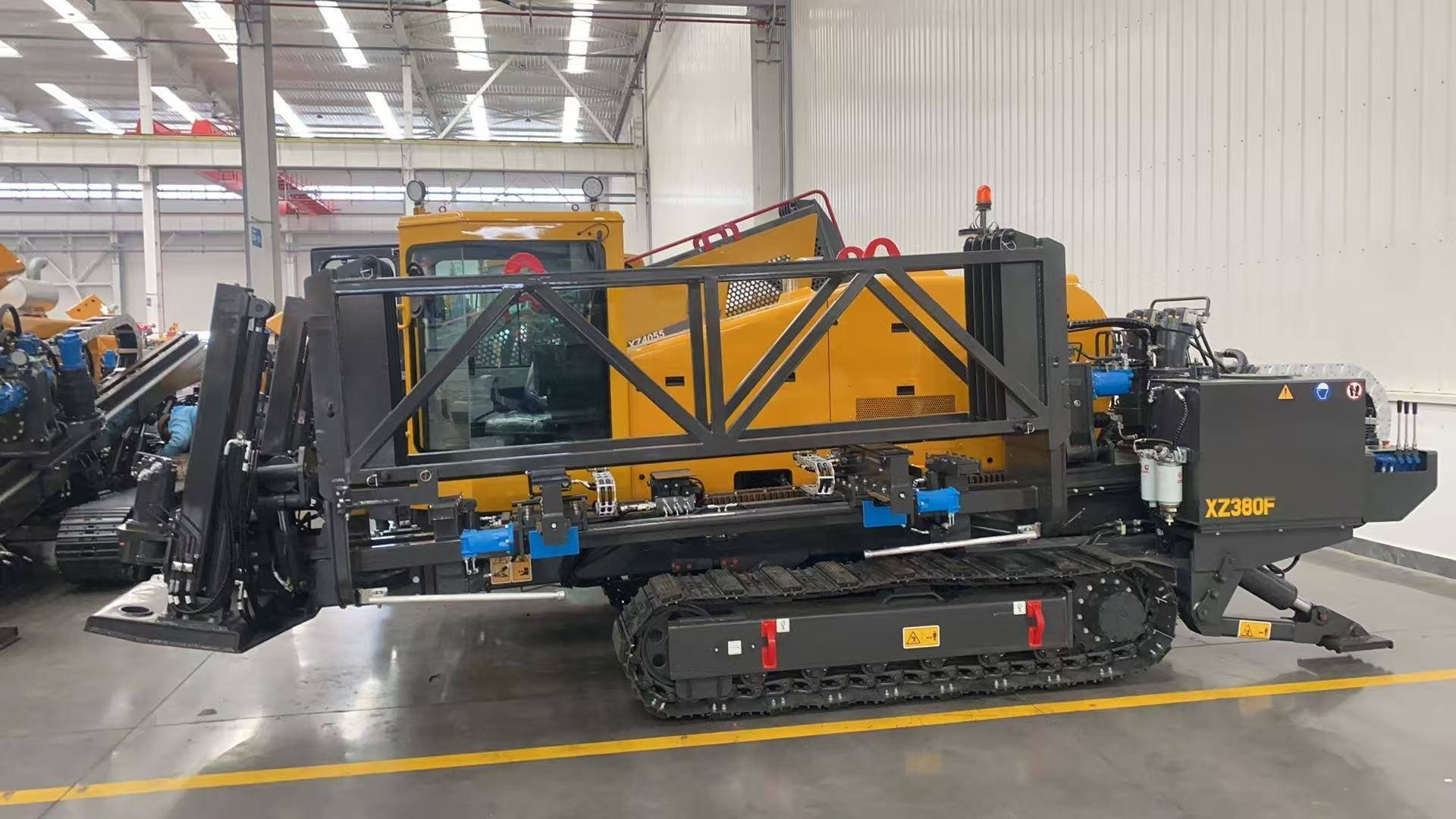

This Algeria-dedicated XCMG XZ380F 380 kN HDD horizontal directional drilling rig is engineered for trenchless power-cable, fibre-optic and 600 mm conduit installation across North-African soils and rock.

Core System 1 – High-Torque Power Unit: 239 kW Cummins engine tuned for 50 °C ambient; 15 000 Nm spindle torque and 100 rpm variable speed deliver 30 % faster rod make-up; triple-stage air and fuel filtration protects against Sahara dust.

Core System 2 – Algeria-Length Rod Management: 6 m × 89 mm API rods rated 380 kN; auto-rod loader handles 45 rods/h at 15 m/min; rod basket holds 60 rods for 360 m down-hole capacity without reload; breakout wrench torque 30 kN·m.

Core System 3 – High-Flow Mud System: 450 L/min × 100 bar piston pump, 2 × 1 500 L onboard tanks, 400 L high-shear mixer; compatible with Algerian bentonite and polymer additives; 100 m wired remote keeps operator clear of rotating rods.

Local Compliance: certified by Sonelgaz and Algerian Ministry of Energy (Cert. No. 380F-2024-DG-ER), fitted with CE emergency stop and NF P18-351 reflective markings. This configuration is not sold in China or other export markets—produced only for authorised Algerian distributors.

Service Guarantees
Easy Returns – 30 days unused, original packaging; < 10 h use attracts 15 % restocking fee.
Global Delivery – FOB/CIF to Algiers, Oran, Annaba; inland haulage arranged.
Service Excellence – 8 authorised service centres (Algiers, Oran, Constantine, Ouargla, Sétif); 24/7 French/Arabic hotline; 72 h on-site pledge.
Quality Assurance – 36 month / 3 000 h full-machine warranty; optional Algerian extension covers rod-thread galling and mud-pump wear.

Commercial Contact
International Sales Division – Algeria Market
William: +86 186 6977 8647 (WhatsApp / WeChat)

Shipping Terms
Production lead time: 45–60 days after deposit
Port of loading: Shanghai / Ningbo, China
Destination support: customs clearance, port handling, on-site commissioning within 200 km of major cities
MOQ: 1 unit retail, 2 units dealer
Payment: 30 % T/T deposit, 70 % before shipment; L/C at sight for approved contractors
