Compatible Models

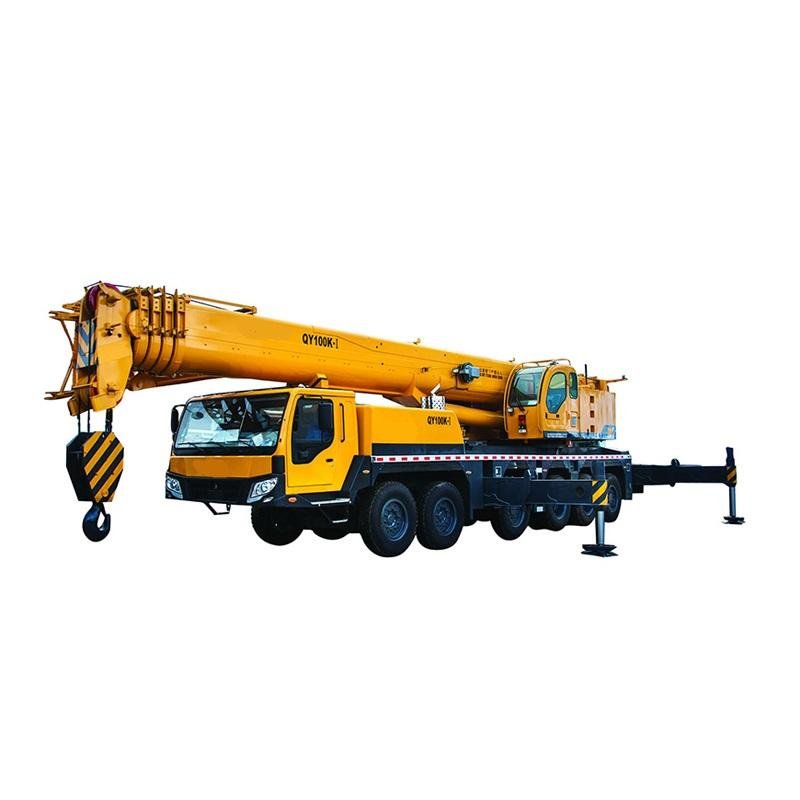

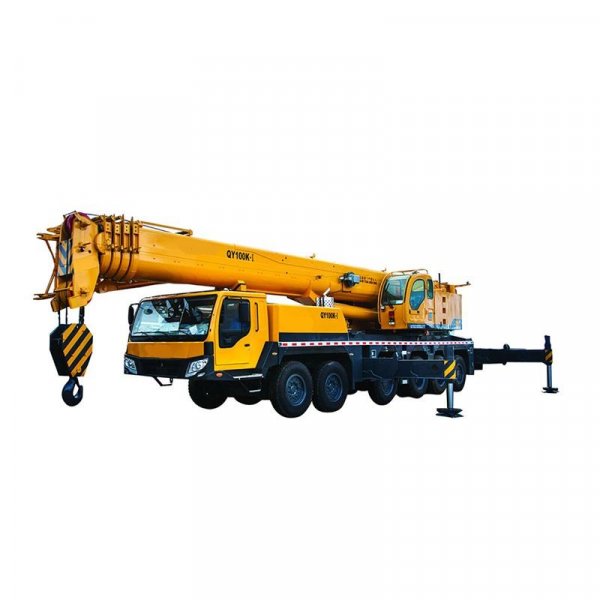

QY100KH Hydraulic Truck Crane (Algeria Market Specification Only)
Key Parameter 1: Max rated capacity 100 t @ 3 m radius
Key Parameter 2: Max lifting moment 3 469 kN·m
Key Parameter 3: Max tip height 83.5 m (main + jib)

Technical Specifications
Engine: Benz OM502LA Euro II, 360 kW (489 hp) @ 1 800 rpm
Max torque: 2 200 Nm @ 1 300 rpm
Travel speed: 80 km/h
Gradeability: 45 %
Min. ground clearance: 310 mm
Overall weight: 54 900 kg
Axle load (6-axle): 7.5 – 12 t each
Outrigger span (full): 7.56 m longitudinal, 7.6 m lateral
Main boom: 13.7 – 52.2 m (5-section)
Jib: 18.1 m + 4 m insert
Max hoist height: 83.5 m
Hoist winch: dual, 0–130 m/min line speed
Hydraulic pump: Rexroth A4VG180 variable, load-sensing
System pressure: 35 MPa
Cab: panoramic, ROPS, air-conditioned, 10.4" Arabic/French display
Counterweight: 15 t (3 + 12 t removable)

Product Description
This Algeria-dedicated QY100KH 100-ton hydraulic truck crane is engineered for erecting 220 kV transmission towers, wind-turbine nacelles and petro-chemical modules across North-African deserts and Atlas mountain terrain.

Core System 1 – Excellent Hydraulic & Pump Package: imported Rexroth A4VG180 variable pump plus load-sensing multi-valve delivers 35 MPa pressure with 15 % higher operation efficiency; electronic over-load protection eliminates shock surge, giving 0–130 m/min hoist speed and millimetre-precision micro-moves for tower-flange bolting.

Core System 2 – Euro-II Power-Train for Algeria Altitude: Benz OM502LA V8 diesel rated 360 kW/2 200 Nm, de-rated for 50 °C ambient and 2 000 m altitude without de-rate; dual-stage safety air filter and 600 L aluminium tank provide 1 000 km highway range between refuelling points.

Core System 3 – 83.5 m Reach with Algeria Wind-Profile: 52.2 m five-section boom + 18.1 m/4 m jib achieves 83.5 m tip height; boom profile uses imported high-strength fine-grain steel and V-groove weld, reducing weight 8 % and increasing side-stability 12 % under 45 km/h Algerian wind gusts; single-cylinder pinning with three-way safety (mechanical, electrical, hydraulic) ensures reliable telescoping at –10 °C winter mornings.

Local Compliance: certified by Algerian Ministry of Energy (Cert. No. QY100KH-2024-DG-EP), fitted with NF P98-754 emergency stop and retro-reflective markings. This configuration is not sold in China or other export markets—produced only for authorised Algerian distributors.

Service Guarantees
Easy Returns – 30 days unused, original packaging; < 10 h use attracts 15 % restocking fee.
Global Delivery – FOB/CIF to Algiers, Oran, Annaba; inland haulage arranged.
Service Excellence – 8 authorised service centres; 24/7 French/Arabic hotline; 72 h on-site pledge.
Quality Assurance – 12 month / 2 000 h full-machine warranty; optional Algerian extension covers hydraulic-pump and winch brake wear.

Commercial Contact
International Sales Division – Algeria Market
William: +86 186 6977 8647 (WhatsApp / WeChat)

Shipping Terms
Production lead time: 35–40 days after deposit
Port of loading: Shanghai / Tianjin, China
Destination support: customs clearance, port handling, on-site commissioning within 200 km of major cities
MOQ: 1 unit retail, 2 units dealer
Payment: 30 % T/T deposit, 70 % before shipment; L/C at sight for approved contractors
