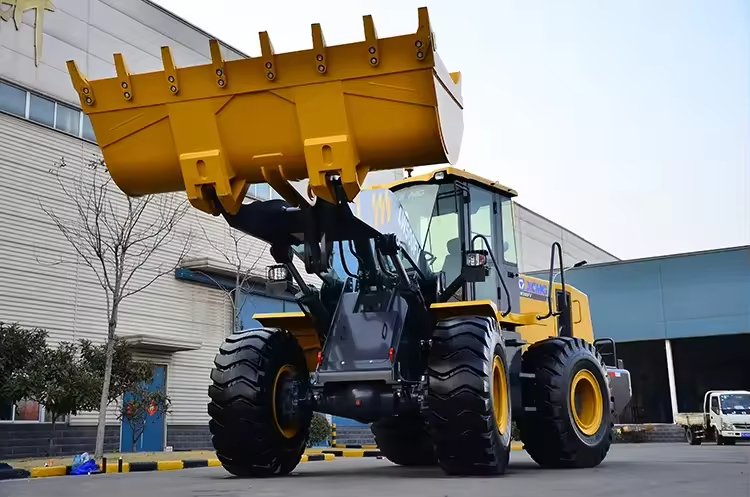

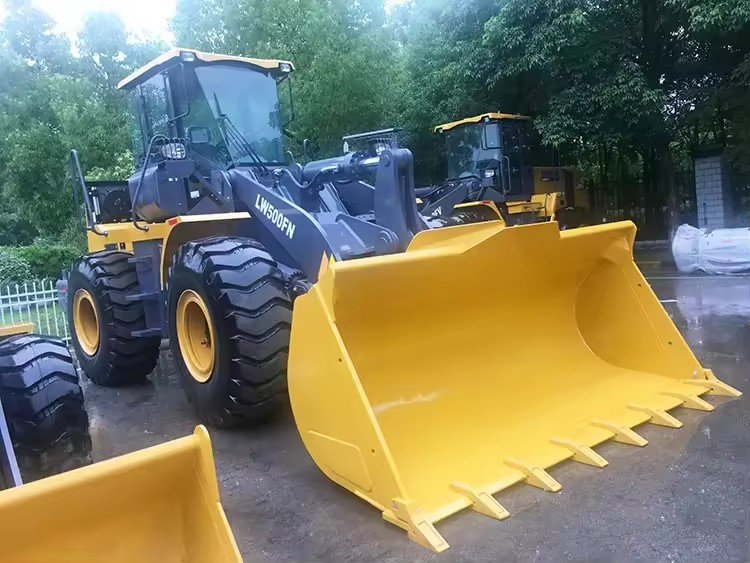

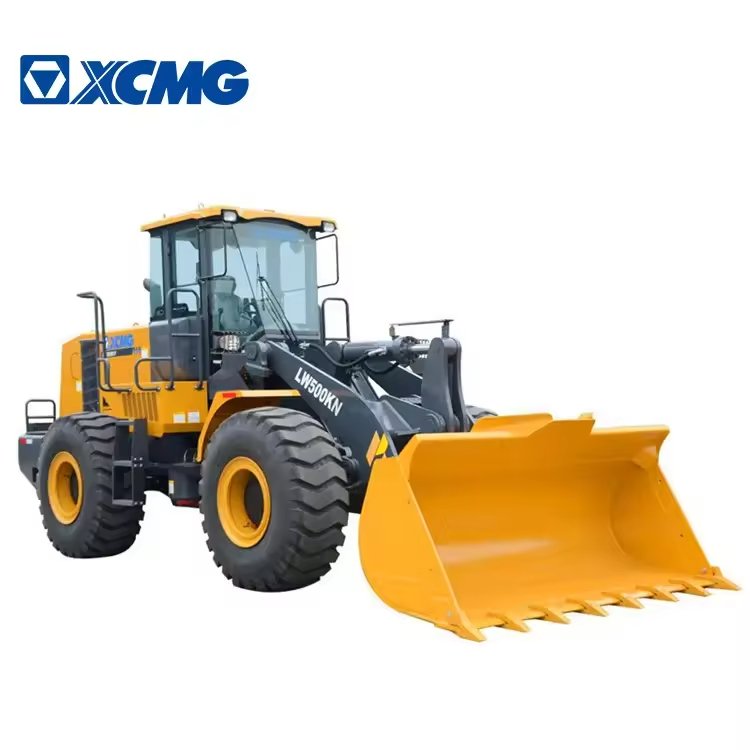

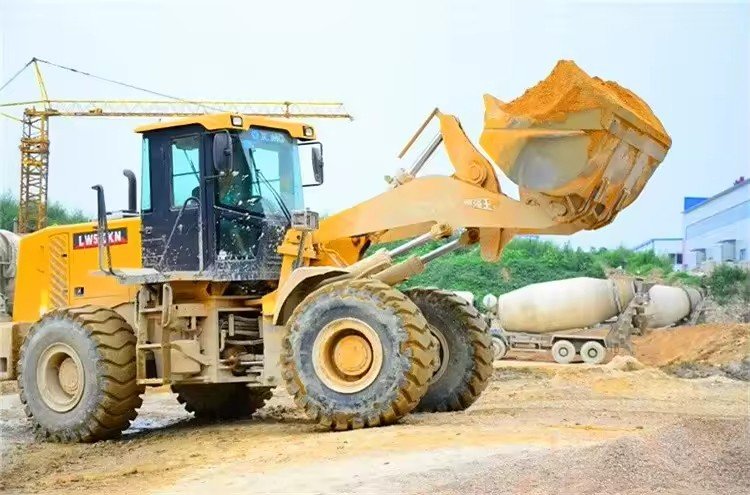

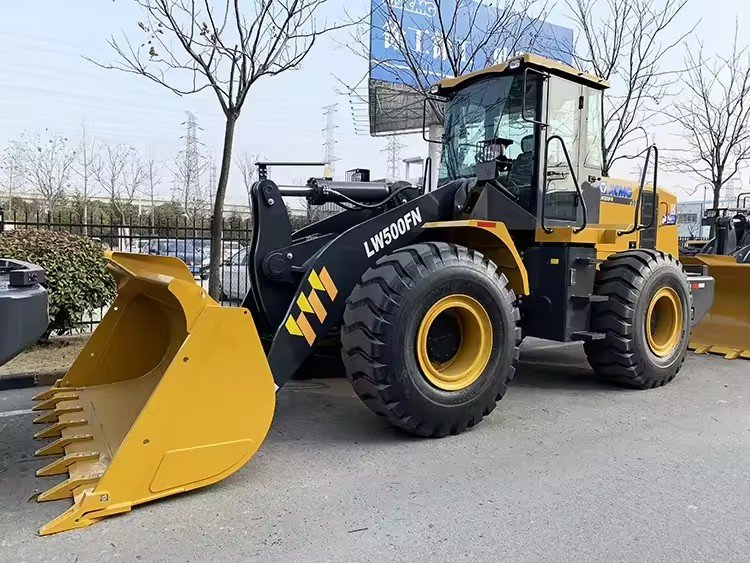

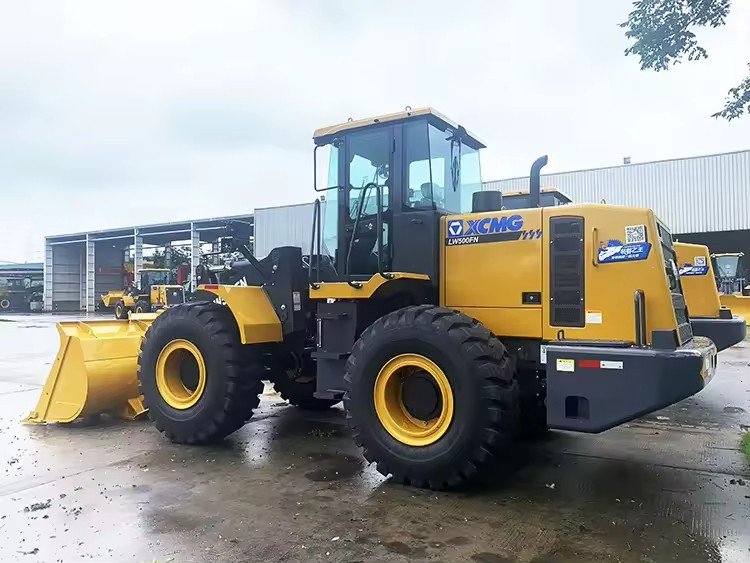

XCMG LW500FN 5Tons Mini Hydraulic Wheel Loader for Construction
No.:
Vehicle Type: Wheel Loader
Brand Name: XCMG
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Product Description – XCMG LW500FN 5-Ton Mini Hydraulic Wheel Loader
| Parameter | Value |
|---|---|
| Model | XCMG LW500FN |
| Rated operating load | 5 000 kg |
| Bucket capacity | 2.5 m³ (standard) / 3.0 m³ (coal) |
| Operating weight | 16 500 kg |
| Engine | Weichai WD10G220E21, 162 kW / 220 HP, Tier II / Euro III |
| Max breakout force | 170 kN |
| Max traction | 156 kN |
| Dump clearance | 3 150–3 560 mm (depending on boom) |
| Dump reach | 1 100–1 230 mm |
| Wheelbase | 2 960 mm |
| Turning radius (bucket outer) | 5 950 mm |
| Travel speed | 0–38 km/h |
| Hydraulic cycle time | ≤9.9 s (total of lift, dump, lower) |
| Tyres | 23.5-25-16PR |
| Overall dimensions | 8 010 × 3 016 × 3 515 mm |
Highlights
High torque & efficiency drive chain – reasonable power matching
Strong frame – box-section front & rear frames with high carrying capacity
Dual-pump combination hydraulics – fast action, 9.9 s total cycle
Ergonomic cab – ROPS/FOPS, A/C, panoramic view, low noise < 75 dB
Low maintenance – grouped lube points, easy daily checks
Applications
Construction sites, aggregate yards, coal logistics, landscapingSpare-Parts Support
Genuine & OEM: engine, hydraulics, transmission, buckets, teeth, filters
Global shipping: 25–35 days worldwide
Warranty: 12 months parts & service
