Sinotruk TX-F 8×4 371 HP Euro II Angola-Congo-Kinshasa 25 m³ Construction Dump Truck for Sale
Key Features

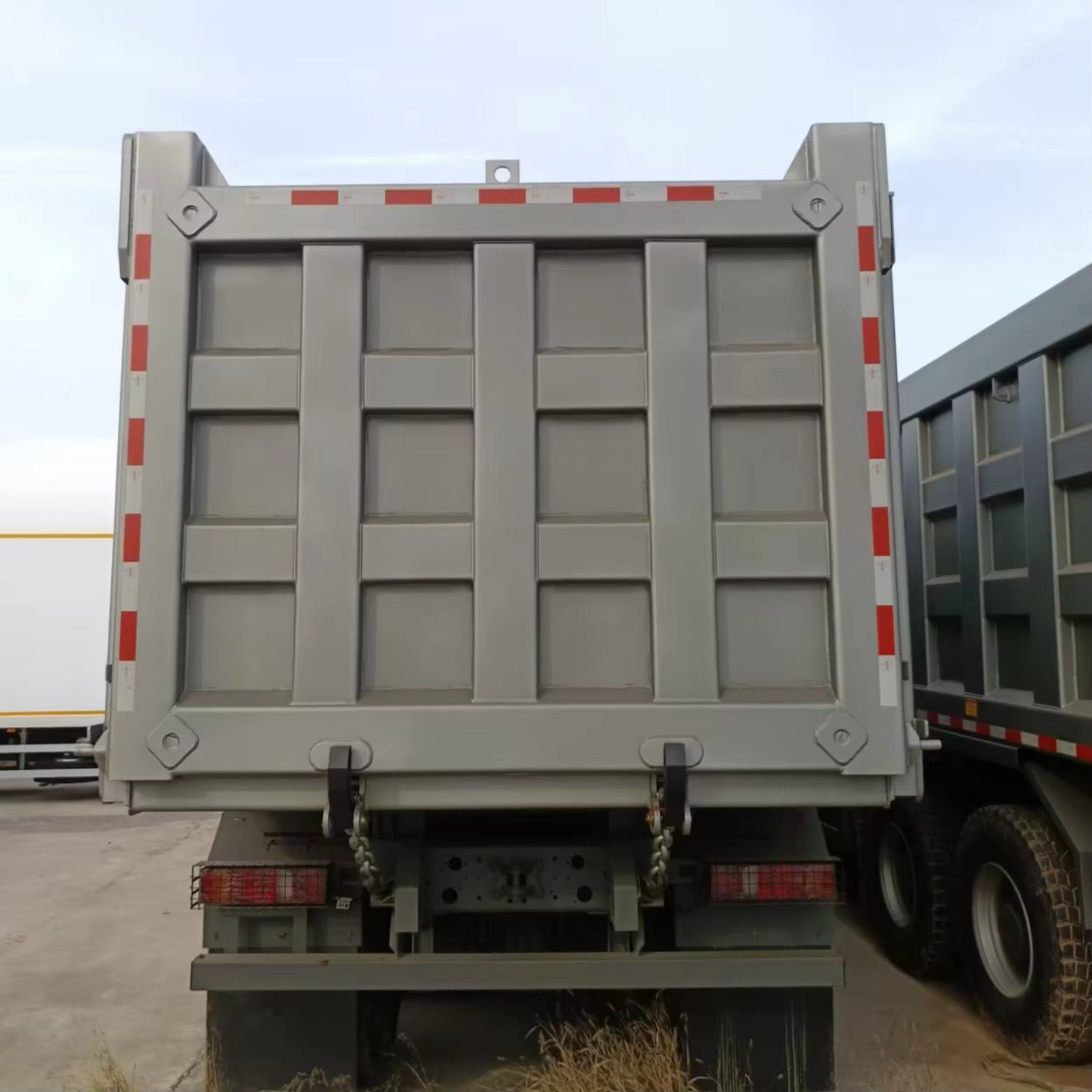

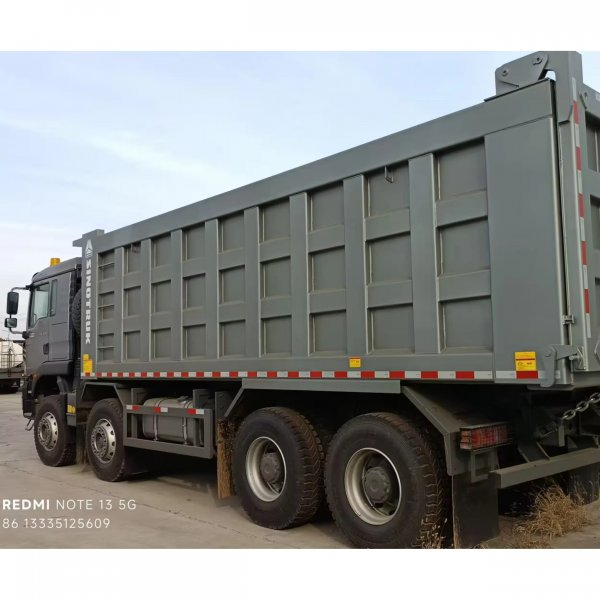

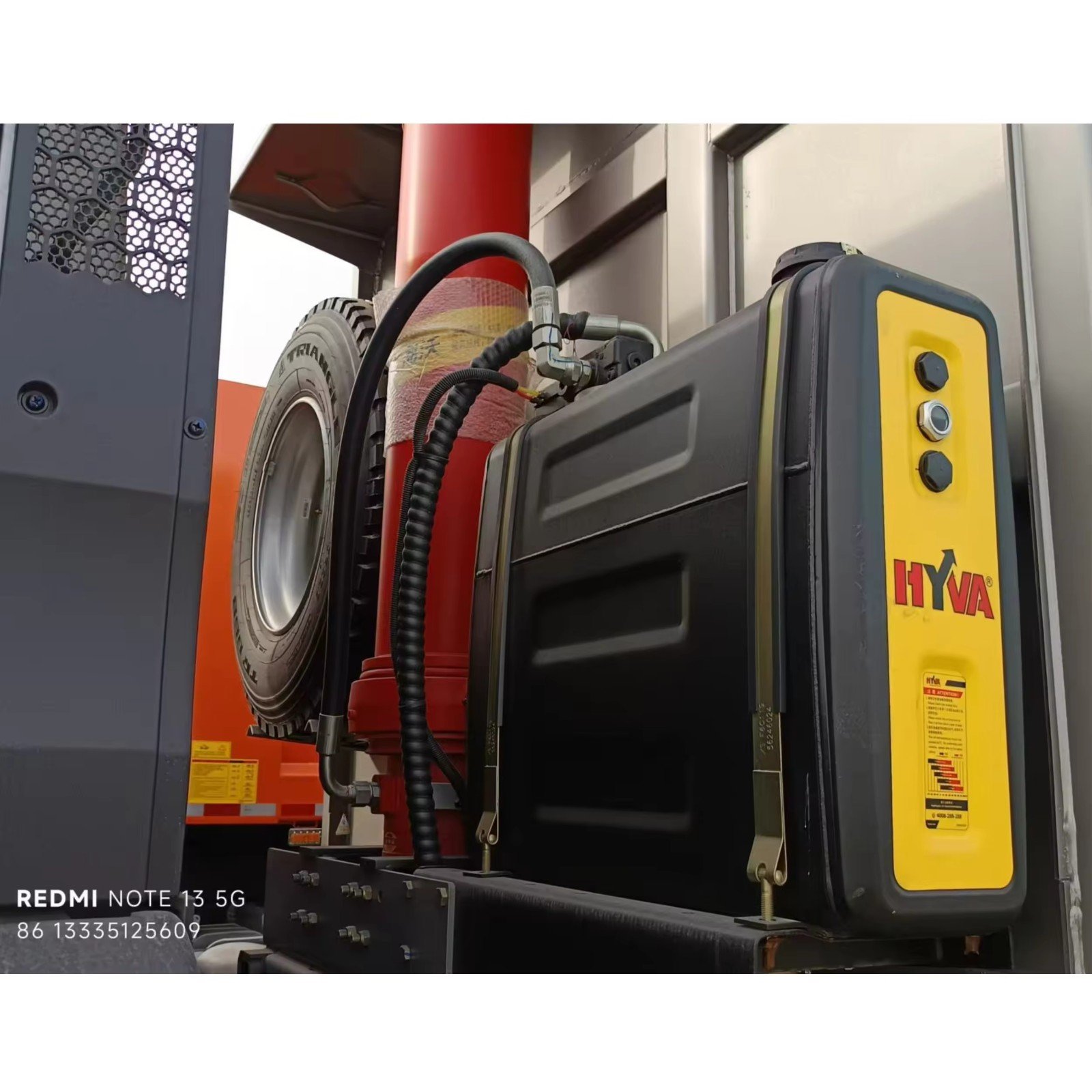

25 m³ square dump body, 4 mm floor / 3 mm sides, front telescopic lift, 45° tipping angle.

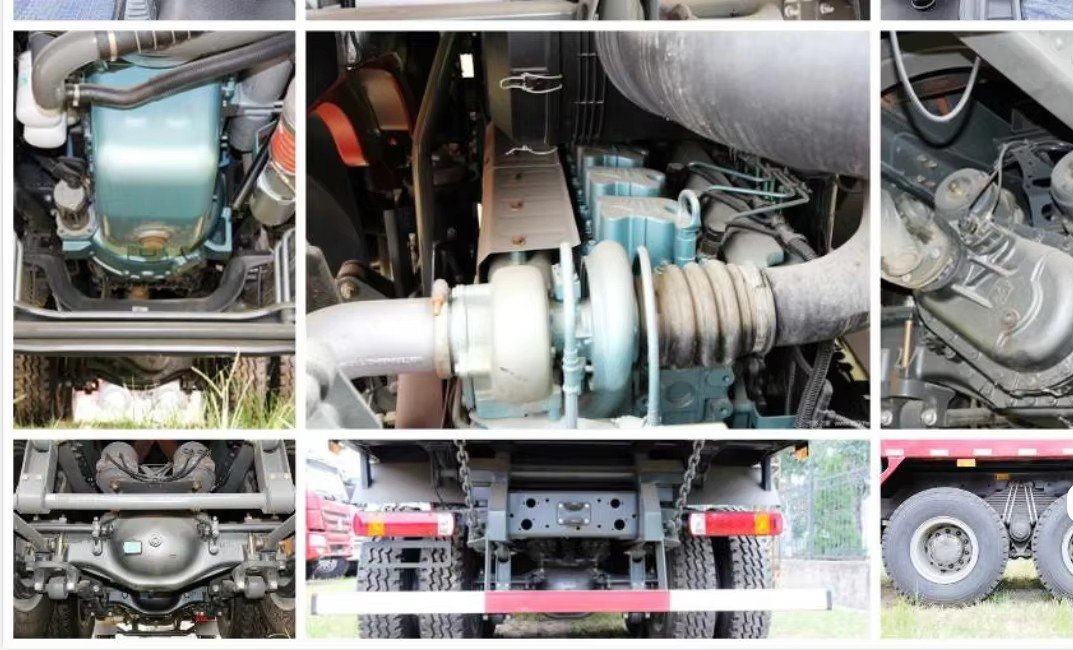

371 HP WD615.47 Euro II diesel, 1460 N·m torque, HW19710 10-speed + HW50 direct PTO.
8×4 drive, 1800+3525+1350 mm wheelbase, 5.451 ratio MCX16ZG manual rear axles.
Reinforced 8+8/300 mm double-layer frame, 11/11/12 leaf springs for 40 t GVW.

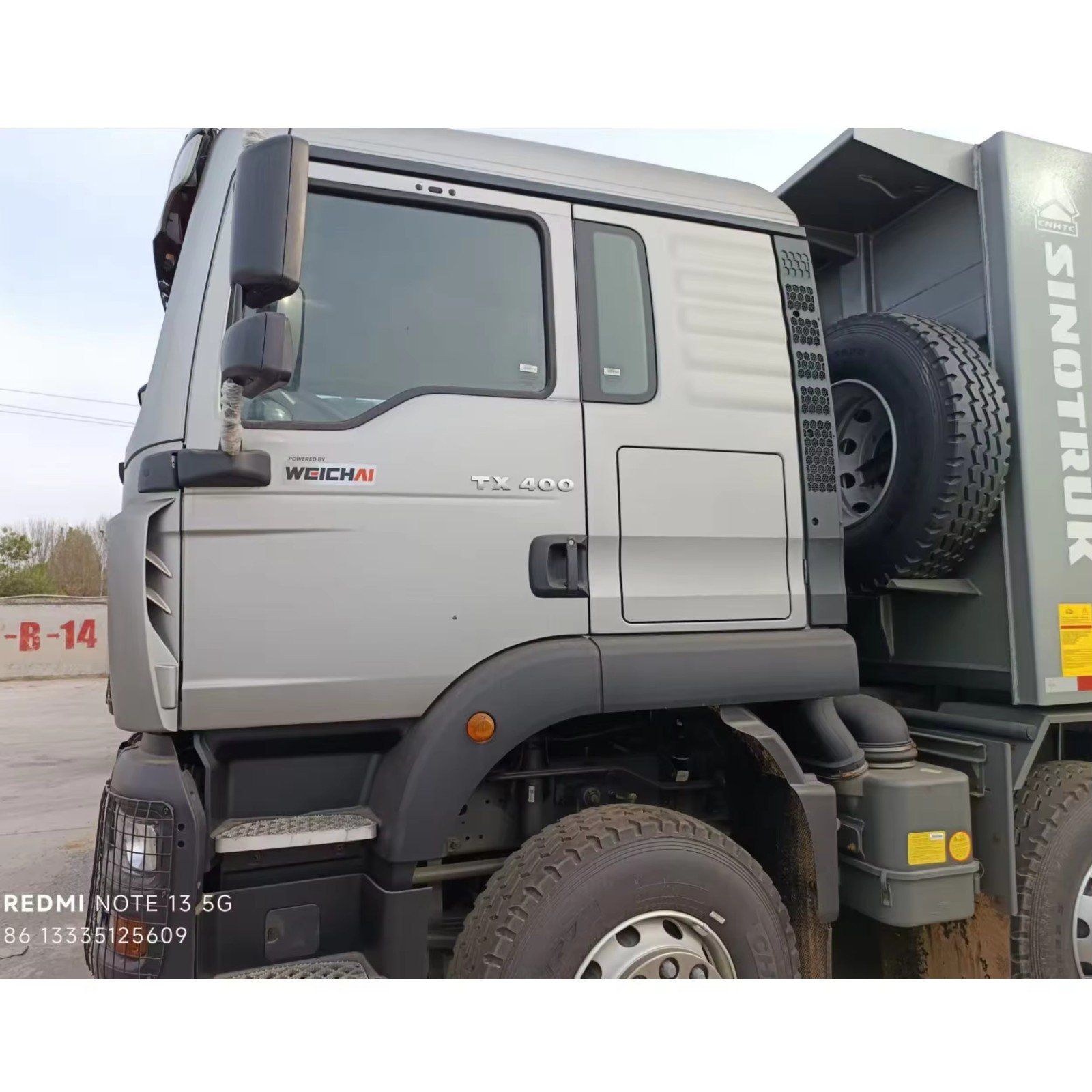

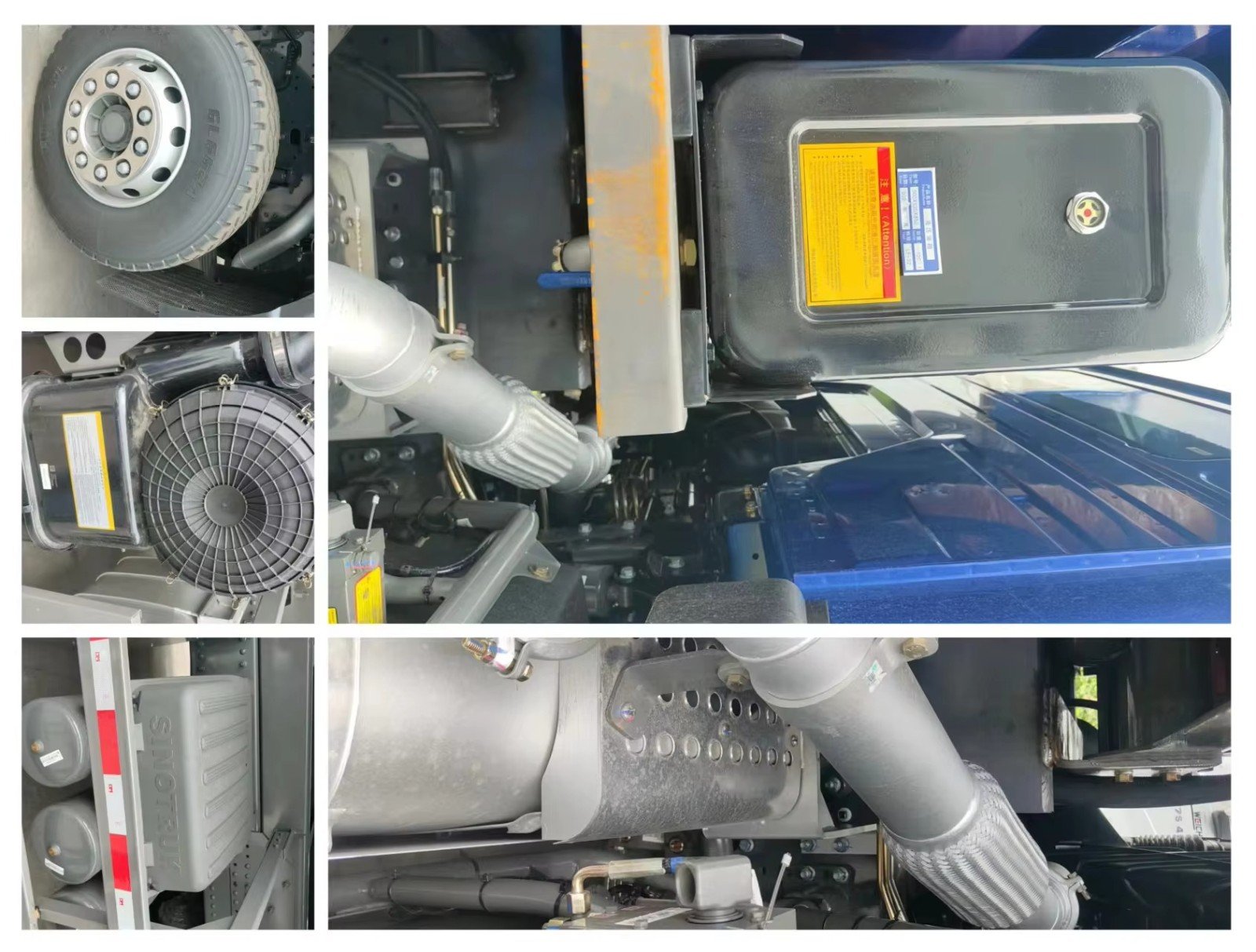

TX-F sleeper cab, 400 L fuel tank, dust-proof intake, full-metal bumper, no ABS for cost-effective markets.
Specifications
| Item | Specification |
|---|---|
| Model | Sinotruk TX-F 8×4 Dump |
| Engine | WD615.47, 371 HP Euro II |
| Displacement | 9.7 L |
| Gearbox | HW19710 10-speed + HW50 PTO |
| Drive | 8×4 |
| Wheelbase | 1 800 + 3 525 + 1 350 mm |
| Dump Body | 25 m³ (6 800 × 2 300 × 1 550 mm) |
| GVW | 40 000 kg |
| Curb Weight | 15 200 kg |
| Rated Payload | 24 800 kg |
| Front Axle | VGD95, 9.5 t drum |
| Rear Axle | MCX16ZG 16 t ×2, 5.451 ratio |
| Frame | 8+8/300 mm double-layer |
| Suspension | 11/11/12 leaf springs |
| Tires | 12.00R20 mixed 18PR |
| Fuel Tank | 400 L aluminum |
| Cab | TX-F sleeper, air seat |
| Max Speed | 80 km/h |
| Certification | ISO9000, CCC, Angola/Congo/Kinshasa |
| Warranty | 1 year / 100 000 km |
Contact us for pricing and configuration options！
