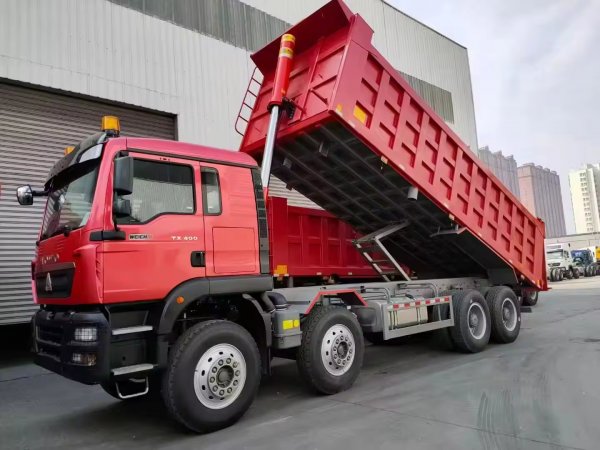

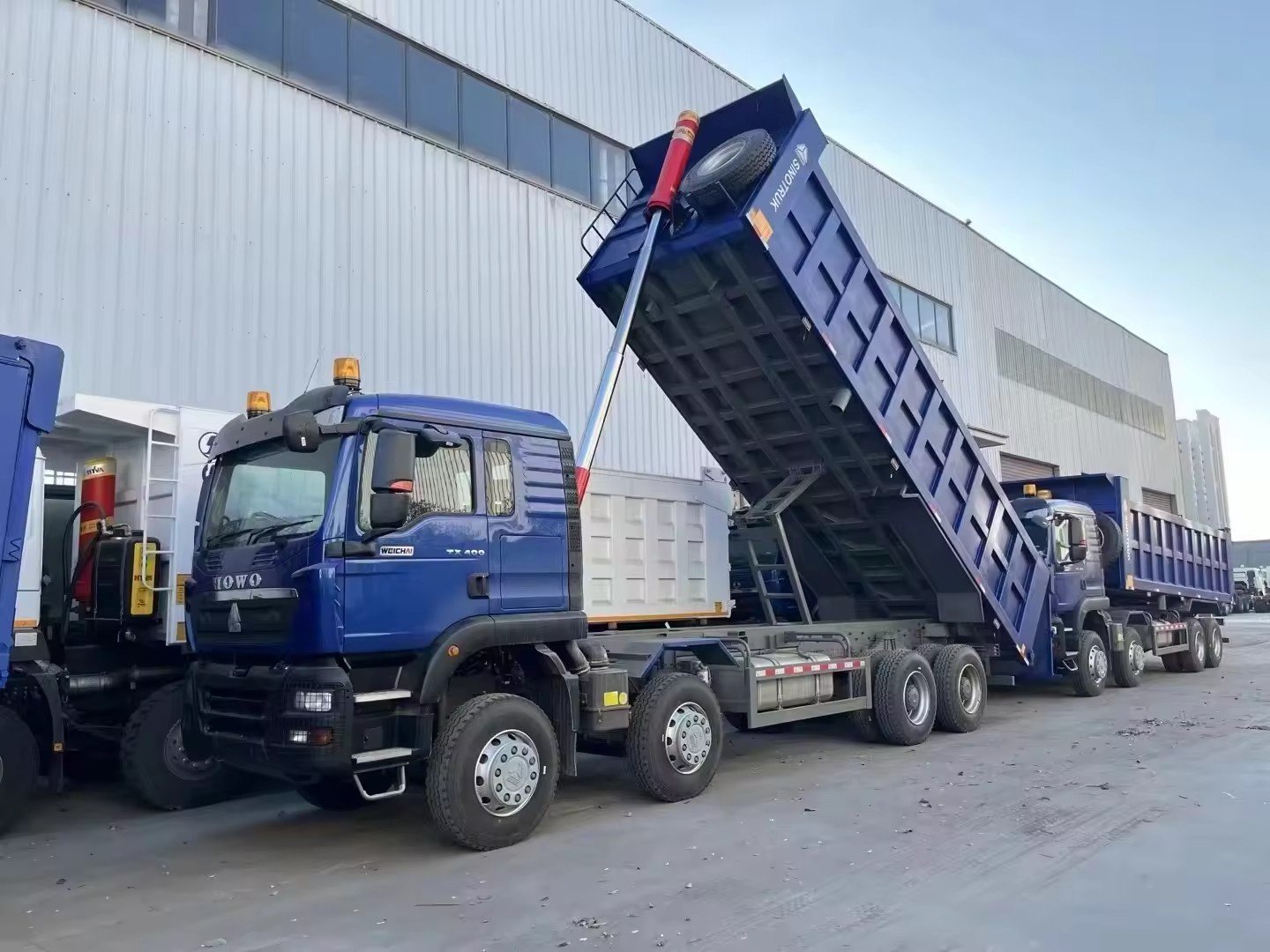

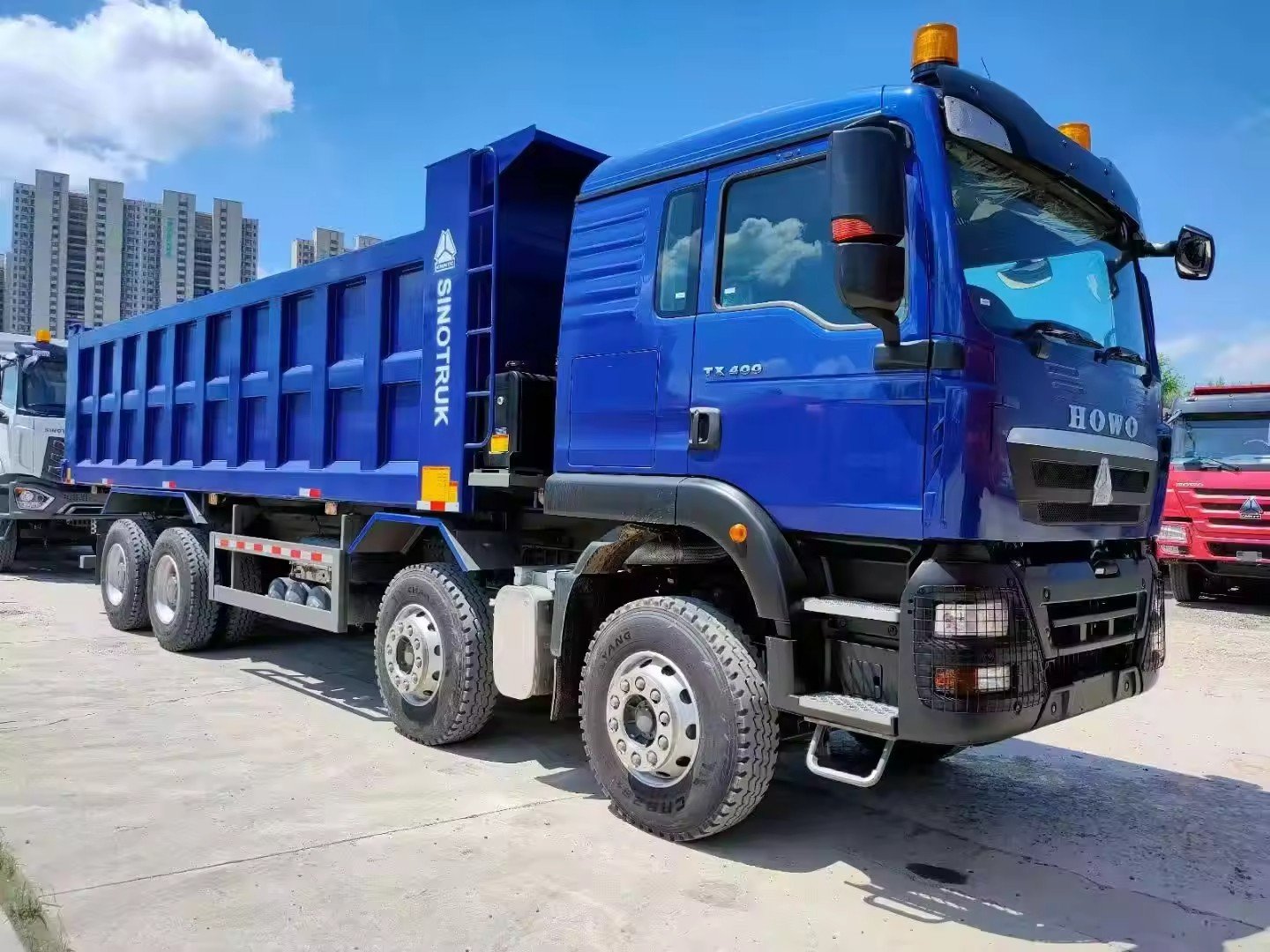

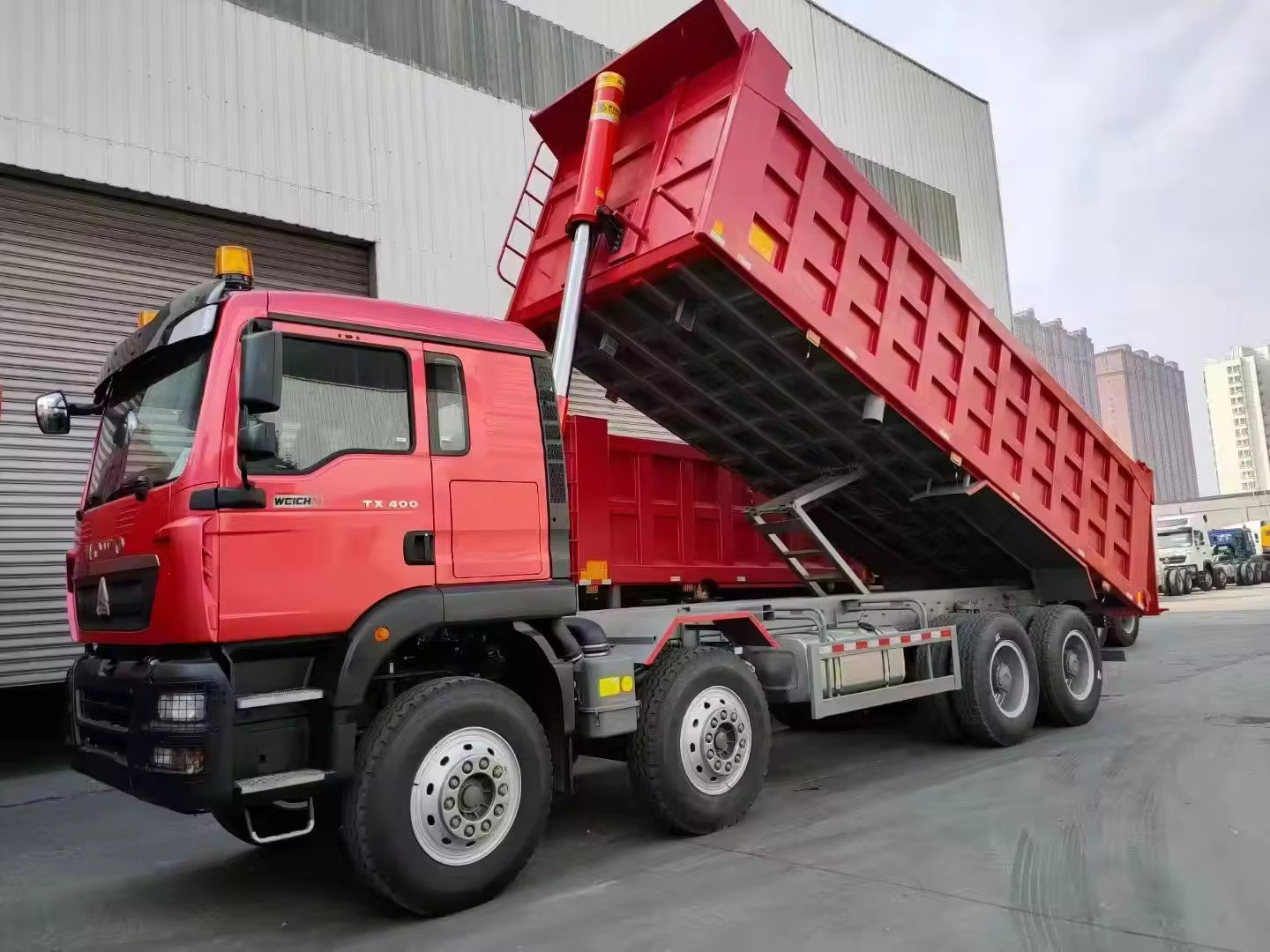

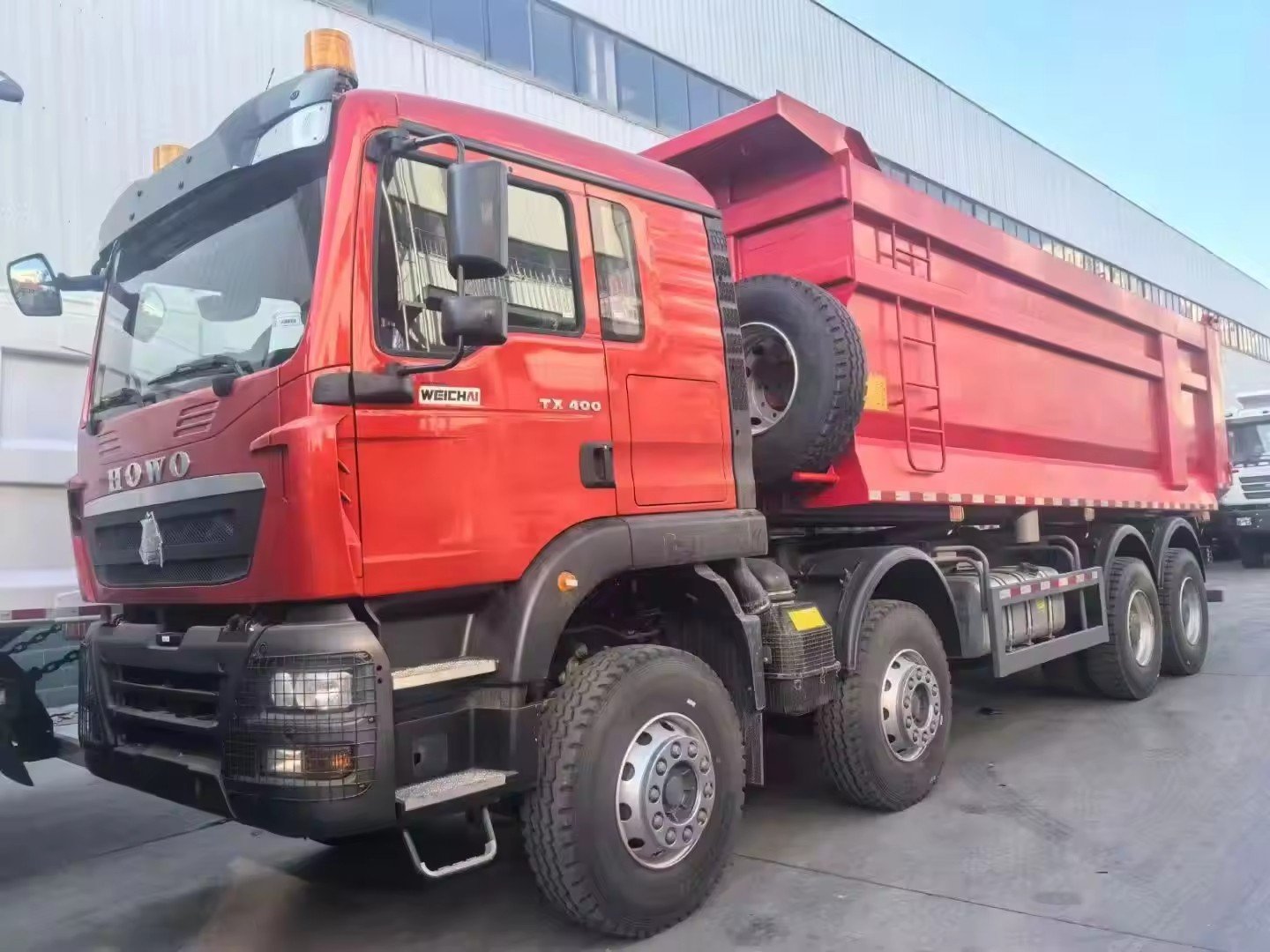

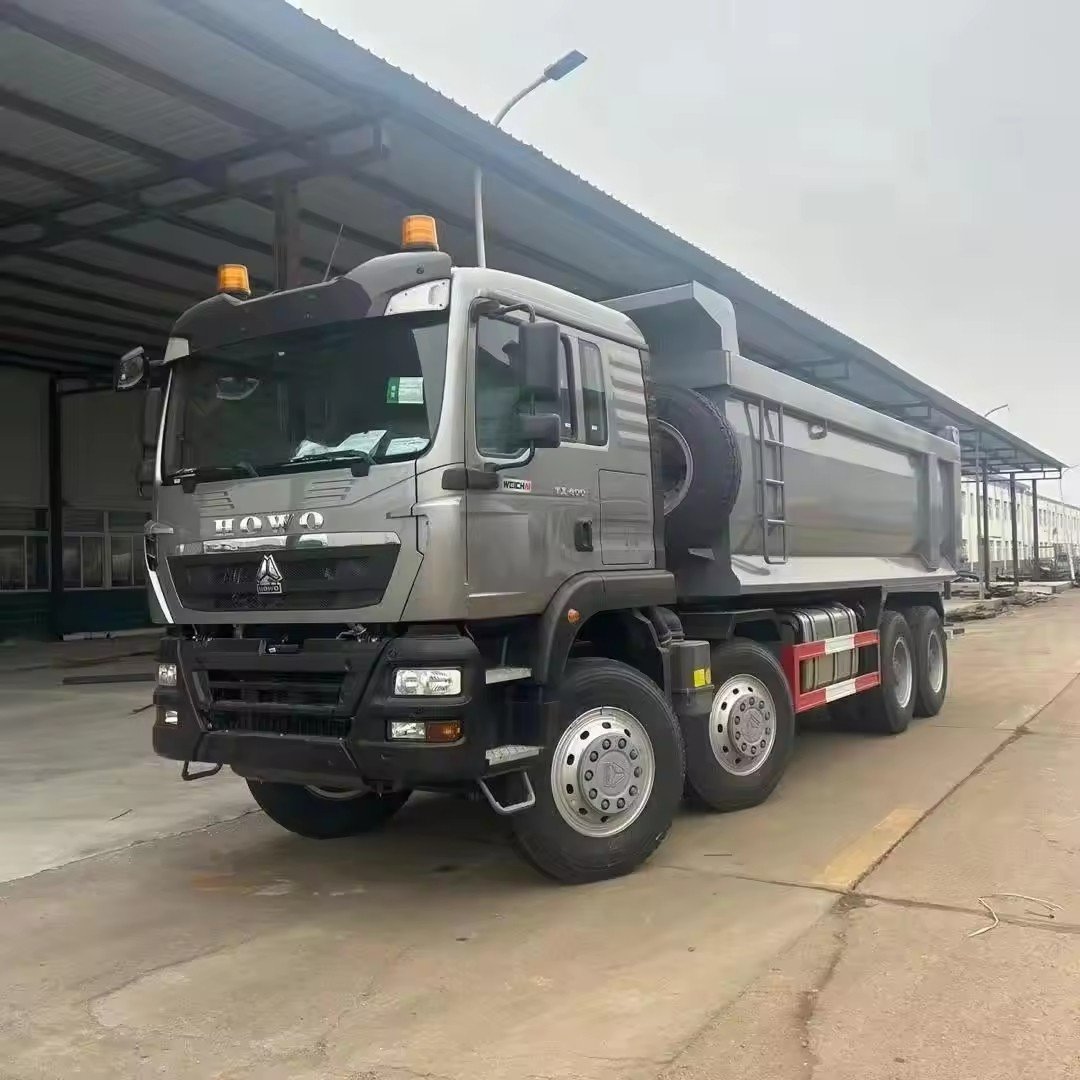

Sinotruk HOWO T7S 8x4 430 HP Euro II Angola Construction Dump Truck 20 m³ for Sale

Key Features

  • 20 m³ square dump body, 4 mm floor / 3 mm sides, front-lift cylinder, 45° tipping angle.

  • 430 HP WP12S430E201 Euro II engine, HW19712 12-speed gearbox + HW50 direct PTO.

  • 8×4 drive, 1950+3825 mm wheelbase, 5.451 ratio MCX16ZG manual rear axles.

  • Reinforced 8+8/300 mm double-layer frame, 11/11/12 leaf springs for 40 t GVW.

  • T7S-P sleeper cab, 400 L fuel tank, dust-proof intake, no ABS for cost-effective markets.

Specifications


ItemSpecification
ModelSinotruk HOWO T7S 8×4
EngineWP12S430E201, 430 HP Euro II
GearboxHW19712 12-speed
Drive8×4
Wheelbase1 950 + 3 825 mm
Dump Body20 m³ (5 800 × 2 300 × 1 500 mm)
GVW40 000 kg
Curb Weight15 500 kg
Rated Payload24 500 kg
Front AxleVGD95, 9.5 t drum
Rear AxleMCX16ZG 16 t ×2, 5.451 ratio
Frame8+8/300 mm double-layer
Suspension11/11/12 leaf springs
Tires12.00R20 mixed 18PR
Fuel Tank400 L aluminum
CabT7S-P sleeper, air seat
Max Speed85 km/h
CertificationISO9000, CCC, Angola homologation
Warranty1 year / 100 000 km

Contact us for pricing and configuration options!
