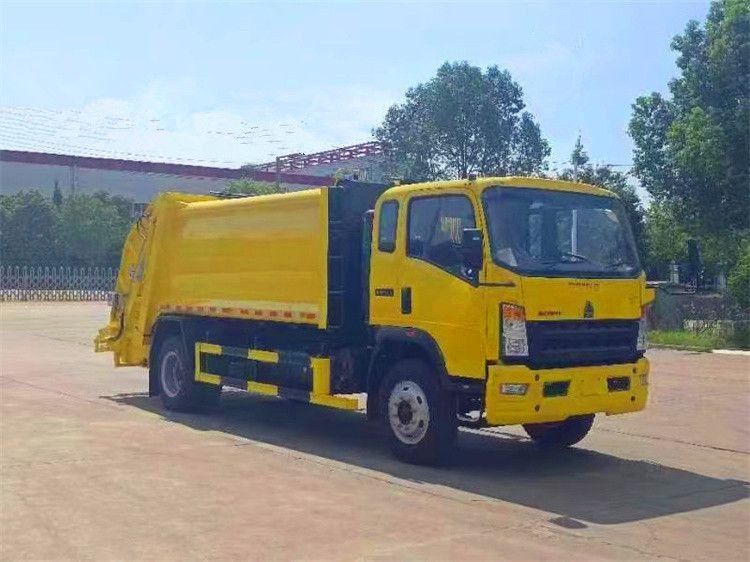

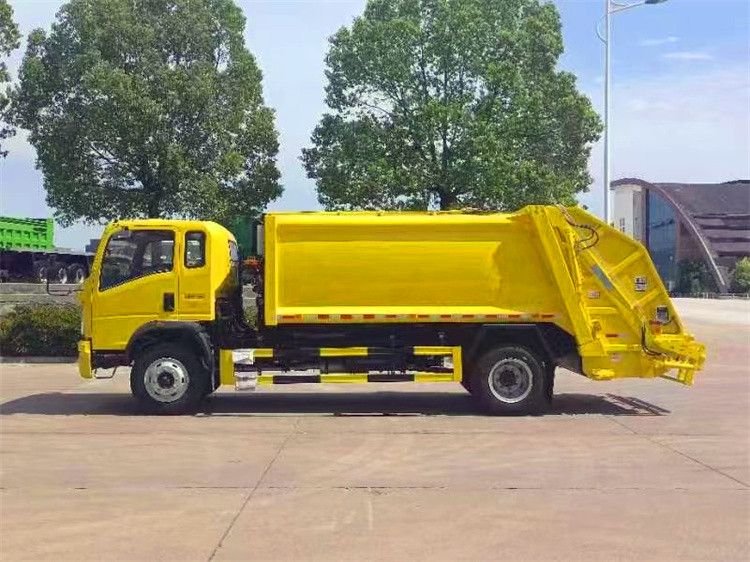

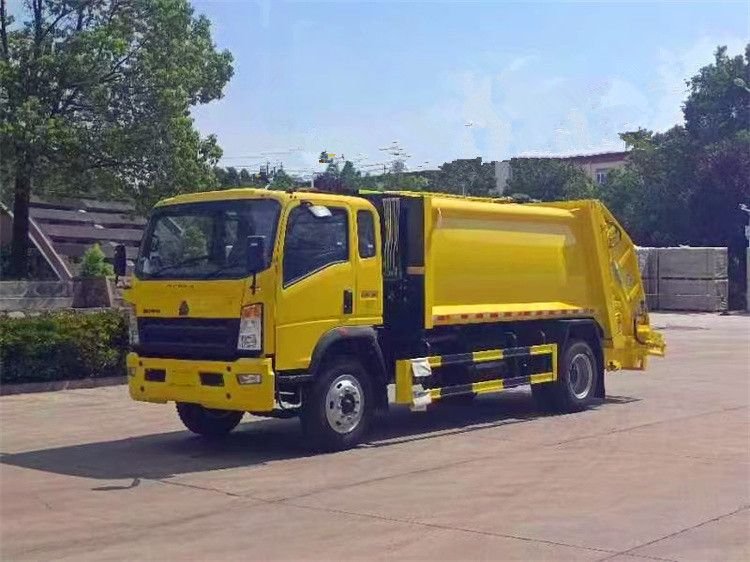

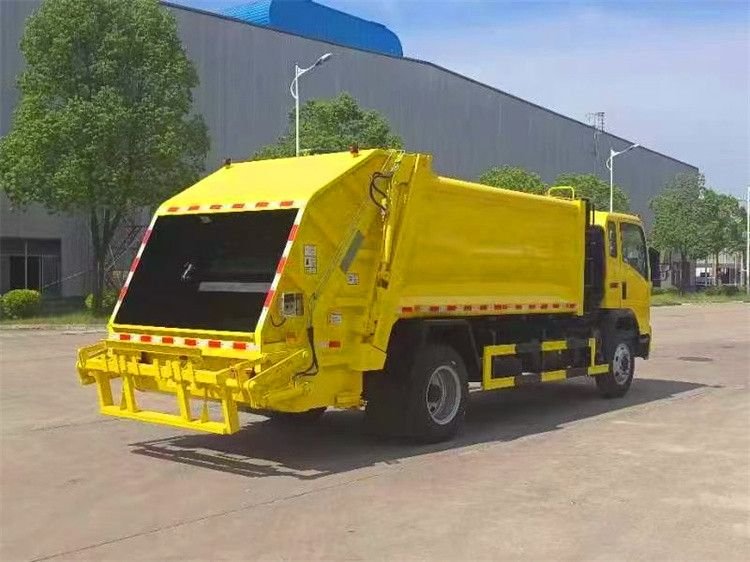

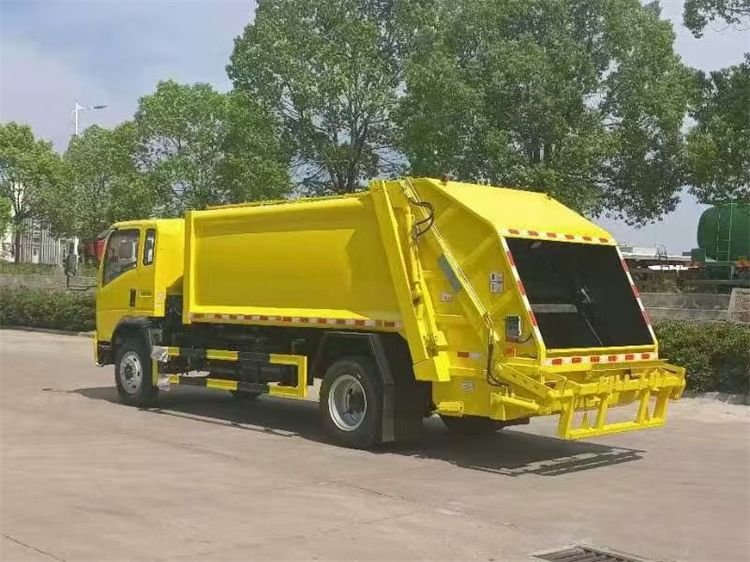

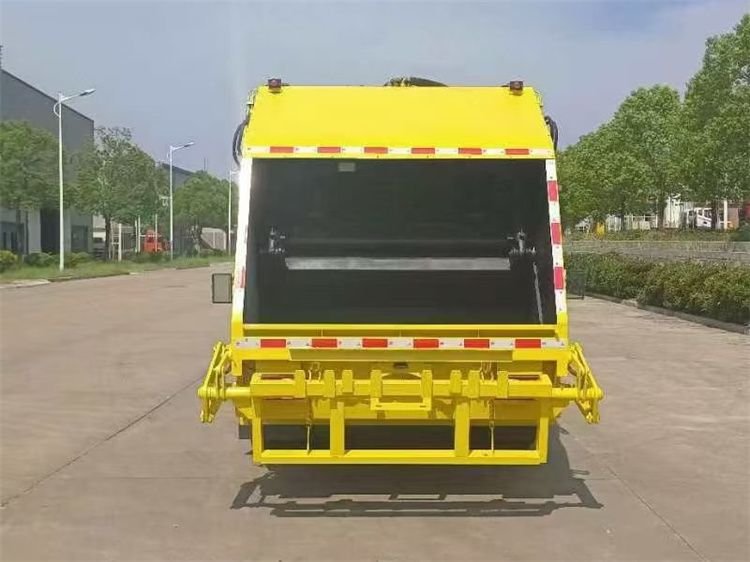

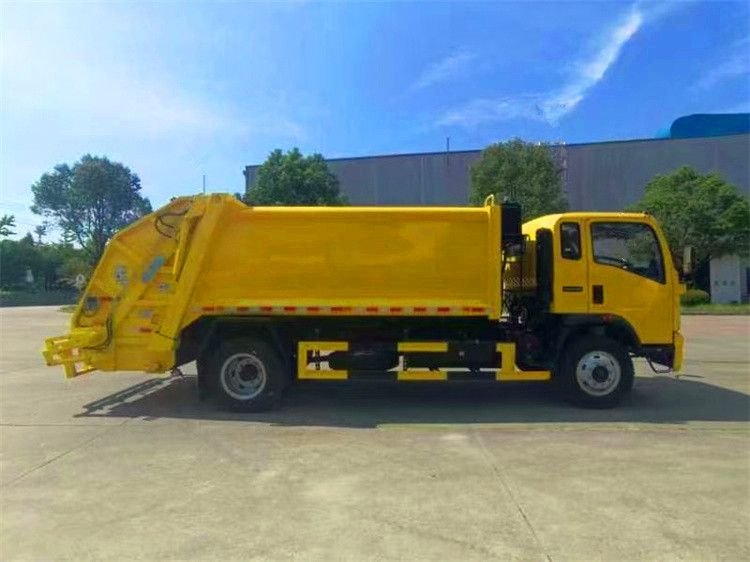

SINOTRUK HOWO 4x2 YUNEI 110HP Euro 3 6-8m³ Garbage Refuse Compactor Truck with 5-Speed Transmission 3.2T Axle for Sale
No.:
Vehicle Type: Garbage Truck
Brand Name: SINOTRUK
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
SINOTRUK HOWO 4x2 YUNEI 110HP Euro 3 6-8m³ Garbage Refuse Compactor Truck with 5-Speed Transmission 3.2T Axle for Sale
Key Features：
Various types of garbage trucks available, including compactor, swing arm, hook lift, roll on roll off, bin lift, dumper, sealed, container, and rear load garbage trucks.
Easy full automatic operation with a computer control system for loading and unloading.
One person operation, reducing sanitation work and improving the working environment.
Double operation system with computer control and manual operation.
Capacity options from 3-20m³.
Steering wheel options for both left and right hand drive.
Emission standards available from Euro 1 to Euro 5.
Truck chassis options from Japanese and Chinese brands such as Dongfeng, 1-SUZU, FAW, Foton, HOWO, JAC, JMC, FOTON FORLAND.
Specifications：
| Item | Parameter |
|---|---|
| Vehicle name | SINOTRUK HOWO Garbage Refuse Compactor Truck |
| Overall Dimension | 624020502570 mm |
| Country of Origin | China |
| Drive model | 4x2, new condition, LHD |
| Gross Vehicle Weight | 7350 kg |
| Curb Weight | 5365 kg |
| Loading Volume | 5 CBM |
| Wheel Base | 3360 mm |
| Front/rear Overhang | 1032/2138 mm |
| Front/rear Tread | 1506/1466 mm |
| Approach/Departure Angle | 19/10 degree |
| Engine | YUNEI Engine, YN4100QBZL Standard type engine, Diesel Engine, Four Stroke, 4 Cylinder in line |
| Engine horsepower | 110 HP Euro 3 |
| Max Driving Speed | 90 km/h |
| Gear Box | 5 Forward Gear, 1 Backward Gear |
| Tire | 6.50R16, 7 pieces (with 1 spare tire) |
| Volume Capacity (Garbage) | 6-8 CBM |
| Garbage Bin Capacity | 6-8 CBM |
| Size (length x width x height) | 4900x2050x2150 mm or as designation |
| Thickness | Side 4mm, Bottom 5mm |
| Material | Q345 carbon steel |
| Design | Whole unit with Leakage Proof Design |

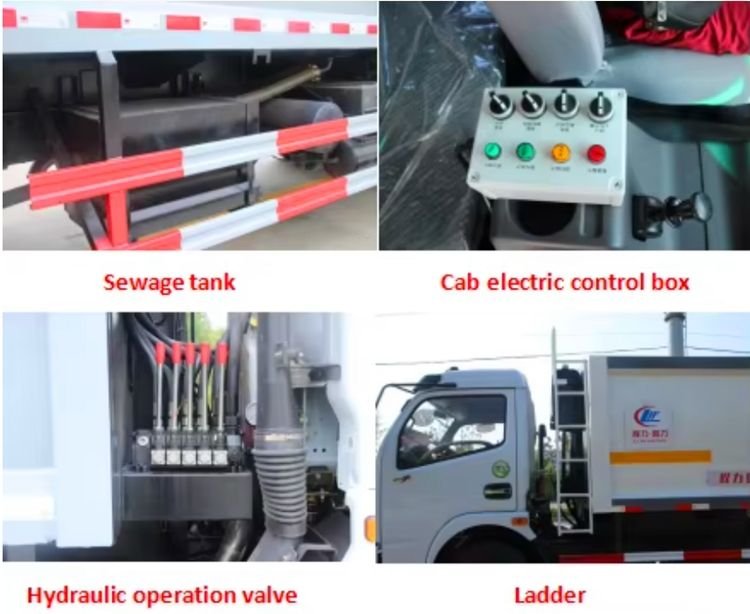

| Recovery water tank | 200L |
| Filling parts volume | 600L |
| Filling time | 8-10s |
| Compression cycling time | 30s |
| Discharging type | Push and self-discharging |
| Discharging time | 30s |
| Hydraulic system pressure | 16Mpa, 160Bar |
| Control type | Electric control with manual control |
| Plat Form | 2 side for 2 worker for foot transport |
| Ways of Loading | Rear Loading with optional Bucket Lifting Style |
| Lifting capacity of turnover mechanism | ≥800KG |
| Garbage Compact Ratio | 1/3 - 1/4 |

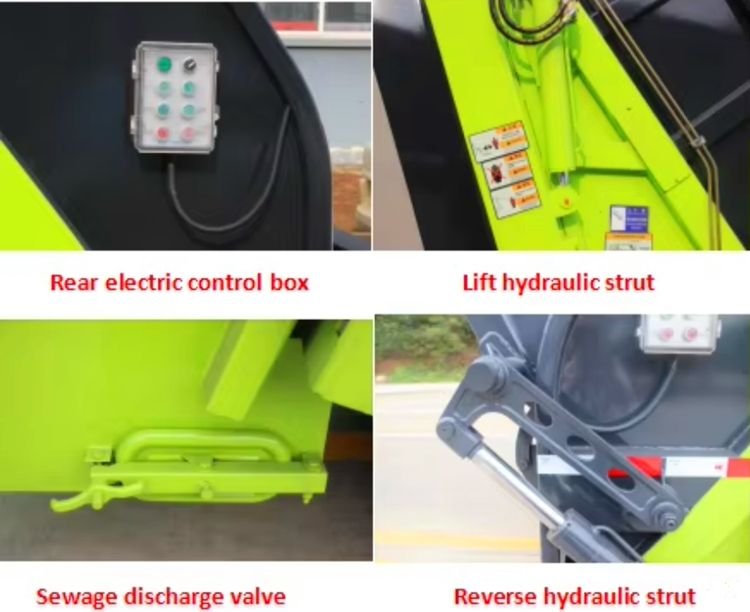

| Control System | One control Panel on the back, One Control system in back of Cabin |
| Fire Extinguisher | 1 unit |
| Warranty | 1 year |
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. |
This garbage refuse compactor truck is designed to provide efficient waste management solutions for municipalities and waste management companies. Its advanced features and robust design make it a valuable asset for maintaining clean and waste-free environments.
Contact us for pricing and configuration options！
