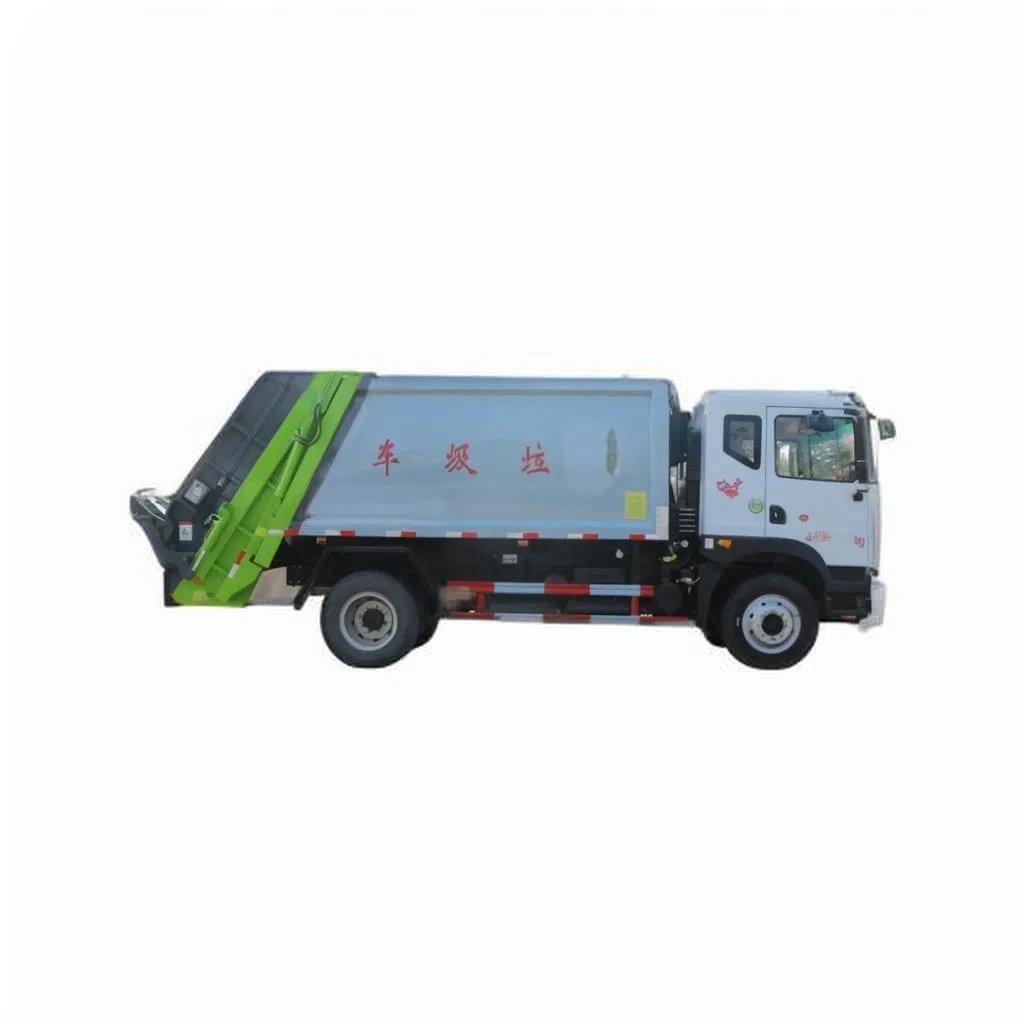

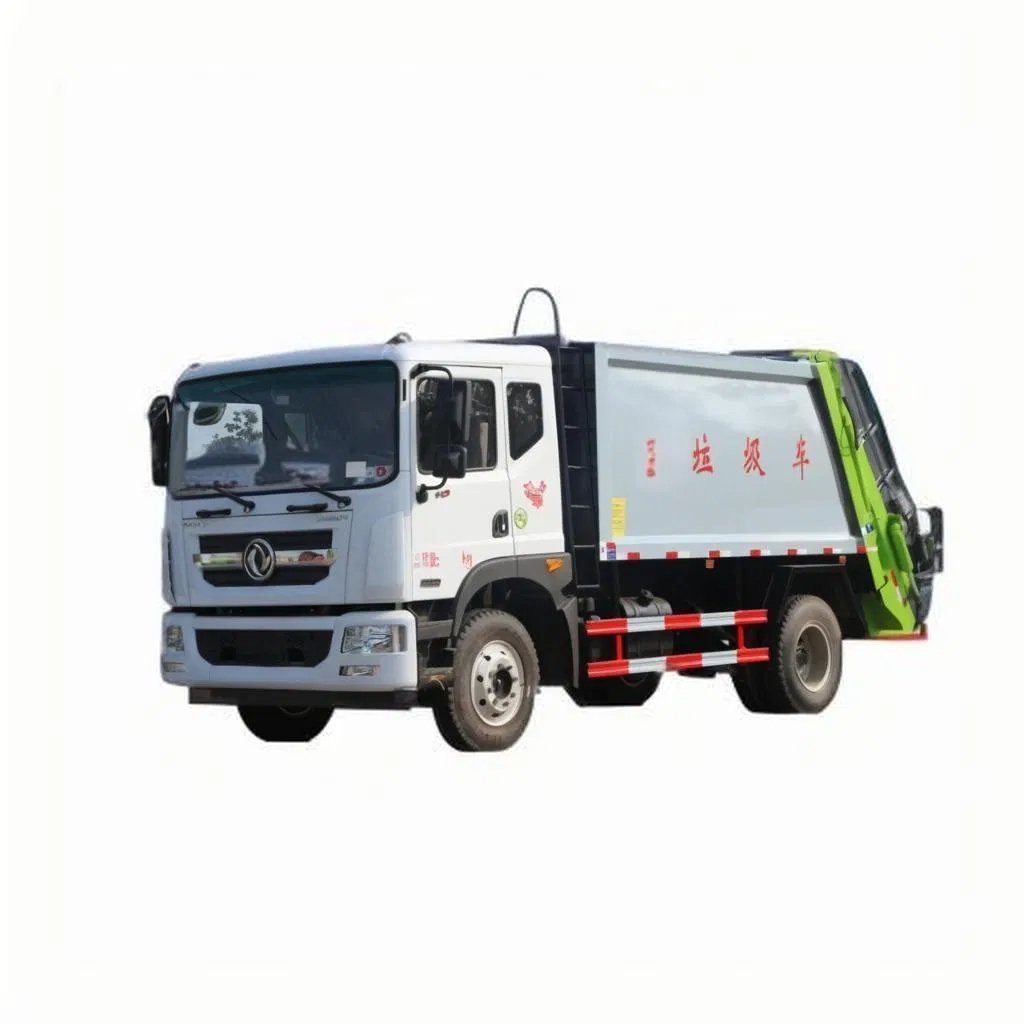

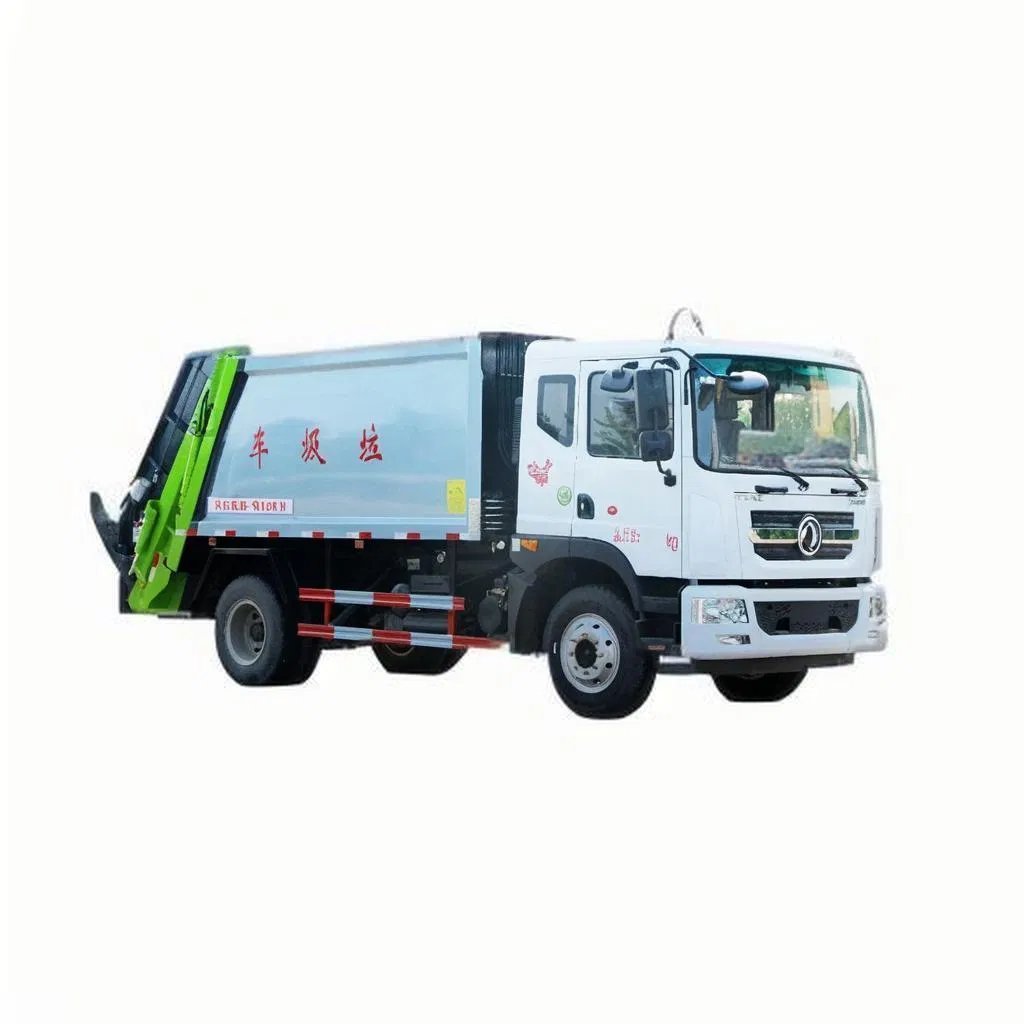

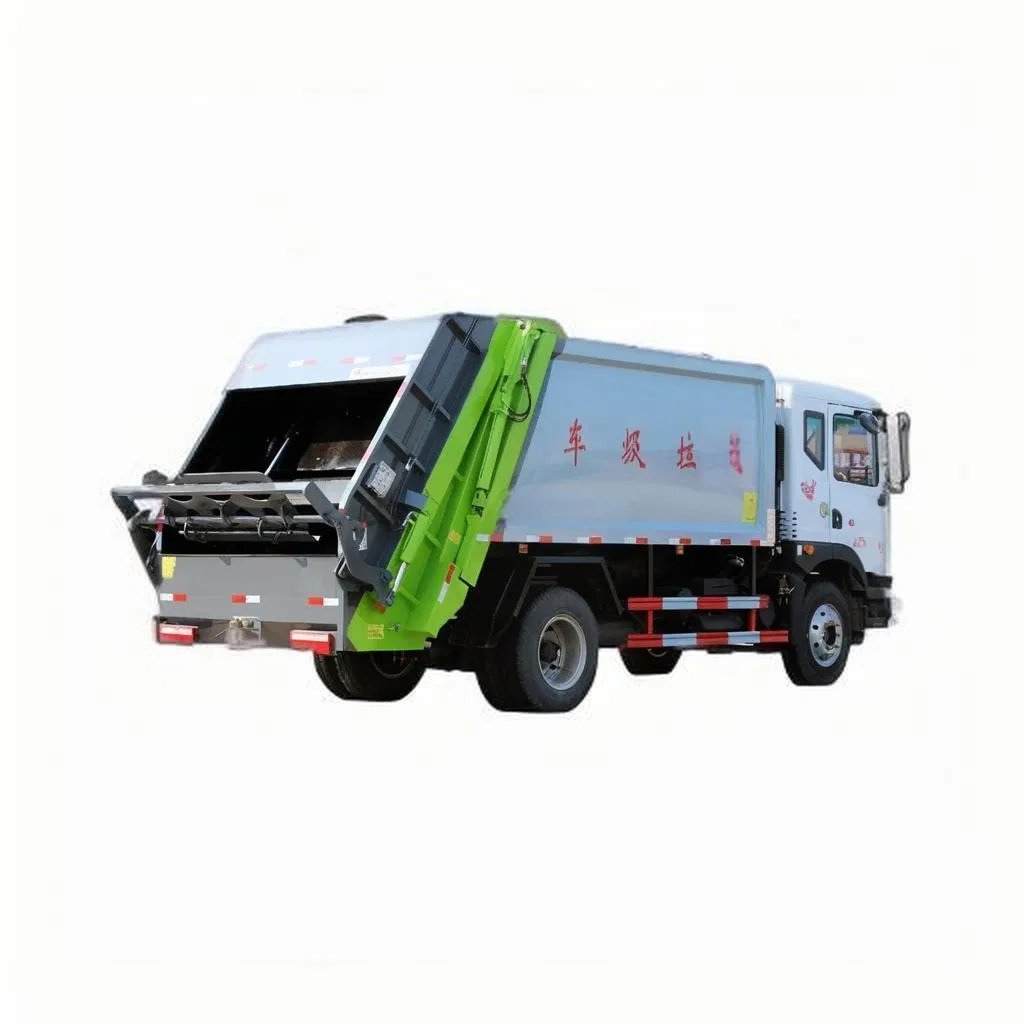

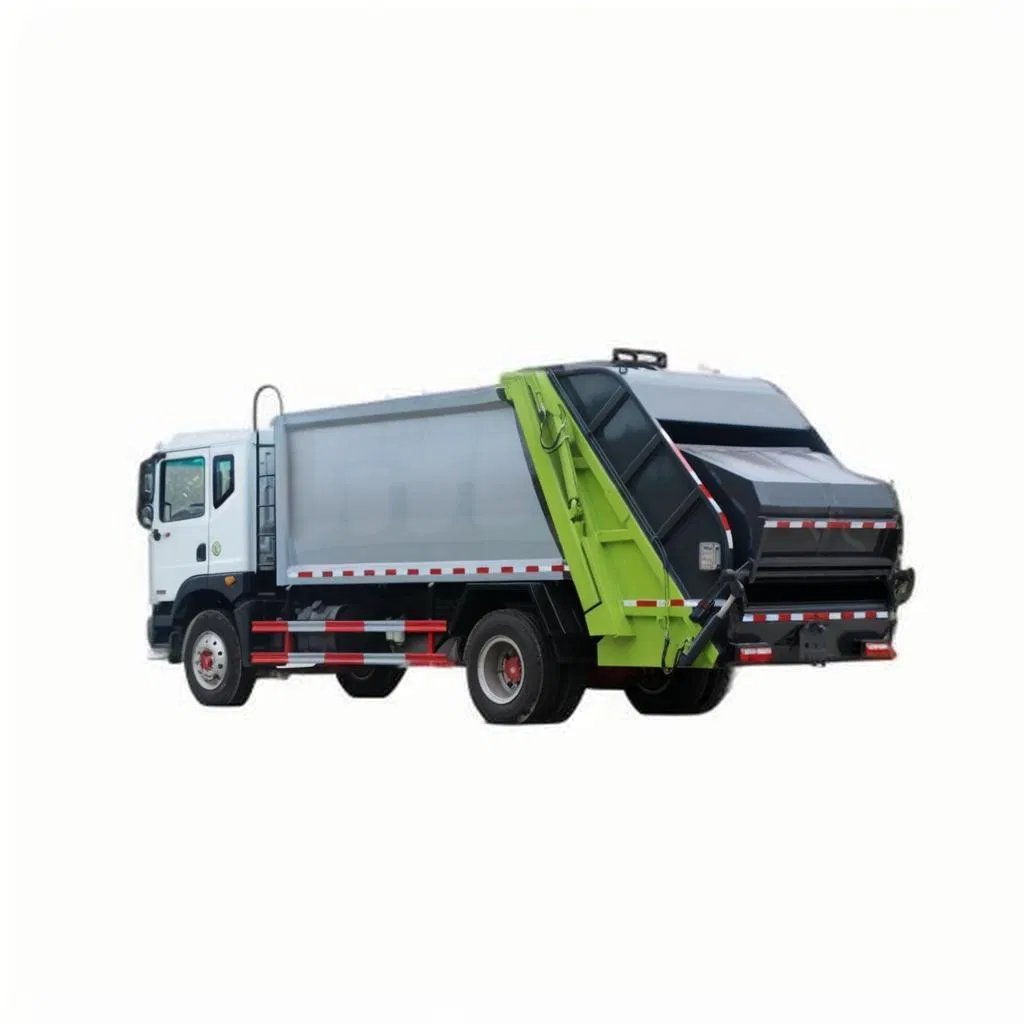

Shacman Sinotruck HOWO FAW Dongfeng JAC JMC Foton 4×2 6 CBM Compression Compactor Garbage Truck Diesel Waste Collector for Sale
No.:
Vehicle Type: Garbage Truck
Brand Name: SINOTRUK
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Shacman Sinotruck HOWO FAW Dongfeng JAC JMC Foton 4×2 6 CBM Compression Compactor Garbage Truck Diesel Waste Collector for Sale
Key Features
• Universal Chassis Choice – Shacman, Sinotruck HOWO, FAW, Dongfeng, JAC, JMC, Foton 4×2 platforms all available
• High Compression Force – 12 t max crushing pressure, 1/3–1/4 volume reduction for 2× payload efficiency
• Leak-Proof Design – 4 mm carbon-steel tank, fully welded seams, integral sewage sump prevents roadside spills
• One-Operator PLC – Rear and cab-side control panels, cycle time <14–18 s, automatic loading / compressing / discharge
• Rear Loading – Standard bin lifter accepts 120 L/240 L/660 L bins; optional skip-loader or bucket system
• Safety & Reliability – Reinforced diaphragm clutch, dual-circuit air brakes, spring-parking brake, exhaust-valve auxiliary brake
• Global Support – One-year driveline warranty, multilingual manuals, parts stocked worldwide
Specifications
| Item | Parameter |
|---|---|
| Overall Dimension | 8 000 × 2 500 × 3 250 mm |
| Gross Vehicle Weight | 15 955 kg |
| Curb Weight | 9 700 kg |
| Payload (waste) | 6 100 kg |
| Wheelbase | 4 500 mm |
| Front / Rear Axle Load | 5 000 kg / 10 000 kg |
| Engine | 190 HP, Euro-II, 4-cyl diesel |
| Gearbox | 6 fwd + 1 rev |
| Max Speed | 90 km/h |
| Tyres | 10.00R20, 6 + 1 |
| Cabin | Left-hand drive, A/C, radio, 2 seats |
| Garbage Bin | 6 m³ (6 000 L) |
| Tank Material | 4 mm carbon steel, leakage-proof |
| Compression Ratio | 1/3 – 1/4 |
| Control | Dual PLC panels (rear + cab) |
| Cycle Time | <14–18 s |
| Loading Method | Rear bin lifter (120/240/660 L) |
| Discharge | Hydraulic ejector plate |
| Sewage Tank | 150 L integral sump |
| Colour | Customer choice |
| Logo | Custom decals available |
Typical Applications
• Urban residential waste collection
• Commercial district garbage removal
• Rural transfer station feeding
• Industrial park refuse handling
Optional Upgrades
• 8 m³ or 10 m³ tank upgrade
• 240 HP Euro-5 engine
• Rear camera & ultrasonic sensor
• Stainless-steel tank for corrosive waste
• Remote-control operation
Contact us for pricing and configuration options!
