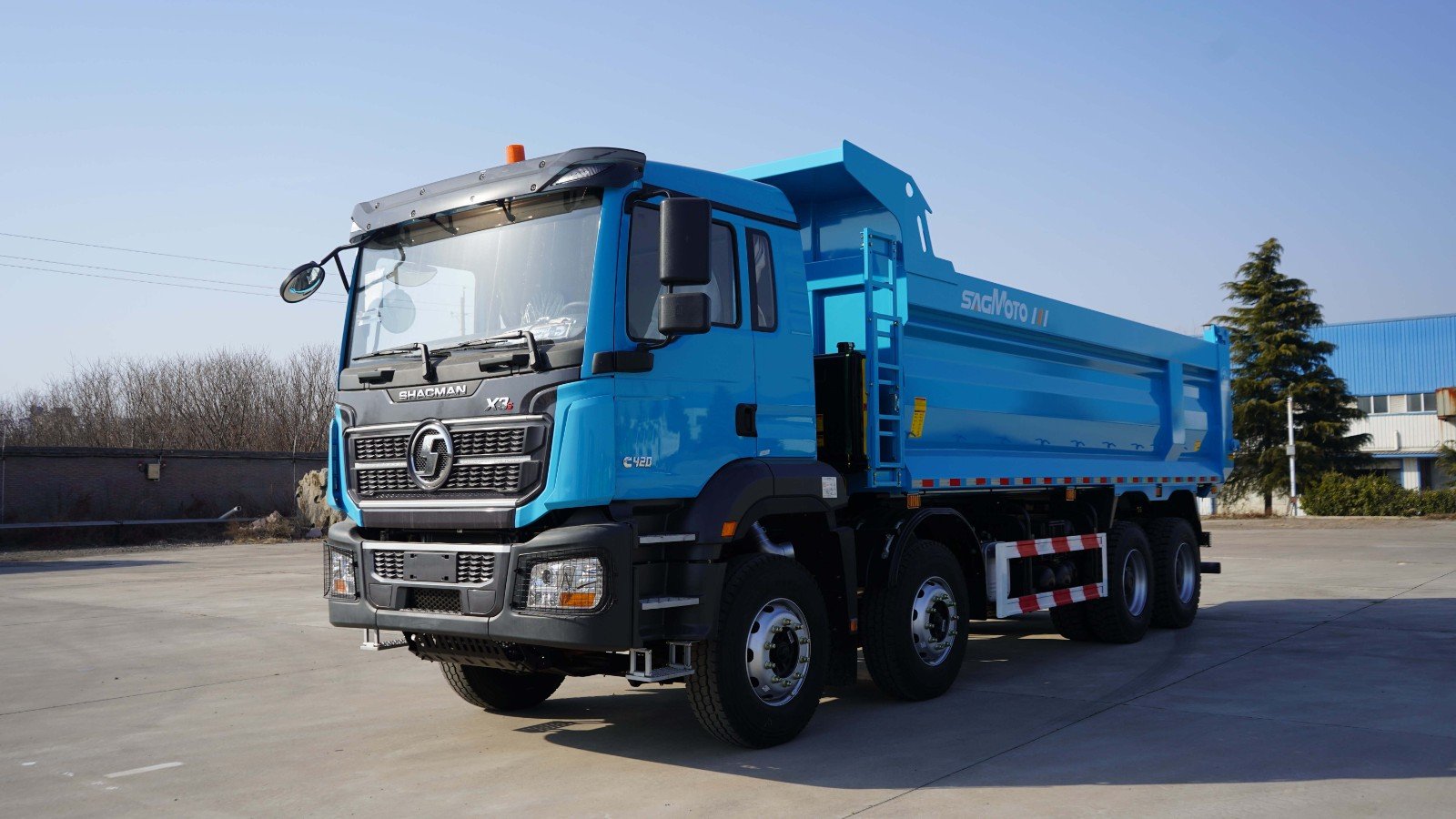

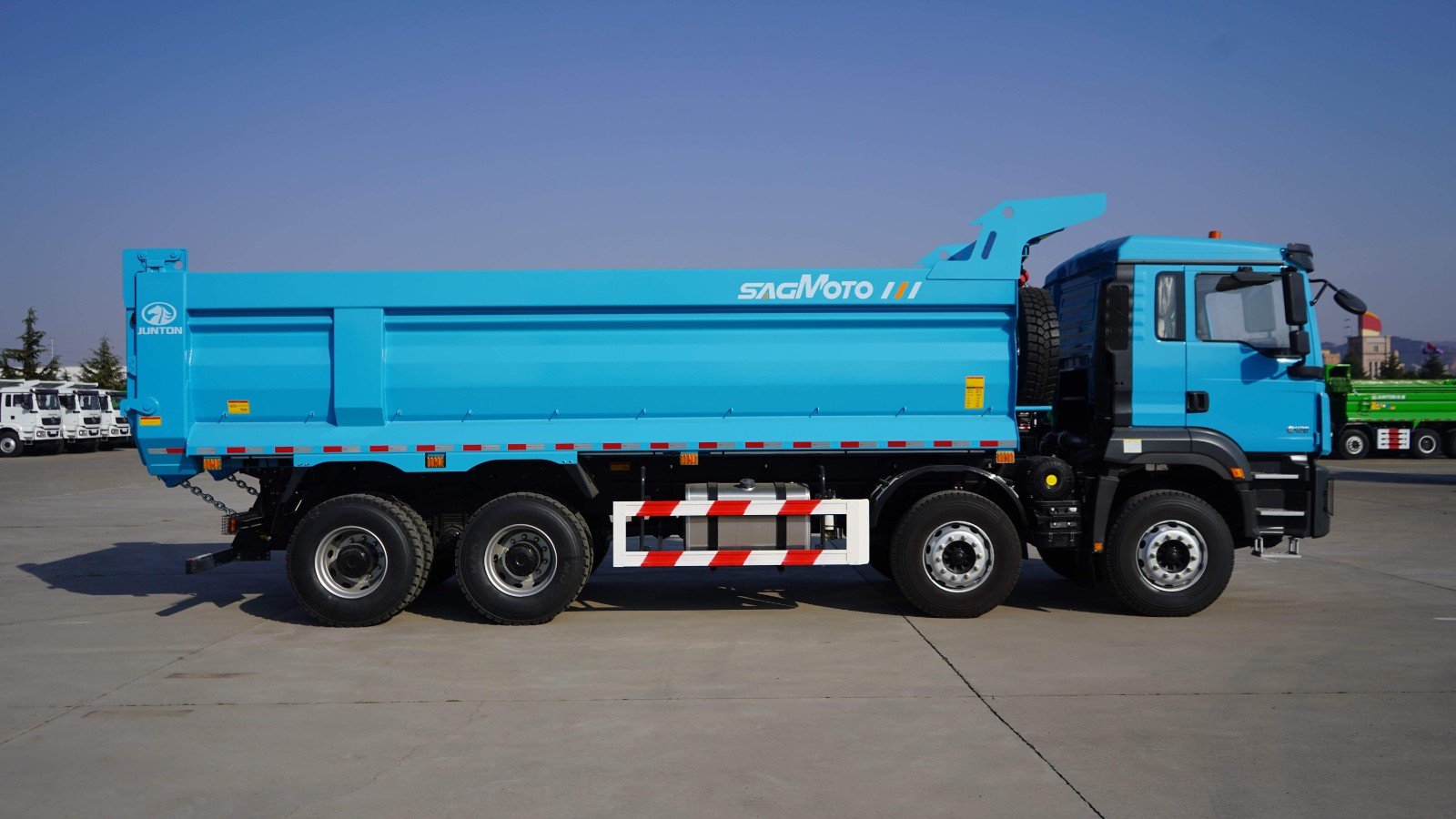

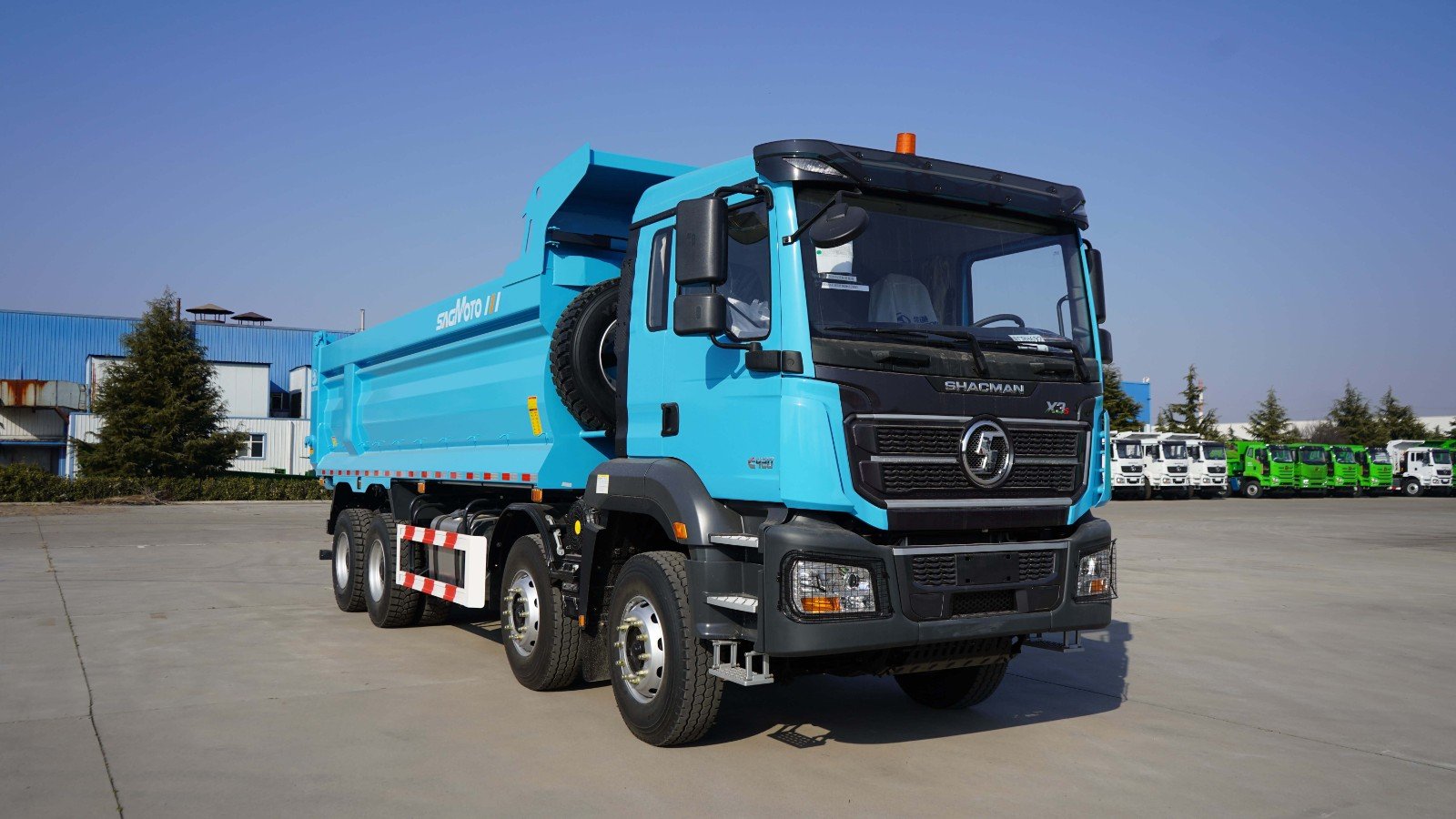

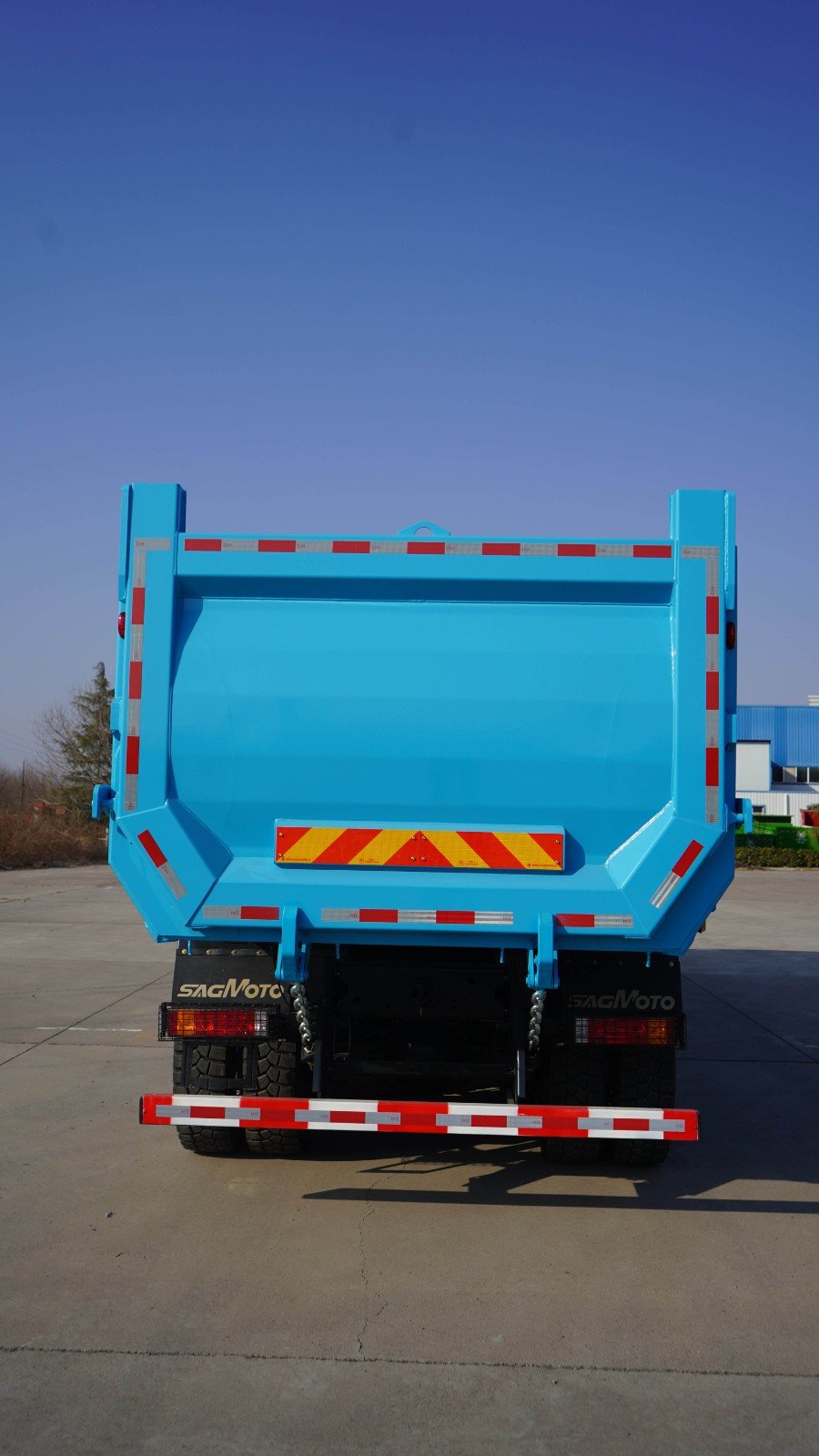

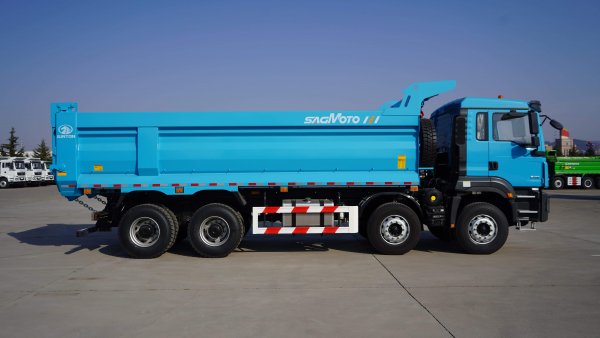

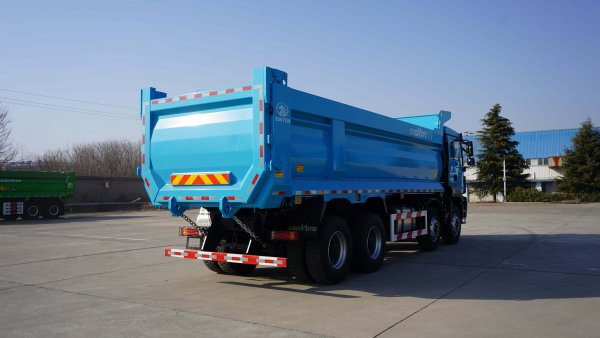

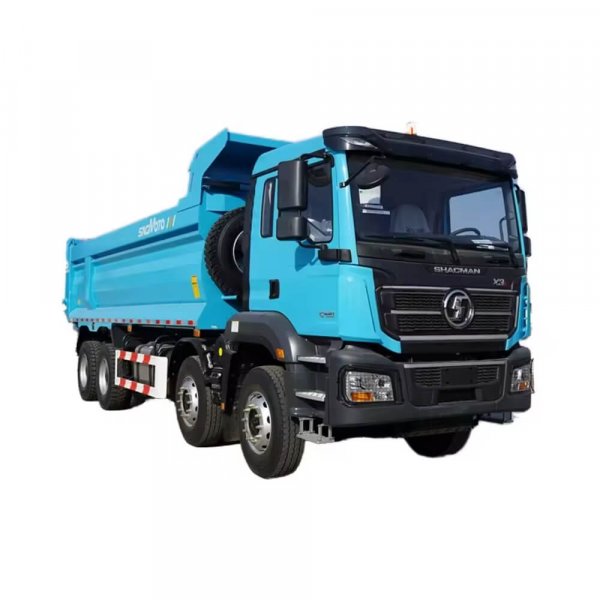

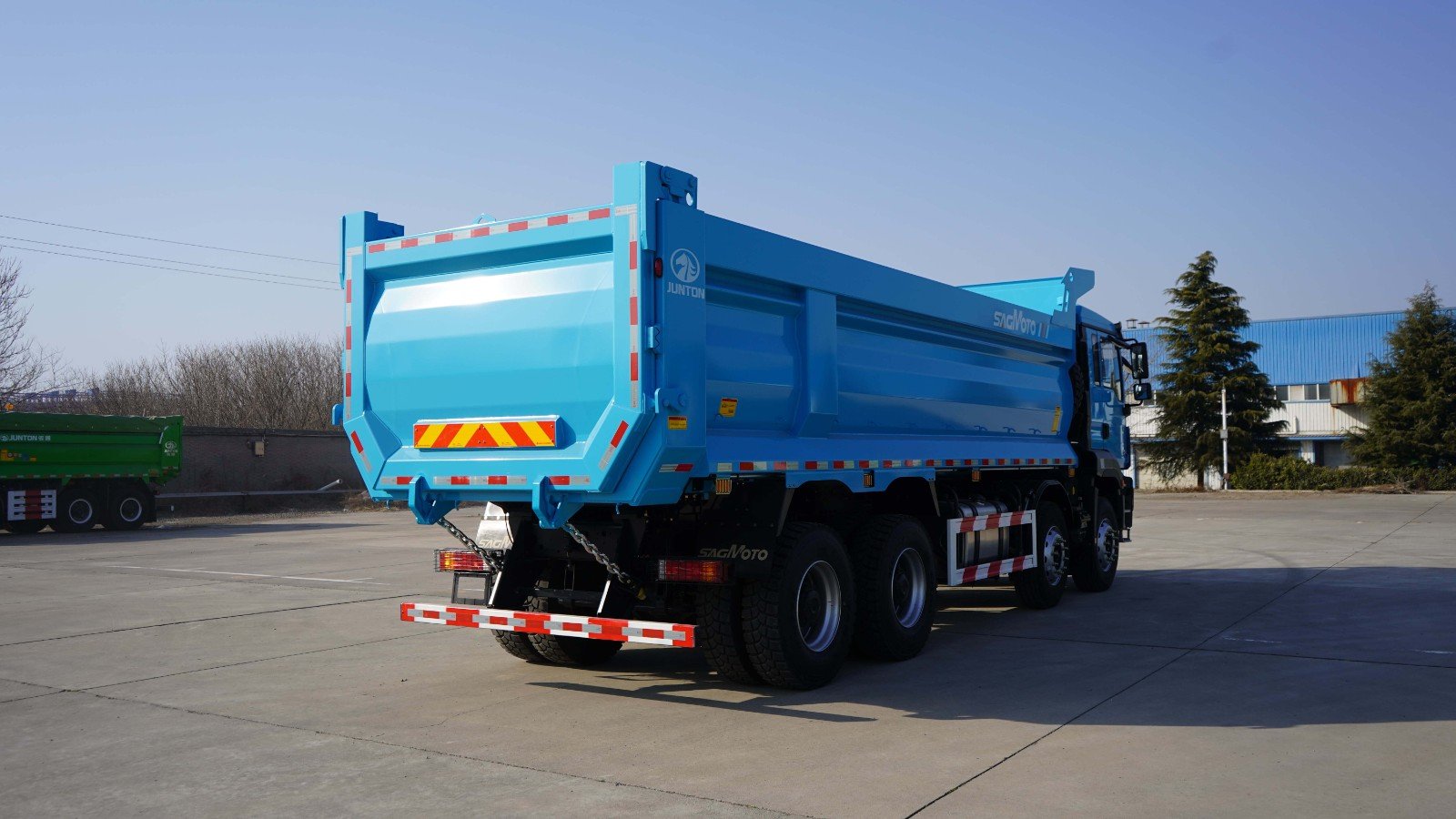

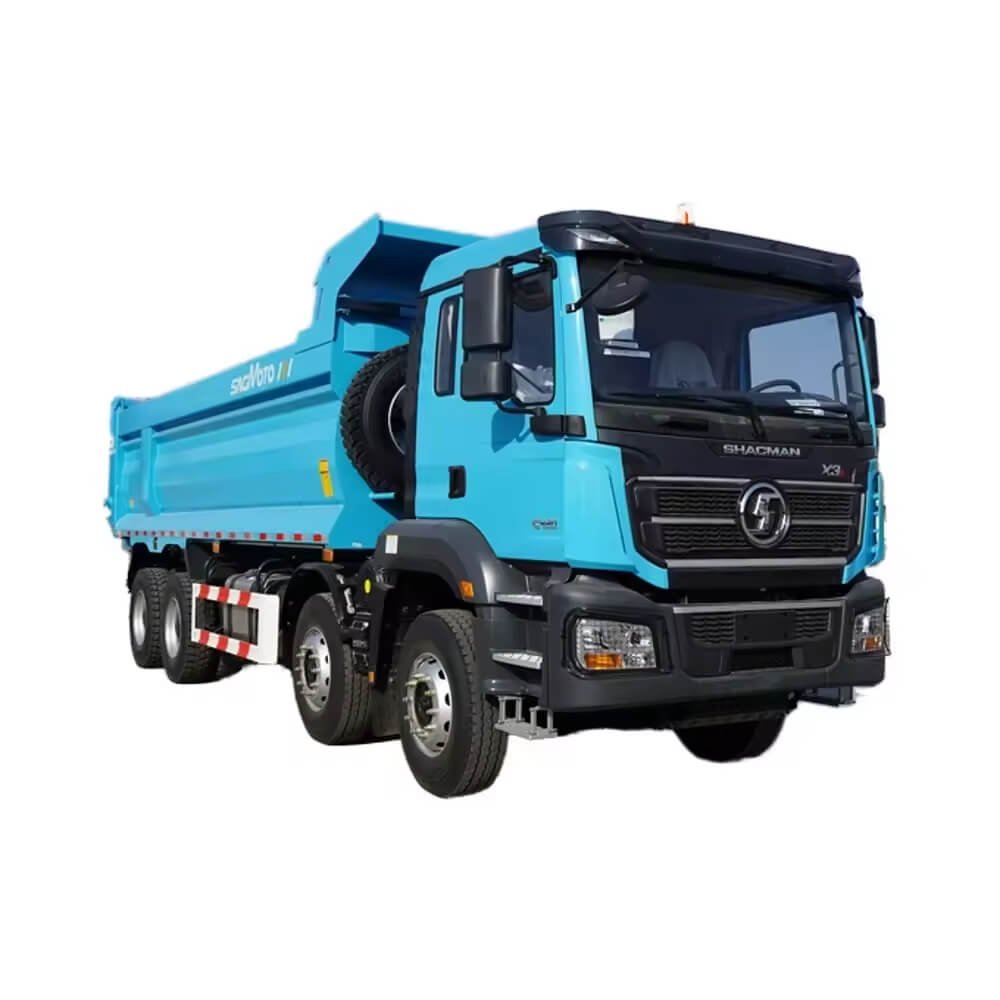

SHACMAN X3s 8×4 385 HP Cummins Euro III 12-Wheel 30-ton Dump Tipper Truck for Guinea
No.:
Vehicle Type: Dump Truck
Brand Name: SHACMAN SAGMOTO
Person in charge: Shawn Ma
Cel: 0086 18254796503
Whatsapp: 8618254796503
E-mail: sales20@chinatruck.cc
FREE GET QUOTE
Details
SHACMAN X3s 8×4 385 HP Cummins Euro III 30-ton 12-Wheel Dump Tipper Truck for Guinea
Key Features
Engine: Cummins ISME 385-30 385 HP / 1 830 N·m, Euro III, water-cooled, turbocharged.
Gearbox: Manual Fast 810JSD180 10-speed (cast-iron) + QH50 PTO for precise load control.
Payload: 30 tons on 16-ton two-stage rear axle (5.262 ratio).
Dump Body: 5 600 × 2 300 × 1 000 mm 13 m³, T700 high-strength steel, 4 mm floor / 3 mm sides, single-cylinder 180 lift.
Chassis: 8×4 drive, 1 800+3 575+1 400 mm wheel-base, 850×300/8+7 mm frame.
Suspension: 14/14/12 heavy leaf springs for off-road stability.
Fuel Tank: 400 L aluminum for long-range hauls.
Cab: X3s medium-long half-high, A/C, airbag seat, 5-inch LCD, Bluetooth, central lock.
Extras: 180 Ah maintenance-free battery, oil-bath air filter, headlight/taillight grilles, 50-ton jack, optional desert sump-guard.
Specifications
| Item | Specification |
|---|---|
| Model | SX3313M3M39J3660 |
| Engine | Cummins ISME 385-30 385 HP Euro III |
| Gearbox | Manual Fast 810JSD180 10-speed |
| Drive | 8×4 (12 wheels) |
| Rear Axle | 16 T two-stage, ratio 5.262 |
| Payload | 30 t |
| Dump Body | 13 m³ (5.6×2.3×1.0 m) T700 steel |
| GVW | 31 t |
| Suspension | 14/14/12 leaf springs |
| Fuel Tank | 400 L aluminum |
| Tyres | 12.00R20 18PR |
| Cab | X3s half-high, A/C |
| Max Speed | 80 km/h |
| Certification | ISO9001, SONCAP (Guinea) |
| Warranty | 1 year / 100 000 km |
