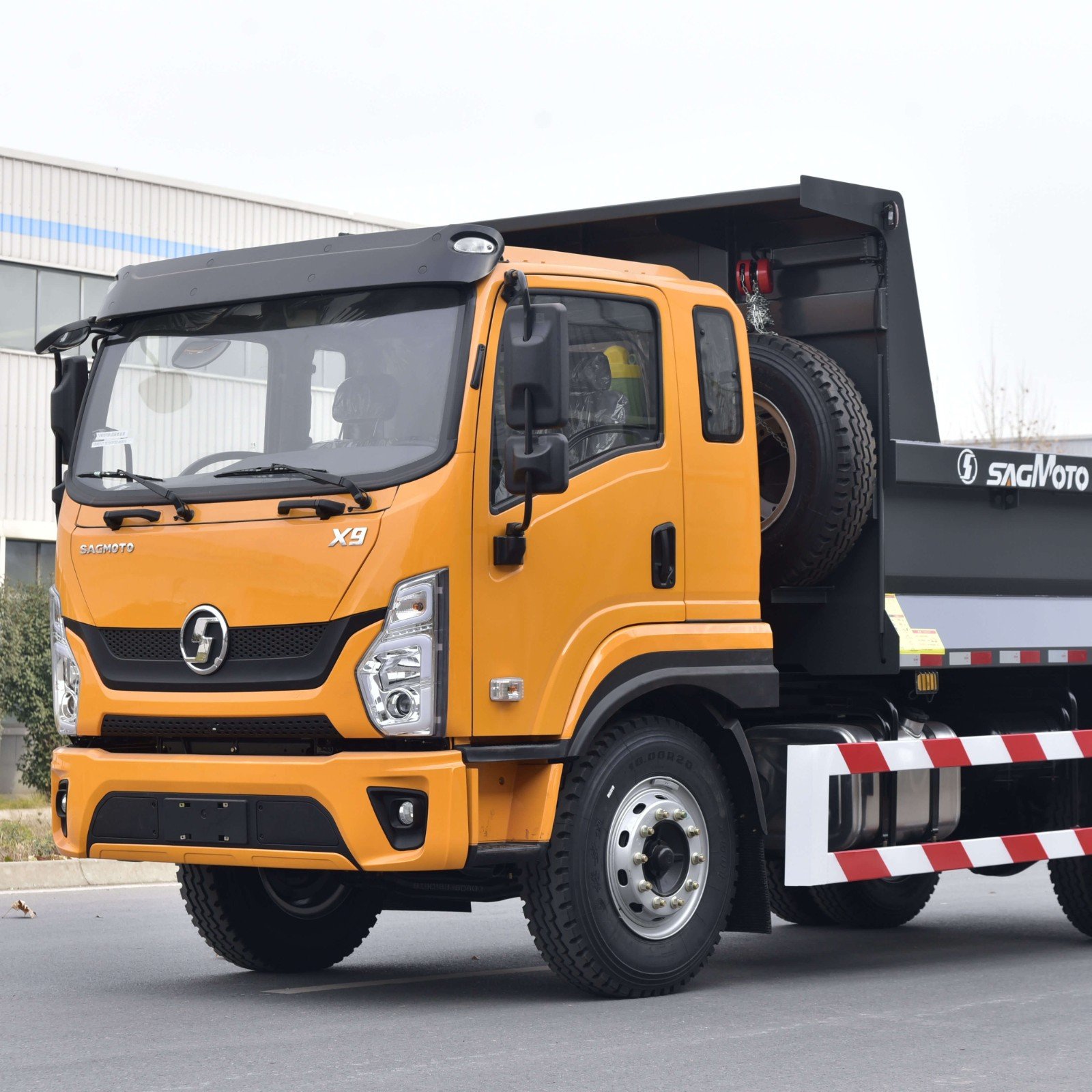

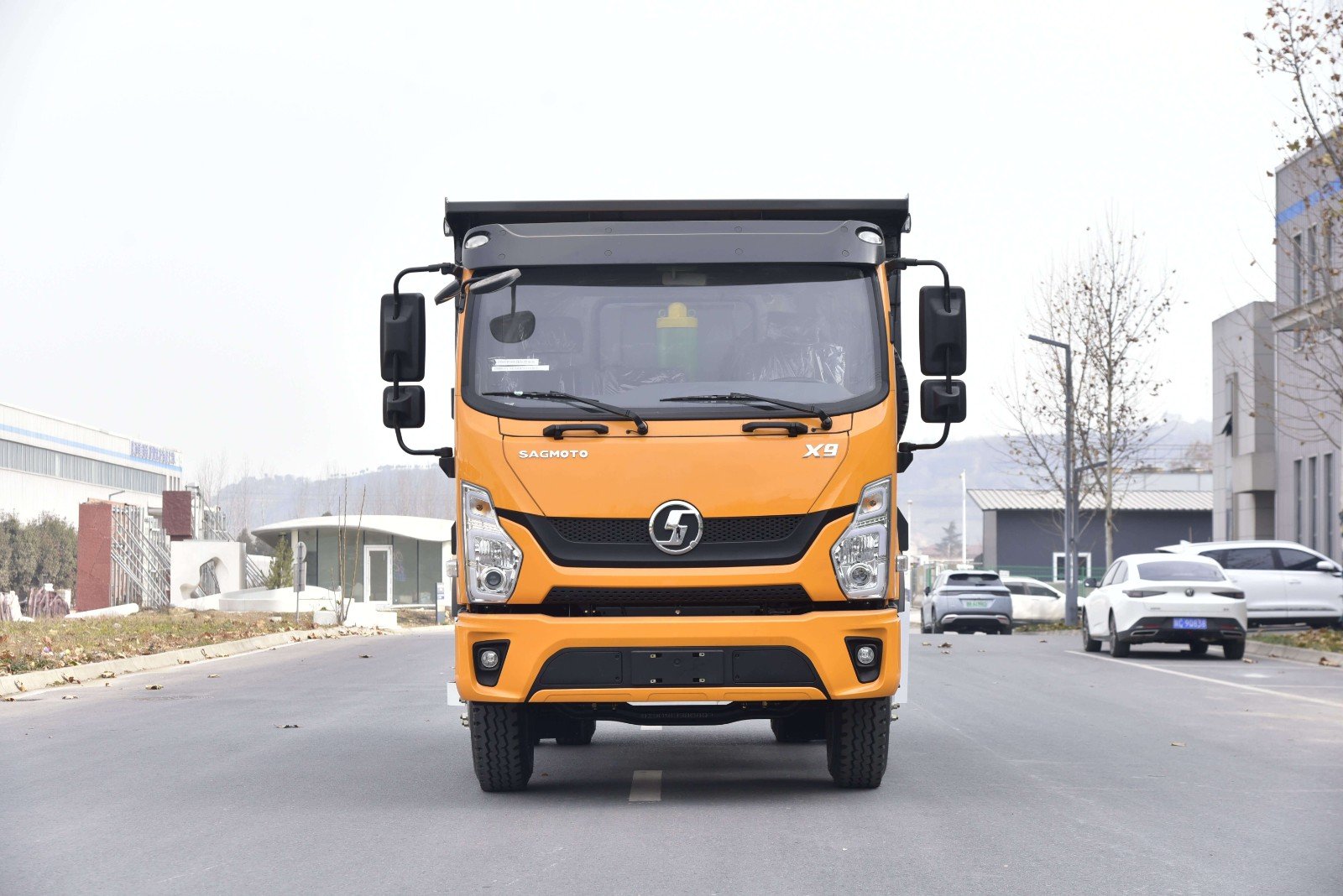

SHACMAN SAGMOTO X9 4×2 160 HP Euro II 4.2 m Dump Tipper Truck for Nigeria
No.:
Vehicle Type: Light Tipper Truck
Brand Name: SHACMAN SAGMOTO
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
SHACMAN SAGMOTO X9 4×2 160 HP Euro II 4.2 m Dump Tipper Truck for Nigeria
Key Features
Chassis: SAGMOTO X9 4×2 LHD, 3 800 mm wheelbase, 800×250/7+4 mm frame.
Engine: Yuchai YC4E160-33 160 HP Euro II, Fast 8JS85E-C 8-speed cast-iron gearbox + QD40J PTO.
Axles: 5 t front, 13 t rear ratio 5.833, suspension 9/10+8 leaf springs, 200 L iron fuel tank.
Dump body: 4 200×2 300×1 000 mm T700 steel, 4 mm floor / 3 mm sides, single 160 cylinder lift.
Cab: X9 semi-high, A/C, 4.3" TFT cluster, power windows, halogen headlights, silver SAGMOTO/X9 logos.
Extras: 100 Ah maintenance-free battery, single-stage air filter, exhaust brake, spare tyre & iron air tanks.
Specifications
| Item | Specification |
|---|---|
| Model | SX3185E2K15B3810 |
| Engine | Yuchai YC4E160-33 160 HP Euro II |
| Gearbox | Fast 8JS85E-C 8-speed |
| Front Axle | 5 t |
| Rear Axle | 13 t, ratio 5.833 |
| Drive | 4×2 |
| Wheelbase | 3 800 mm |
| Dump Body | 4.2×2.3×1.0 m T700 steel |
| GVW | 18 t |
| Payload | 10 t |
| Tyres | 10.00R20 18PR |
| Cab | X9 semi-high, A/C |
| Max Speed | 90 km/h |
| Certification | ISO9001, SONCAP (Nigeria) |
| Warranty | 1 year / 100 000 km |
Contact us for pricing and customization!
