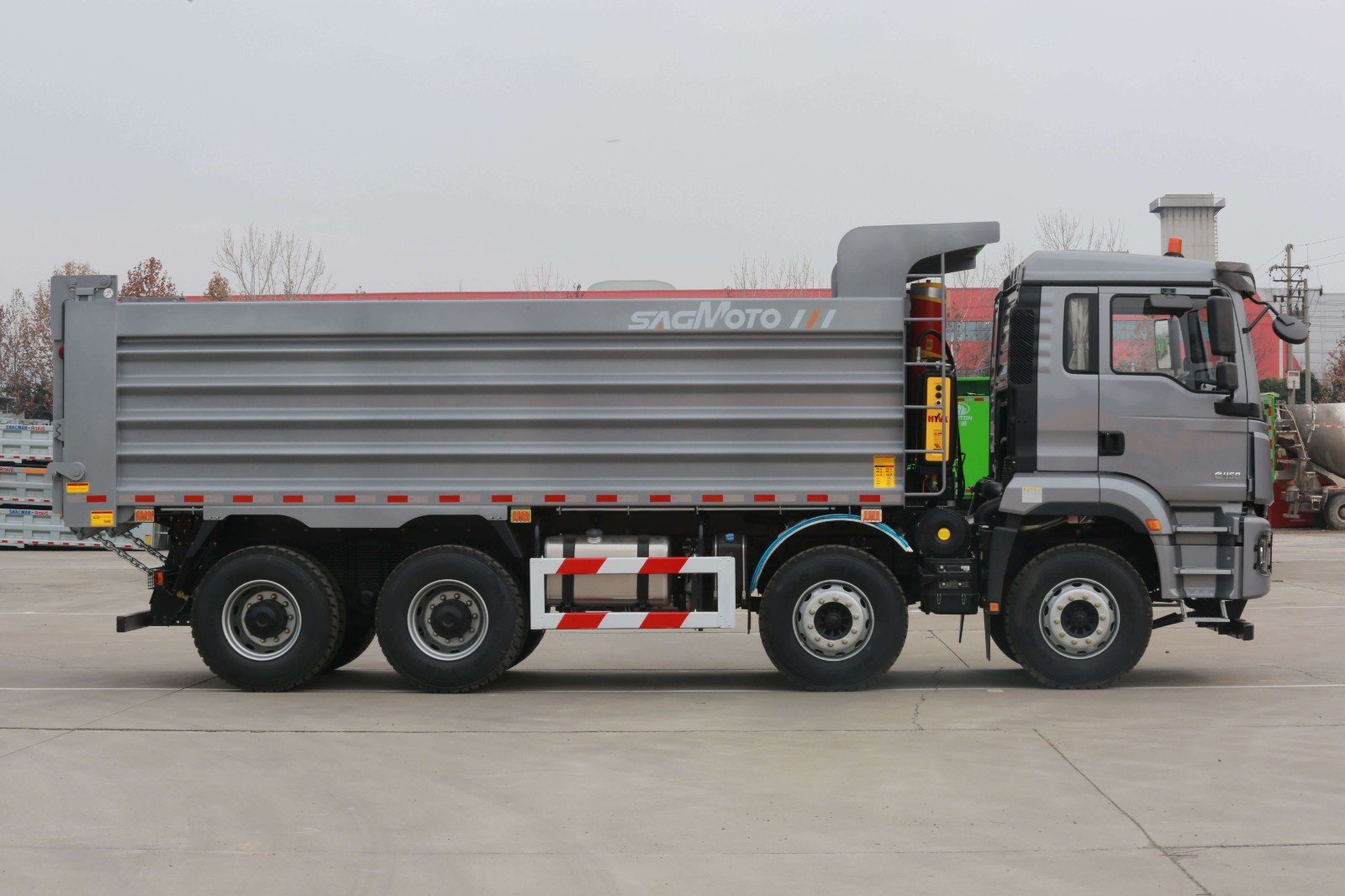

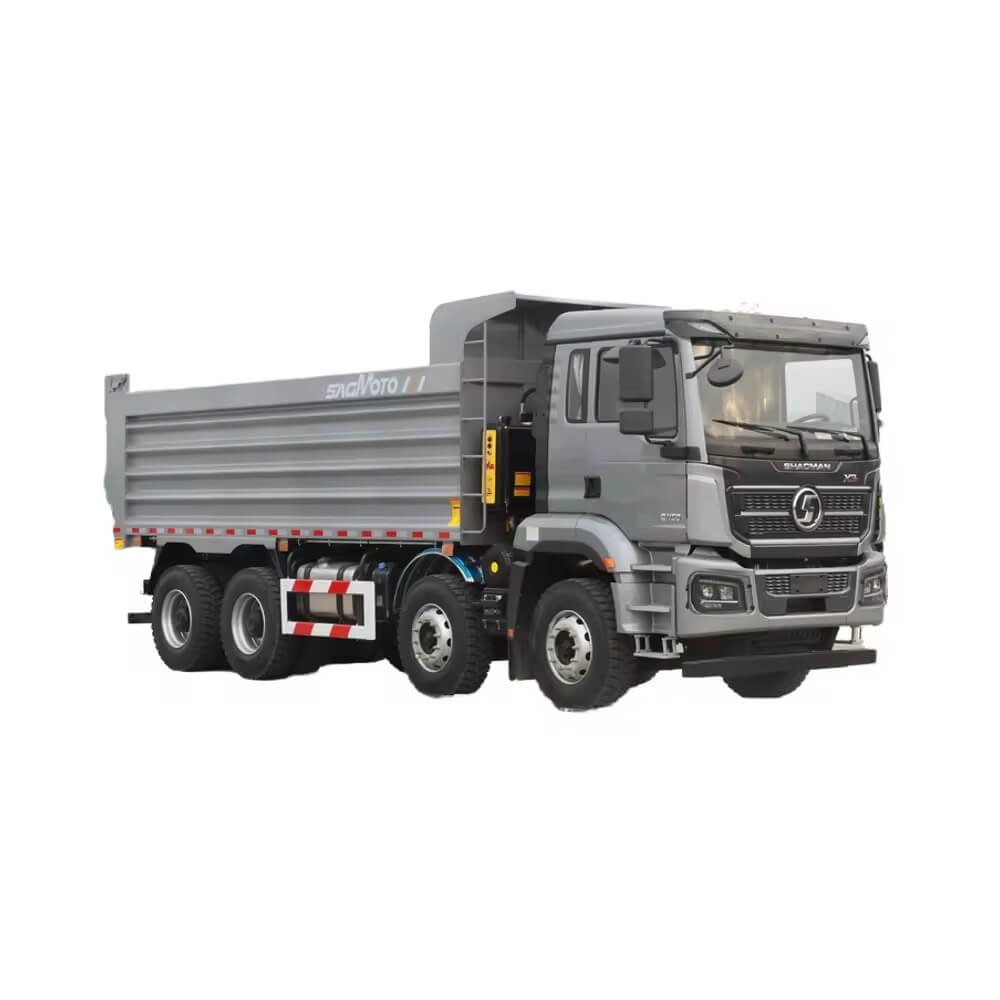

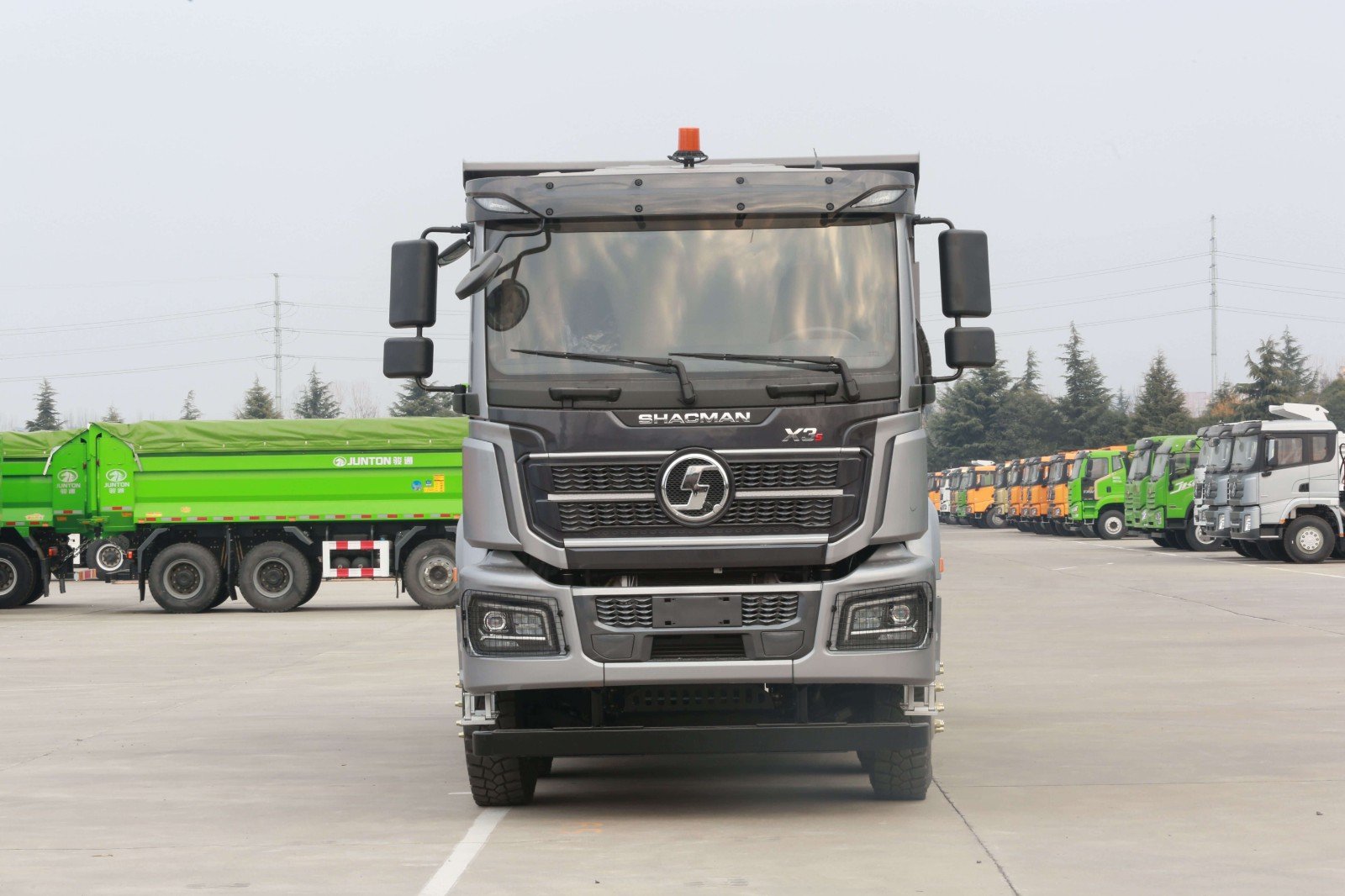

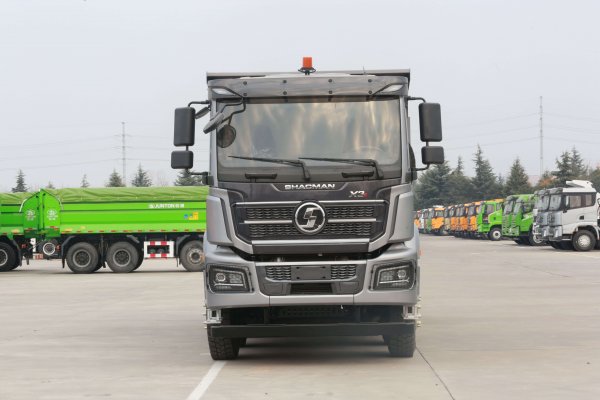

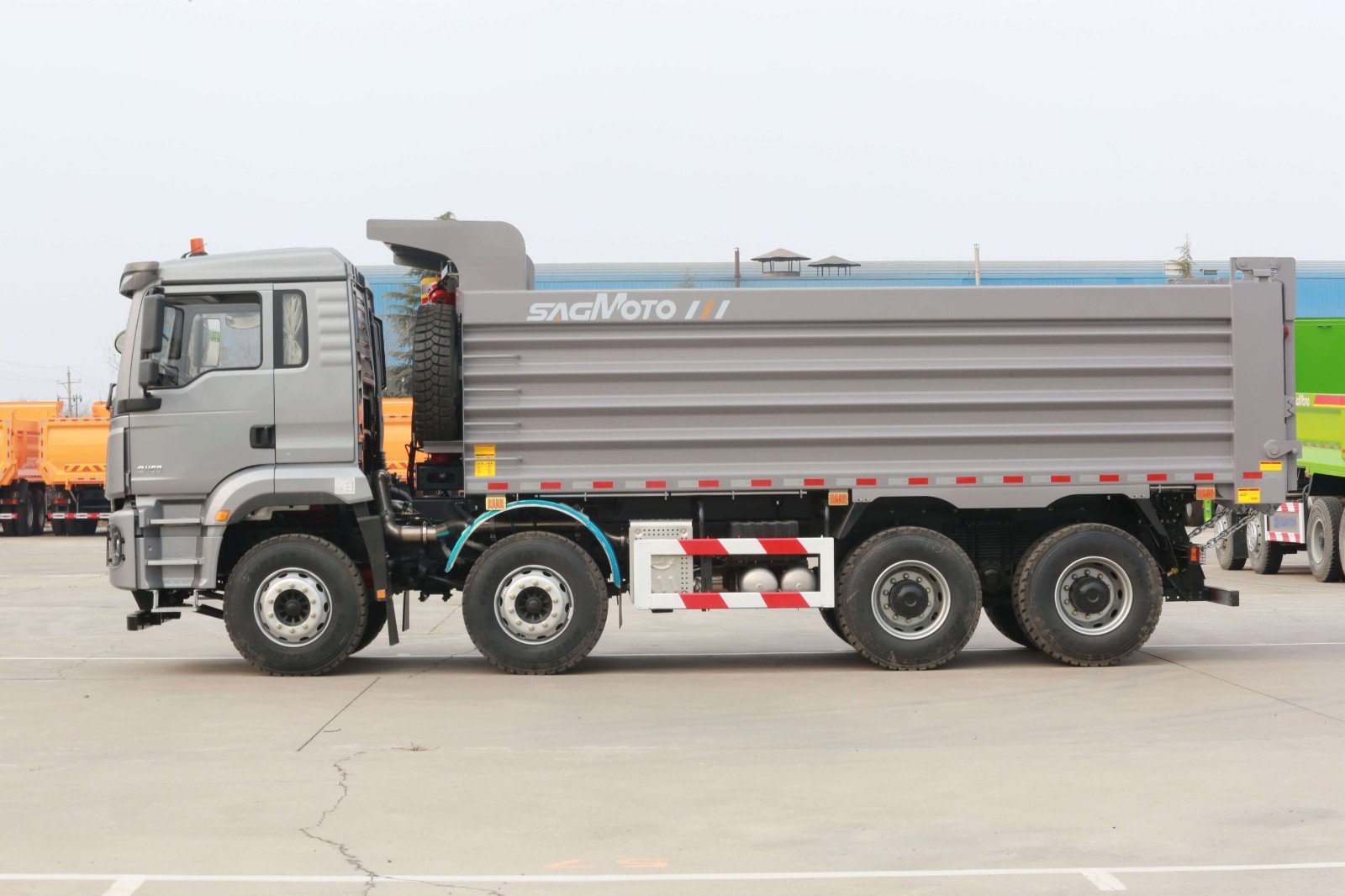

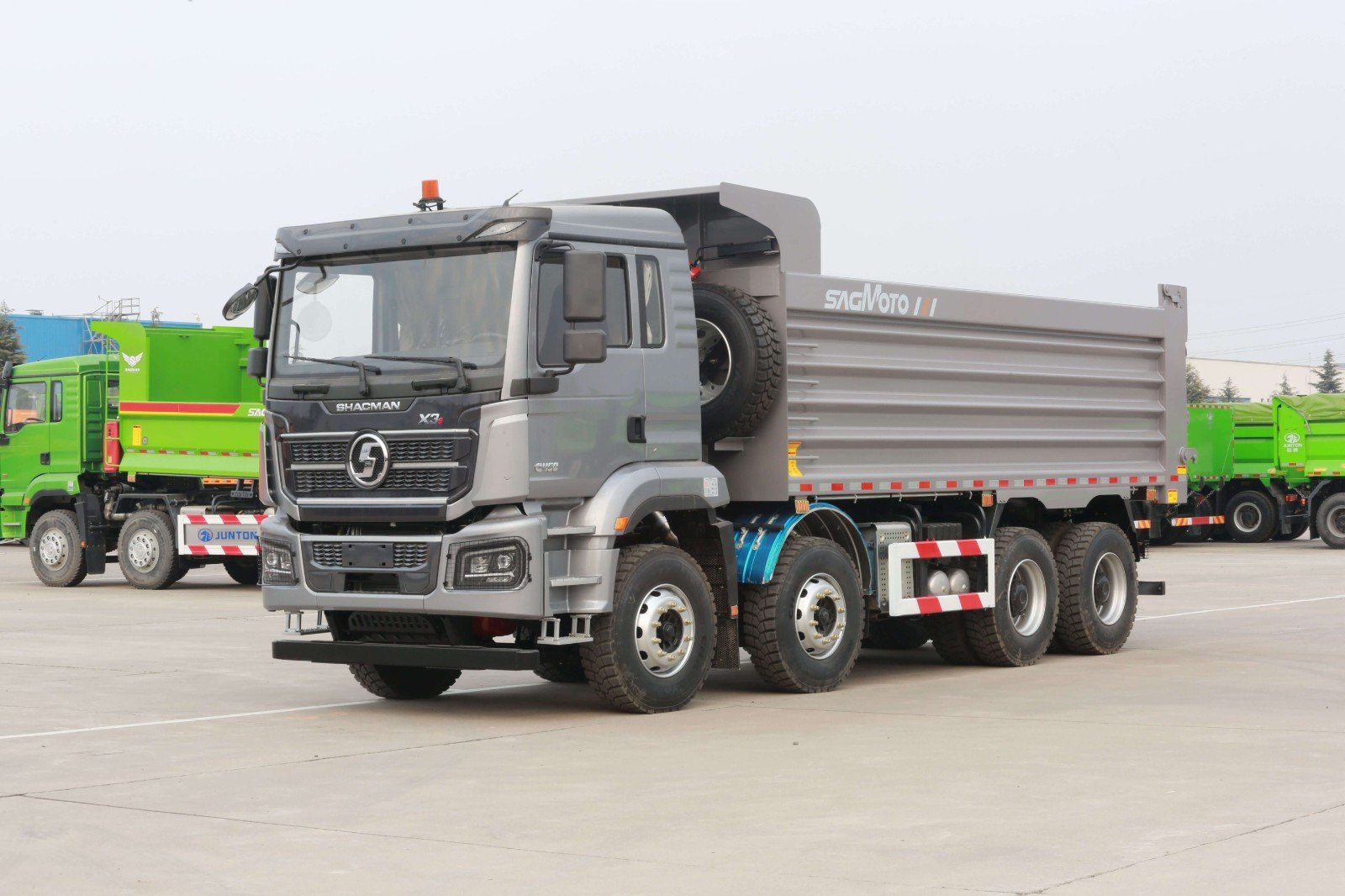

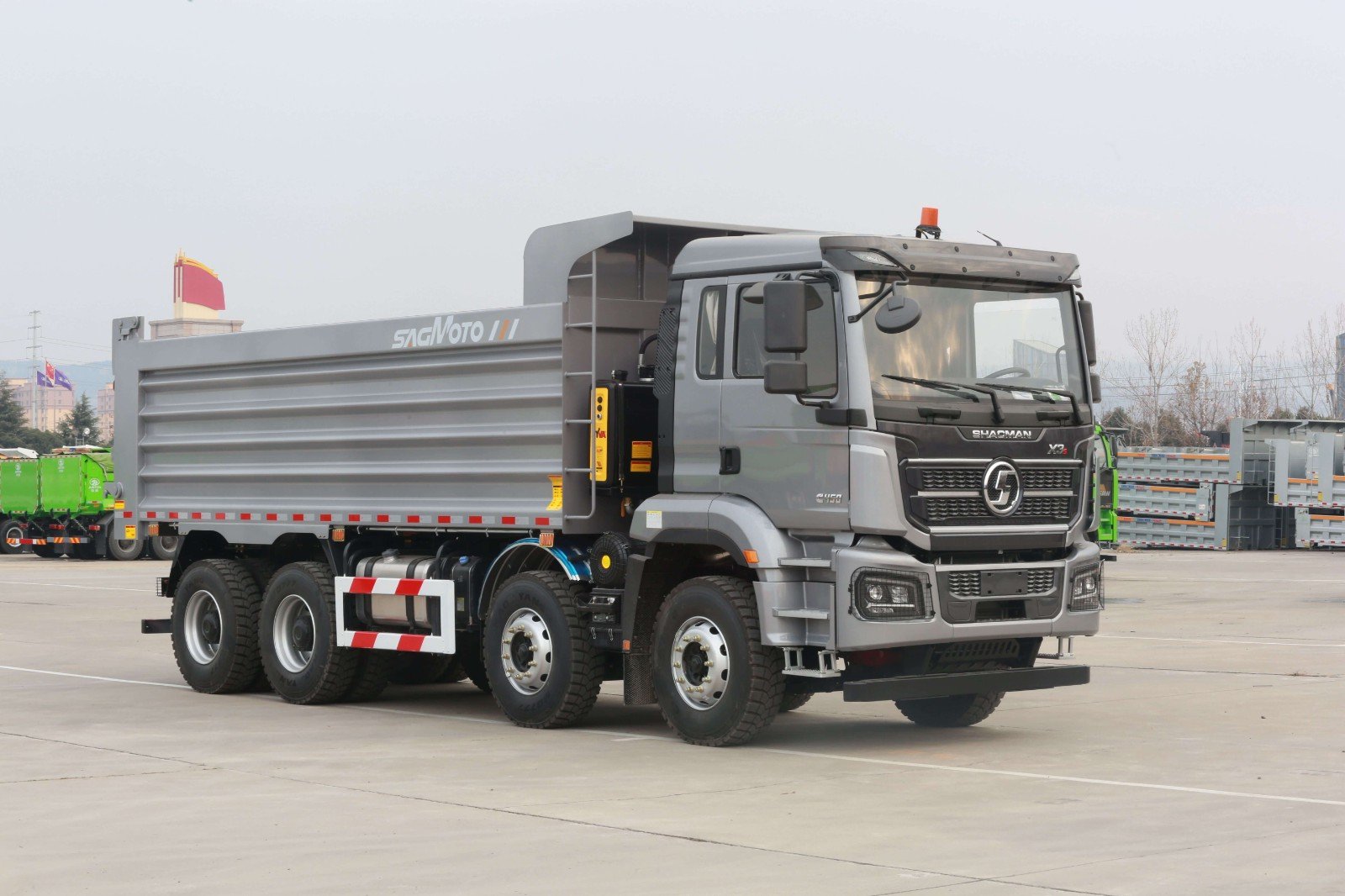

SHACMAN SAGMOTO X3s 8×4 385 HP Cummins Euro III 30-ton Dump Tipper Truck for Sale
No.:
Vehicle Type: Dump Truck
Brand Name: SHACMAN SAGMOTO
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
SHACMAN SAGMOTO X3s 8×4 385 HP Cummins Euro III 30-ton Dump Tipper Truck for Sale
Key Features
Engine: Cummins ISME 385-30, 385 HP / 1 830 N·m, Euro III, water-cooled, turbocharged.
Gearbox: Fast 810JSD180 10-speed manual (cast-iron) + QH50 PTO for precise load control.
Payload: 30 tons on 16-ton two-stage rear axle (5.262 ratio).
Dump Body: 5 600 × 2 300 × 1 000 mm, 13 m³, T700 high-strength steel, 4 mm floor / 3 mm sides, single-cylinder 180 lift.
Chassis: 8×4 drive, 1 800+3 575+1 400 mm wheelbase, 850×300/8+7 mm frame.
Suspension: 14/14/12 heavy-duty leaf springs (four main + four auxiliary) for off-road stability.
Fuel Tank: 400 L aluminum for extended range.
Cab: X3s medium-long half-high roof, A/C, airbag driver seat, 5-inch LCD cluster, Bluetooth, central lock.
Extras: 180 Ah maintenance-free battery, oil-bath air filter, headlight/taillight grilles, 50-ton jack, optional desert wind-proof sump guard.
Specifications
复制
| Item | Specification |
|---|---|
| Model | SX3313M3M39J3660 |
| Engine | Cummins ISME 385-30 385 HP Euro III |
| Gearbox | Fast 810JSD180 10-speed manual |
| Drive | 8×4 |
| Rear Axle | 16 T two-stage, ratio 5.262 |
| Payload | 30 t |
| Dump Body | 13 m³ (5.6×2.3×1.0 m) T700 steel |
| GVW | 31 t |
| Suspension | 14/14/12 leaf springs |
| Fuel Tank | 400 L aluminum |
| Tyres | 12.00R20 18PR |
| Cab | X3s half-high, A/C |
| Max Speed | 80 km/h |
| Certification | ISO9001, SONCAP |
| Warranty | 1 year / 100 000 km |
Contact us for pricing and customization!
