SHACMAN L3000 4x2 Lorry Flatbed Cargo Truck Chassis for Sale: A Comprehensive Guide to Heavy-Duty Engineering, Clutch Maintenance, and AMT DM Technology for Algeria, Zambia, and Tanzania Fleets
30 Dec 2025
Introduction: The Backbone of Regional Logistics
In the demanding logistics landscapes of Algeria, Zambia, and Tanzania, the efficiency of a transport business rests on two pillars: a versatile vehicle platform and a deep understanding of its powertrain engineering. The SHACMAN L3000 4x2 Lorry Flatbed Cargo Truck Chassis (Model SX11858J501) has established itself as a premier choice for "superstructure-ready" applications.
However, operating a 210hp Weichai-powered vehicle in extreme temperatures and heavy payloads requires more than just driving; it requires mastery over the clutch assembly—the critical component that bridges engine power to the Fast Gear 8-speed transmission. This technical dossier explores the L3000 chassis specifications and provides an exhaustive deep dive into heavy-duty clutch engineering.
I. SHACMAN L3000 4x2 Chassis: Technical Specifications & Capability

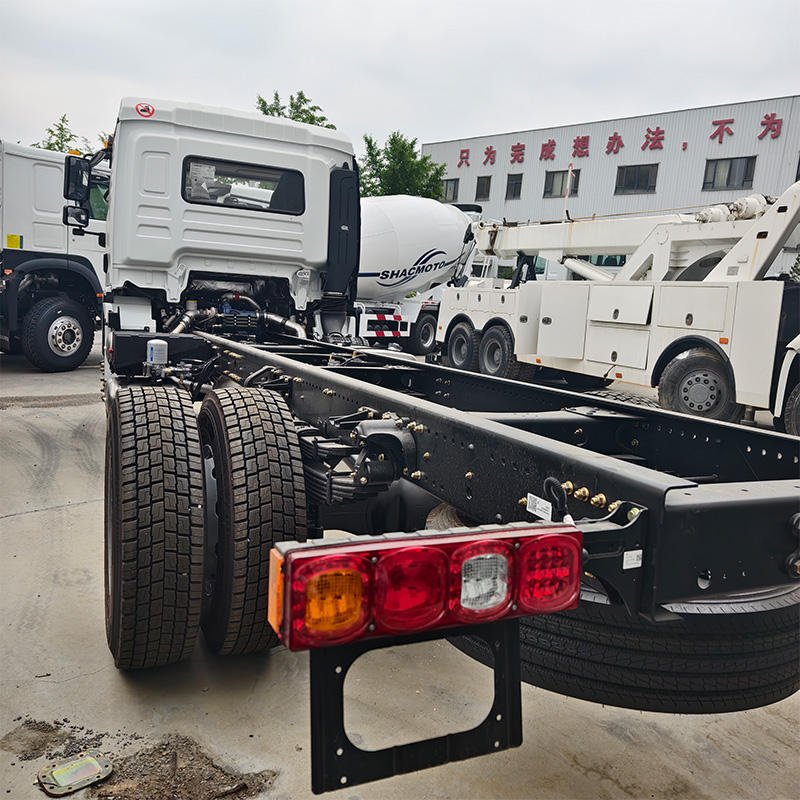

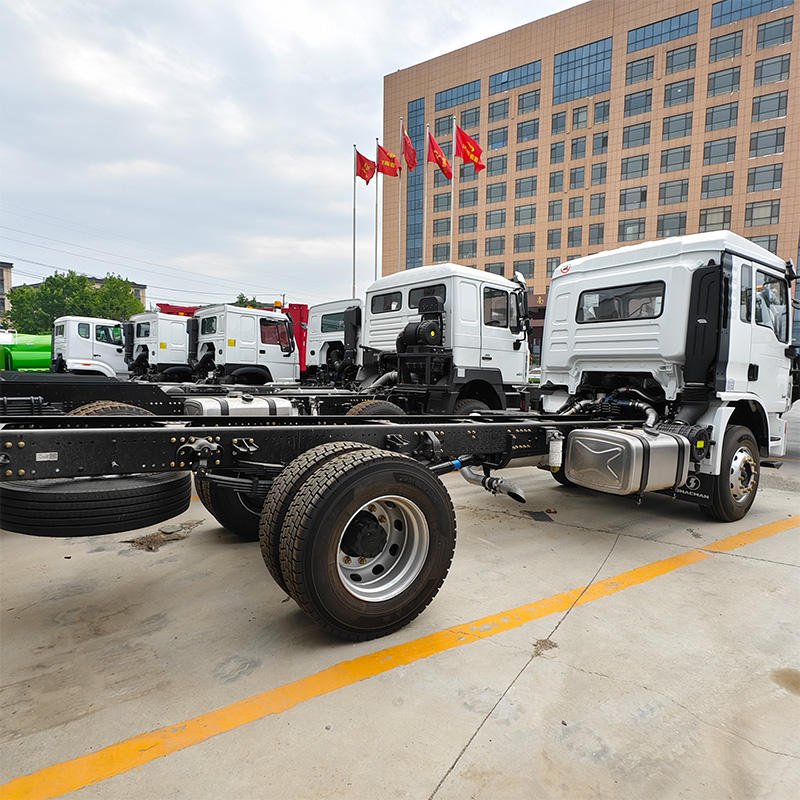

The L3000 is designed as a "blank canvas," optimized for everything from flatbed lorries to specialized tankers.
Core Specifications Table
| Category | Technical Detail |
| Model | SX11858J501 (L3000 Standard Version) |

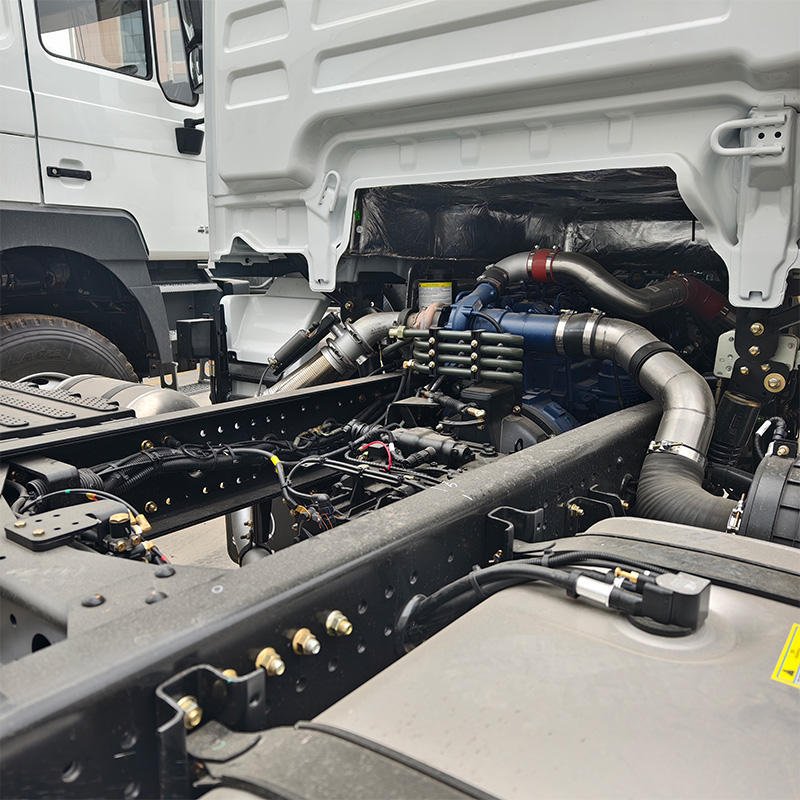

| Engine | WEICHAI WP6.210E32 (210hp, Euro II) |
| Transmission | 8JS85TM (Aluminum shell, 8-Speed, QD40J PTO) |
| Chassis Frame | $870 \times 250\ (7+4)\ \text{mm}$ High-strength steel |
| Axle Capacity | Front: $4,800\ \text{kg}$ (Disc) / Rear: $10,000\ \text{kg}$ (Single Reduction) |
| Wheelbase | $5,000\ \text{mm}$ |
| Tires | 11R22.5 (6+1 units) |
| Fuel Tank | $300\ \text{L}$ Aluminum |
Why it matters for Africa: The Euro II engine is highly tolerant of varying fuel qualities found across Zambia and Tanzania, while the $7+4\ \text{mm}$ double-layer frame provides the torsional rigidity needed for the "long-hang" $6800\ \text{mm}$ cargo body on unpaved terrain.
II. Engineering the Power Link: The Clutch Assembly (Section 14.2)
The clutch in the SHACMAN L3000 is not a single part but an assembly divided into two basic groups: Driving Parts and Driven Parts.
1. Driving Components (The Power Side)
These parts are bolted to and rotate with the engine flywheel.
Flywheel: Though not technically part of the clutch, it is the mounting surface. It must be perfectly perpendicular with a runout no greater than $0.127\ \text{mm}$ ($0.005\ \text{in}$). In the high-heat environments of the Maghreb, a warped flywheel causes catastrophic clutch chatter.
Clutch Cover & Pressure Plate: The L3000 utilizes a cast steel cover for maximum heat dissipation. Inside, the pressure plate is forced against the friction disc by springs.
Angle-Spring Design: This is a hallmark of heavy-duty reliability. Unlike vertical springs, Angle-Springs (inclined springs) maintain a constant pressure plate load of $1,450\ \text{kg}$ ($3,200\ \text{lbs}$) even as the friction disc wears down. This ensures that the 210hp Weichai torque is fully transferred without slipping, regardless of the disc’s age.
2. Driven Components (The Transfer Side)
Friction Discs (Rigid vs. Damper): * Rigid Discs: Simple and durable, often used in dual-disc setups.
Damper Discs: These feature coaxial springs in the hub. They are essential for the L3000 to absorb the torsional shock and vibrations from the engine, protecting the aluminum-shell 8JS85TM transmission from gear fatigue.
![]()
III. Material Science: Ceramic vs. Organic Facings
In the heat of Zambia’s copper belt or Algeria’s construction sites, the choice of friction material is the difference between a 1-year and a 3-year service life.
Organic Facings: Made of glass and mineral fibers. They provide smooth engagement but fade quickly under the high-temperature "stop-and-go" cycles of regional distribution.
Ceramic (Cermet) Facings: Composed of ceramic, copper, and iron.
Durability: These are standard for SHACMAN heavy-duty applications.
Heat Resistance: Ceramic buttons can withstand significantly higher temperatures without losing their friction coefficient.
Design: Usually configured in 3, 4, or 6-button layouts on a "paddle-wheel" disc, which allows debris and dust to shed effectively—a critical feature for the dusty roads of Tanzania.
IV. Understanding the Mechanism: Pull-Type vs. Push-Type
The SHACMAN L3000 primarily utilizes the Pull-Type clutch mechanism for its heavy-duty reliability.
Push-Type: Common in light-duty trucks. The release bearing is pushed toward the engine. It lacks internal adjustment and is unsuitable for the high torque of the Weichai WP6.
Pull-Type (The Professional Choice): The release bearing is pulled toward the transmission to disengage.
Leverage: This design allows for higher clamping forces while requiring 50% less pedal effort due to the leverage ratio.
Clutch Brake Integration: Only Pull-Type clutches can effectively utilize a Clutch Brake.
The Clutch Brake: A Life-Saver for the 8JS85TM Transmission
The 8JS85TM is a non-synchronized transmission. To engage 1st gear or Reverse from a standstill, the input shaft must be stopped.
Operation: When the driver depresses the clutch pedal to $80\%\text{--}90\%$ of its travel, the release bearing squeezes the clutch brake against the transmission bearing cap.
Warning: Never engage the clutch brake while the truck is moving; this will shear the tangs and cause immediate failure.
V. The AMT Revolution: DM (Datalink Mechanical) Logic
For fleets in Algeria and Tanzania moving toward Automated Manual Transmissions (AMT), the terminology changes to DM (Datalink Mechanical).
Definition: A DM clutch is a mechanical assembly (often 15.5-inch dual-disc) controlled by an electronic actuator rather than a human foot.
Centrifugal Logic: AMT systems utilize engine RPM to manage engagement:
Contact Point: $750\text{--}850\ \text{RPM}$.
Full Clamp: At approx. $1,350\ \text{RPM}$, the system provides maximum clamping force.
Urge-to-Move: Advanced DM clutches allow a "creep" mode, applying a constant $61\ \text{N}\cdot\text{m}$ ($45\ \text{lb-ft}$) of torque so the truck can crawl in traffic or hold on a $6\%$ grade without rolling back.
VI. Maintenance and Actuation: The Air-Over-Hydraulic System
The SHACMAN L3000 uses a sophisticated Hydraulic-Air Booster system.
The Master Cylinder: Converts pedal movement into hydraulic pressure.
The Air Booster: Uses the truck’s compressed air system to multiply the driver’s force.
Pro-Tip for African Operators: In humid coastal regions like Dar es Salaam, moisture in the air lines can contaminate the booster's pilot valve. Regularly draining air tanks is the most effective way to prevent a "hard pedal" or clutch dragging.
Conclusion: Why the SHACMAN L3000 is Your Best Investment
The SHACMAN L3000 4x2 Lorry Flatbed Cargo Truck Chassis is not just a vehicle; it is a high-performance tool engineered for the specific rigors of the African continent. From its high-strength $870\ \text{mm}$ frame to the precision of its Angle-Spring Pull-Type clutch, every component is designed for longevity and ease of repair.
