Executive Summary: The Synergy of Chassis Reliability and Transmission Precision

For fleet operators in the high-growth corridors of Algeria, Zambia, and Tanzania, the profitability of a logistics operation is measured by "uptime." The SHACMAN L3000 4x2 Cargo Truck Chassis has emerged as a preferred platform due to its versatile superstructure-ready design and robust Weichai powertrain. However, the true "unsung hero" of this machine—and the primary factor in its maintenance lifecycle—is the Clutch System.

In this technical dossier, we analyze the engineering of the SHACMAN L3000 chassis alongside a deep dive into heavy-duty clutch technology, ranging from traditional manual Pull-Type mechanisms to the sophisticated Datalink Mechanical (DM) modules used in modern AMT systems.

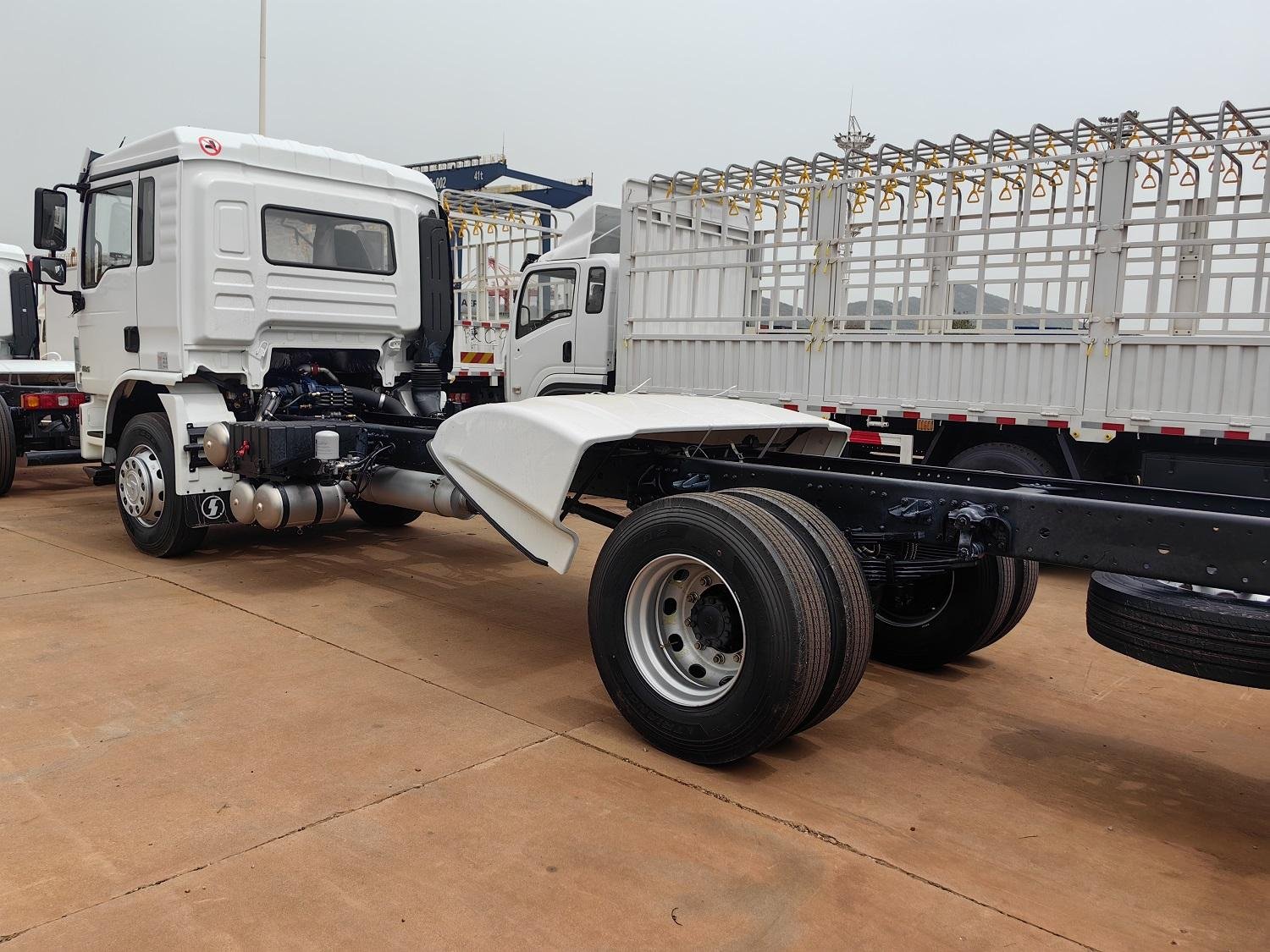

I. The Platform: SHACMAN L3000 4x2 Lorry Chassis Analysis

The L3000 is engineered as a "blank canvas" for specialized conversions. Its 18-ton GVM capability is supported by a high-strength

II. Advanced Clutch Engineering: Driving and Driven Groups

The clutch in a SHACMAN L3000 serves as the critical fuse between the Weichai WP6 engine and the Fast Gear 8-speed transmission. As per technical section 14.2, we categorize this assembly into two essential groups:

1. The Driving Group (Input Power)

• Flywheel Maintenance: The flywheel must maintain a runout of less than $0.127\ \text{mm}$ ($0.005\ \text{in}$). In the heat of the Maghreb or the humidity of East Africa, any surface contamination by oil or grease will cause "chatter" and premature failure.

• Angle-Spring Cover: This heavy-duty design utilizes helical springs placed at an angle. Unlike vertical springs, the Angle-Spring ensures that even as the friction material wears, the pressure plate load remains constant at $1,450\ \text{kg}$ ($3,200\ \text{lbs}$). This maintains $100\%$ torque transfer throughout the service life.

2. The Driven Group (Torque Transfer)

• Ceramic Button Facings: For the L3000 series, we strictly recommend Metalloceramic (Ceramic) facings. These "buttons" (available in 3, 4, or 6-pad layouts) offer a significantly higher friction coefficient and heat resistance than organic materials, making them essential for heavy-load starts in Zambia's copper mines.

• Damper Discs: To protect the 8JS85TM transmission, the clutch disc features coaxial springs in the hub. These springs absorb the torsional vibrations of the 6-cylinder Weichai engine, preventing input shaft fatigue.

III. Mechanical Operation: Pull-Type vs. Push-Type Systems

In the SHACMAN heavy-duty range, the distinction between separation mechanisms is a fundamental maintenance requirement.

• Pull-Type Clutch (Heavy Duty Standard): The release bearing is pulled away from the flywheel to disengage. This allows for higher leverage ratios and the integration of a Clutch Brake.

• The Clutch Brake (Essential for Non-Sync Gearboxes): On the L3000’s 8-speed manual, the clutch brake is a $1$-inch disc keyed to the input shaft.

• Strategic Use: By depressing the pedal to the last $12\ \text{to}\ 25\ \text{mm}$, the driver stops the input shaft from spinning. This allows for smooth engagement of 1st gear or Reverse without the "gear clashing" that destroys synchronizers.

IV. The AMT Revolution: Defining DM (Datalink Mechanical)

As fleets in Algeria and Tanzania modernize, the Automated Manual Transmission (AMT) is becoming the standard. This shifts the control of the SHACMAN powertrain to the Electronic Control Unit (ECU).

1. Datalink Mechanical (DM) Modules

Eaton and SHACMAN utilize the DM term for clutches that are mechanically robust but electronically managed. There is no clutch pedal; the ECU manages a mechanical actuator based on real-time data.

2. Centrifugal Engagement Logic

The AMT system utilizes the physics of engine speed:

• Idle State: No engagement.

• Contact Point ($750–850\ \text{RPM}$): The ECU moves the pressure plate to eliminate the gap.

• Full Clamp ($1,350\ \text{RPM}$): Maximum torque is transferred.

• "Urge-to-Move" (Wet Clutch Variant): Advanced systems can maintain a constant $61\ \text{N}\cdot\text{m}$ ($45\ \text{lb-ft}$) of torque, allowing the L3000 to "creep" in traffic or hold on a $6\%$ grade without using the brakes.

V. Maintenance & Adjustment Strategy for Africa

To ensure the SHACMAN L3000 achieves a million-kilometer lifecycle, the following maintenance protocols are mandatory for regional workshops:

1. Solo (Adjustment-Free) Maintenance: Modern Solo clutches use a worm gear wear compensator. Technicians must verify the position of the wear indicator during every PM (Preventative Maintenance) cycle.

2. Hydraulic-Air Booster Service: The L3000 utilizes air-over-hydraulic assistance. If the "pedal feels hard," the air pilot valve or the reaction plunger is likely contaminated with moisture—a common issue in coastal Tanzania.

3. Flywheel Resurfacing: Never install a new ceramic disc on a heat-checked flywheel. The aggressive nature of ceramic buttons requires a smooth, ground surface to prevent "grabbing."

Conclusion: Invest in the Platform, Secure the Parts

The SHACMAN L3000 4x2 Lorry Flatbed Chassis is more than just a truck; it is a profit-generating platform for African logistics. However, the hardware is only as good as the components that link the engine to the wheels.

Why Choose Our Solution?

• Direct Chassis Supply: We offer the SHACMAN L3000 chassis optimized for Euro II markets (Algeria, Zambia, Tanzania).

• Technical Parts Support: We supply the complete range of Ceramic Pull-Type clutches and DM Modules required to keep your fleet operational.

• Hardcore Engineering: Our parts are tested for the $1,450\ \text{kg}$ clamp loads and $130\ \text{kN}$ tear-out forces required by heavy-duty applications.

Maximize your uptime. Master your transmission logic.
