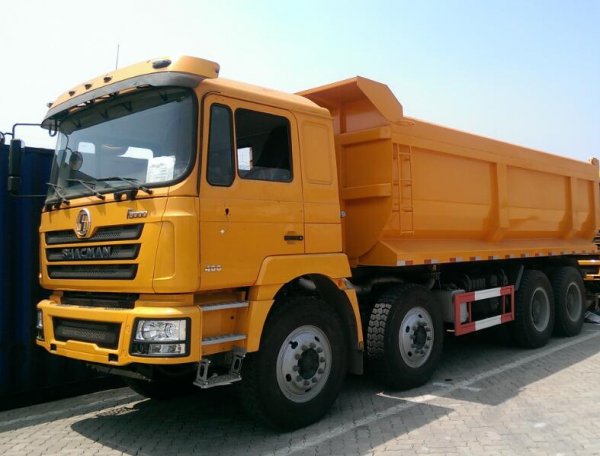

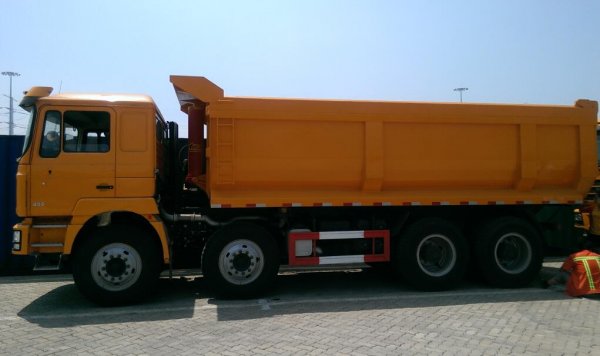

SHACMAN F3000 8x4 U Shape Truck Body Mining Dump Truck

No.: David-Shacman 8x4 mining tipper truck

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: David Ma

Cel: 0086 176 6971 7515

Whatsapp: 8617669717515

E-mail: sales20@chinatruck.cc

FREE GET QUOTE

Details


SHACMAN F3000 8*4 Dump Truck Mining U shape body

Traction type: 8x4

Drive System: LHD/RHD

Cabin:F3000 Flat Cabin, one sleeper, Air Conditioner

Engine Brand:WEICHAI

Model: WD12.375  EuroIII  Rated power :375hp

Engine displacement: 11.596 liters

Gearbox: FAST 12 Speeds, Manual

Clutch: Ф430 Diaphragm type

Steering: ZF technology

Axle: Front 7.5 Ton Man axle; Rear 16 Ton MAN double reduction axle, ratio:5.262

Max. running speed (km/h): 77

Tire: 12.00R20, 12R22.5

Fuel tank: 400L(Aluminum)

Kerb weight (kg): 14970

Total mass (kg): 31000

Wheel base (mm): 1800+3575+1400

Dimensions(L*W*H)(mm): 10600x2490x3450


Dump Body:

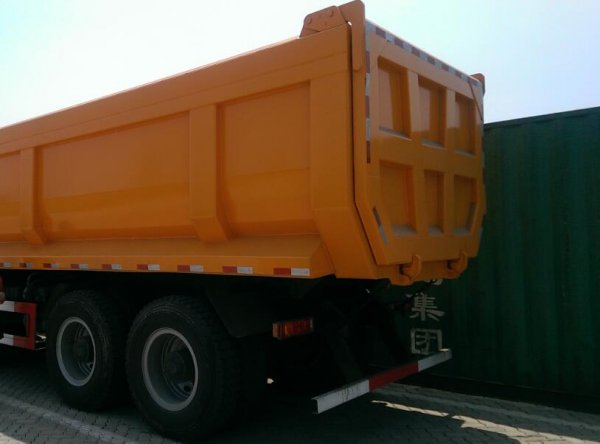

7600x2300x1500mm, with U shape mining dump body, Thickness (mm) :Bottom 10 , front6mm,side 8

Hydraulic lifting system: HYVA Front lifting
