Compatible Models

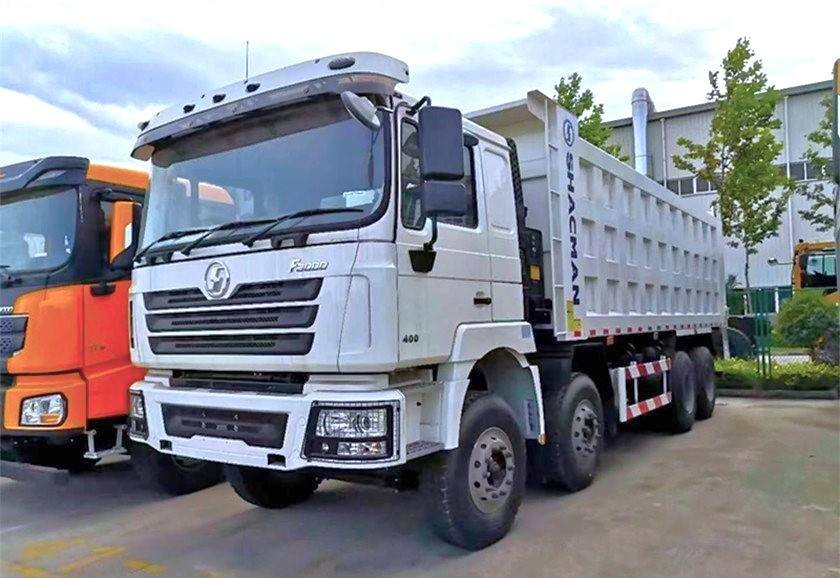

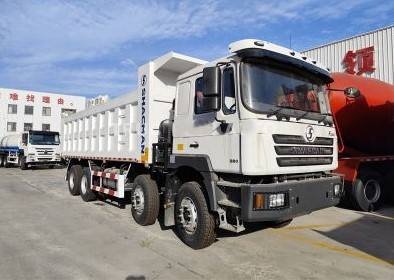

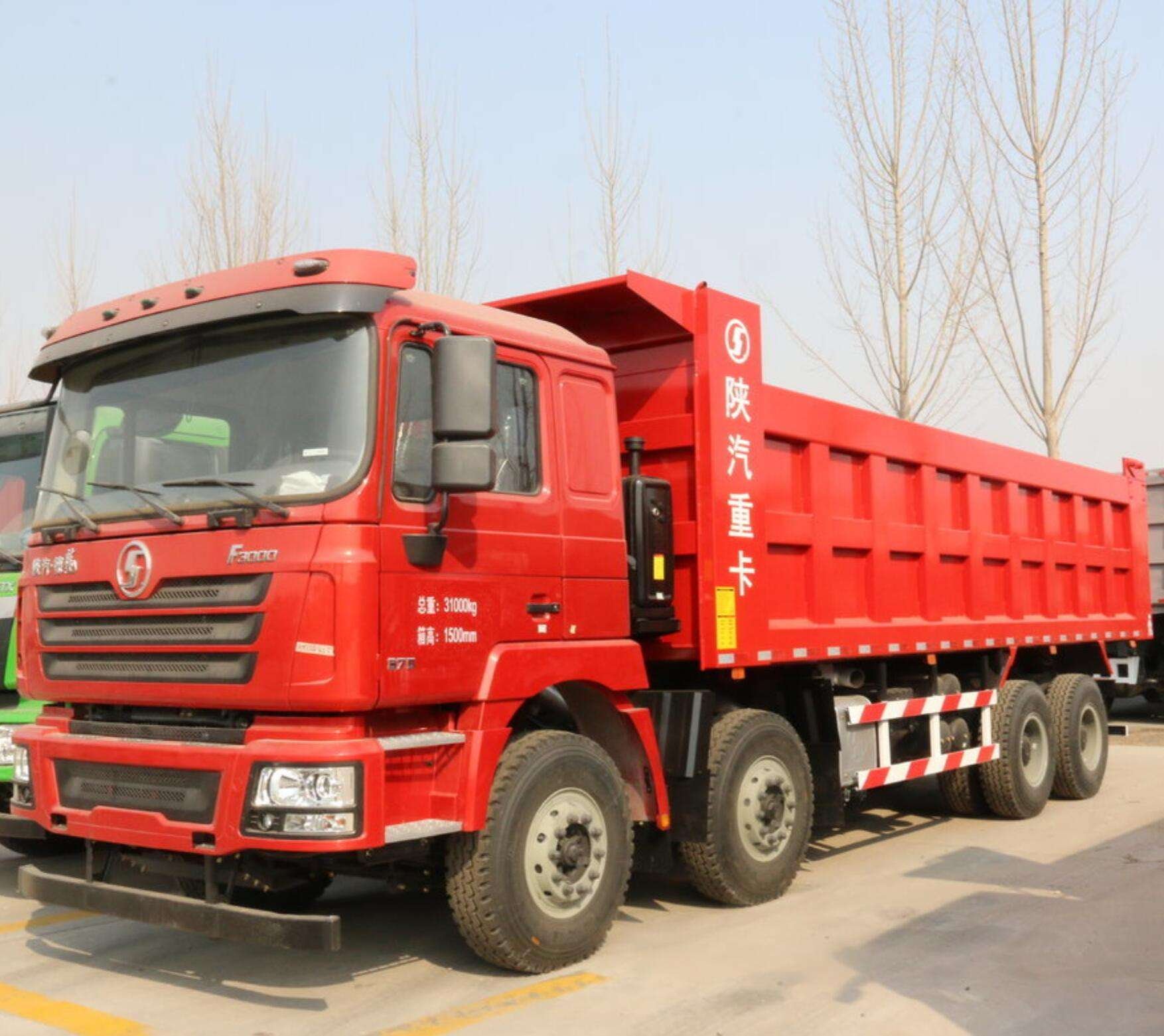

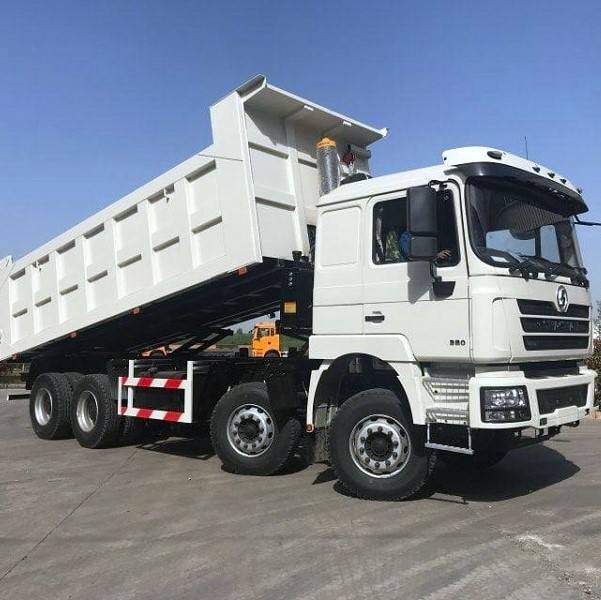

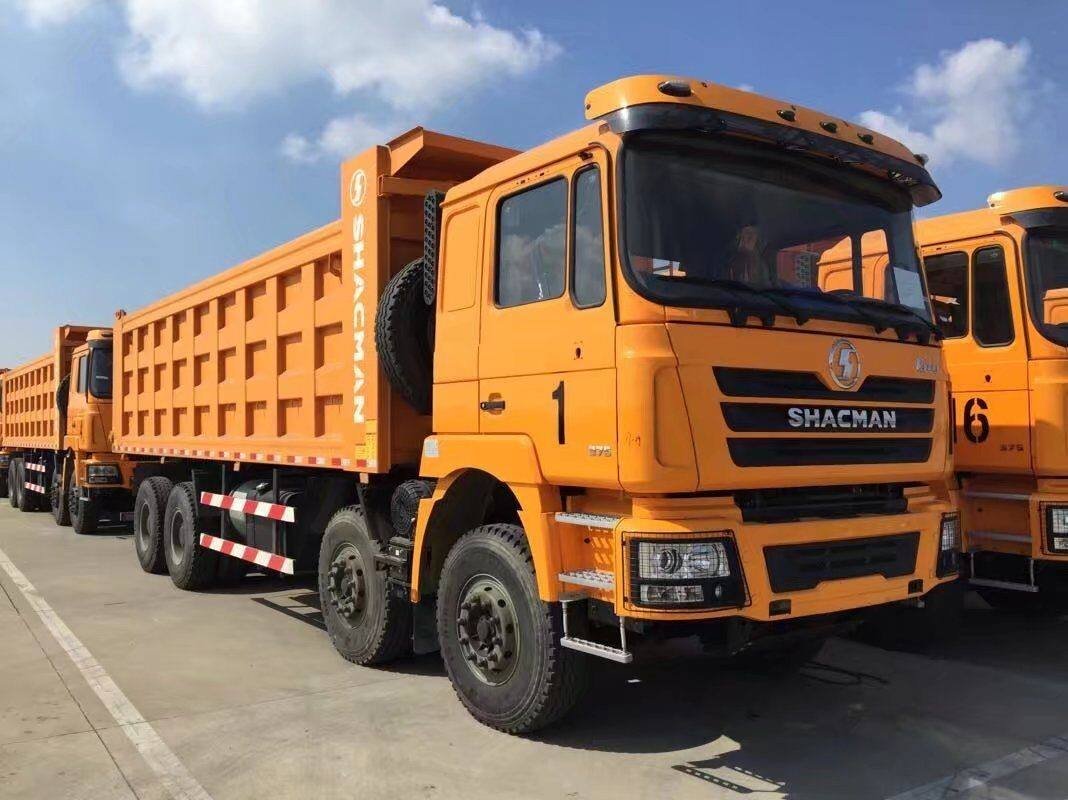

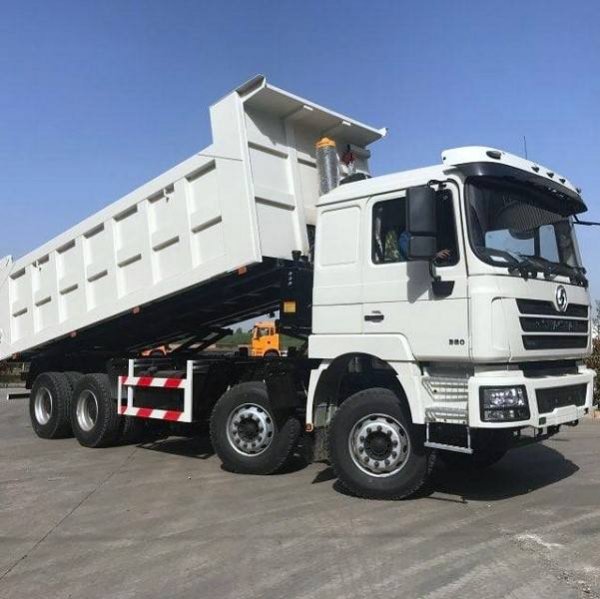

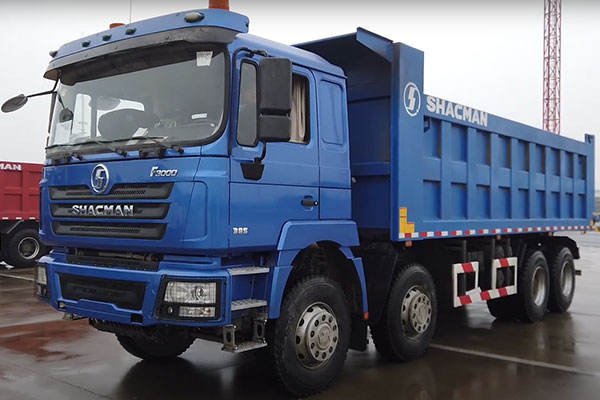

SHACMAN F3000 8×4 Dump Truck (Algeria Market Specification Only)
Key Parameter 1: Carriage 5600 × 2300 × 1130 mm, 8 mm floor / 6 mm sides
Key Parameter 2: Engine 250–316 kW (340–430 HP) Euro II
Key Parameter 3: Ventral lift 55° tipping angle, 25 s up / 20 s down

Technical Specifications
Overall dimensions: 8 354 × 2 490 × 3 450 mm
Carriage dimensions: 5 600 × 2 300 × 1 130 mm
Wheelbase: 1 800 + 3 775 + 1 400 mm
Cylinders: 6 in-line
Displacement: 9.726 L
Rated power: 250 kW (340 HP) @ 2 200 rpm – optional 316 kW (430 HP)
Max torque: 1 350 Nm (340 HP) / 1 550 Nm (430 HP)
Fuel type: diesel
Tank capacity: 300 L aluminium
Transmission: 10 JSD180 forward, 2 reverse
Front axle: STR 9.5 t
Rear axle: ST16 16 t × 2 (5.262 ratio)
Suspension: multi-leaf, heavy-duty
Steering: hydraulic with power assistance
Tires: 12.00-20 bias, 10 + 1 spare
Rim: 8.5-20
Cab: F3000 standard, one berth, A/C
Hydraulic lift: HYVA 196-4 ventral, 55°
Lift time: 25 s up / 20 s down
Steel thickness: floor 8 mm, sides 6 mm, front 6 mm
Payload: 40 t (including body)
GVW: 31 000 kg

Product Description
This Algeria-dedicated SHACMAN F3000 8×4 dump truck is engineered for 40 t payload earthmoving on quarry, highway and solar-pad projects across North-African deserts.

Core System 1 – Sahara-Rated Power & Driveline: optional 340/430 HP Weichai Euro-II engines deliver 1 350/1 550 Nm torque; 300 L tank gives 800 km range; twin-stage air filter and 55° thermostat protect against 50 °C ambient and fine Saharan dust.

Core System 2 – High-Strength 5600 mm Tipper Body: 8 mm floor, 6 mm sides, 6 mm front, fully welded with reinforced cross-members; HYVA 196-4 ventral lift provides 55° tipping angle and 25 s raise for clean sticky-clay discharge; rear door with manual + pneumatic locks meets Algerian quarry safety rules.

Core System 3 – ST16 Axle & ZF Steering Package: ST16 double-reduction rear axles (5.262) with hub-reduction carry 32 t combined load; differential lock and 12.00-20 bias tyres give 28 % gradeability on loose quarry floors; ZF 8098 power steering keeps turning diameter within 24 m for narrow site roads.

Local Compliance: certified by Algerian Ministry of Public Works (Cert. No. F3000-8×4-2024-DG-TP), fitted with NF P98-754 emergency stop and retro-reflective markings. This configuration is not sold in China or other export markets—produced only for authorised Algerian distributors.

Service Guarantees
Easy Returns – 30 days unused, original packaging; < 1 000 km odometer attracts 15 % restocking fee.
Global Delivery – FOB/CIF to Algiers, Oran, Annaba; inland haulage arranged.
Service Excellence – 8 authorised service centres; 24/7 French/Arabic hotline; 72 h on-site pledge.
Quality Assurance – 12 month / 30 000 km chassis warranty; optional Algerian extension covers ventral cylinder seals and tipping body weld joints.

Commercial Contact
International Sales Division – Algeria Market
William: +86 186 6977 8647 (WhatsApp / WeChat)

Shipping Terms
Production lead time: 25–30 days after deposit
Port of loading: Tianjin / Qingdao, China
Destination support: customs clearance, port handling, on-site commissioning within 200 km of major cities
MOQ: 1 unit retail, 3 units dealer
Payment: 30 % T/T deposit, 70 % before shipment; L/C at sight for approved contractors
