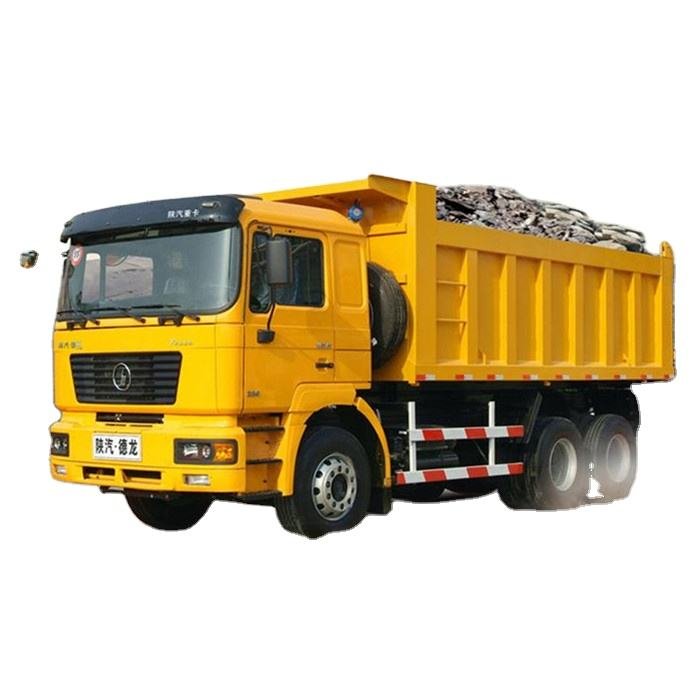

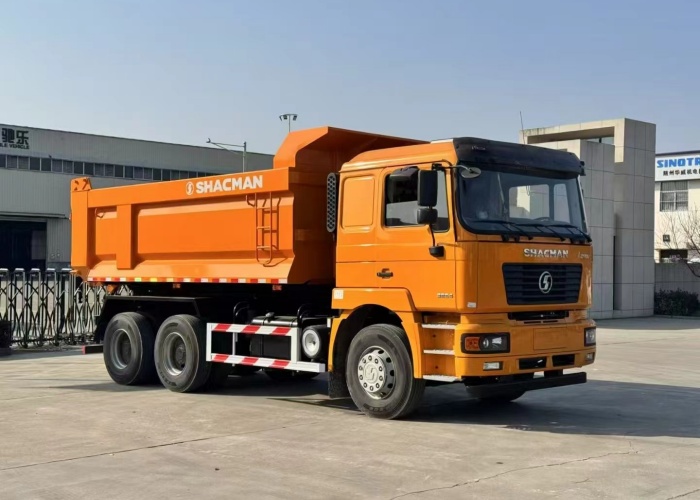

SHACMAN F2000 6x4 375HP 30 Ton Payload Dump Truck for Sale
Key Features
30-ton rated payload capacity with reinforced U-type dump body (multiple height options)

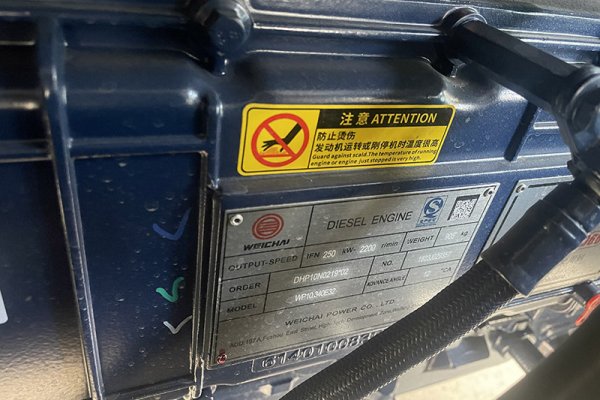

Powered by Weichai WP12.375 375HP Euro II diesel engine (276 kW, 1500 N·m torque)
Germany MAN F2000 cab with hydraulic suspension, sleeper berth, and ergonomic layout
Military-spec HANDE axles: front 7.5T, rear tandem 13T with differential lock

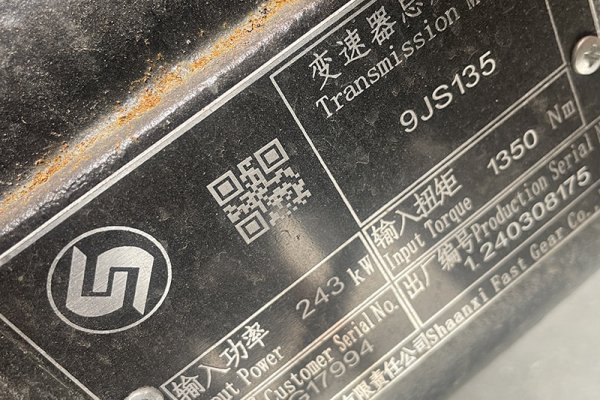

9-speed FAST manual transmission (RT-11509C) for reliable power delivery
Ladder-type high-strength chassis (300×8×(8+7) mm) for extreme load resistance
Dual-circuit air brake system with WEVB engine brake and optional ABS
Left-hand or right-hand drive available for global markets
Short delivery time and strong parts supply chain from China
Specifications
| Category | Specification |
|---|---|
| Model | SHACMAN F2000 Dump Truck |
| Drive Type | 6x4 |
| Payload Capacity | 30 tons |
| Engine | Weichai WP12.375 |
| Power | 276 kW / 375 HP |
| Max Torque | 1500 N·m @ 1200–1600 rpm |
| Displacement | 11.596 L |
| Emission Standard | Euro II (upgradeable) |
| Transmission | FAST RT-11509C, 9F+1R manual |
| Clutch | Single plate, diaphragm spring, Φ430 mm, hydraulic-pneumatic assist |
| Front Axle | HANDE, 7500 kg |
| Rear Axle | HANDE tandem, 13000 kg, double reduction, inter-wheel diff + diff lock |
| Axle Ratio | 5.73 |
| GVW | 32,500 kg |
| Kerb Weight | 14,500 kg |
| Dimensions (L×W×H) | 8329 × 2490 × 3450 mm |
| Dump Body Size | 5600 × 2300 × (1100 / 1300 / 1500) mm (U-type, high-strength steel) |
| Wheelbase | 3800 + 1350 mm |
| Max Speed | 74 km/h |
| Min Turning Radius | 17 m |
| Ground Clearance | 314 mm |
| Approach/Departure | 22° / 30° |
| Max Gradeability | 33% |

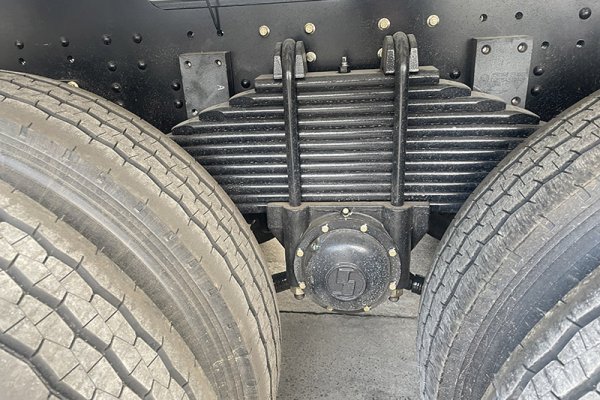

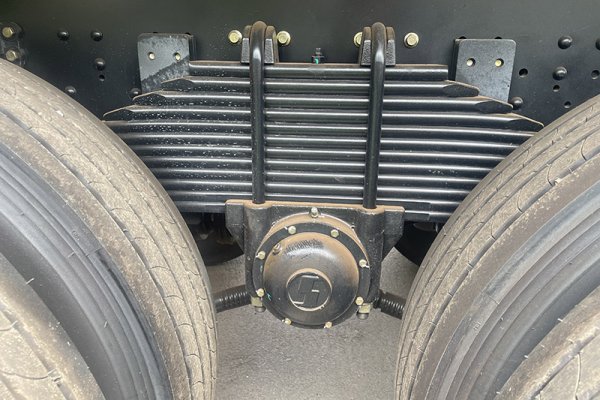

| Suspension | Front: longitudinal leaf spring; Rear: inverted leaf with stabilizer |
| Tires (Std) | 11.00-20 (Optional: 12.00R20, 11.00R20, 12R22.5) |
| Fuel Tank | 380 L, metal |
| Electrical System | 24V, 2×135Ah batteries, 5.58kW starter, 1.54kW generator |

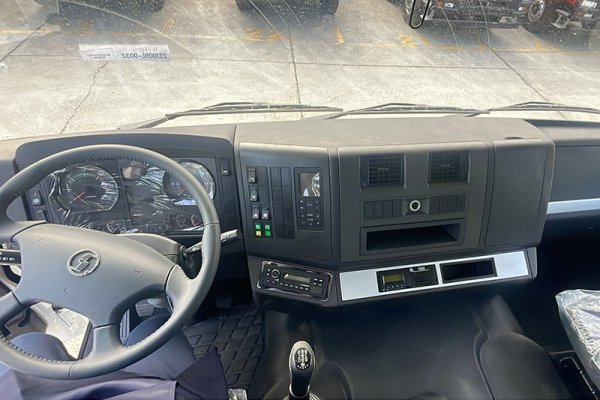

| Cab | MAN F2000, medium-length flat roof, hydraulic suspension, 1 sleeper berth |
| Optional Features | 4-point cab suspension, A/C, electric windows, heated mirrors, dual sleeper |
| Brakes | Drum, dual-circuit air service brake, spring parking brake, WEVB, ABS (opt.) |
| Steering | Integral ball-type power steering (ZF8090 optional) |
This SHACMAN F2000 dump truck is engineered for high-intensity operations in quarries, construction sites, and remote mining zones. Backed by strong after-sales parts availability and rapid export logistics from Qingdao, it offers exceptional value for international buyers seeking durability, proven performance, and cost efficiency.
