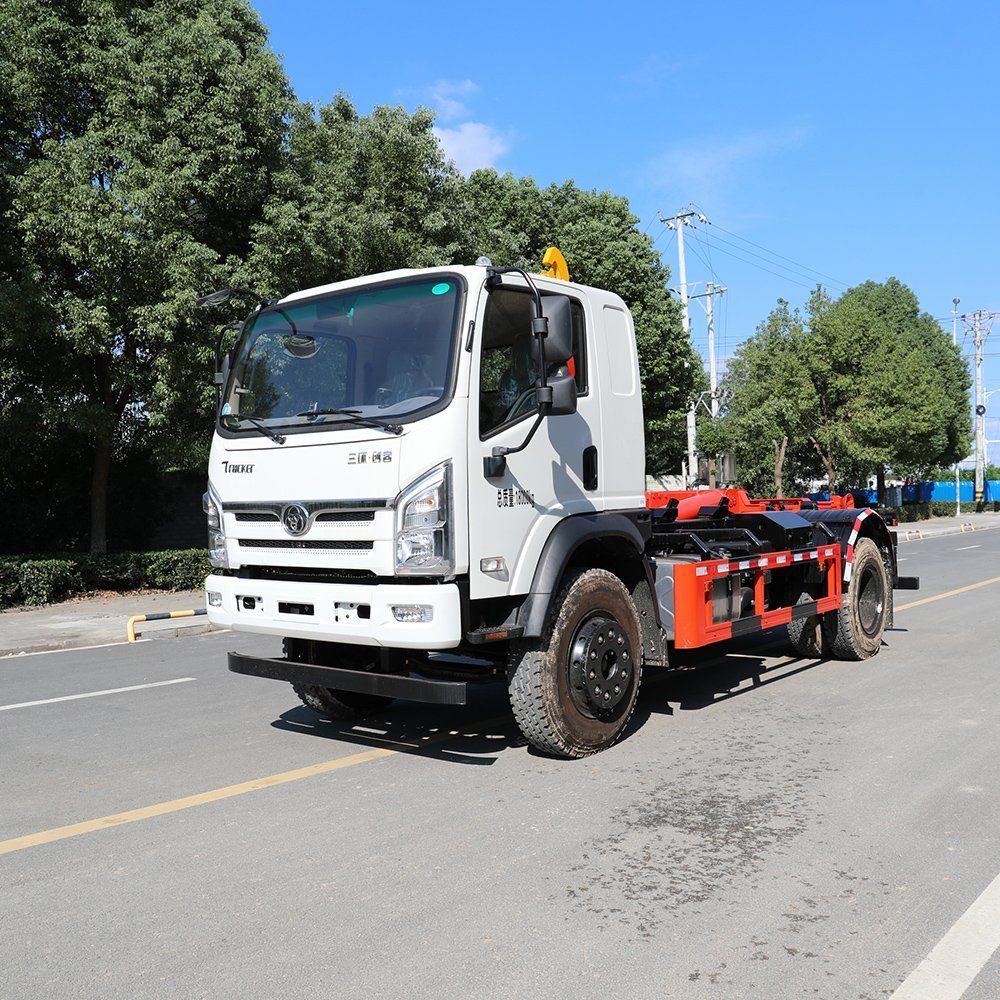

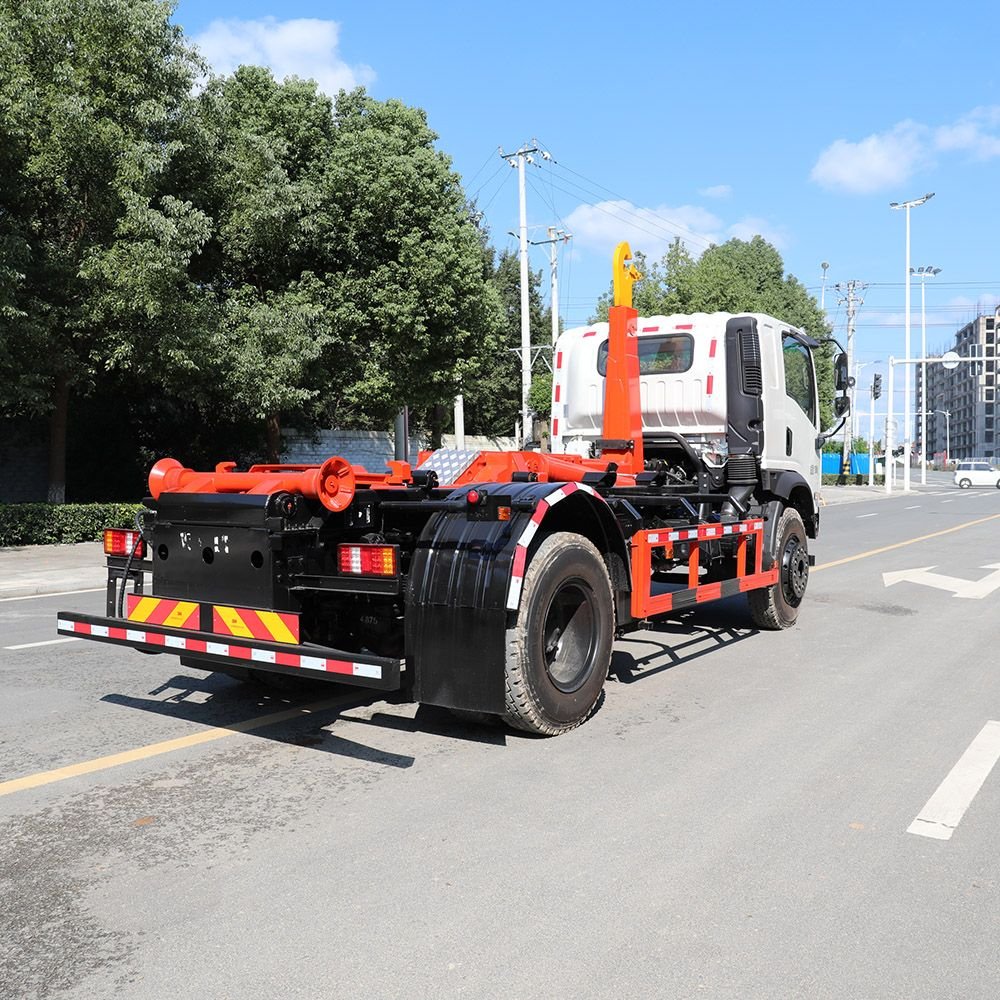

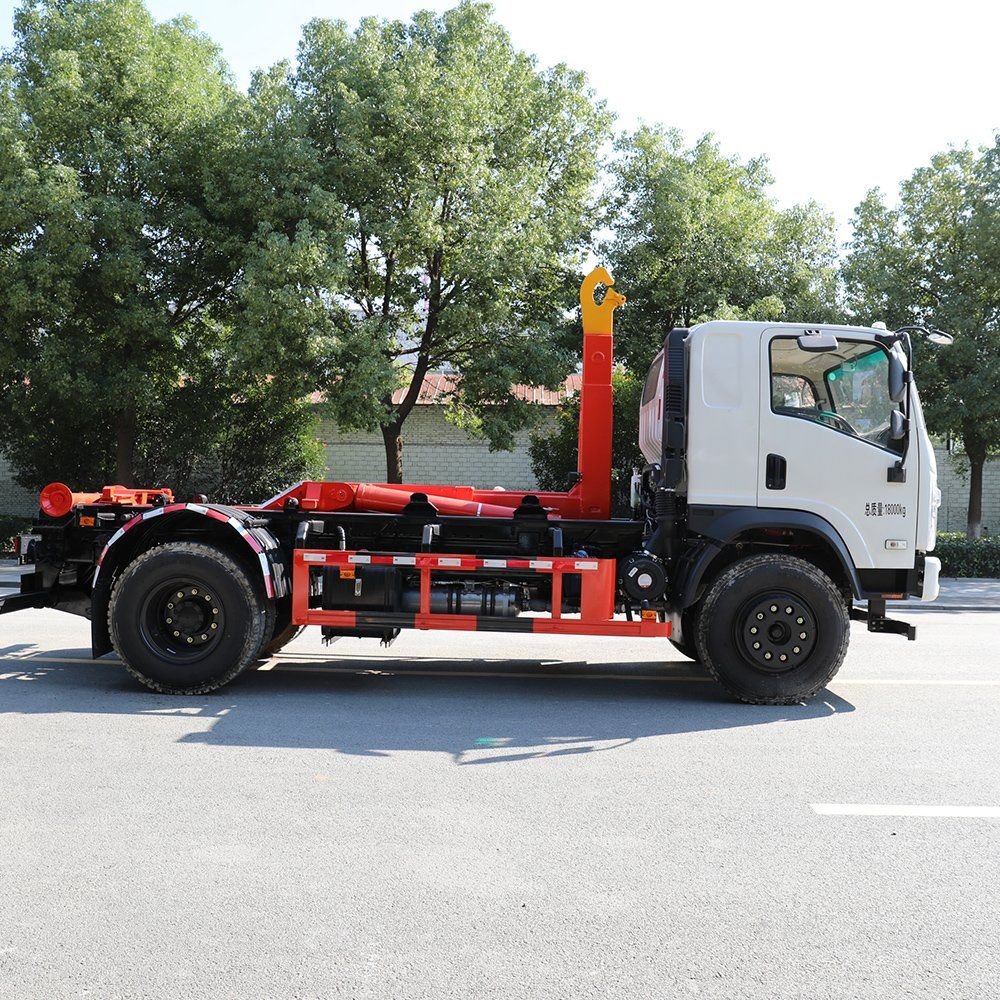

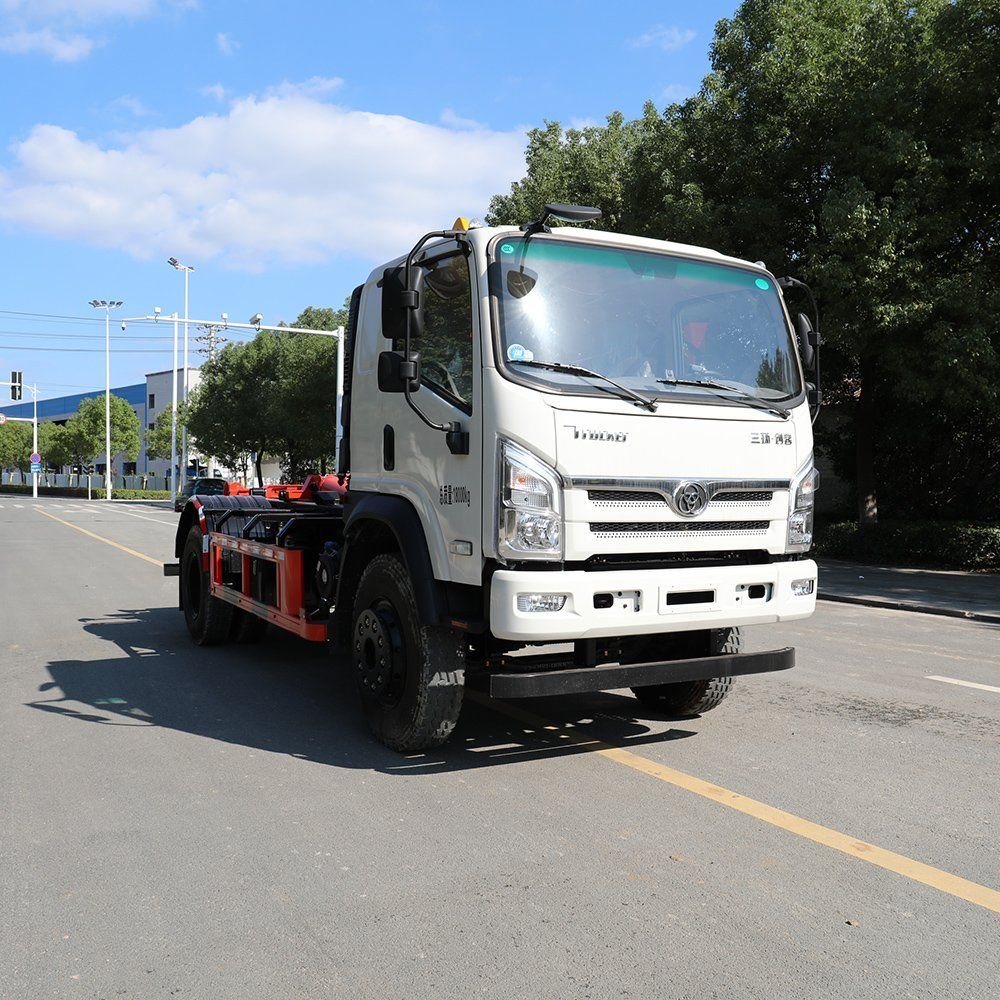

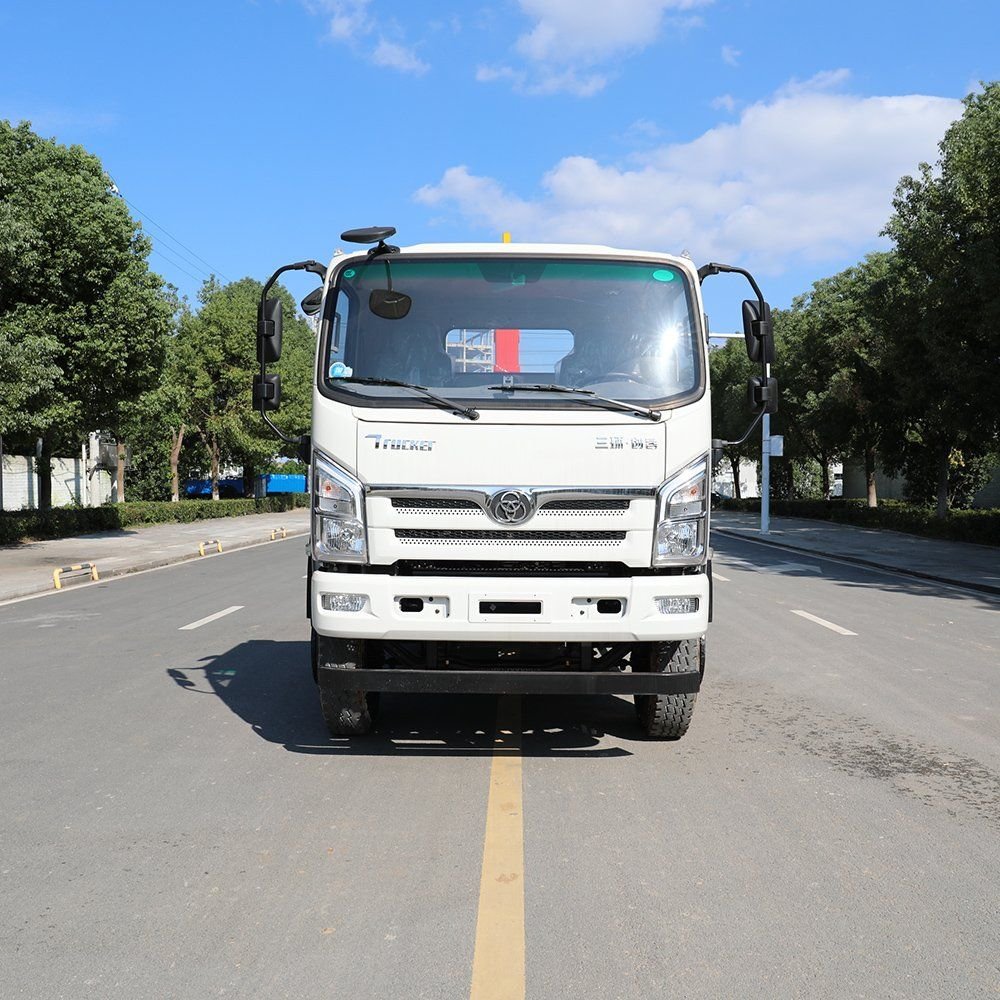

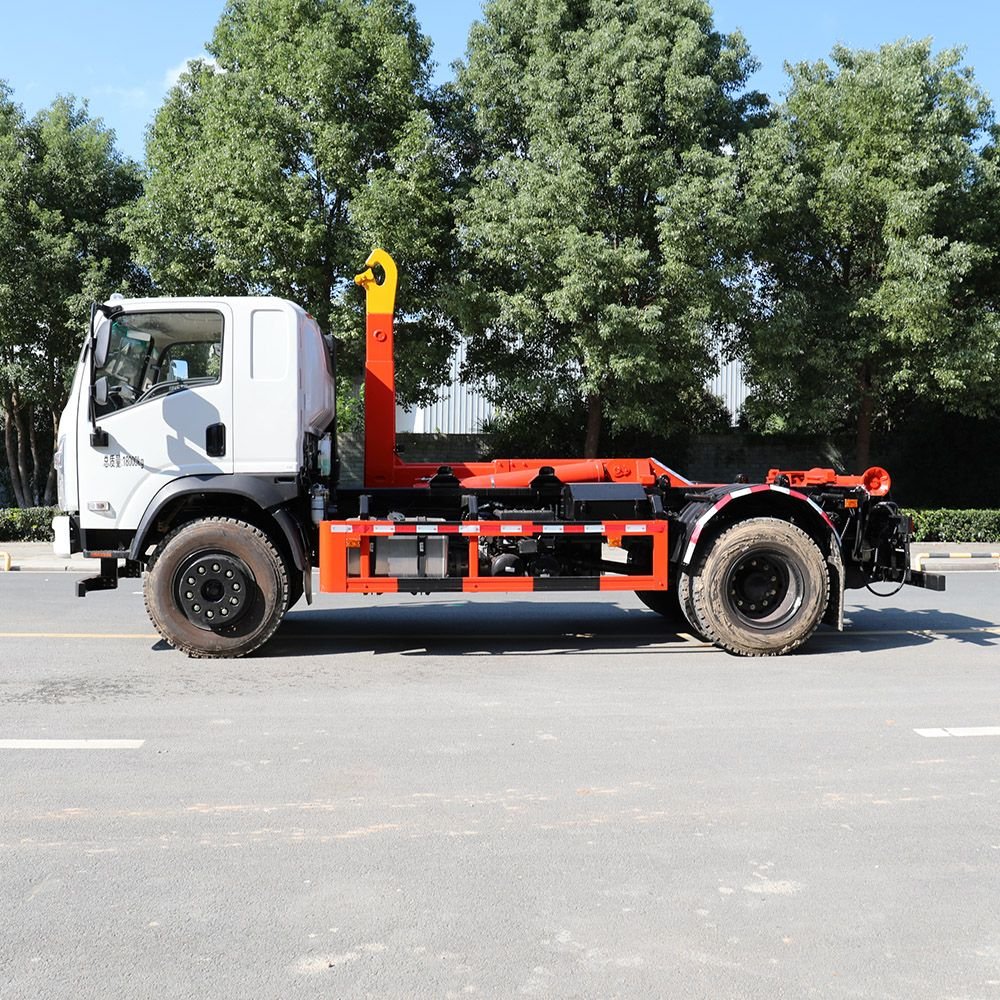

Kailai Tri-Ring 4×2 Hook-Lift Garbage Truck - 14.25m³ Euro II-VI Bin, 147kW, 8-Gear, ≤60s Swap, ABS+A/C, Global Export
No.:
Vehicle Type: Garbage Truck
Brand Name: KAILAI
Person in charge: William Du
Cel: 8619050562894
Whatsapp: 8619050562894
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Kailai Tri-Ring CSC5183ZXXSTQ6 4×2 hook-lift delivers 5000×2350×1500mm (14.25m³) bin, Euro II-VI 147kW, 8-speed, ≤60s lift/lower, dual-circuit air brake, spring parking, 24V electrics, tool kit, ABS+A/C - ready for Africa, Asia, Americas.
Kailai Tri-Ring 4×2 Hook-Lift Garbage Truck - 14.25m³ Euro II-VI Bin, 147kW, 8-Gear, ≤60s Swap, ABS+A/C, Global Export
Key Features
14.25m³ sealed bin: 5000×2350×1500mm, swap in ≤60s, lift ≤60s, self-unload ≤35s up & down
Euro II-VI power: Yuchai 147kW (4.2L), 8-speed manual, F3 semi-high roof cab, A/C, airbag seat, laminated glass
Heavy-duty chassis: 250×65(6.5+5)mm frame, 9/10+8 leaf springs, 4.875 ratio, 10.00R20-18 tyres, drum brakes with ABS
Full-hydraulic hook: double-acting cylinder, multi-way valve, manual control, self-unloading, metal rolling wheels
Global specs: 24V dual 100Ah batteries, spring parking brake, triangular warning sign, tool kit, side-mounted spare tyre
Kailai 12-month warranty, CCC/ISO9001, fast 20-day production, DDP sea/air worldwide
Specifications Summary
| Item | Specification |
|---|---|
| Model | CSC5183ZXXSTQ6 |
| Drive | 4×2, LHD/RHD optional |
| GVW | 18,000kg |
| Curb weight | 7,420kg |
| Dimensions | 6650×2460×3130mm |
| Wheelbase | 4000mm |
| Engine | 147kW Euro II-VI (Yuchai 4.2L) |
| Gearbox | 8-speed manual |
| Front axle | 3,600kg drum |
| Rear axle | 10,000kg drum, 4.875 ratio |
| Hook lift | 5000×2350×1500mm bin, ≤60s lift/lower |
| Hydraulic system | Double-acting cylinder, multi-way valve |
| Electrical | 24V, dual 100Ah batteries |
| Warranty | 12 months |
Usage & Safety
Pre-start check oil, air, hydraulic levels; confirm bin is properly locked before driving.
Never exceed 14.25m³ bin volume; use balance valve to prevent sudden drop during unloading.
Clean hydraulic filter every 500 cycles; grease hook rollers weekly.
