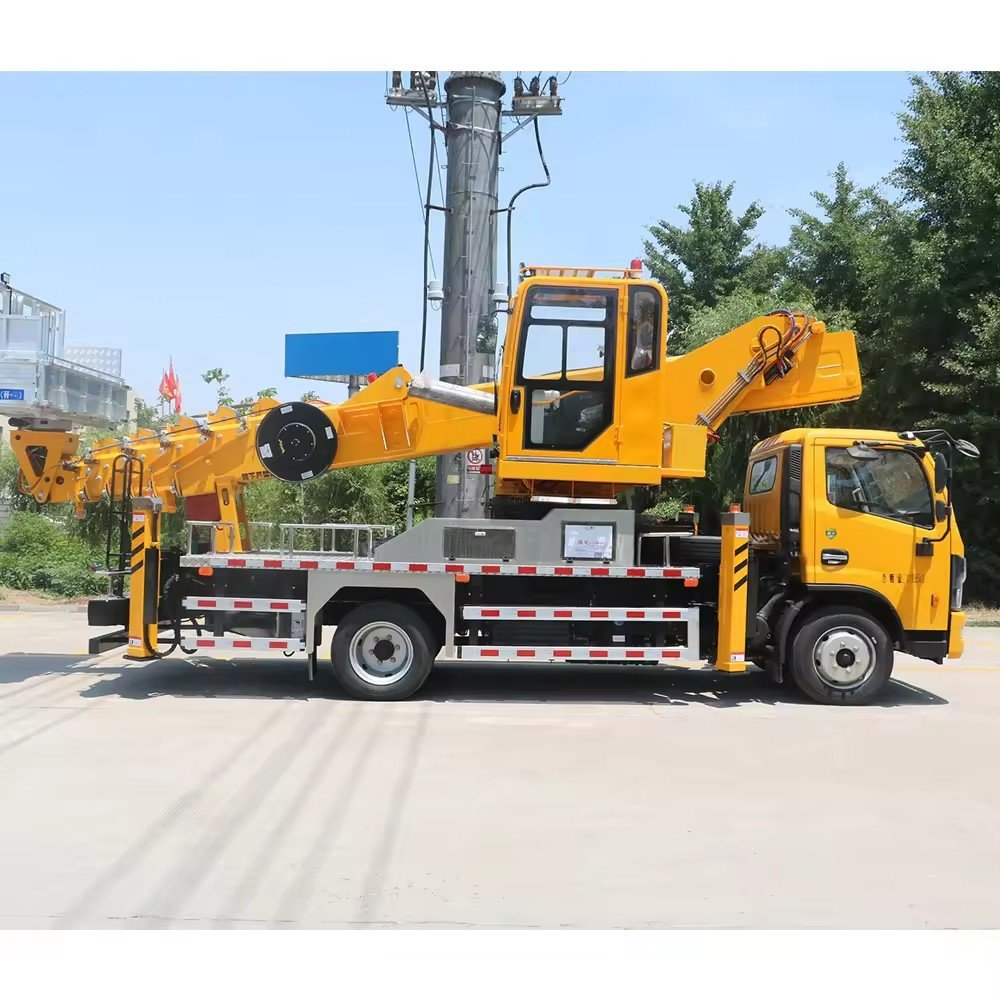

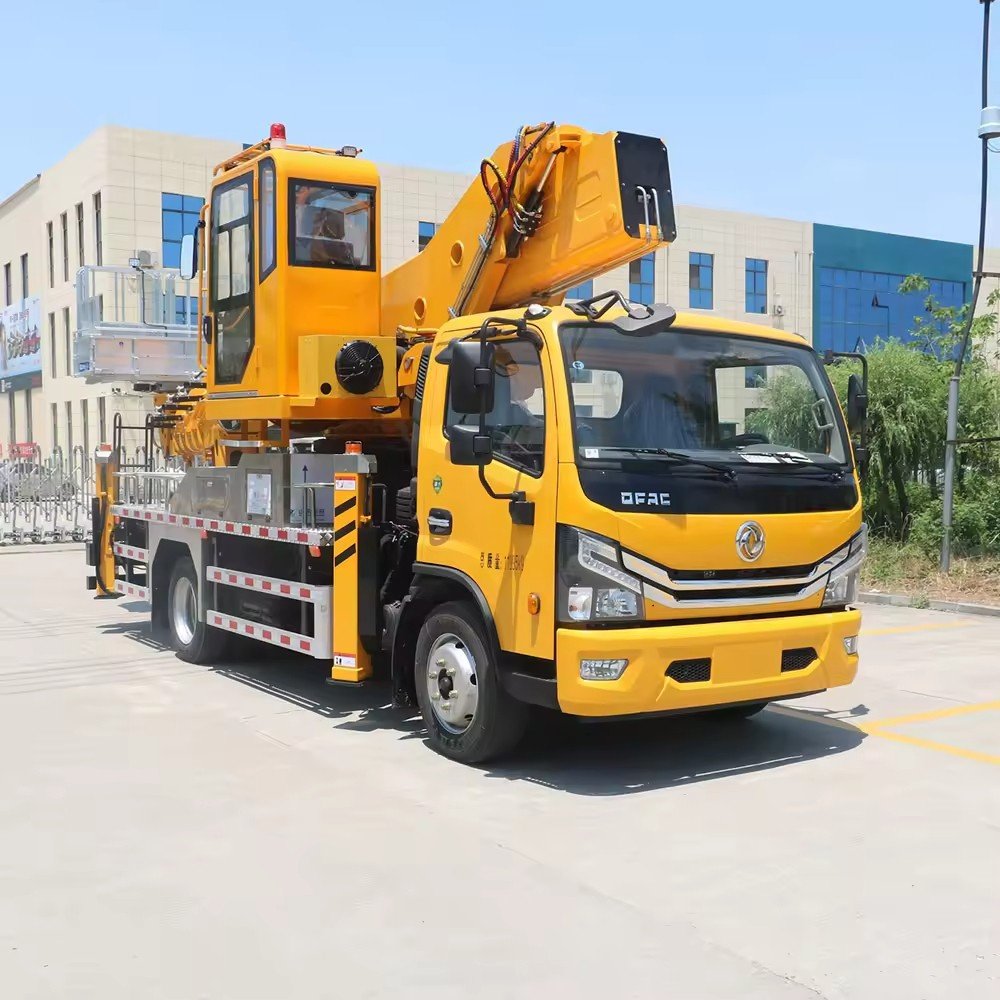

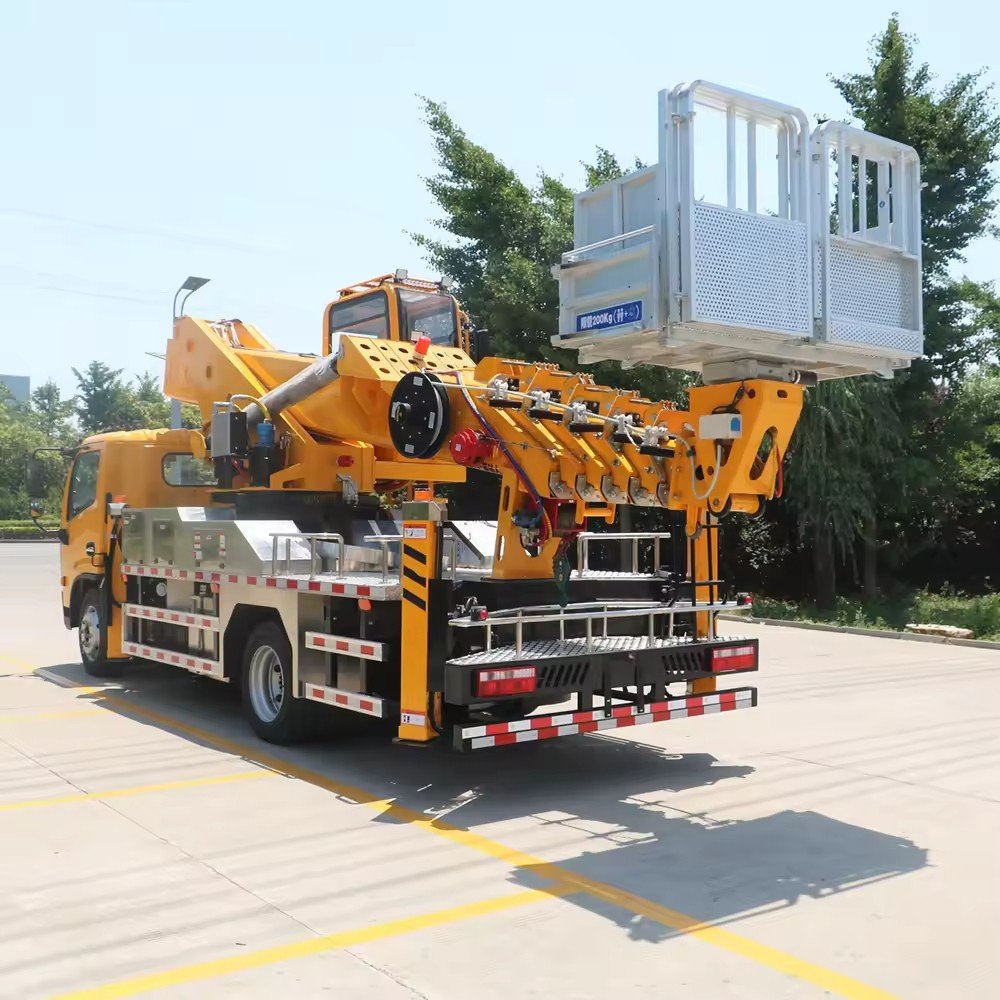

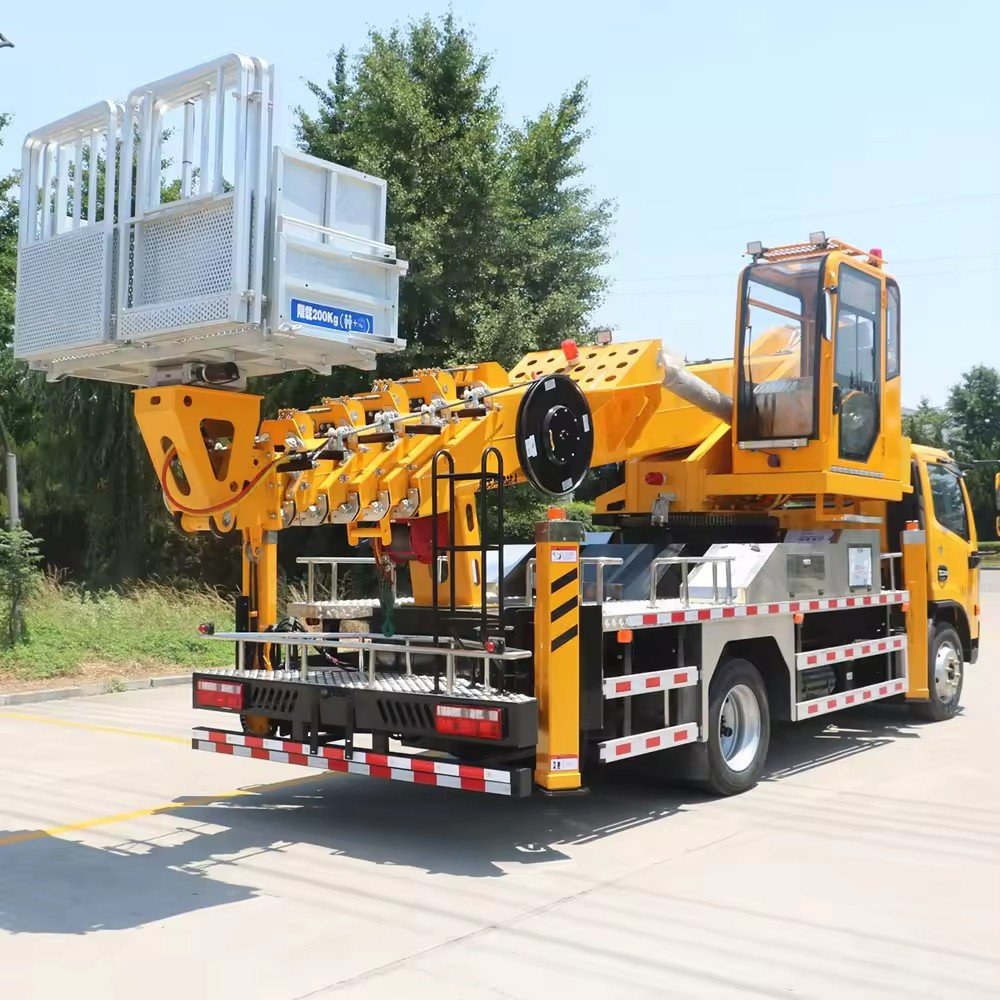

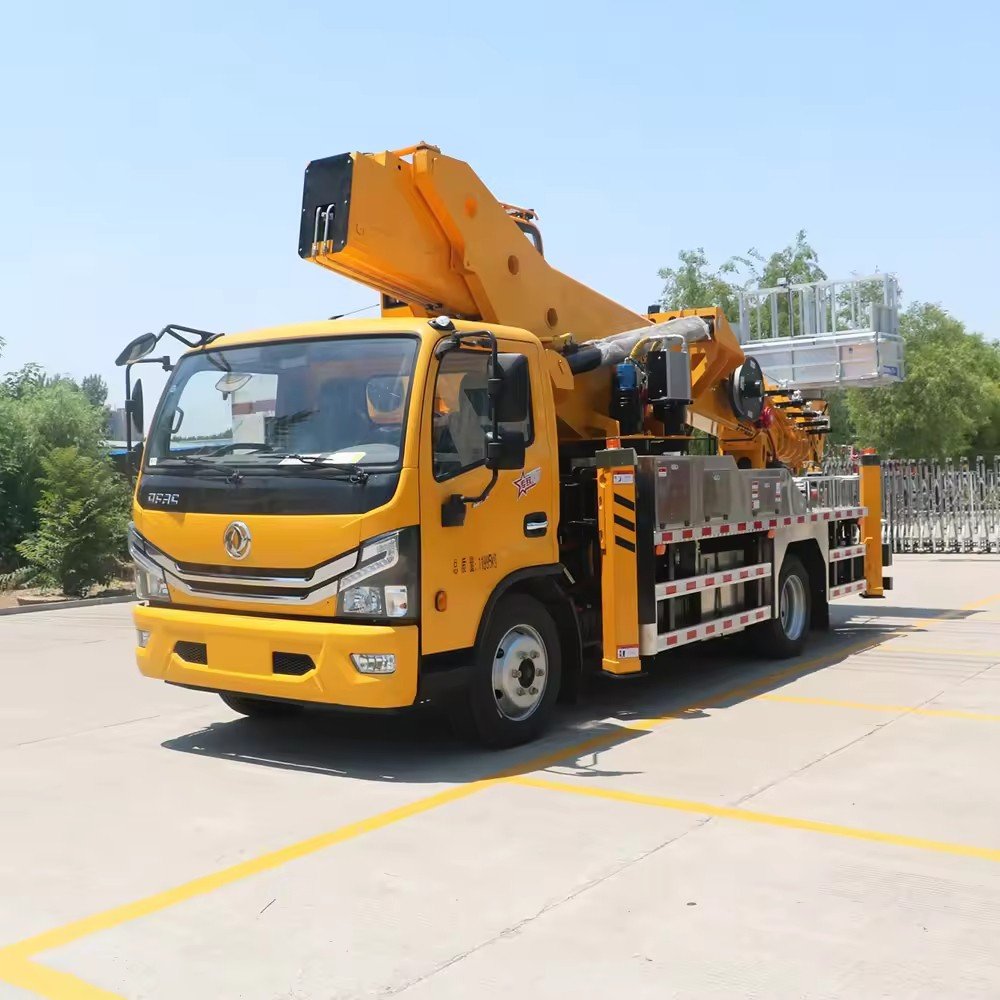

JMC 4×2 90 kW 24 m Telescopic Boom Aerial Work Truck 200 kg Basket for Sale
Key Features

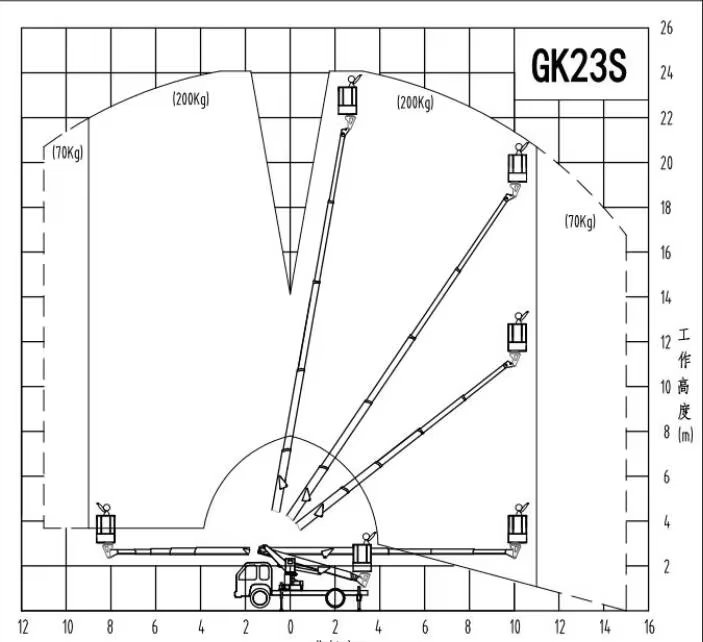

Boom: 6-section telescopic, 24 m max height, 17 m outreach, 200 kg basket.
Chassis: JX1014TCF26, 2 800 mm wheelbase, 4.5 t GVW.
Engine: Yuchai D20TCIF12, 90 kW Euro V.
Legs: Front-X / rear-H hydraulic, 4.1 m × 3.9 m span, soft-leg protection.

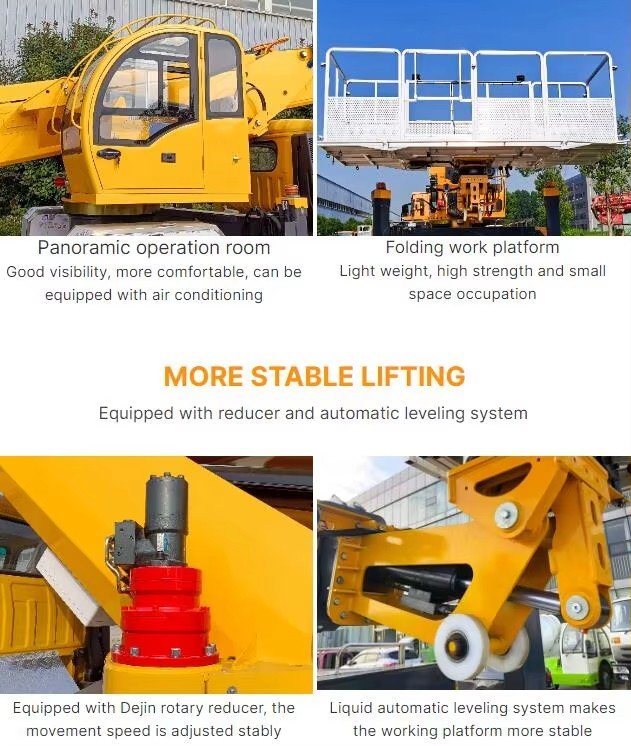

Rotation: 360° continuous, 7-inch cab display, remote & manual dual control.

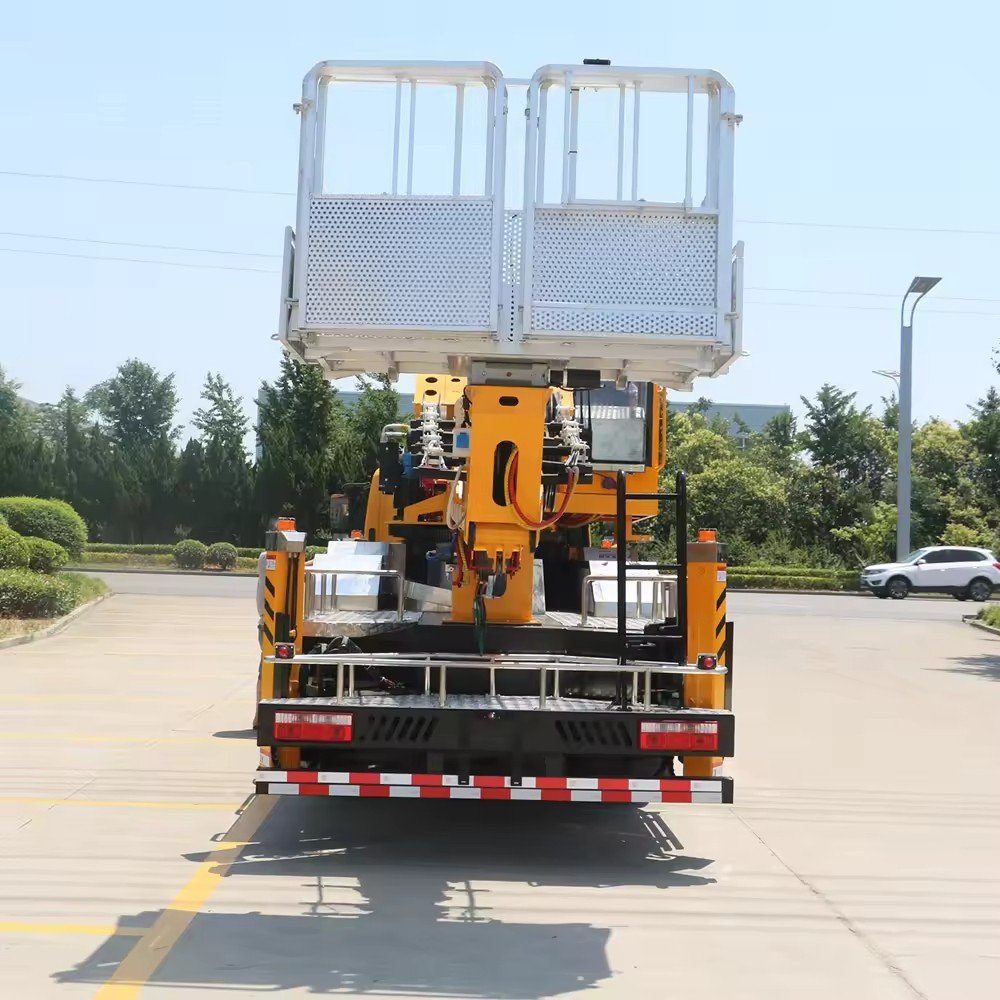

Basket: 660×1 500×1 040 mm aluminum, hydraulic self-levelling, 9-inch reducer.
Hydraulics: 32 mL/r gear pump, proportional valves, electric emergency pump.
Safety: Auto-limit, load protection, remote diagnostics, powder-coated finish.
Specifications
复制
| Parameter | Value |
|---|---|
| Model | JDF5041JGKJ6S |
| Drive | 4×2 |
| Engine | 90 kW Euro V |
| Max Height | 24 m |
| Max Outreach | 17 m |
| Basket Load | 200 kg |
| GVW | 4 495 kg |
| Tyres | 6.50R16LT |
| Warranty | 1 year / 100 000 km |
Contact us for pricing and custom boom lengths!
