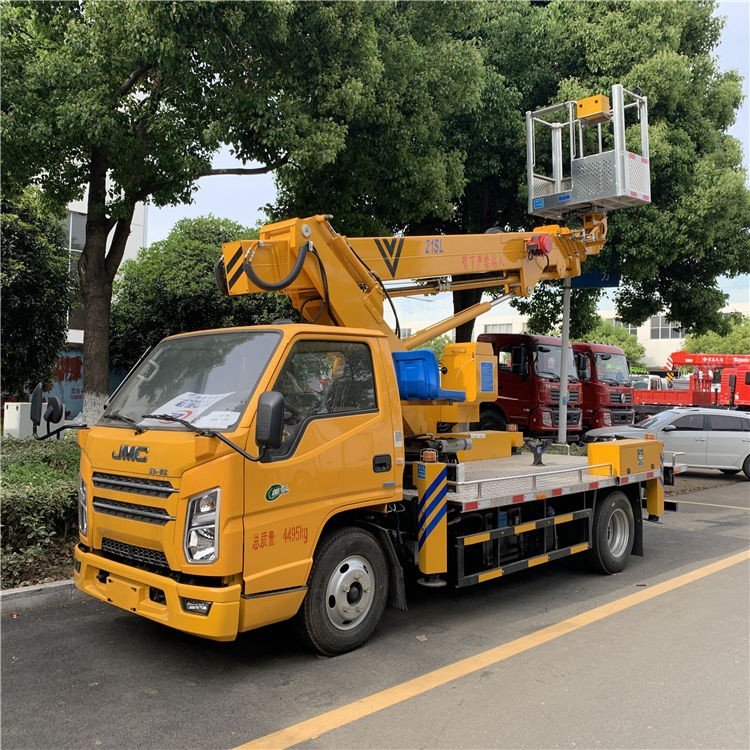

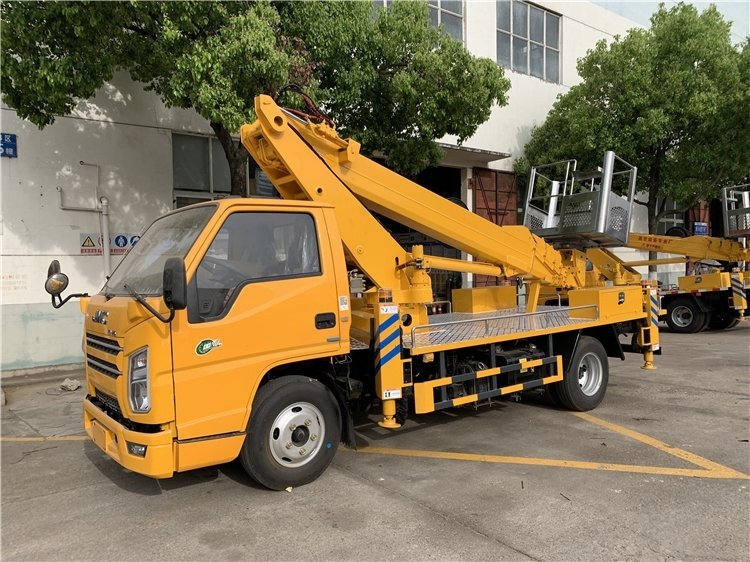

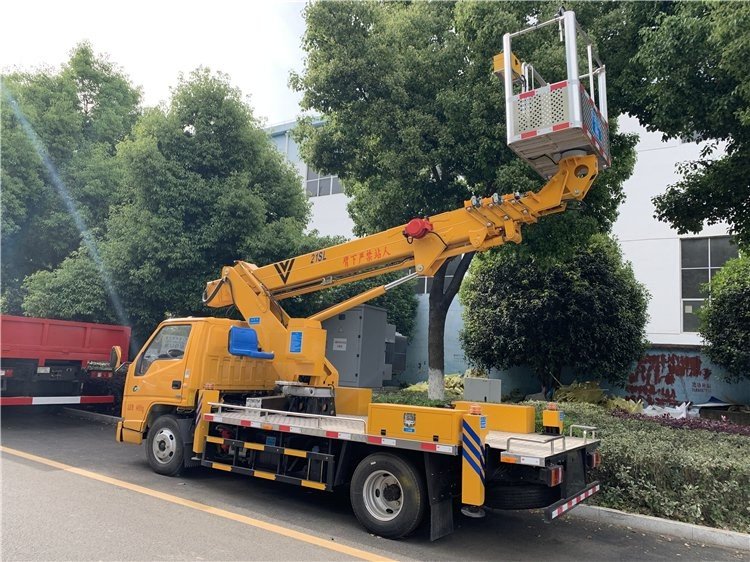

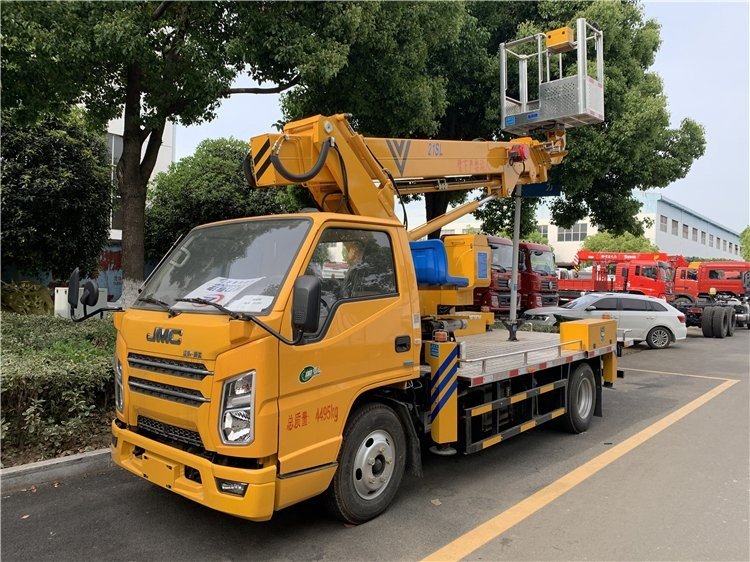

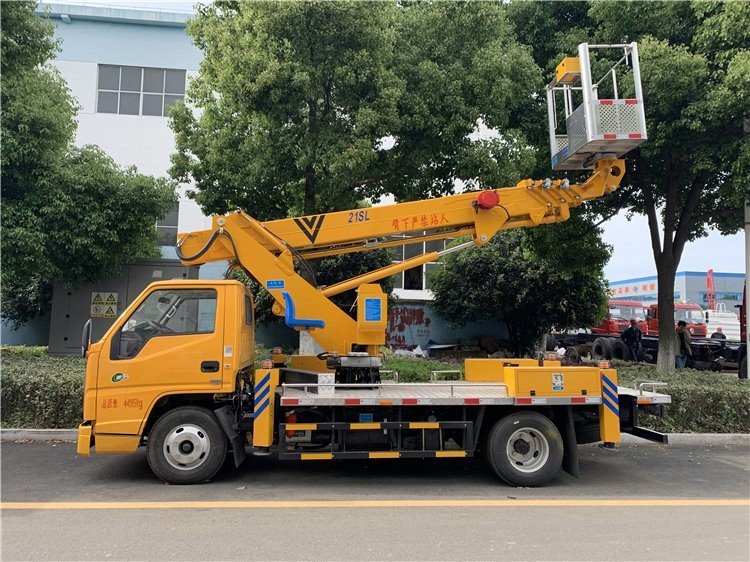

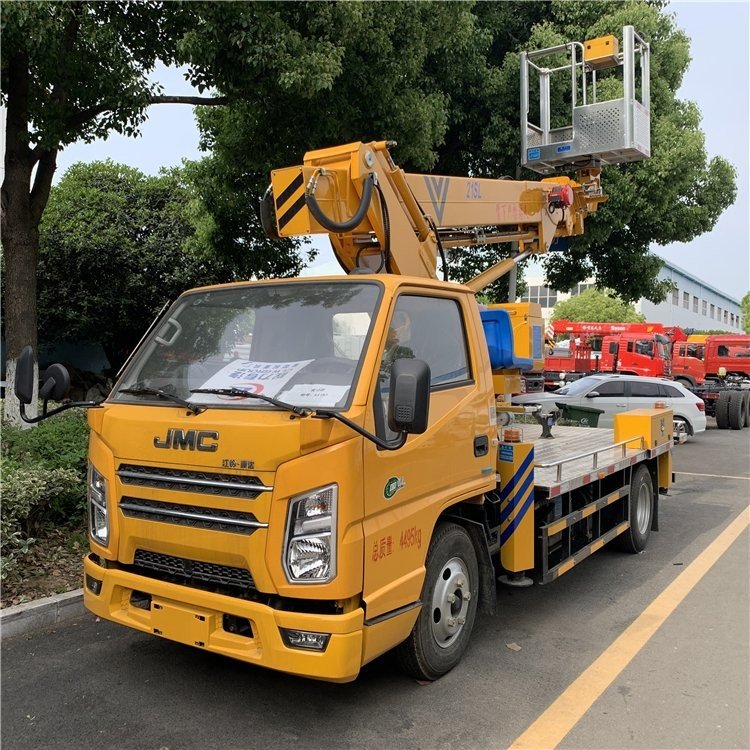

JMC 4×2 116 HP Euro V 24 m Telescopic Boom Aerial Lift Bucket Truck for Safe High-Altitude Operations
No.:
Vehicle Type: Aerial Work Truck
Brand Name: JMC
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
JMC 4×2 116 HP Euro V 24 m Telescopic Boom Aerial Lift Bucket Truck for Safe High-Altitude Operations
Key Features
24 m max working height, 14 m max outreach, 200 kg platform load.
Four-section synchronous telescopic boom, compact retraction, high efficiency.
360° continuous turntable rotation + 360° basket rotation for precise positioning.
Front outrigger span 4.6 m, rear span 4.2 m, individually adjustable for stability on uneven ground.
Dual control: turntable joystick + radio remote for safe ground observation.
JMC JX1041TSG25 chassis, 116 HP JX493ZLQ5A Euro V diesel, 5-speed OD gearbox.
Stainless-steel coaming, anti-slip walk plates, LED work lights, tool box.
Specifications
复制
| Item | Specification |
|---|---|
| Model | CLW5020JGKD5 |
| Chassis | JMC JX1041TSG25 4×2 |
| Engine | JX493ZLQ5A, 116 HP Euro V |
| Displacement | 2.77 L |
| Wheelbase | 3 360 mm |
| Overall Size | 5 998 × 2 000 × 2 950 mm |
| GVW | 4 495 kg |
| Curb Weight | 4 470 kg |
| Max Speed | 110 km/h |
| Tyres | 7.00R15 (6+1) |
| Working Height | 24 m |
| Operating Range | 14 m |
| Basket Load | 200 kg |
| Outrigger Span | Front 4.6 m, Rear 4.2 m |
| Control | Turntable + Remote |
| Rotation | 360° continuous |
| Certification | ISO9001, 3C |
| Warranty | 12 months |
| Production | 15-20 days |
Contact us for pricing and configuration options!
Contact: william
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
