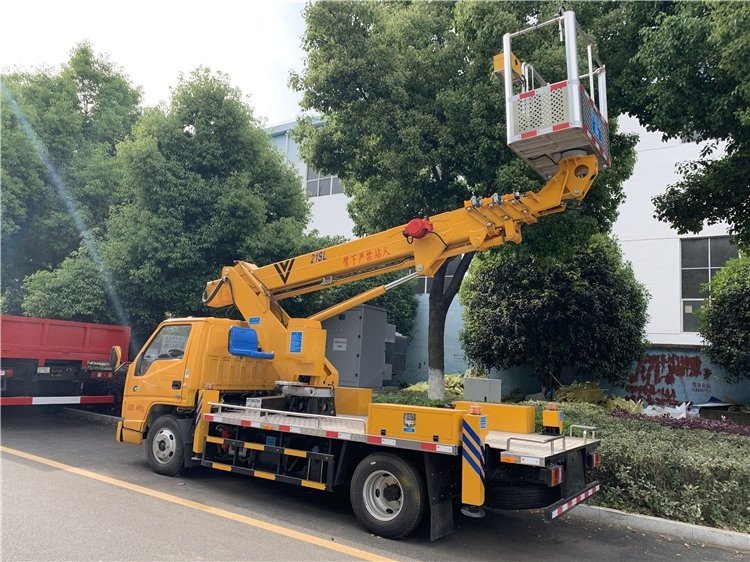

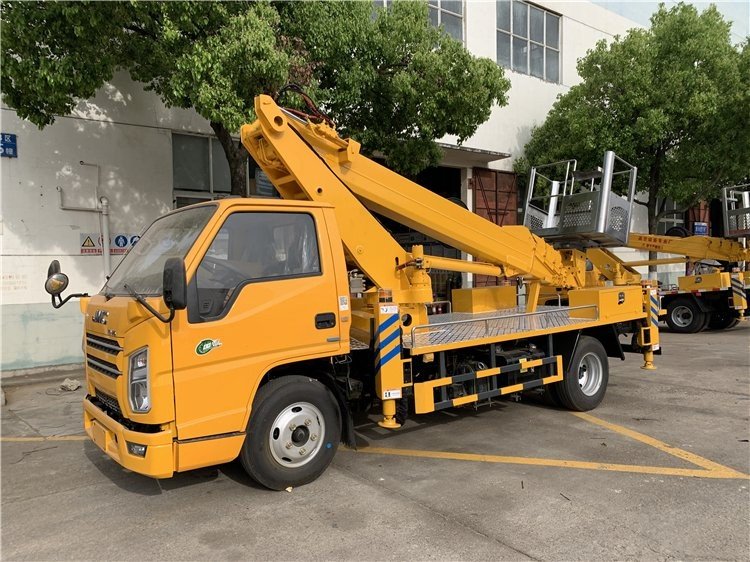

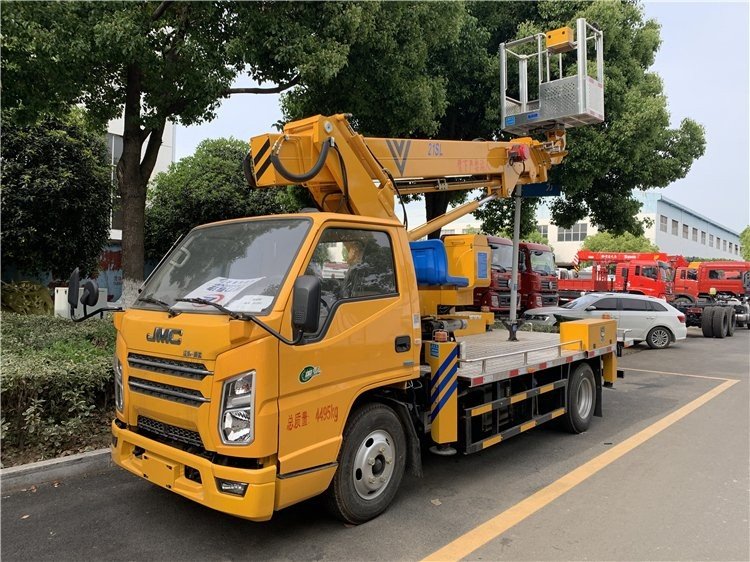

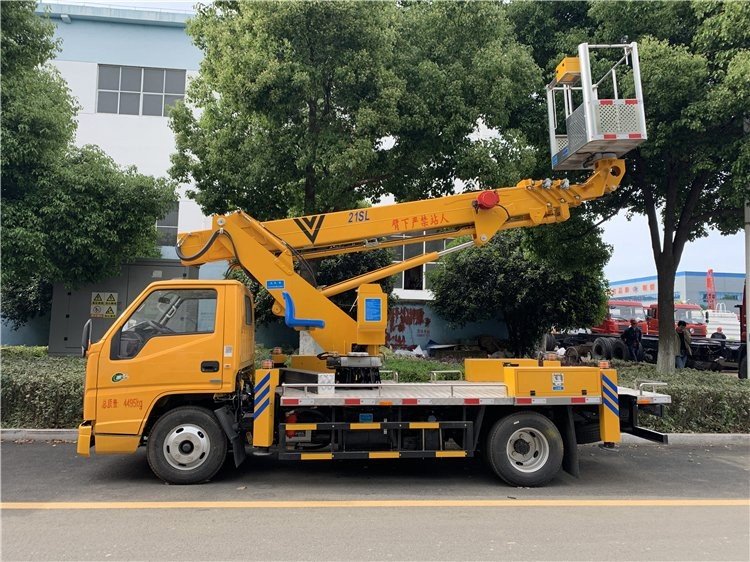

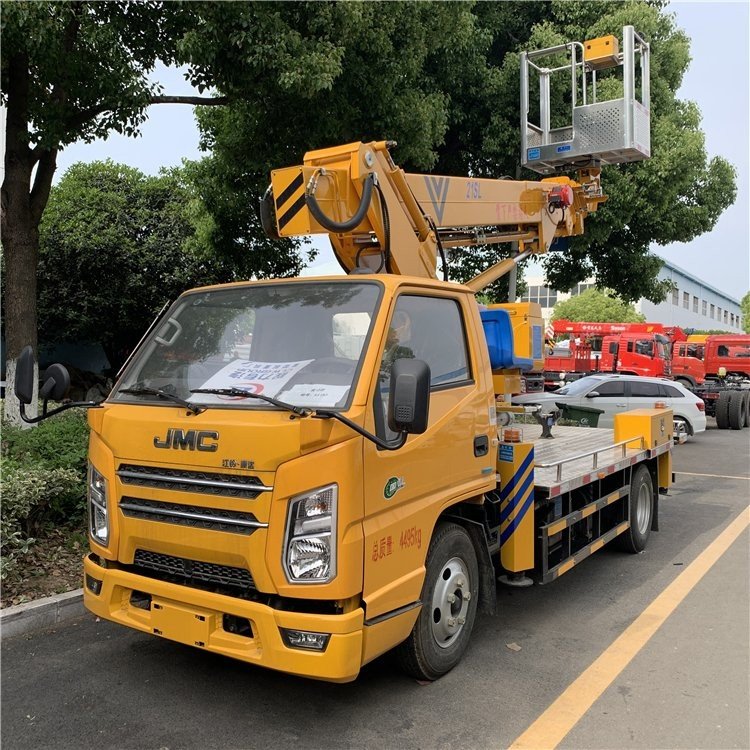

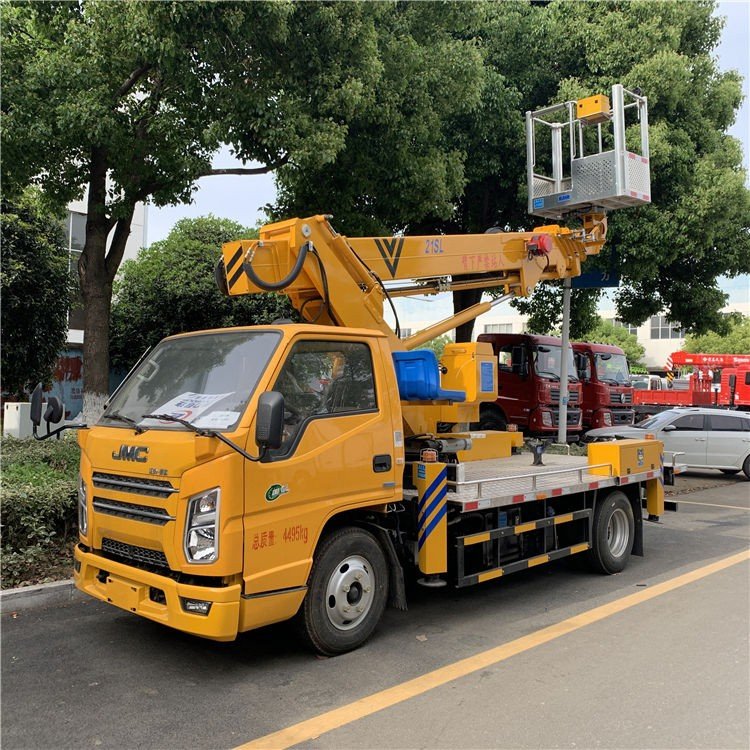

JMC 4×2 115 HP Euro VI 21 m Remote-Control Telescopic Boom Aerial Work Platform Truck for Sale
Key Features
21 m max working height, 11 m outreach, 200 kg platform load.
Four-section quadrilateral telescopic boom, synchronous extension, compact structure.
360° continuous rotation, powered by imported swing motor.
Electro-hydraulic proportional control, load-sensing system, stepless speed regulation.
Front V + rear H hydraulic outriggers, individual adjustment, 3-point auto-level.
Three control modes: basket joystick, wired ground station, wireless remote (100 m range).
CAN-bus electrical system, real-time display, overload & tilt alarms.
Stainless-steel hoarding, non-slip platform, night-work LED, tool box.
Specifications
| Item | Specification |
|---|---|
| Model | CLW5046JGKJ6 |
| Chassis | JMC JX1041TG26 4×2 |
| Engine | JX4D30B6H, 115 HP Euro VI |
| Displacement | 2.892 L |
| Wheelbase | 3 360 mm |
| Overall Size | 5 998 × 2 050 × 2 850 mm |
| GVW | 4 365 kg |
| Curb Weight | 4 365 kg |
| Max Speed | 100 km/h |
| Boom | 4-section telescopic |
| Working Height | 21 m |
| Outreach | 11 m |
| Platform Load | 200 kg |
| Platform Size | 1 100 × 650 × 1 150 mm |
| Outriggers | Front V, rear H, individual control |
| Rotation | 360° continuous |
| Control | Basket + wired + wireless |
| Tires | 7.00R16LT 10PR (6+1) |
| Certification | 3C, ISO9001 |
| Warranty | 12 months from delivery |
| Production | 15-20 working days |
Contact us for pricing and configuration options！
Contact: william
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
You May Like:

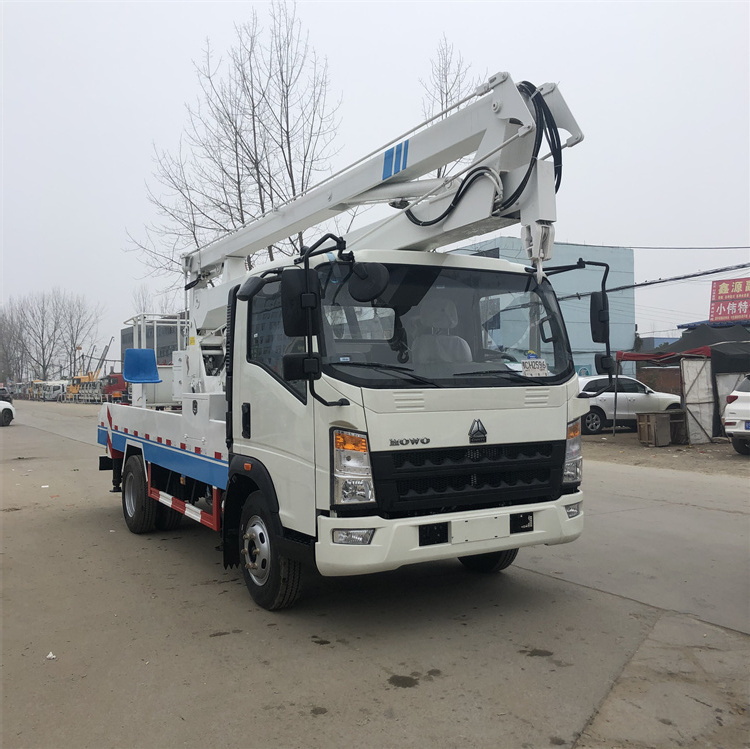

New HOWO 4x2 Cummins 130HP 5.85T High Altitude Operation Truck with 12M-18M Folding Arm 6-Speed Overdrive Transmission 2.5T Axle for Sale
More Detail

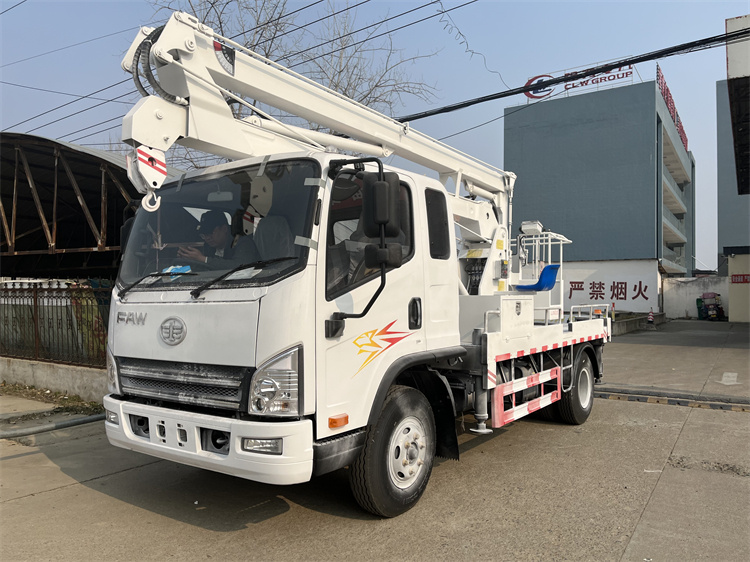

FAW 4×2 90 km/h Euro-II 120 HP Manual 5-Speed 2 t/2.7 t Axles 200 kg Payload 14 m RHD Folding-Arm High-Lifting Platform Aerial Work Truck for Zambia for Sale
