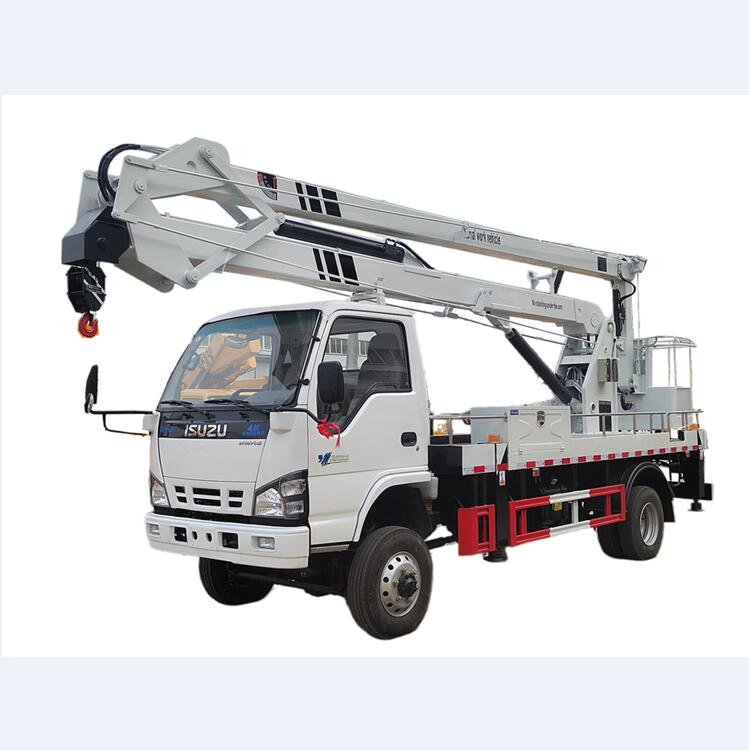

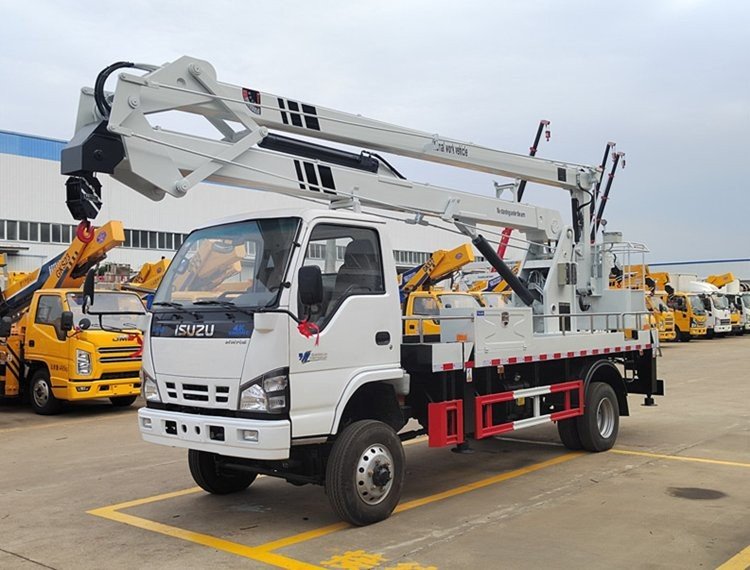

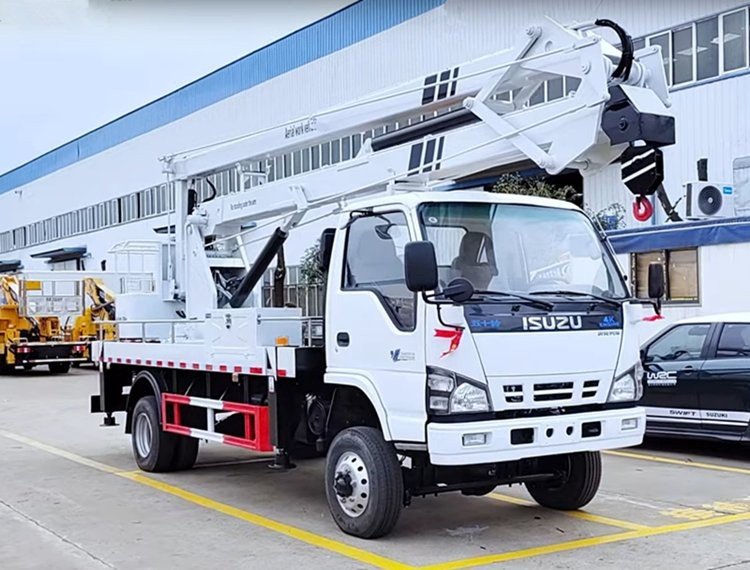

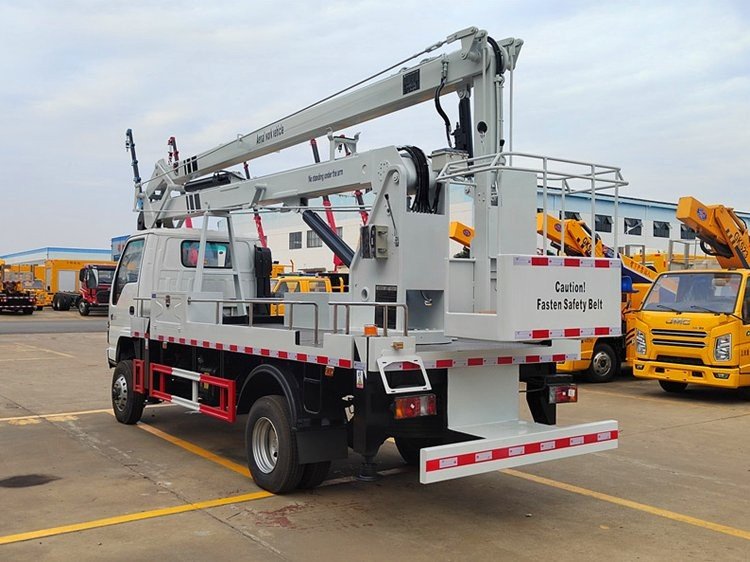

ISUZU 4×4 130 HP 16 m Folding-Boom Aerial Work Platform Truck Manlift for Sale
Key Features
16 m max working height, 7 m outreach, 1000 kg safe lift, 200 kg bucket capacity.
3-section folding boom, 360° continuous rotation, hook ≤900 kg, 4 hydraulic outriggers (3.3 × 3.38 m).
ISUZU QL1040A6HAY 4×4 chassis, 130 HP 4KH1CN5LS Euro V diesel, 5-speed OD gearbox.
200 kg insulated bucket (1080×610×1100 mm) with LED work light, anti-skid platform.
Steel tool box, hoarding, 30-day production, custom colour & decals.
Specifications
| Classification | Item | Unit | Parameter |
| Vehicle | Vehicle model | I SUZU 16m High Altitude Operation Truck | |
| Manufacturer | ChengLi Special Automobile Co.,Ltd | ||
| Overall dimensions | mm | 5995×2000x3200 | |
| Gross weight | kg | 7200 | |
| Curb weight | kg | 4800 | |
| Traction system | 4×4 | ||
| Max speed | km/h | 100 | |
| Chassis | Chassis model | QL1040A6HAY | |
| Manufacturer | ChongQing I SUZU Motors Co.Ltd | ||
| Number of axles | 2 | ||
| Wheel base | mm | 3360 | |
| Tire specification | 7.00R16LT | ||
| Number of tires | 6 | ||
| F/R track base | mm | 1377/1425 | |
| Engine | Engine model | 4KH1CN5LS | |
| Manufacturer | ChongQing I-SUZU Engine Co., Ltd | ||
| Fuel type | Diesel | ||
| Power | kw | 96 | |
| Engine horse power | hp | 130 | |
| Displacement | ml | 2999 | |
| Emission standard | Euro V | ||
| Driver's cab | Brand | I-SUZU | |
| Model | Flat head, single row | ||
| Allowable seats | 2 | ||
| Steering | Left hand drive | ||
| Transmission | 5-speed with over drive | ||
| Operation control system | Electrically hydraulic control | ||
| Equipment configuration | 1. Maximum operating height: 16m. Three-section folding arm, maximum operating radius: 7M, maximum lifting mass: 1000kg, maximum lifting height: 8.4m. Outrigger span: longitudinal X transversal (mm): 3300x3380. 2. Hydraulic manual operation. | ||
| Color & painting | Per customer needs | ||
| Production time | 30 working days after deposit received | ||
Contact us for pricing and configuration options！
