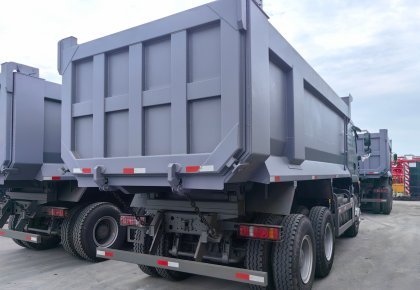

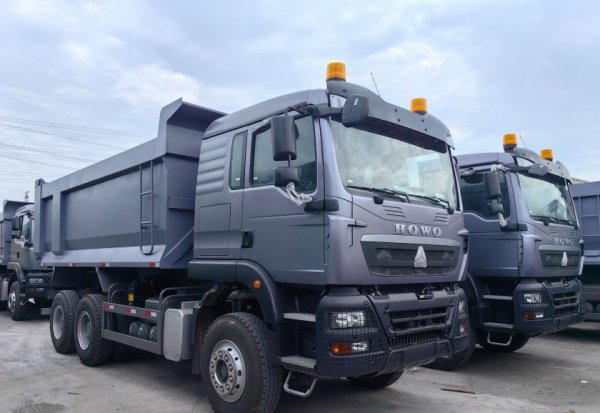

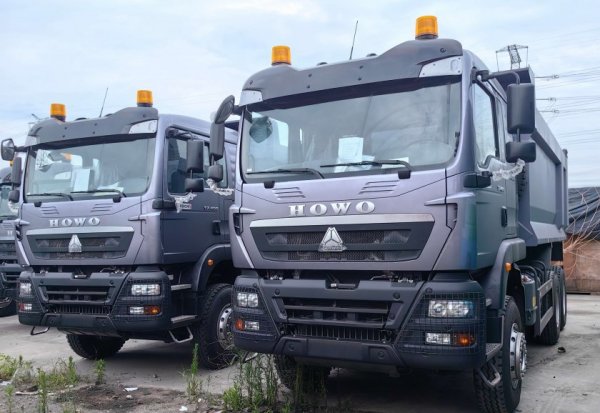

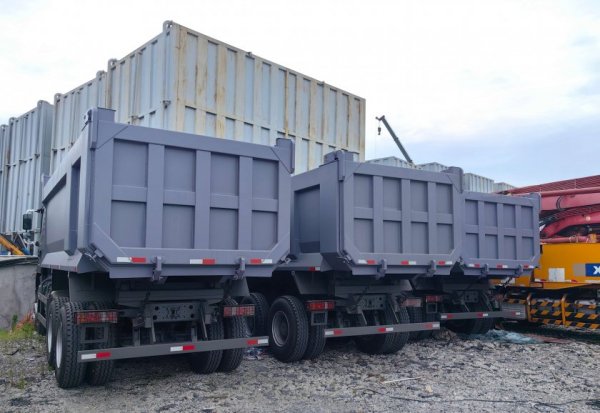

HOWO TX 6×4 380HP Euro 2 Dump Truck for Sale

No.:

Vehicle Type: Dump Truck

Brand Name: SINOTRUK

Sinotruk Trucks

I want to inquire

Person in charge: William Du

Cel: 8618669778647

Whatsapp: 8618669778647

E-mail: sales22@chinatruck.cc

FREE GET QUOTE

Details

Name	New HOWO TX 6×4 Dump Truck
Size (mm)	8700 x 2550 x 3500
Cab	TX flat roof cabin with A/C
Tires	12.00R20, 10+1pcs
Axle	VGD95 front axle，MCP16ZG rear axle
Engine	Model	WP10.380E22, Weichai ,Euro2 , Diesel
	Engine power	280KW (380HP) @ 2200rpm
	Max torque	1600 N.m @ 1500-1800rpm
	Air intake type	turbo-charge and inter-cool
	Alignment of cylinders	6 cylinders in line
	Fuel injection type	Direct injection
	Compression ratio	17: 1
	Bore * Stroke	126x130mm
Gearbox	HW19710 gearbox with HW50 power take-off, 10 forward speeds + 2 reverse speeds
Steering	BOSCH
Fuel tank	400L fuel tank
Suspension	Front and rear reinforced multi-leaf springs (11/11/12)
Main beam	Double layer frame (8+8/300)
Dumper box	5600 x 2550 x 3500mm, bottom plate thickness is 8mm, side plate thickness is 6mm. Front lifting

parts service

SN	Description	Model Number
1	HW70 power take-off assembly	AZ9700290010
2	HW50 power take-off assembly	WG9700290010
3	Reverse pressure switch (normally on)	WG2209280023
4	Fork swing block	AZ2229100022
5	Framework oil seal	WG9003070055
6	Spindle gear spacer	AZ2229040077
7	Front brake linings	WG9100440028
8	Small cover end cover	WG2222210034
9	Air controlled lock valve assembly	WG2203250210
10	Odometer sensor	WG2209280010
11	Box input axis oil inlet assembly	AZ2203240107
12	Support rod assembly	WG2229210041
13	Air control lock valve assembly	WG2203250210
14	Magnetic screw plug assembly	VG2600150108
15	Turbocharger	VG1095118233
16	Double H valve assembly	WG2203250003
17	Gearbox assembly	HW19710
18	Air reservoir	AZ9100369097
19	Crankshaft	161560020029
20	HOWO locking block ranges	AZ2229100029
21	Low Grade Clutch Hub	WG2203100005
22	Gear Synchronizer ring	WG2210100009
23	Sleeve gear	WG2210100008
24	Gearbox	HW19170
25	Gearbox	HW19710T
26	Transmissions	HW19710090402
27	Oil Seal	AZ9003073001
28	Fog Lamp	AZ2203000001
29	Roller Bearing	AZ9003329309
30	Transmission Gear	AZ2210030005
31	Synchronizer Ring For Gearbox	WG2210020004
32	Reverse Sliding Sleeve	WG2210040211
33	Transmission	HW19710090608
34	Gear	16749
35	Gear Switch	179100710069
36	Drive Through Shaft	AZ9231320261
37	Joint Bearing	4021000042
38	Input Shaft	WG2210020101
39	Clutch Pressure Plate Assembly	AZ9725160100
40	Iron Range Gear	WG2203100006
41	Synchronizer Ring Gear	WG2210100005
42	Synchronizer Gear Holder	WG2210100007
43	Clutch Brake Disc Control Valve	WG9719230011
44	Inner bearing	190003326531
45	Shaft seal ring	WG9003074387
46	Transmission handle air pipe	WG9700240006
47	Clearance adjusting arm assembly	WG9100440005
48	Front slack adjustor	WG9100440005
49	Front brake drum	WG9112440001
50	Tilting shaft right support assembly	81.41720.5340
51	Diaphragm air brake chamber (right)	WG9000360101
52	Tilting shaft left support assembly	81.41720.5341
53	Rear axle air chamber bracket	WG7121340043
54	Shift handle	WG9925240020
55	Tapered roller bearing	WG9981032222
56	Knuckle lock nut	81.92901.0066
57	Rear brake drum	WG9112340006
58	Back brake hub	WG9231342006
59	Shift flexible shaft assembly	WG9900243001
60	Rear axle housing	DZ9112330882
61	Roller Bearing For Truck Front Wheel	190003326543
62	Front Axle ABS Ring Gear	WG9112410019
63	Cover	WG9014320175
64	Cover	AZ9231320264
65	Axle housing	AZ9231320259
66	Double axle body parts bushing	WG9231320159
67	Half Shaft Gear	WG9231320151
68	CROSS SHAFT Diff Spider	AZ9231320150
69	Differential Assembly	AZ9231320272
70	Magnetic Drain Plug	WG9231330015
71	Gears	WG9014320137
72	Diff Cover Seat	WG9014320175
73	Diff Cover	AZ9231320264
74	Axle Housing	AZ9231320259
75	Spring Washer	Q40308
76	Differential Nut	WG3809320159
77	Bearing	190003326148
78	Gear Bushing	WG9231320159
79	Gears	WG9231320152
80	Axle Shaft Gear	WG9231320151
81	Gears	WG9114320251
82	Middle Axle Housing	AZ9231330990
83	Middle Axle Chamber Bracket	WG9231340944
84	First Rear Axle Housing	26013330208
85	Rear Wheel Hub	WG9231340309
86	Drive Shaft Center Bearing	AZ9319313260
87	Relay valve	DZ95259360105
88	Braking hose assembly	WG17017360450
89	Retarder water inlet hose	WG9925531650
90	Stainless steel bellows	WG9100360182
91	Four-loop protective valve	WG9000360523
92	Front spring riding bolt	WG9516521200
93	Bridge bearing assembly	AZ9319313274
94	Howo combination bracket	WG9725360020
95	Brake drums	WG9231342006
96	Hand brake valve	WG9000360522
97	Shock absorber	199112680014
98	Support rubber seat assembly	AZ9725520683
99	NanoBCU controller	WG9716582011
100	Clutch assist cylinder	DZ93189230080
101	6/4 quick insert adjustable connector	WG9700240003
102	Leaf spring pressure plate	WG9725520095
103	Air filter intake pipe	WG9725191350
104	Left front spring clamp	WG9525520181
105	Gasket	DZ9112540017
106	Rubber bearing	WG9100680068
107	Front shock absorber	WG9731681031
108	Subbox combined bearing	16JS200T-1707109
109	Differential signal pressure switch	811W25503-0244
110	Air dryer	WG9000360521
111	Limit block assembly	WG9725520727
112	Connecting rod bush (paid)	VG1540030015.16
113	New power main switch	WG9100760102
114	Metal hose	WG9731549102
115	Bracket assembly	WG9100680047
116	Driven plate assembly	WG9921161100
117	BCU	WG9716582011
118	Bushing	WG9000520078
119	Spring seat	WG9516520216
120	Universal joint cross shaft assembly	WG9725310020
121	Brake friction pads	WG9970440013
122	Universal joint cross shaft assembly	WG9315313621
123	Ball joint assembly	WG9631470075
124	Throttle cable assembly	WG9725571001
125	Combined rear light	WG9925810001
126	Engine expansion water tank	WG9725536120
127	Skateboard	WG9925521280
128	Brake air chamber	WG9000360101
129	Rear Steel Plate Assembly	WG9725520789
130	Intercooler rubber tube	DZ93259535302
131	Clutch booster cylinder	WG9725230041
132	Front rubber bearing assembly	WG9525595410
133	Air dryer	WG9000360521
134	Water drain valve	WG9000361402
135	Front Brake Lining	WG9100440029
136	Steering Column	711-46113-6200
137	Front Brake Adjusting Arm	AZ9100440005
138	Rubber Bearing	WG9100680068
139	Steering Tie Rod Ball Joint Assembly	WG9925430100
140	Brake shoe assembly	WG9100440030
141	Steering Tie Rod Arm	AZ9719410043
142	Solenoid valve	WG9719710004
143	Front lamp	WG9719720001
144	Oil stop cylinder	WG9100570014
145	Leaf spring assembly	WG9725520072
146	Shifting device	WG9725240208
147	Rubber bracket	AZ9725520278
148	Release bearing	WG9725160510
149	Push rod	AZ9631523175
150	Clutch disk	WG9725161390
151	Differential	az9231320271
152	Clutch booster	wg9725230041
153	Brake pads	wg9231342068
154	Brake pads	wg9231342069
155	Steering rocker	WG9725470215
156	TT-Evo 5KW Rocker Switch ON-OFF Kit	-
157	Steering knuckle arm	AZ9970410005
158	Revolving engine oil filter assembly	VG61000070005
159	Air Top Evo4000	-
160	Clamp connecting corrugated pipe	DZ96259540009
161	Revolving fuel coarse strainer	VG1047080011
162	Parking Air Conditioner（Special for SINOTRUK）	-
163	Air Horn Solenoid Valve	WG9718710003
164	The MCS knob	WG9719582054
165	Diesel Cooker	-
166	Iron fuel tank cap	DZ91189550023
167	Air filter	WG9725190102/3
168	Wiper blades	WG1642740011
169	Rear wheel oil seal	WG9981340213
170	Exhaust muffler	DZ9100540008
171	Revolving fuel secondary filter	VG1560080012
172	Hydraulic cab lock	DZ13241440085
173	Rear brake cylinder-long rod	WG9000360900
174	Electrical junction box assembly	WG9716582301
175	Key starter switch assembly	WG9725580090
176	Fuel gun	JYQ
177	CH430-21 driven plate assembly	WG9921160800
178	Piston ring (group)	612600030053
179	Multiple-wedge belt	VG1047080011
180	After spray nozzle	50HP-00
181	Lateral stability shock absorber assembly	WG1642440021
182	Revolving engine oil filter assembly	VG61000070005
183	High-pressure hose	WG9719230088
184	Rubber bearing	AZ9725520278
185	Solenoid valve (P99 connector)	WG9719710004
186	Two-tone air horn without bracket	WG9000270002
187	Air filter	WG9725190102/3
188	Wiper blades	WG1642740011
189	Rear wheel oil seal	WG9981340213
190	Electrical Junction Box	WG9716580021
191	ECU Installation Box	WG9725584029
192	Cigarette Lighter	WG9100580142
193	Switch	WG9725586002
194	Lights Switch	WG9719582001
195	Electric Heater Control Unit	81259356706
196	Electronic Control Module	WG9719580001
197	Electric Valve Brake Relay Valve	WG9000360524
198	Combination Switch	WG9130583117
199	Battery Cover	99100760008
200	Electrical Junction Box	WG9716582301
201	Electronic Control Unit	VG1034090001
202	Front Axle Dust Cover	WG9112440006
203	Brake Shoe Assembly	AZ9100440018
204	Front Brake Lining	WG9100440027
205	Fog Lamp	199100440001
206	Brake Shoes Pin	1880410038
207	Disc Plate Assembly	DZ9114160032
208	Propelling Rod	DZ95259525150
209	Brake Camshaft	AZ9231340227
210	Clutch Booster for Shacman	DZ9112230181
