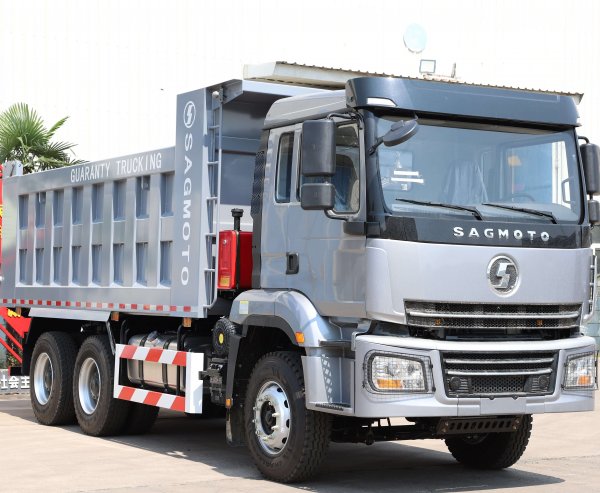

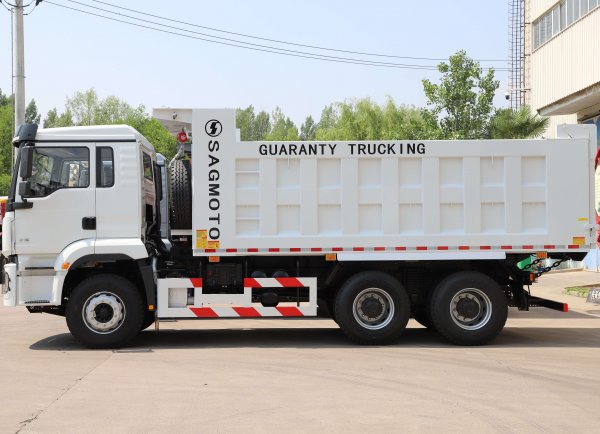

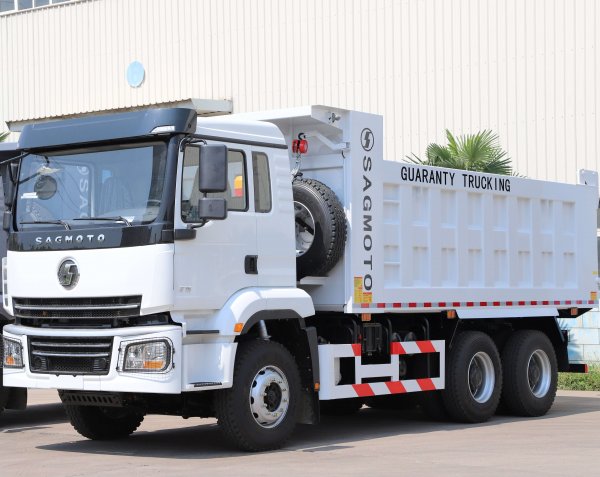

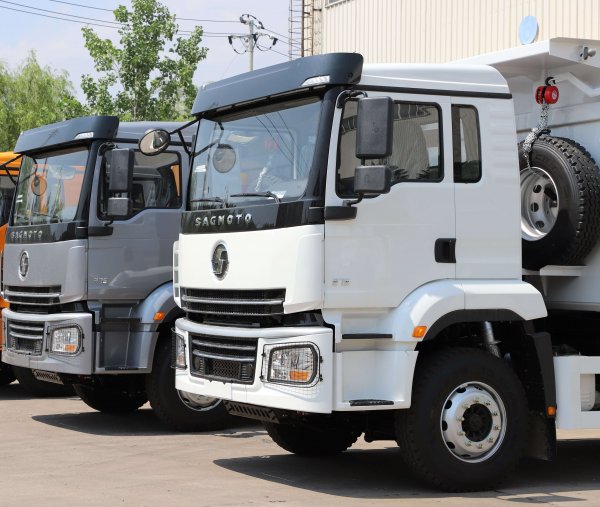

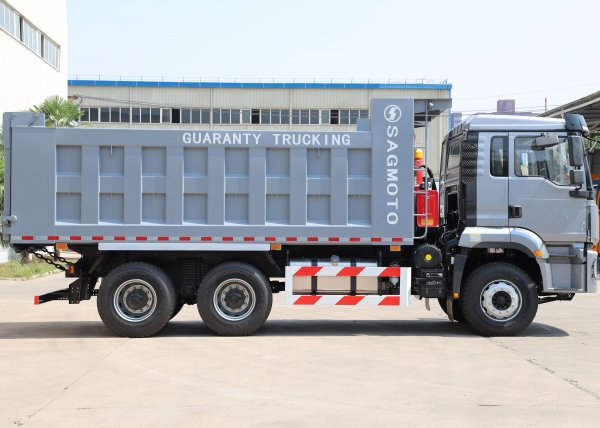

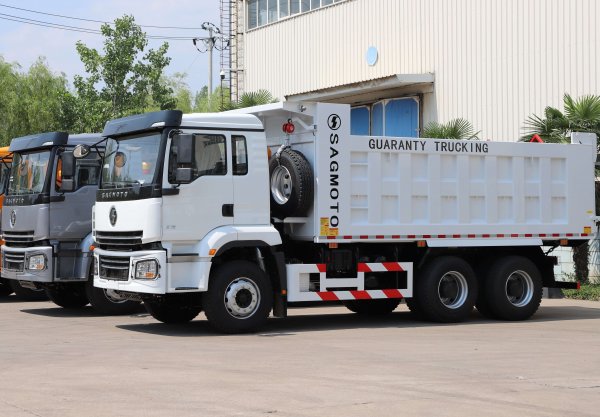

Hot Sale SHACMAN E3 6X4 Cummins engine DUMP TRUCK
No.: Cynthia66
Vehicle Type: Dump Truck
Brand Name: SHACMAN SAGMOTO
Person in charge: Cynthia Sun
Cel: 8617669717525
Whatsapp: 8613396363431
E-mail: sales2@chinatruck.cc
FREE GET QUOTE
Details
Drive type | 6x4 |
Length(mm) | 6950-8350 |
Width(mm) | 2500 |
Height(mm)(empty load) | (3238-3270)±30 |
Wheelbase(mm) | (3175-4575)+1400 |
Cargo Body Dimension(mm) | (5000-6400)x2300x1500 |
Gvw(kg) | ≤50000 |
Curb Weight(kg) | 16000 |
Maximum Speed(km/h) | 70 |
Economic Speed(km/h) | 35-55 |
Maximum Gradeability(%) | 30 |
Minimum Ground Clearance(mm) | 297-314 |
Engine brand | Cummins |
Horsepower | 345-450 |
Emission Standard | Euro III-V |
Gearbox brand | Fast |
Transmission Type | AMT/MT |
Gear Shift | 13/10、12 |
Axle Brand | Hande |
Front axle Model | HDZ9.5t |
Rear Axle Model | HDZ300/double reduction axle/5.92(Reference speed ratio) |

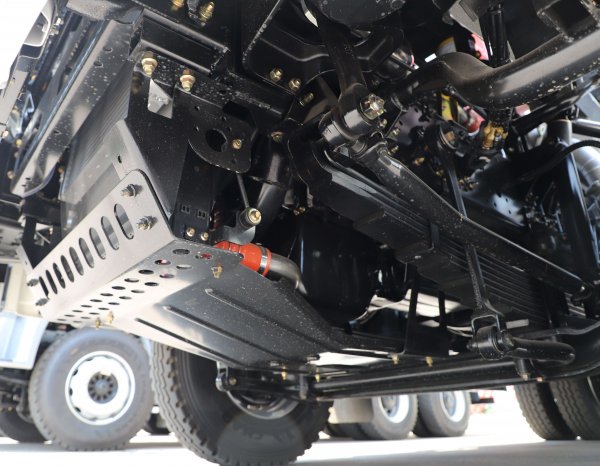

Suspension | Leaf Spring 10/12 |
Frame | 850x300(8+7) |
Tyres | 12R22.5、13R22.5、315/80R22.5、12.00R20 |
Cab type | Normal cab、Long cab |
