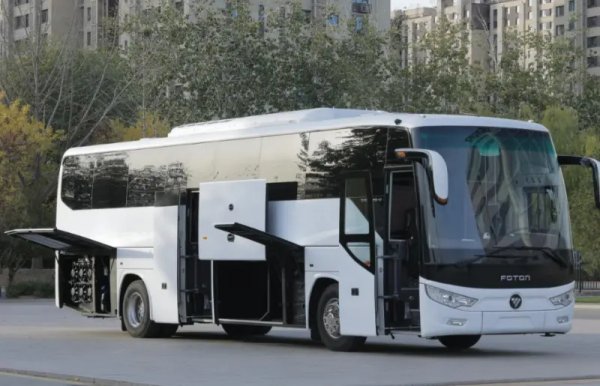

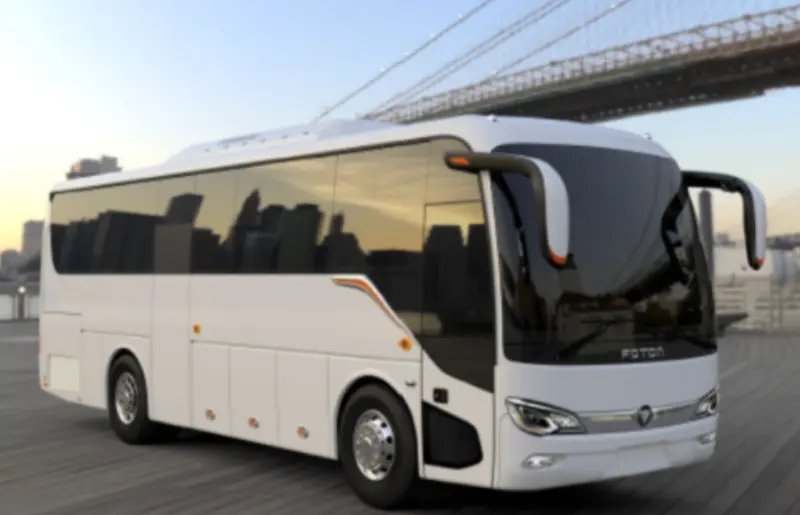

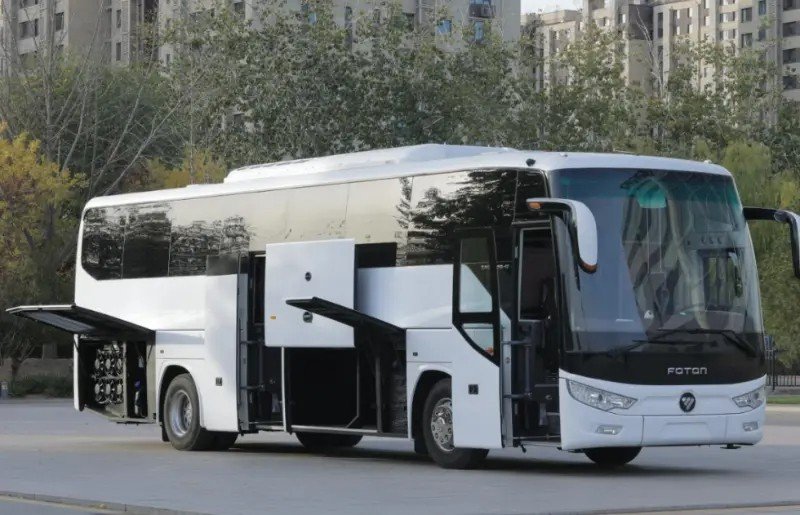

Foton Mid-Size Transit Bus | Nigeria-Market Spec | 35+1+1 Seats0
No.:
Vehicle Type: Intercity Bus
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Nigeria-Optimized Features
✔ YC6J230-20 Engine - 170kW/230HP @ 2500rpm
✔ S6-100 Transmission - Heavy-duty 6-speed manual
✔ 200L Diesel Tank - Extended range for Nigerian routes
Passenger Comfort
▶ 35+1+1 Seating - Durable bamboo flooring
▶ Electric Air Conditioning - Tropical climate ready
▶ Laminated Glass - Reduced heat penetration
Durability Features
• Leaf Spring Suspension - Handles rough roads
• 10R22.5 Tires - Nigeria-road tested
• Dual Luggage Racks - Extra storage capacity
Technical Specifications
Category | Specifications |
|---|---|
Dimensions | 8995×2500×3380mm |
Wheelbase | 4380mm |
GVW | 9.75T |
Engine Displacement | 6.494L |
Fuel Consumption | ~18L/100km |
Nigeria-Specific Configurations
✓ Mechanical damping driver seat
✓ Anti-wear floor leather
✓ Hard disc player with 18.5" monitor
✓ Half stainless steel wheel covers
Contact Information
Technical Specifications
Basic Parameters
Category | Specification |
|---|---|
Model | BJ1035V5JV5-05 |
Overall Dimensions | 8995 × 2500 × 3380 mm |
Wheelbase | 4380 mm |
Gross Vehicle Weight | 9750 kg |
Seating Capacity | 35+1+1 |
Max Speed | 80 km/h |
Fuel Tank Capacity | 200 L |
Powertrain
Category | Specification |
|---|---|
Engine Model | YC6J230-20 |
Power | 170 kW (245HP) @ 2500 rpm |
Torque | 950 Nm @ 1200–1800 rpm |
Transmission | 5-speed manual (S6-100) |
Emission Standard | Euro 2 |
Chassis & Safety
Category | Specification |
|---|---|
Front Axle | 1.5T capacity |
Rear Axle | 9.6T capacity |
Brakes | Front disc + rear drum |
Suspension | Leaf springs (front/rear) |
Tires | 10R22.5 |
Key Features
•
Urban Maneuverability:
•
Compact 2500mm width for narrow streets
•
4.5m turning radius
•
Passenger Comfort:
•
Air conditioning (manual/electric optional)
•
Bamboo flooring + anti-wear leather
•
Adjustable driver seat with lumbar support
•
Durability:
•
Reinforced chassis for rough roads
•
Laundry hooks and storage boxes
•
Safety:
•
ABS + EBD braking
•
3-point seat belts
•
Rear reflectors and fog lights
Nigeria-Specific Configurations
•
Tropical Package:
•
Enhanced radiator cooling
•
Cyclonic air filter for dust protection
•
Interior Options:
•
Hard disc player with 18.5" monitor
•
Manual sliding ramp for wheelchairs
Applications
•
School/university transport
•
Corporate employee shuttles
•
City public transit routes
•
Airport terminal transfers
After-Sales Support
•
Warranty: 3 years or 100,000 km
•
Service Network: Lagos, Abuja, Port Harcourt
•
Emergency Support: 24/7 WhatsApp hotline
