FOTON TOANO WINDOW VAN 9-18 SEATER DIESEL PASSENGER VAN FOR SALE
No.:
Vehicle Type: Fuel Car
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details

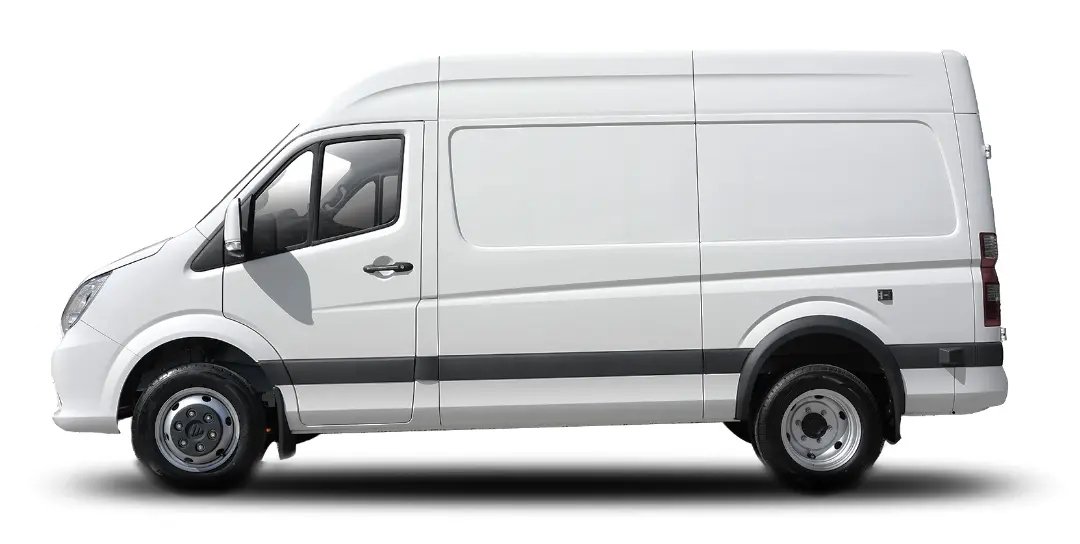

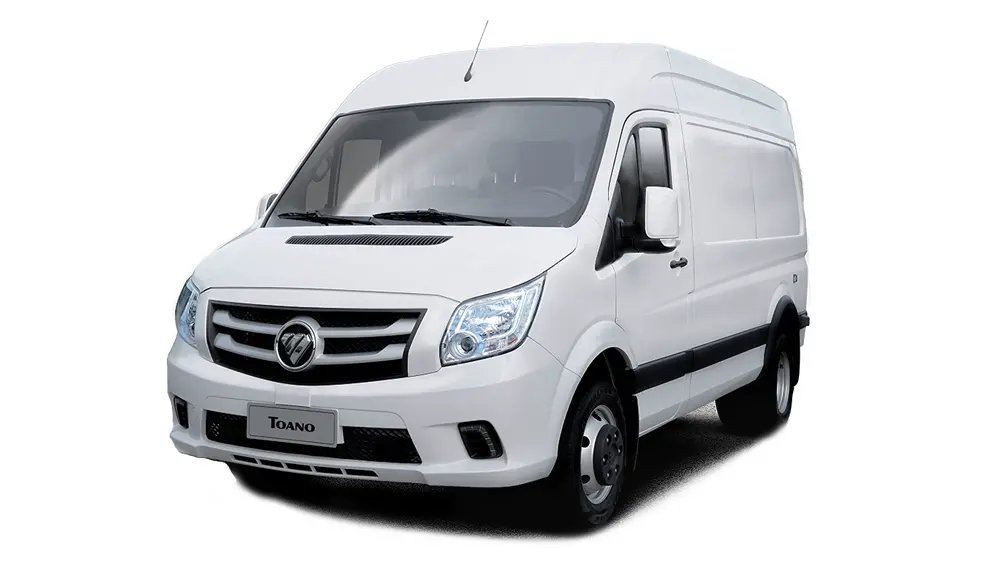

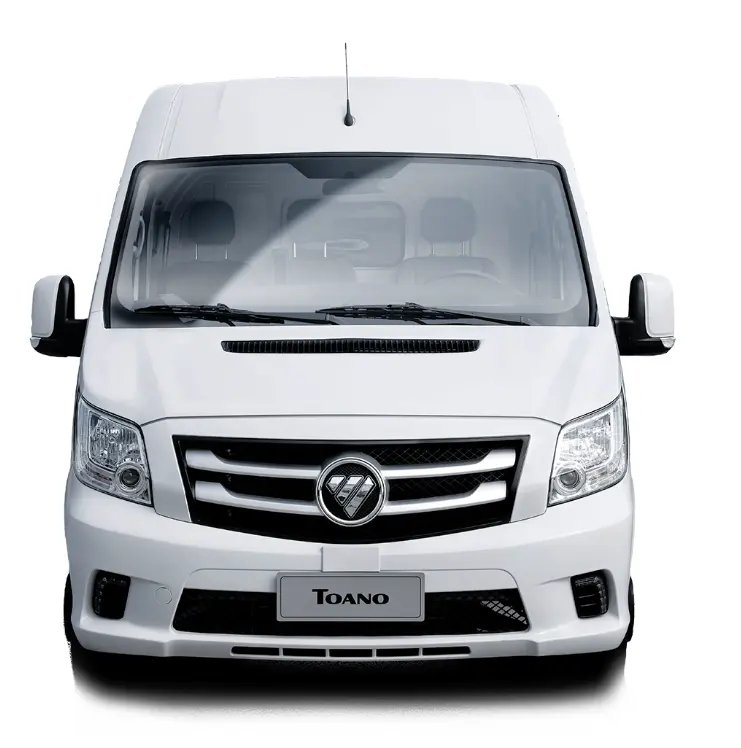

The Foton TOANO Window Van provides flexible passenger transport solutions with 9-18 seat layouts and three wheelbase options (2933-3750mm). Powered by Cummins ISF 2.8L diesel engines (120kW/360Nm) or 4JB1T 2.8L (81kW), it achieves >120km/h top speed with ≤9.5L/100km fuel efficiency. The 2000mm width and medium-roof design ensure passenger comfort, while 4×2 drivetrain guarantees reliable performance.
Technical Specifications Table
Parameter | Standard Version (5990mm) | Compact Version (5015mm) | Mid-Size Version (5735mm) |
|---|---|---|---|
Overall Length | 5990mm | 5015mm | 5735mm |
Wheelbase | 3750mm | 2933mm | 3350mm |
Seating Capacity | 14-18 seats | 9 seats | 6 seats |
Engine | ISF 2.8 (120kW/360Nm) | ISF 2.8 (96kW/280Nm) | 4JB1T (81kW/280Nm) |
Max Speed | ≥143km/h | ≥130km/h | ≥120km/h |
Fuel Consumption | ≤9.5L/100km | ≤9.5L/100km | ≤10.5L/100km |
Curb Weight | 2332kg | 2315kg | 2320kg |
Gross Weight | 3499kg | 3300kg | 3550kg |
Carrying Capacity | 1167kg | 985kg | 1230kg |
Key Features:
•
Three Size Options: 5015mm/5735mm/5990mm lengths for different capacity needs
•
Power Choices: ISF 2.8 (120kW) or 4JB1T (81kW) diesel engines
•
Excellent Maneuverability: Minimum turning radius as low as 6.1m (mid-size version)
•
Safety: Front disc/rear drum brakes, high rigidity body structure
•
Comfort: Medium-roof design (2415-2445mm) with ample headroom
Performance Metrics:
•
Gradeability: ≥35% (standard version)
•
Acceleration: 0-100km/h in ≤29s (standard version)
•
Ground Clearance: ≥160mm (fully loaded)
•
Approach/Departure Angles: 18.8°/15.5° (standard version)
