FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
No.: KL250724WJX1
Vehicle Type: Fuel Car
Brand Name: FOTON
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details
FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
Key Features:

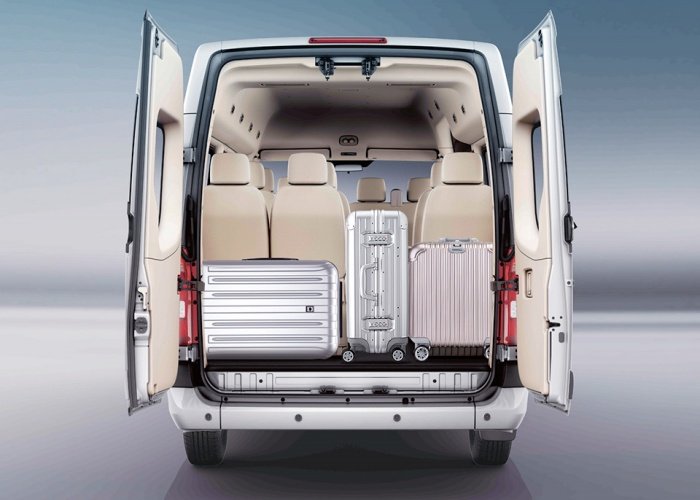

✅MAKE IT DYNAMIC – TOANO offers three different body lengths, paired with mid and high roof options, to meet various passenger and cargo space requirements.
✅HIGH STRENGTH FRAME –The body framework, crafted from high-strength steel plates, increases body stiffness by 20% compared to traditional structures, fortifying it against impact loads.
✅RADVANCED SAFETY STEERING COLUMN – The energy-absorbing steering column features a unique design that reacts promptly during collisions. It collapses at multiple points to prevent the steering wheel from intruding into the cab, minimizing the risk of driver injury.

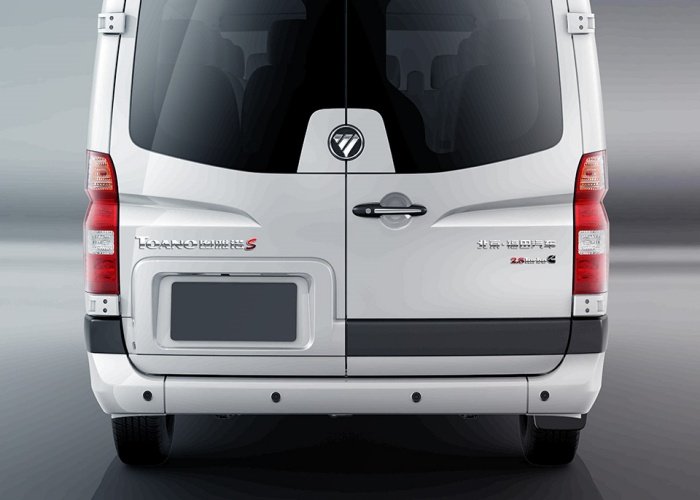

✅EFFICIENT REVERSING SENSOR FOR DRIVER SAFETY. – 4-probe reversing sensor system effectively detects blind spots, enhancing driver awareness and safety during maneuvers

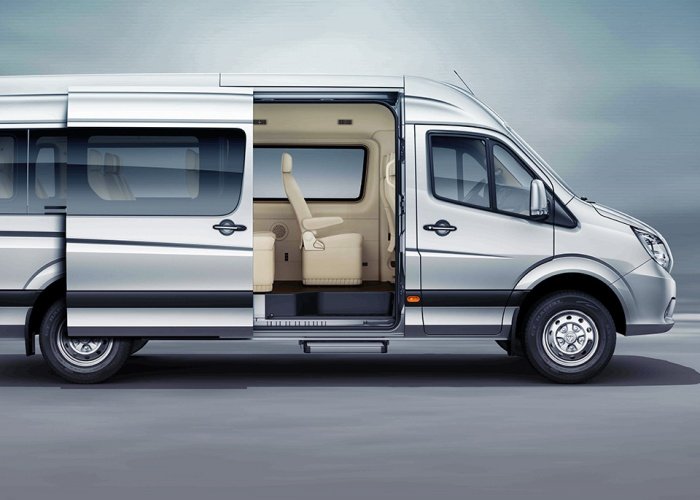

FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
FOTON TOANO 15 18 Seaters 4x2 Van Bus with Cummins Engine
Specifications:
| Parameter | Main data | |||
| Vehicle sizes | Overall length mm | 5990 | 5015 | 5735 |
| Overall width(excluding rearview mirrors)mm | 2000 | 2000 | 2000 | |
| Top type -Overall height(unloaded) mm | Medium-topcab-2415 | Medium-topcab-2430 | Medium-topcab-2445 | |
| Wheelbase mm | 3750 | 2933 | 3350 | |
| Tread (front/rear)mm | 1740/1704 | 1740/1704 | 1740/1704 | |
| Front/rear overhang mm | 993/1247 | 993/1089 | 933/1392 | |
| Attitudeangleofvehicle(unloaded) | 0.6 | 0.9 | 0.7 | |
| Trafficability | Min ground clearance(fully loaded)mm | ≥160 | ≥160 | 150 |
| Rampangle(fully loaded) | ≥15 | ≥19.8 | 30 | |
| Approach angle (fully loaded) | ≥18.8 | ≥18.8 | ≤21.5 | |
| Departure angle (fully loaded) | ≥15.5 | ≥20.8 | ≤11.9 | |
| Minimum turning radius m | ≤13.5 | ≤11.5 | ≤6.1 | |
| Masses | Seating capacity | 3/6/12/14/15/17/18 | 3/6/7/9 | 6 |
| Curb weight kg | 2332(14 seats) | 2315(9 seats) | 2320(6 seats) | |
| Carrying capacity | 1167 | 985 | 1230 | |
| Gross mass kg | 3499 | 3300 | 3550 | |
| Power system | Fuel type | Diesel | Diesel | Diesel |
| Model | ISF 2.8 | ISF 2.8 | 4JB1T | |
| Displacement L | 2.8 | 2.8 | 2.8 | |
| Power kw/rpm | 120/130(3600) | 96(3600) | 81(3600) | |
| Max.torque N.m/rpm | 360(1400-1800) | 280(1400-1800) | 280(1400-1800) | |
| Maximum speed(fully loaded)km/h | ≥143 | ≥130 | ≥120 | |
| Acceleration time(fully loaded0-100km/h)s | ≤29 | ≤39 | ≤37 | |
| Maximum gradeability% | ≥35 | ≥30 | ≥30 | |
| Composite fuel consumption L | ≤9.5 | ≤9.5 | ≤10.5 | |
FOTON TOANO is a multi-functional high-performance van model, its shape is designed by the German design team of Mercedes, and it adopts advanced technology and exquisite workmanship to provide users with excellent comfort and reliability. FOTON TOANO has a spacious interior space and a flexible seat layout. It is also equipped with an advanced safety system and an energy-saving and environment-friendly power system to ensure safety and efficiency during driving. Whether for business or family use, FOTON TOANO mini van can meet your needs.
Contact us for pricing and configuration options！
Contact: Stacy
Phone/WhatsApp/Wechat: +86 17657099215
Email: Sales5@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
