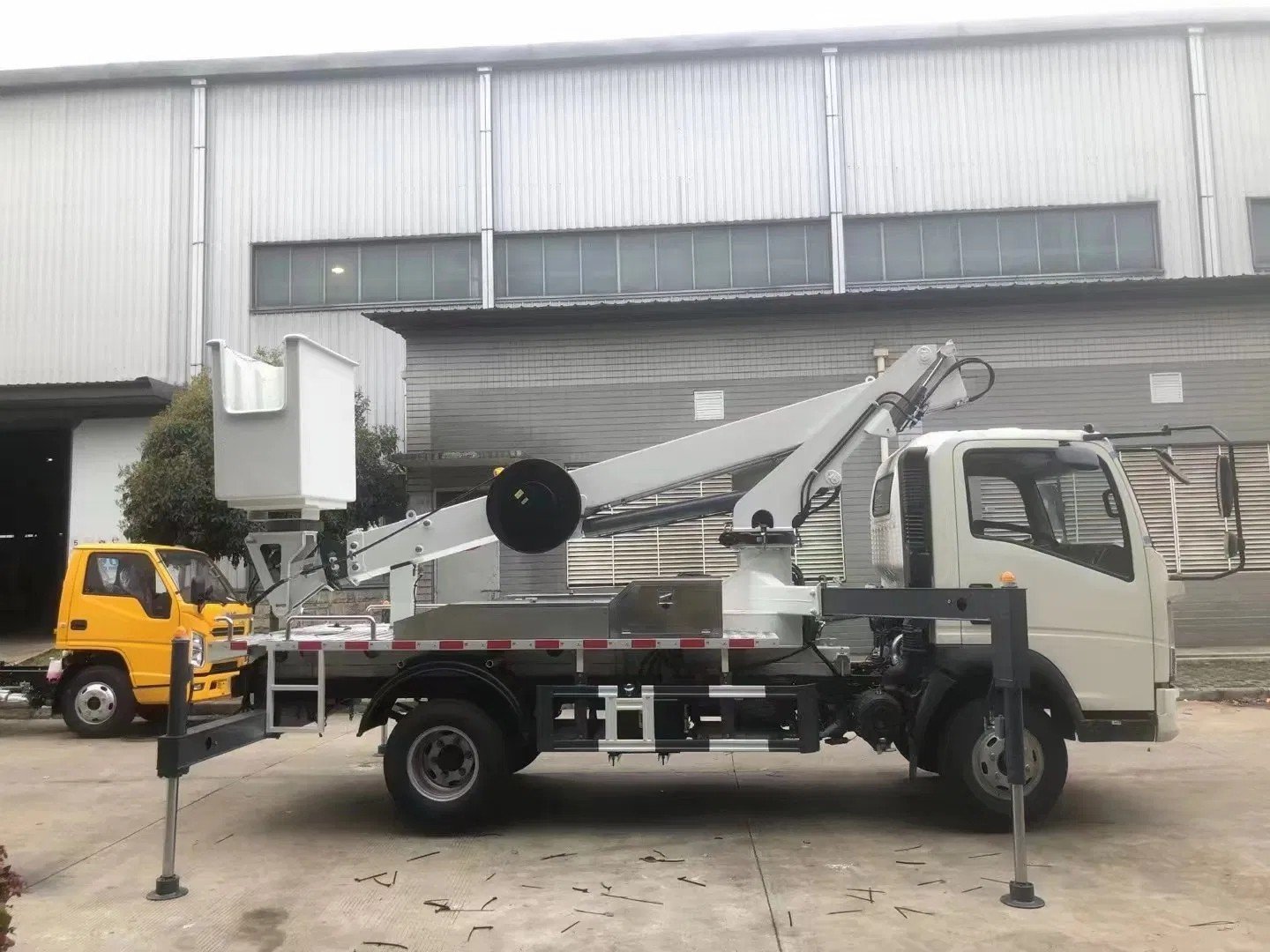

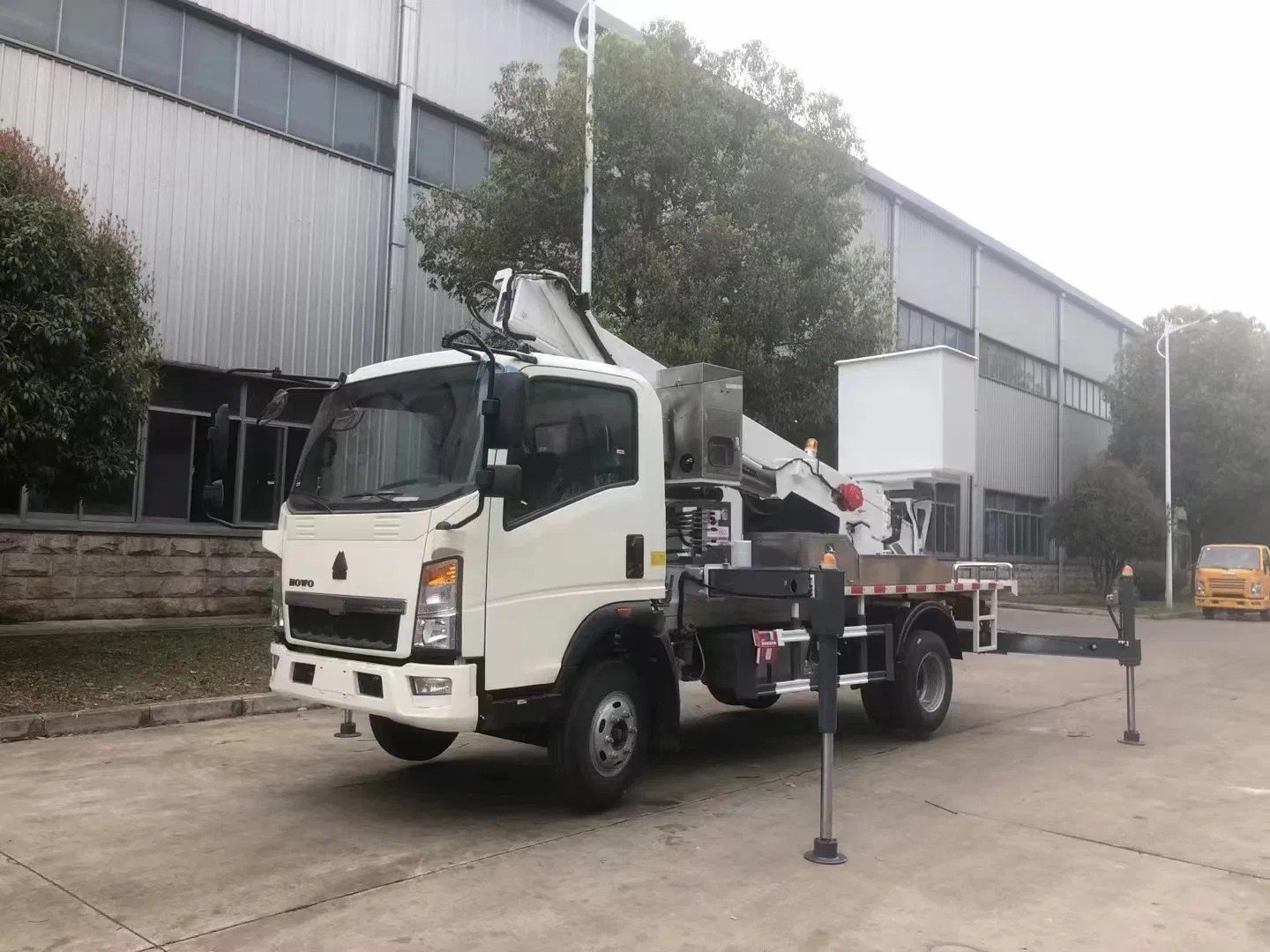

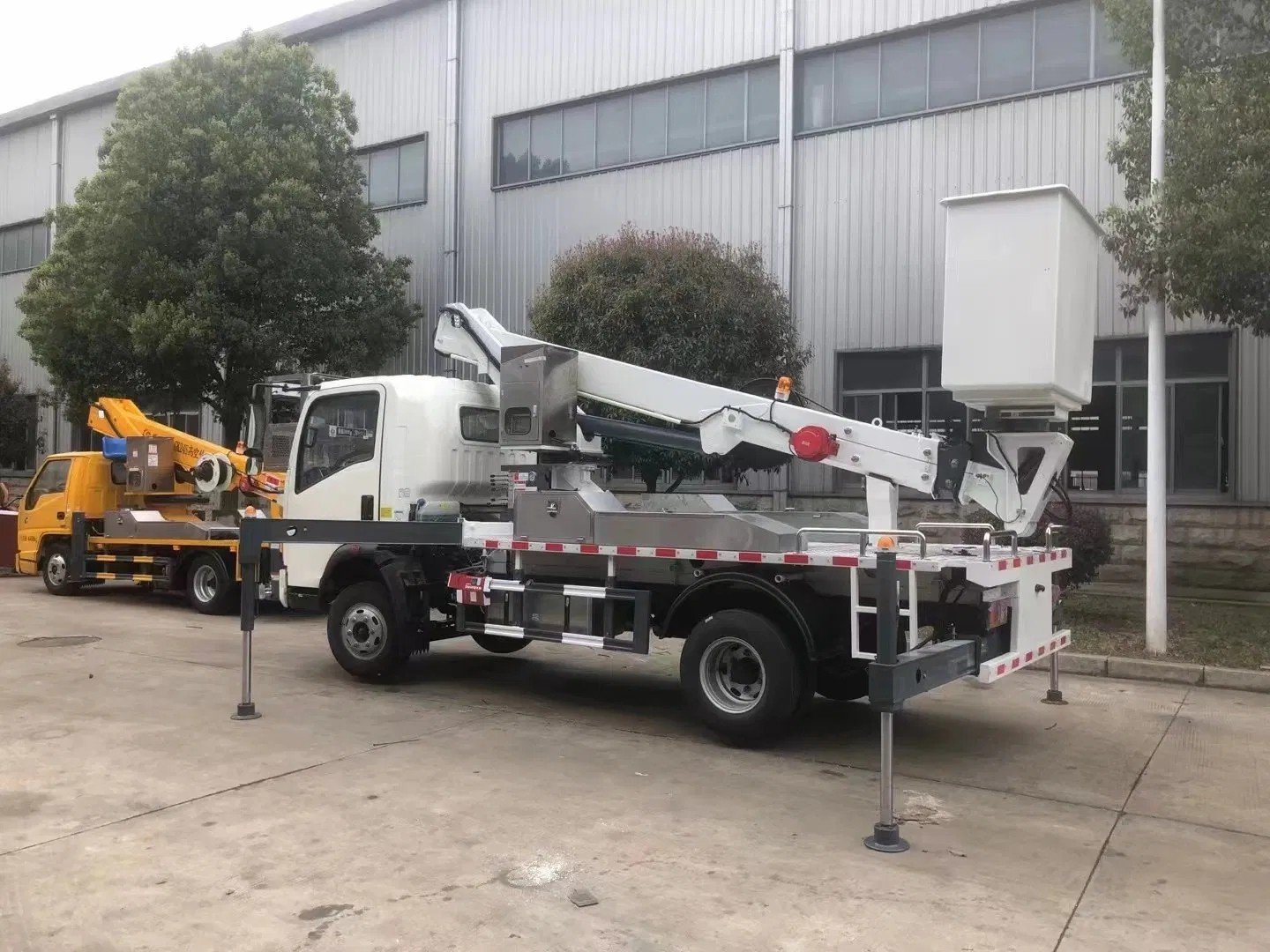

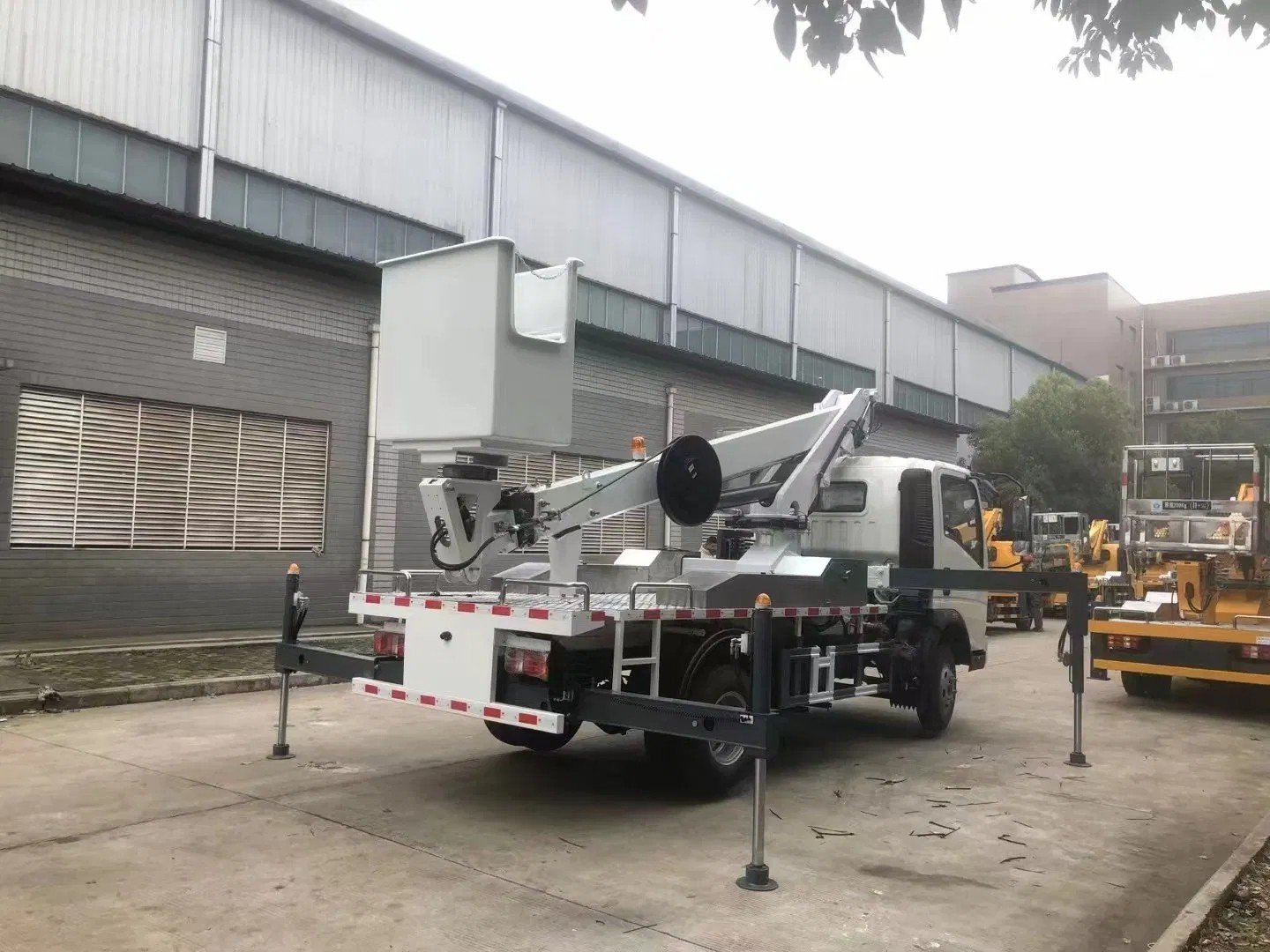

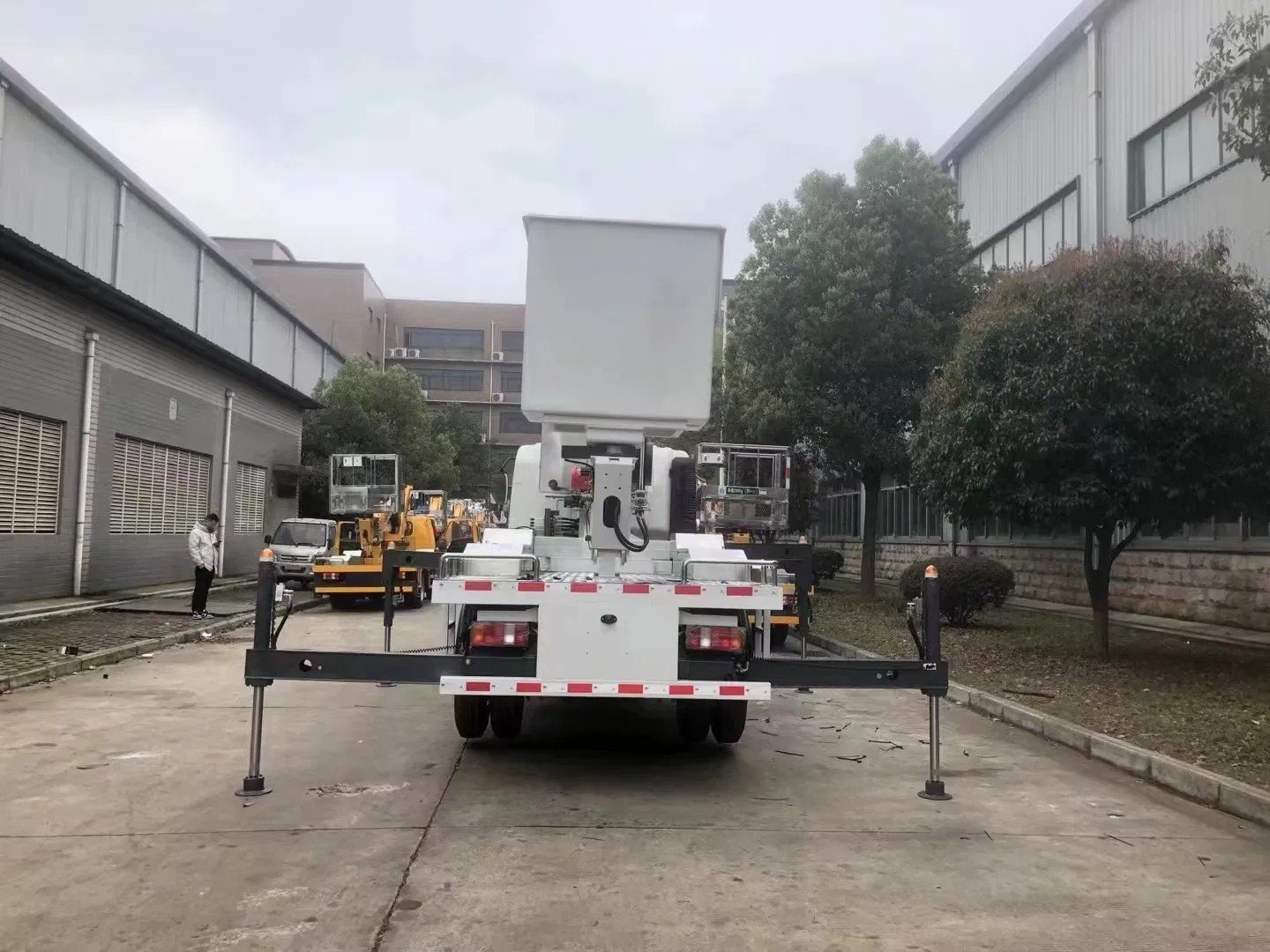

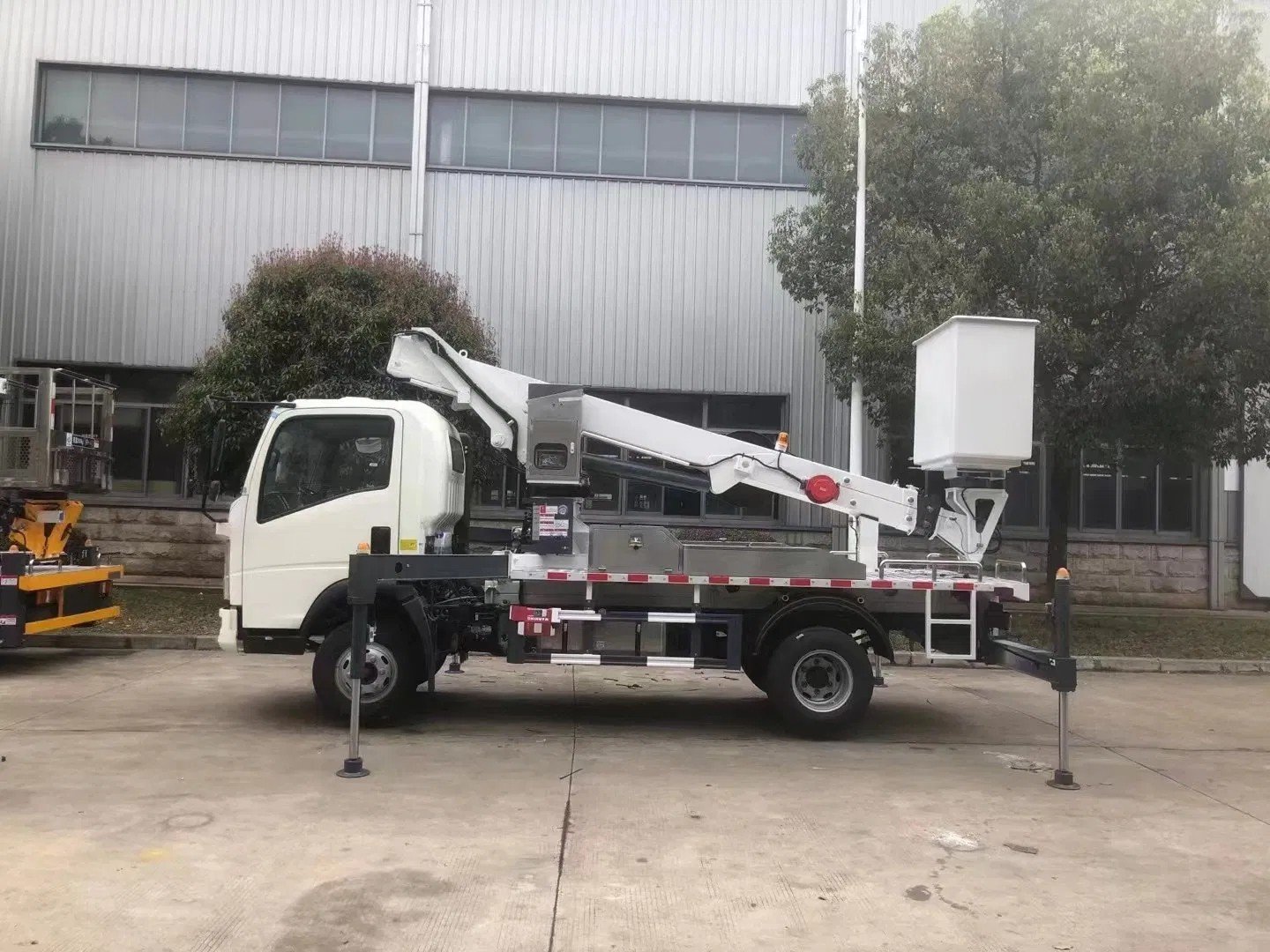

FOTON HOWO Dongfeng JAC 4x2 115 HP 16 m Hydraulic High-Altitude Aerial Work Platform Truck for Sale
No.:
Vehicle Type: Aerial Work Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
FOTON HOWO Dongfeng JAC 4x2 115 HP 16 m Hydraulic High-Altitude Aerial Work Platform Truck for Sale
Key Features
16 m maximum working height, 9.2 m max outreach, 200 kg basket load, 2-person platform.
4-section telescopic boom, 360° continuous rotation, electro-hydraulic proportional control.
Four hydraulic H-type outriggers with interlock safety and automatic leveling.
Multi-brand chassis option: Foton, HOWO, Dongfeng or JAC—same proven 115 HP Euro III engine.
Dual operation: manual ground station + wireless remote + basket joystick for precise positioning.
Emergency descent, overload alarm, tilt sensor and anti-collision valves ensure operator safety.
Specifications
| Item | Specification |
|---|---|
| Chassis | Foton / HOWO / Dongfeng / JAC 4×2 |
| Engine | 115 HP Euro III diesel, 2.8 L |
| Gearbox | 5 forward + 1 reverse |
| Wheelbase | 3 360 mm |
| Outrigger Span | 4 350 mm (front) / 3 600 mm (rear) |
| Max Working Height | 16 m |
| Max Outreach | 9.2 m |
| Basket Load | 200 kg |
| Basket Size | 1 100 × 570 × 1 000 mm |
| Slewing Angle | 360° continuous |
| Boom Sections | 4-stage telescopic |
| Control | Manual + wireless remote + basket joystick |
| Tires | 7.00-16, 6+1 spare |
| GVW | 7 300 kg |
| Overall Dimensions | 7 300 × 1 980 × 3 100 mm |
| Certification | ISO9000, CCC |
| Warranty | 1 year / 10 000 km |
Contact us for pricing and configuration options！
