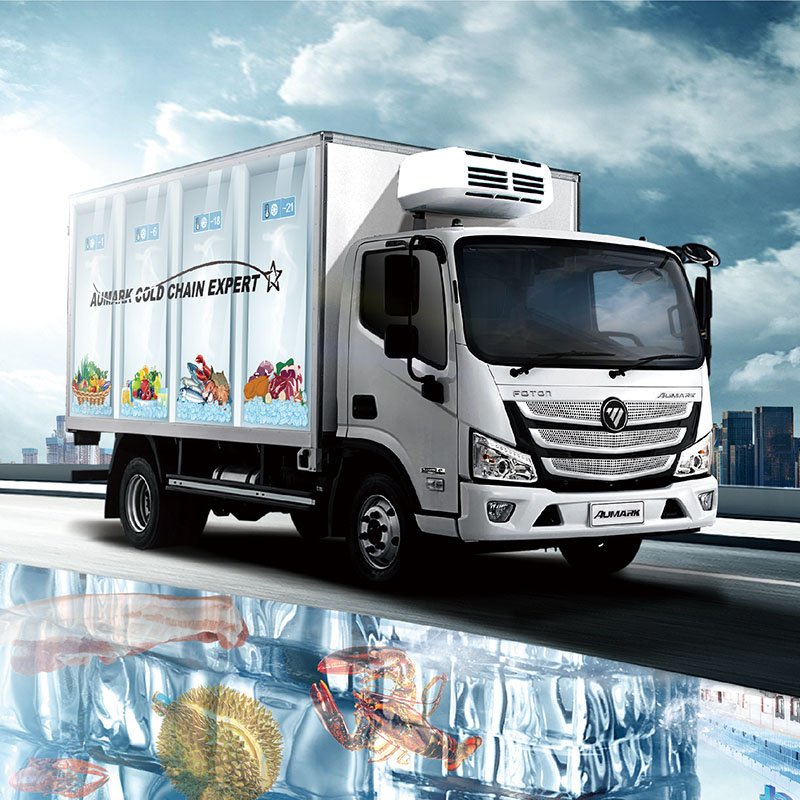

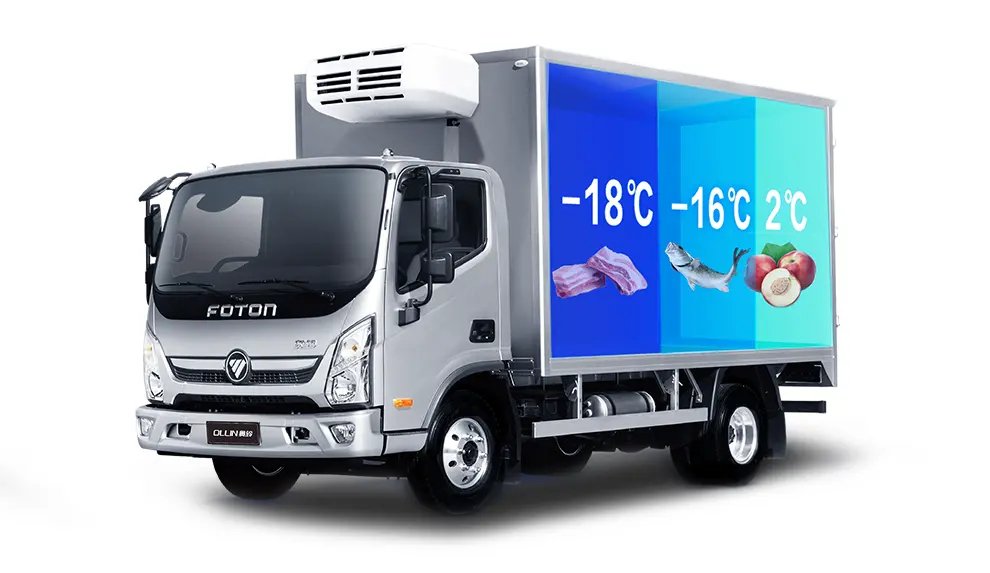

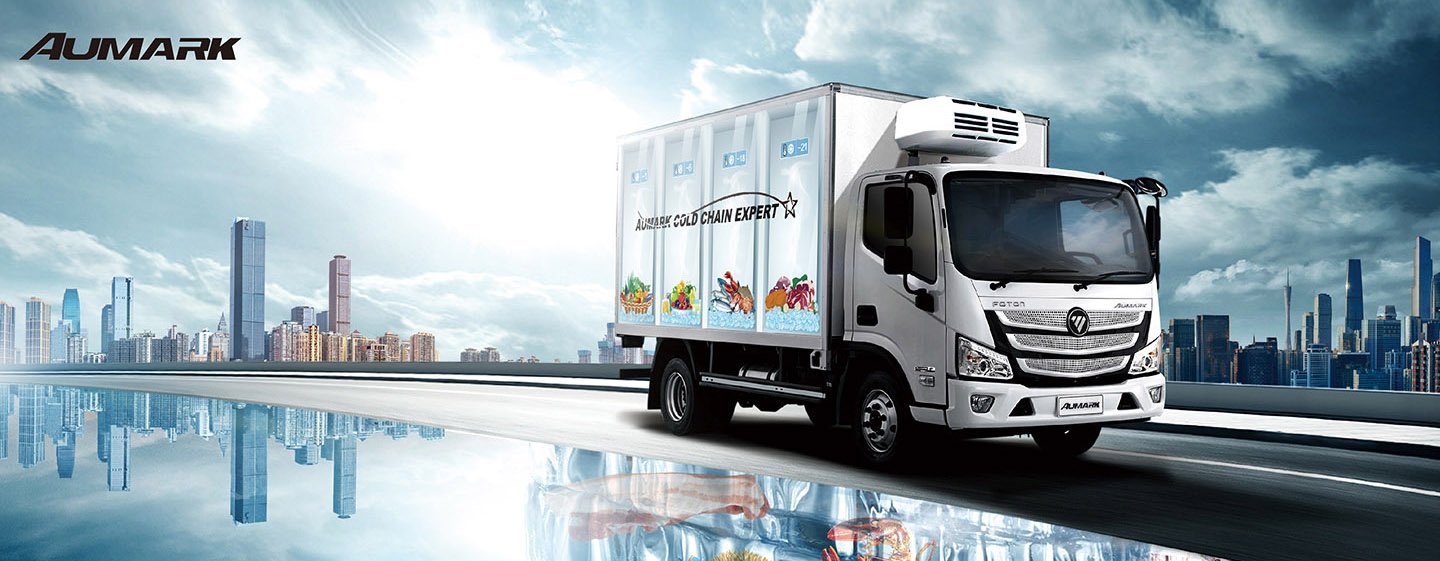

Foton AUMARK S 6T 8.5T 10T Refrigerated Truck
No.:
Vehicle Type: Refrigerator Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Technical Specifications Comparison
Parameter | 6T Model | 8.5T Model | 10T Model |
|---|---|---|---|
GVW | 6,000 kg | 8,500 kg | 10,000 kg |
Body Width | 1,880 mm | 2,060 mm | 2,060 mm |
Cargo Box (L×W) | 4,200×1,950–2,100 mm | 4,200×2,100–2,300 mm | 5,600×2,100–2,300 mm |
Wheelbase | 3,360 mm | 3,360 mm | 4,200 mm |
Engine | ISF2.8 | ISF3.8 | ISF3.8 |
Displacement | 2.8L | 3.8L | 3.8L |
Power | 148 HP | 154 HP | 154 HP |
Torque | 360 Nm | 500 Nm | 500 Nm |
Transmission | ZF5S400 (5MT) | ZF6S500 (6MT) | ZF6S500 (6MT) |
Front Axle Capacity | 2.4T | 2.85T | 3.6T |
Rear Axle Capacity | 4.5T | 6T | 6.5T |
Brake System | Hydraulic | Air Brake | Air Brake |
Tire Options | 7.00R16 / 206/75R16 | 750R16 / 215/75R17.5 | 8.25R16 / 235/75R17.5 |
Key Features
1. Customizable Configurations
•

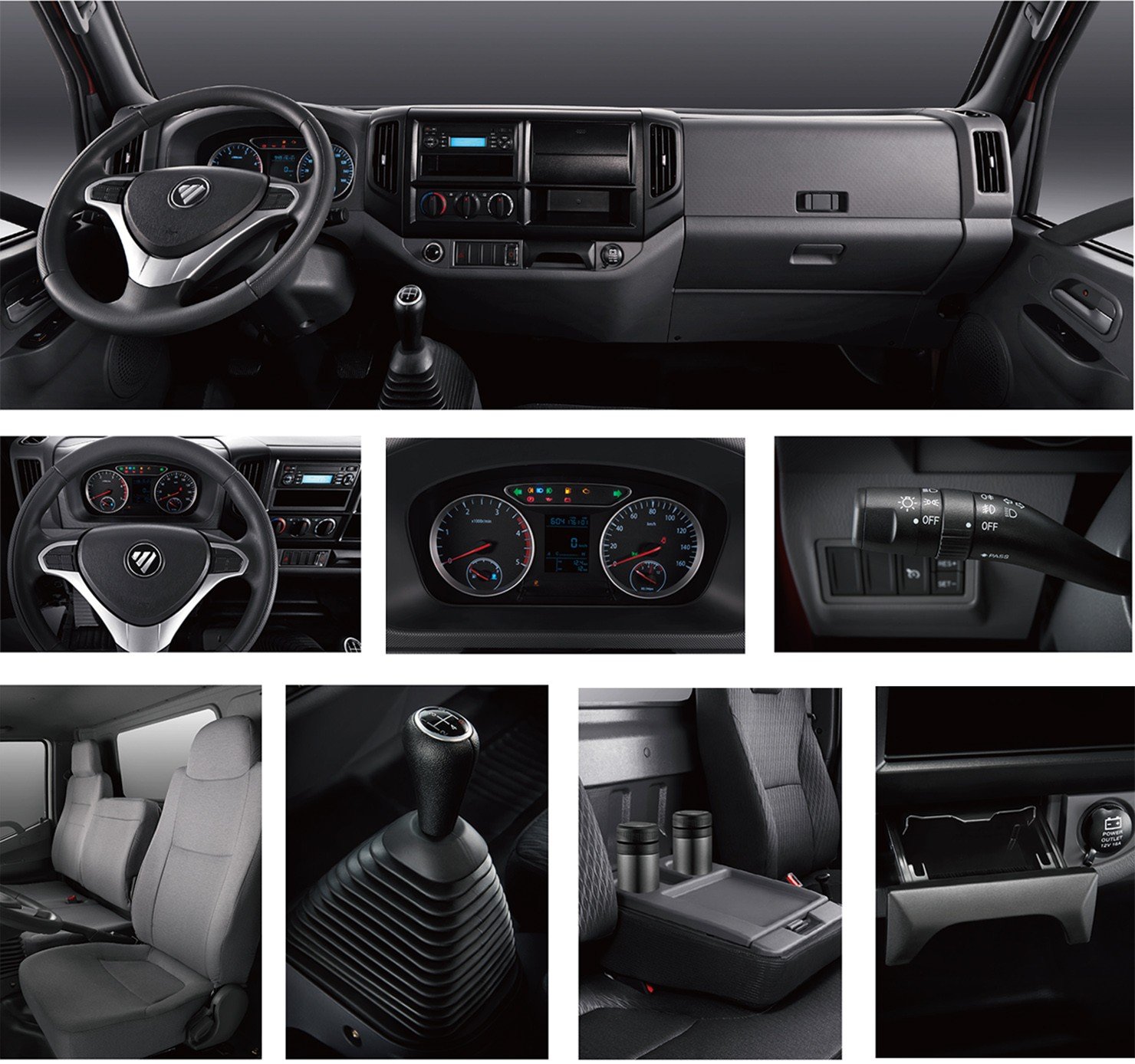

Cabin Options: Single/Double/Half-row cabs
•
Temperature Range: -20°C to +12°C (adjustable)
•
Insulation: 80mm PU foam sandwich panels (λ≤0.025 W/mK)
2. Performance & Efficiency
•
Engine Reliability: ISF series engines (50,000h lifespan)
•
Fuel Economy: ≤18L/100km (6T model)
•
Cooling Speed: ≤30 mins from 25°C to -18°C
3. Durability & Safety
•
Chassis Reinforcement: High-tensile steel frame
•
Braking Systems:
•
6T: Hydraulic brakes + ABS
•
8.5T/10T: Dual-circuit air brakes + EBS
•
Corrosion Protection: 4-layer cathodic electrocoating
Refrigeration System
Component | Specification |
|---|---|
Cooling Unit | Carrier/THERMO KING (optional) |
Power Source | Standalone diesel/glycol hybrid |
Temp. Accuracy | ±0.5°C |
Remote Monitoring | IoT-enabled (4G/5G) |
Applications
•
Urban Distribution: Supermarket cold goods, pharmaceuticals
•
Intercity Logistics: Frozen seafood, dairy products
•
Specialized Transport: Vaccines, biologics (HACCP compliant)
Service & Warranty
•
Warranty: 3-year chassis / 2-year refrigeration unit
•
Maintenance Intervals: 15,000 km or 6 months
•
Global Support: 24/7 cold-chain emergency service
Order Configurations
Package | 6T Model | 8.5T Model | 10T Model |
|---|---|---|---|
✅ Compliance: ATP, ISO 1496, GB1589
⏱️ Delivery: 30-45 days
Contact Sales
Global Manager: William
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
