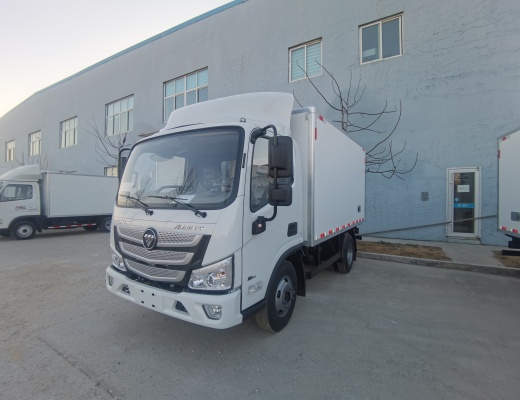

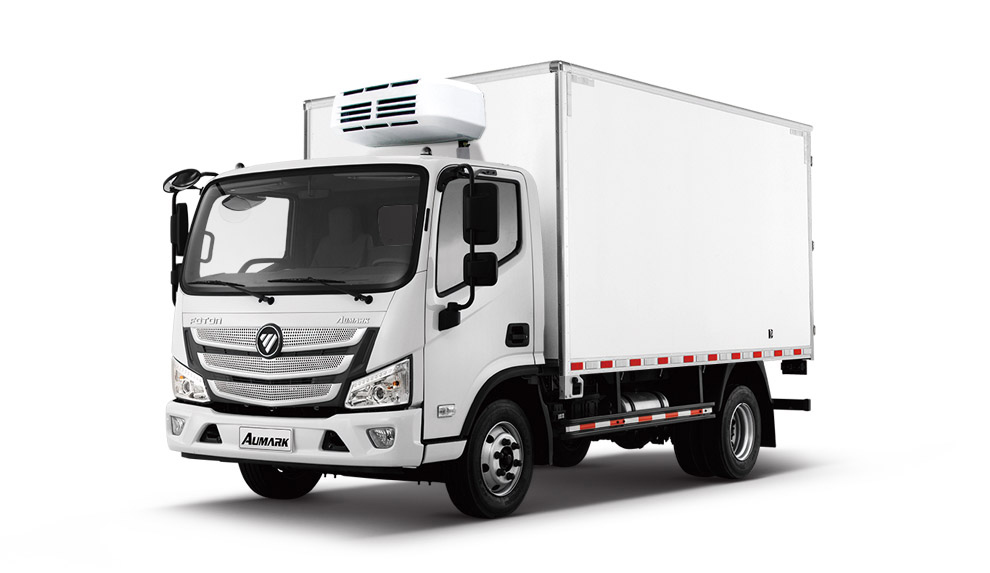

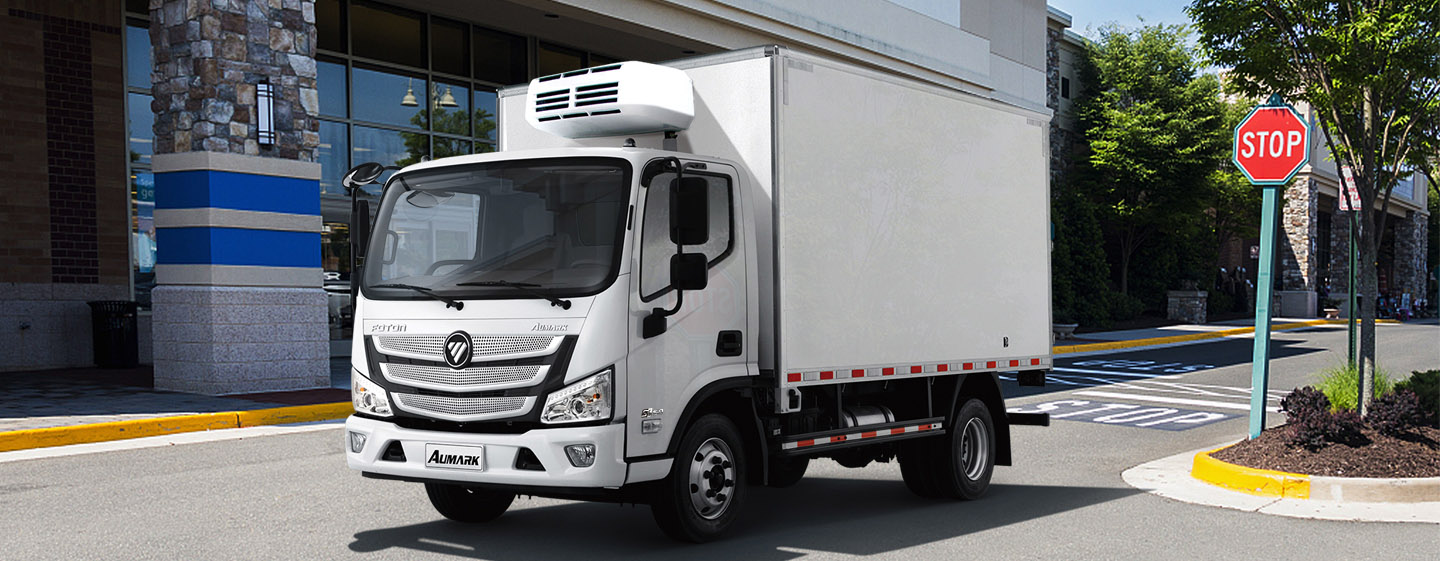

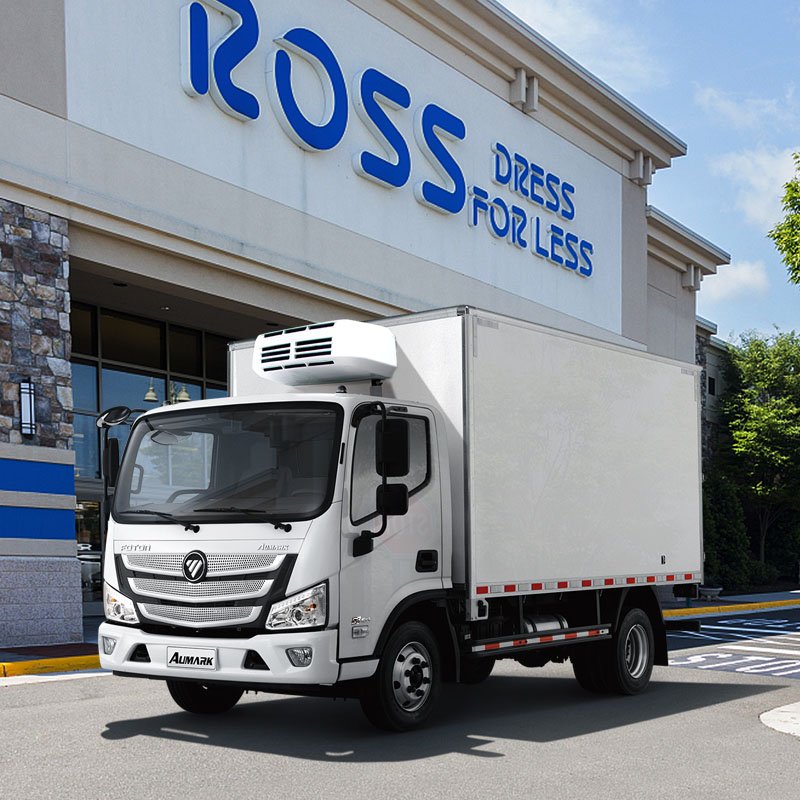

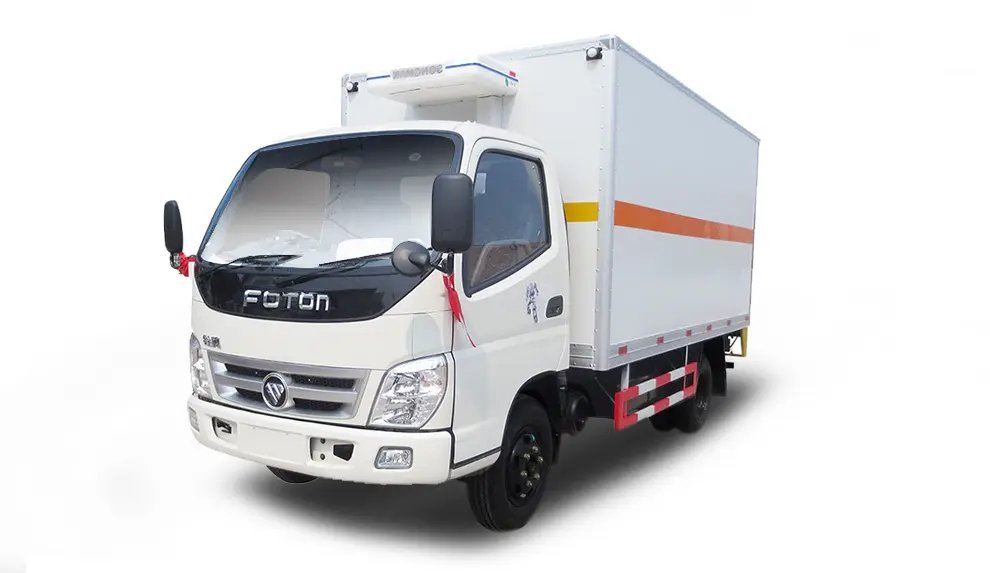

Foton AUMARK S 5 Ton Refrigerated Truck for Sale 5100×2300×2300mm Cargo Euro V Diesel
No.:
Vehicle Type: Refrigerator Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Technical Specifications
Category | Specification |
|---|---|
Overall Dimensions | 7345×2450×3500 mm |
Cargo Space | 5100×2300×2300 mm |
GVW | 8,500 kg (max 10,000 kg) |
Payload Capacity | 4,495 kg |
Engine Options | Sofim/Commins/Yuchai/Chaochai |
Power Output | 156 HP (114 kW) |
Emission Standard | Euro 3/4/5 (optional) |
Displacement | 3,760 ml |
Transmission | 5-Speed Manual |
Drive Configuration | 4×2 |
Max Speed | 105 km/h |
Fuel Type | Diesel |
Braking System | ABS |

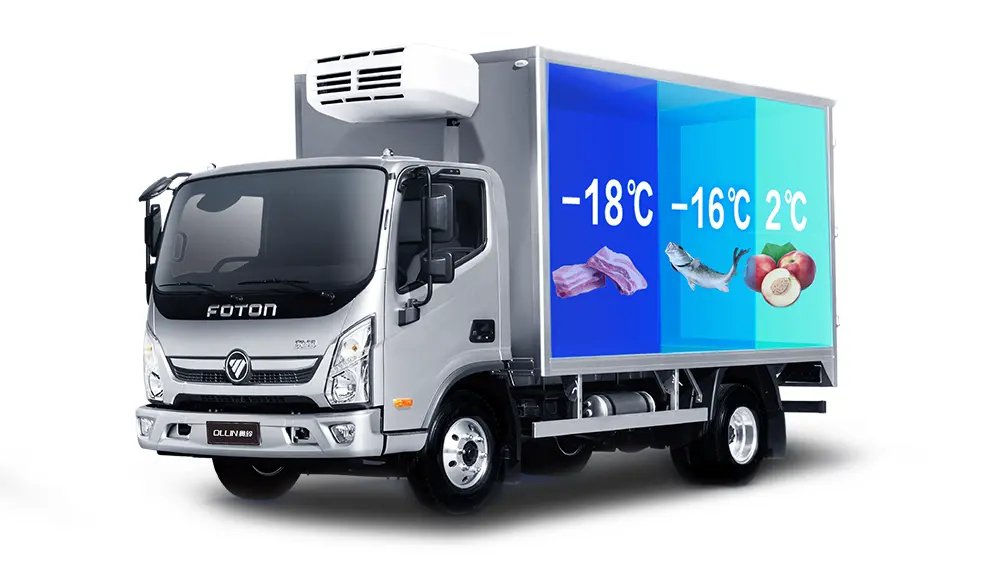

Temperature Range | -20°C to +12°C (adjustable) |
Chassis & Body
Component | Specification |
|---|---|
Chassis Brand | Yuejin/Dongfeng/Foton/JAC (optional) |
Wheelbase | 4,200 mm |
Tires | 8.25R20 12PR (6 pcs + spare) |
Suspension | Front 3-leaf / Rear 4+2-leaf |
Body Material | Sandwich panels (PU foam insulation) |
Paint Process | Shot blasting + 4-layer coating |
Door Type | Rear swing doors (optional roll-up) |
Refrigeration System
Feature | Performance |
|---|---|
Cooling Unit | Independent diesel/glycol system |
Pull-Down Time | ≤30 mins (25°C to -18°C) |
Temperature Accuracy | ±0.5°C |
Power Source | Standalone engine/battery hybrid |
Key Advantages
•
Energy Efficiency
Hybrid refrigeration system reduces fuel consumption by 15% vs. conventional units.
•
Durability
4-layer anti-corrosion coating (color customizable) resists road salt and humidity.
•
Precision Control
Digital thermostat with remote monitoring via IoT (optional).
•
Compliance Ready
Euro 3/4/5 engines meet global emission standards.
Applications
•
Food Logistics: Fresh produce, dairy, frozen goods
•
Pharmaceuticals: Vaccines, temperature-sensitive medicines
•
Floral Transport: Cut flowers, live plants
•
Catering Distribution: Hotel/restaurant supplies
After-Sales Support
•
Warranty: 3-year chassis / 2-year refrigeration unit
•
Global Service: 80+ certified cold-chain support centers
•
Training: Operator/maintenance certification programs
