Foton 8-12ton Sodium Hydroxide Hydrochloric Acid Naoh Sulfuric Acid H2so4 Tanker Transport Truck with Material of Q235 Steel Lined LLDPE Tank
No.:
Vehicle Type: Garbage Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details

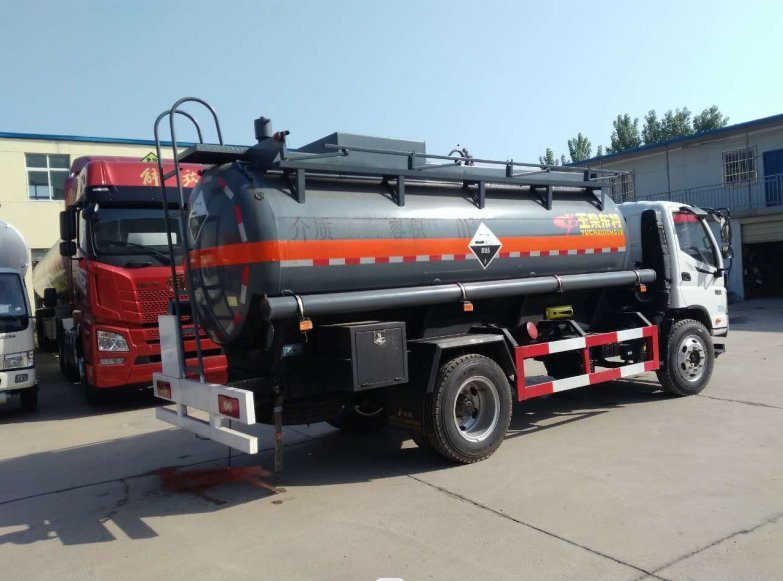

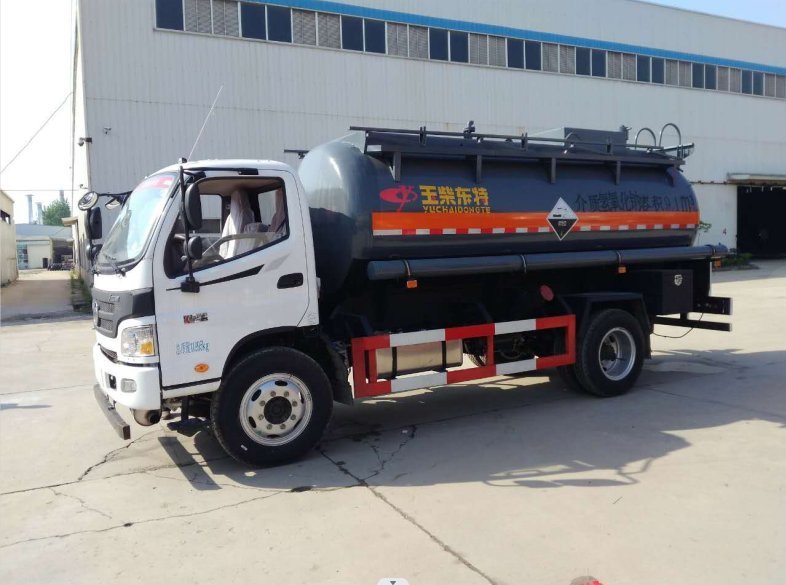

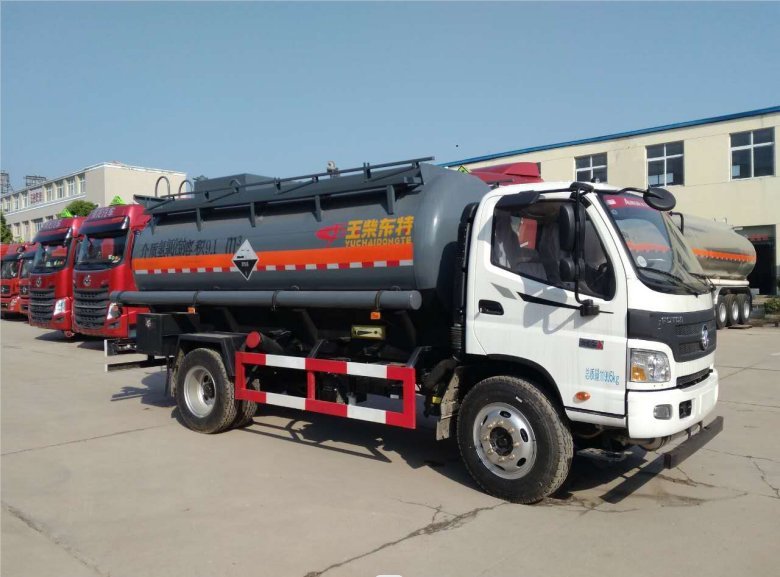

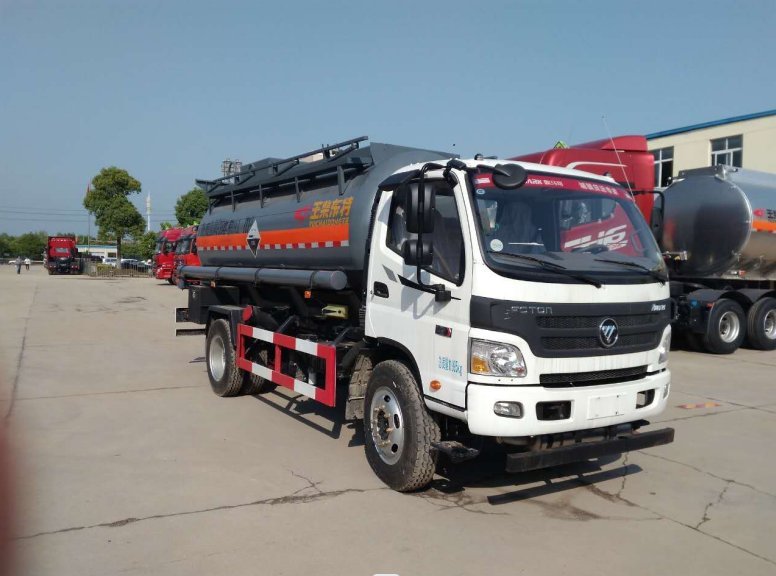

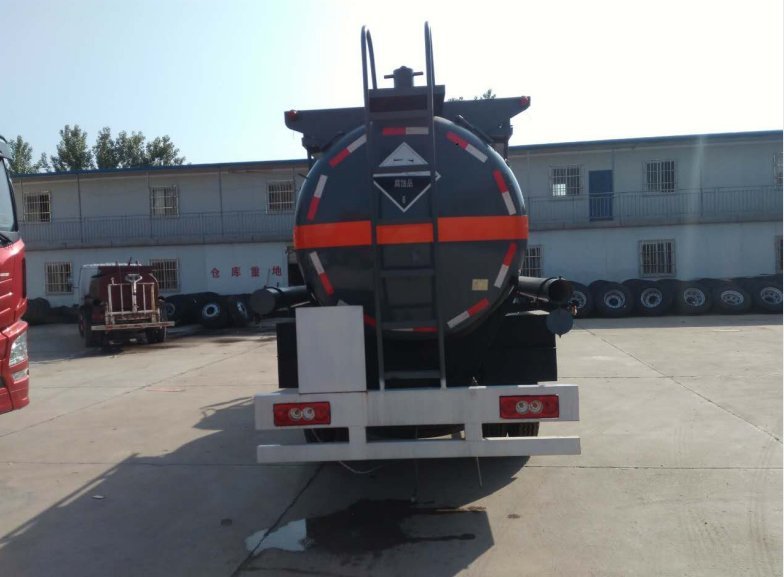

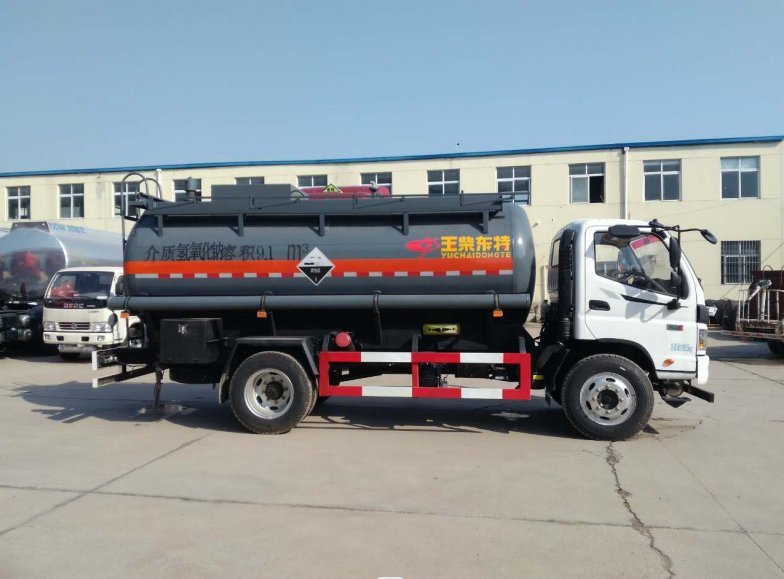

FOTON 4x2 190 HP 8–12 ton 15 000 L Sodium Hydroxide / Hydrochloric / Sulfuric Acid Tanker Truck Q235 Steel LLDPE-Lined for Sale
Key Features
Corrosion-resistant tank: 4 mm Q235 carbon steel shell + 16 mm LLDPE liner for NaOH, HCl, H₂SO₄ up to 98 % concentration.
15 000 L nominal volume, wave baffles, 8–12 t payload, sealed manhole with pressure-relief vent.
Bottom loading & discharge: API adapter, 3″ PTFE-lined butterfly valve, emergency shut-off and overflow sensor.
190 HP Cummins B190 33 Euro III engine, 6-speed manual, 90 km/h max speed, 4800 mm wheelbase.
Safety package: static grounding, anti-skid walkway, stainless ladder, fire extinguisher, DOT/ECE/GCC tires.
Specifications
复制
| Item | Specification |
|---|---|
| Chassis | FOTON 4×2 |
| Engine | Cummins B190 33, 190 HP Euro III |
| Displacement | 5.9 L |
| Gearbox | 6-speed forward, 1 reverse |
| GVW | 16 000 kg |
| Curb Weight | 6 800 kg |
| Rated Payload | 8–12 000 kg |
| Tank Volume | 15 000 L |
| Tank Material | Q235 carbon steel 4 mm + LLDPE liner 16 mm |
| Loading | Bottom loading & discharge, API adapter |
| Valves | 3″ PTFE-lined butterfly valve, emergency shut-off |
| Tires | 9.00-20 nylon (9.00R20 radial optional) |
| Wheelbase | 4 800 mm |
| Overall Dimensions | 8 290 × 2 470 × 3 050 mm |
| Certification | ISO9000, CCC |
| Warranty | 1 year / 100 000 km (engine, gearbox, axles) |
| Production Capacity | 50 units/month |
Contact us for pricing and configuration options！
Contact: william
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
