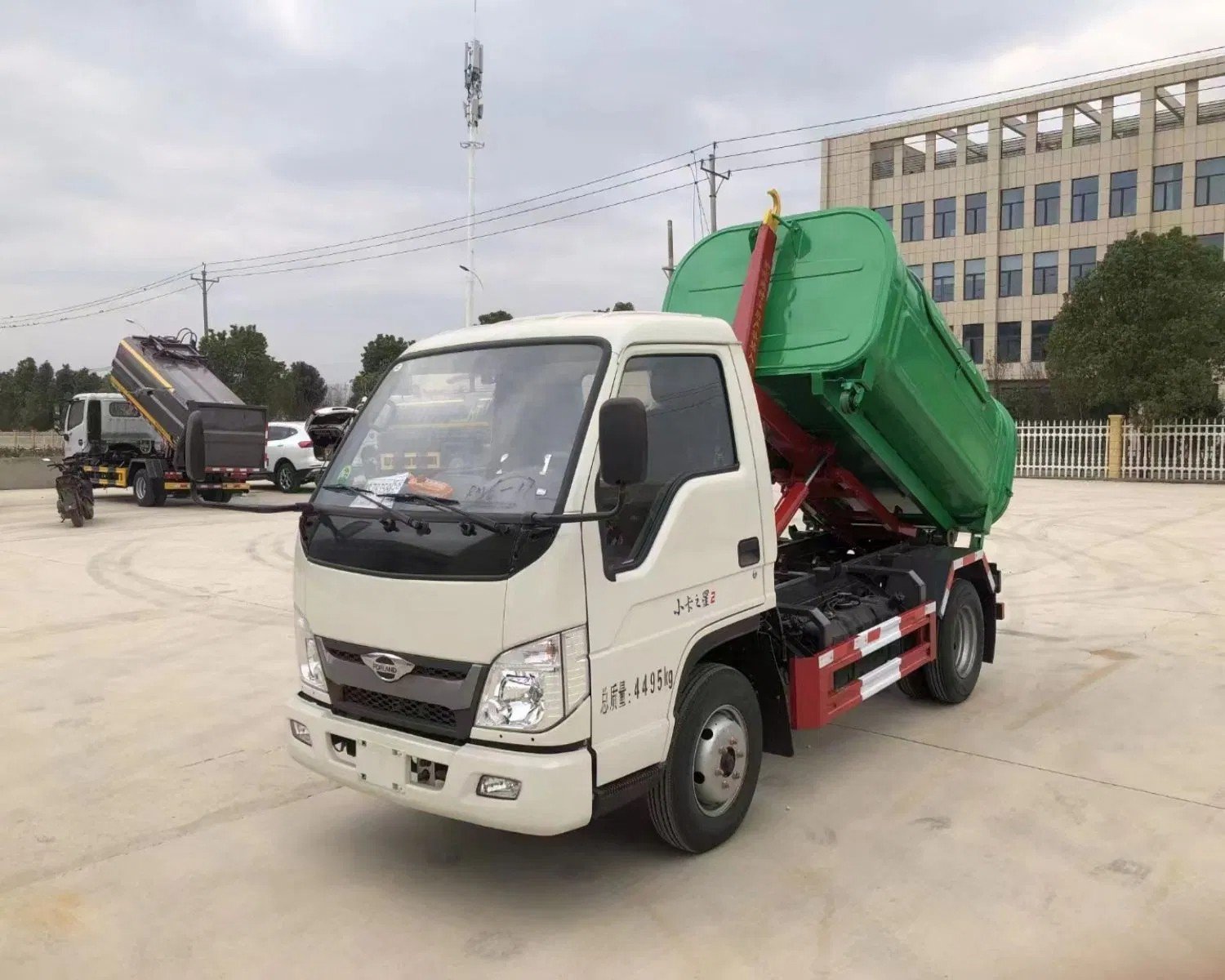

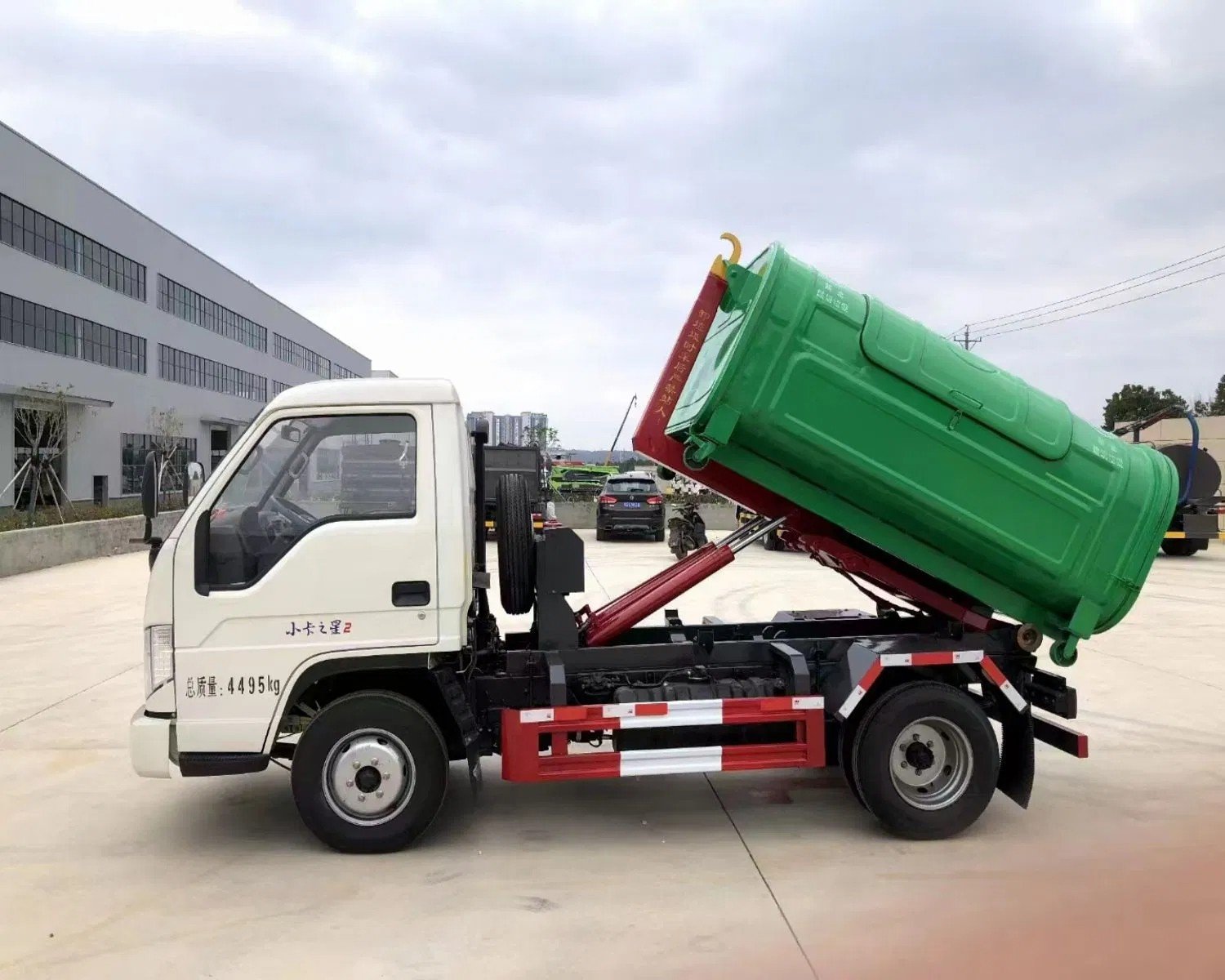

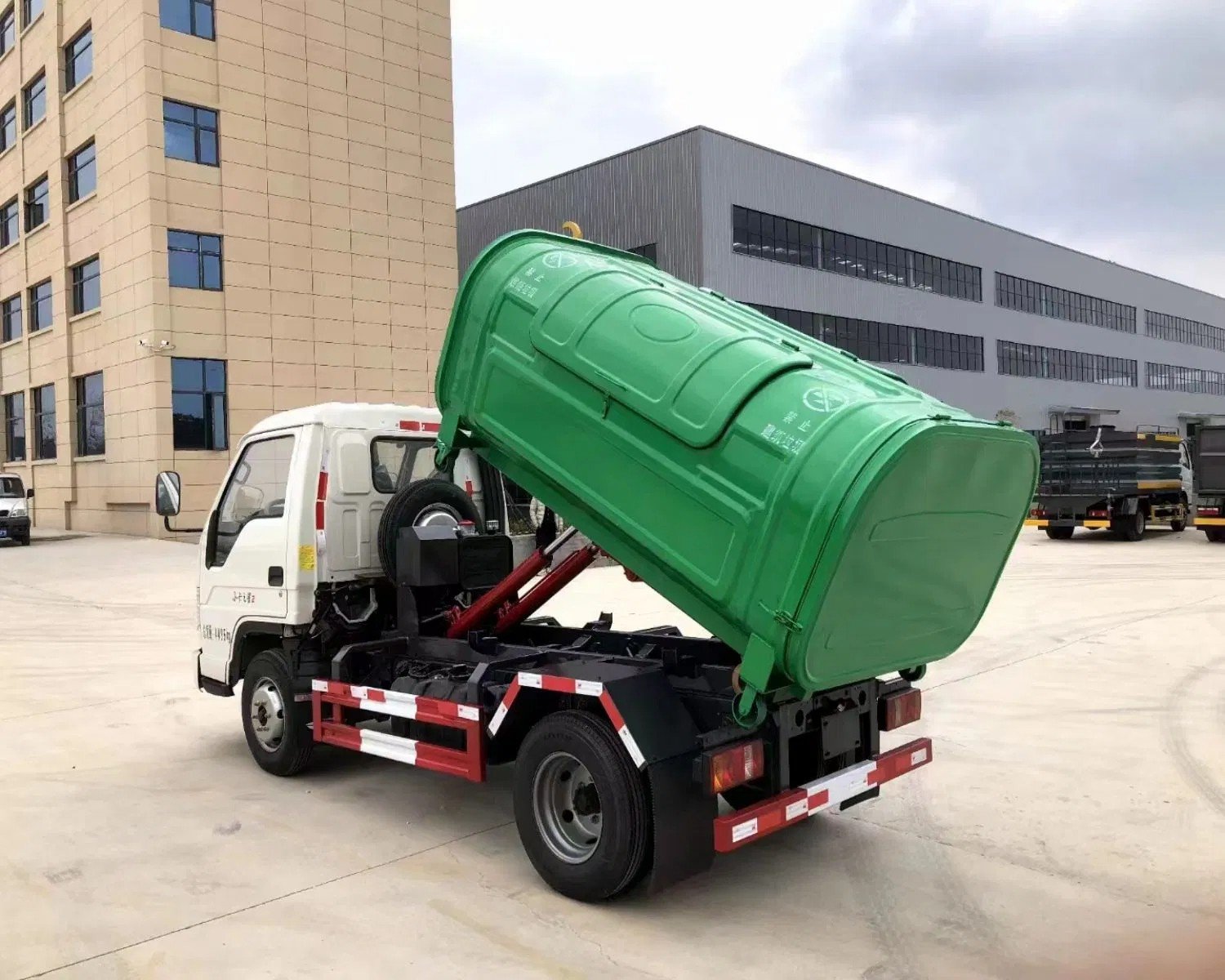

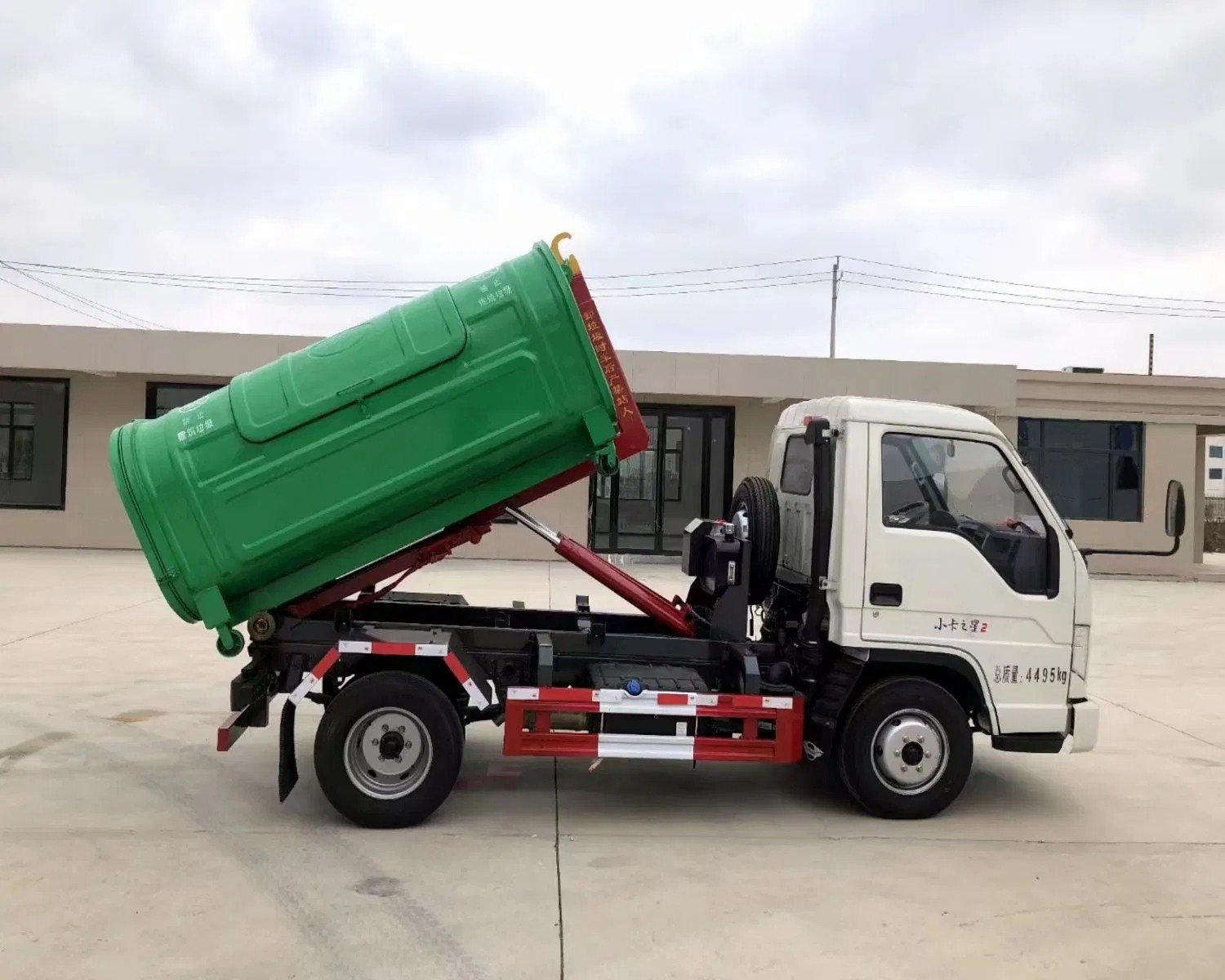

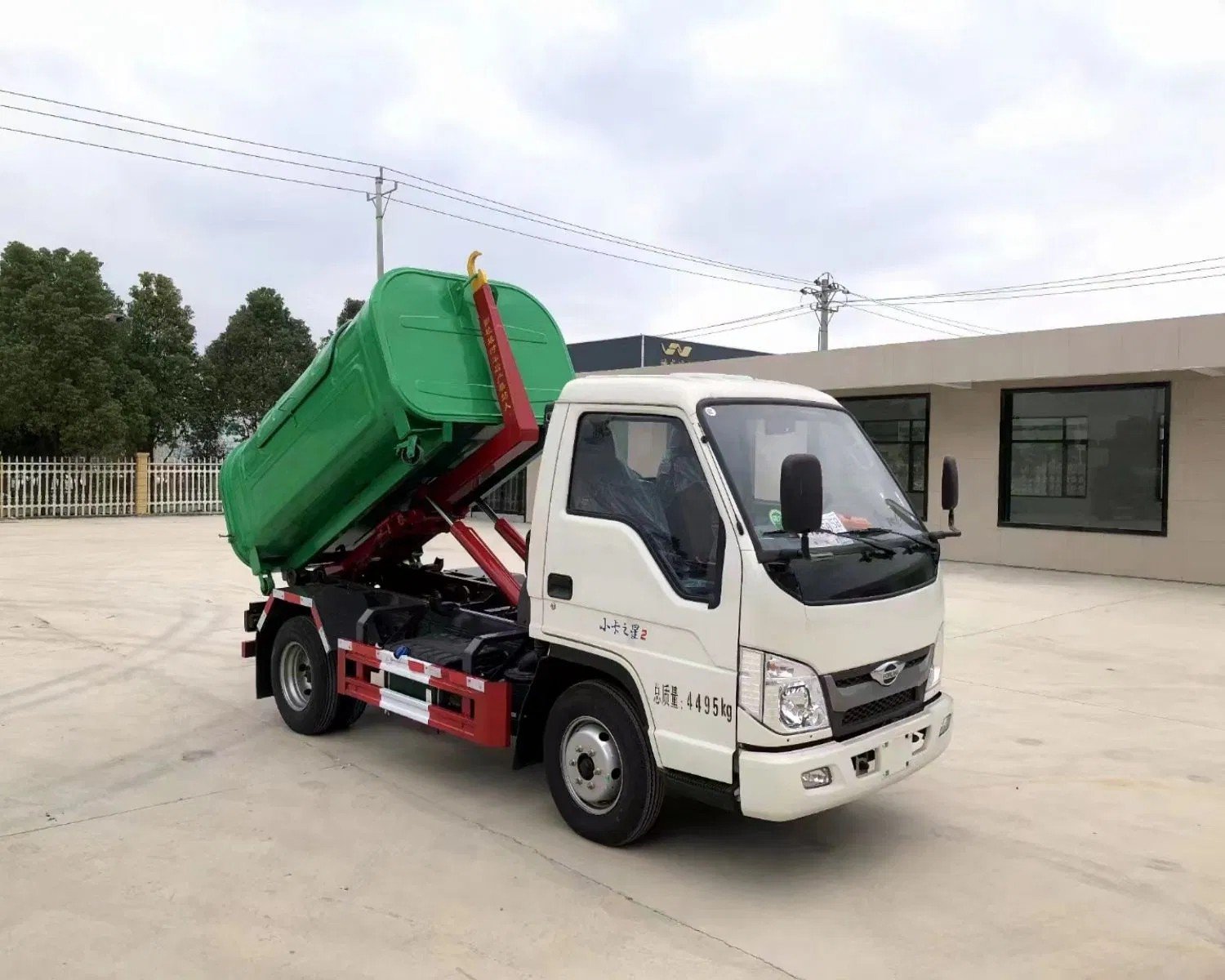

FOTON 4×2 115 HP Telescopic Hook Arm Roll-off Garbage Truck 3–8 m³ Dumpster Garbage Vehicle for Sale
No.:
Vehicle Type: Garbage Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
FOTON 4×2 115 HP Telescopic Hook Arm Roll-off Garbage Truck 3–8 m³ Dumpster Garbage Vehicle for Sale
Key Features
Telescopic hook arm system rated 3–8 t lifts 3–8 m³ sealed dumpsters in 45 s via wireless remote or cab joystick.
Lightweight 4×2 chassis, 2.8 m wheelbase, 105 km/h top speed, ideal for narrow streets and campuses.
115 HP Quanchai Euro III diesel, 5-speed manual, low fuel consumption and proven reliability.
High-strength T-series arm: finite-element design, 12 MPa system pressure, 700 kg equipment weight.
Sealed roll-off dumpsters prevent leakage and odor; multiple dumpsters can be stationed for one-truck multi-point service.
ISO9000 & CCC certified; one-year/100 000 km warranty on chassis, arm and hydraulics.
Specifications
| Item | Specification |
|---|---|
| Chassis | FOTON 4×2 |
| Engine | Quanchai 115 HP Euro III |
| Gearbox | 5-speed manual |
| Wheelbase | 2 800 mm |
| Hook Arm Capacity | 3–8 t |
| Dumpster Volume | 3–8 m³ (sealed carbon steel) |
| Hook Time | 45 s |
| Hook Height | 1 000 mm |
| Guide Width | 900 mm |
| System Pressure | 12 MPa |
| Hydraulic Tank | 20 L |
| Control Voltage | 12 V |
| GVW | 4 495 kg |
| Curb Weight | 2 420–2 600 kg |
| Rated Payload | 1 765–1 945 kg |
| Max Speed | 105 km/h |
| Tire | 6.50R16LT 10PR |
| Cab | 2-seat, A/C optional |
| Production Capacity | 50 units/month |
Contact us for pricing and configuration options！
Contact: william
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
