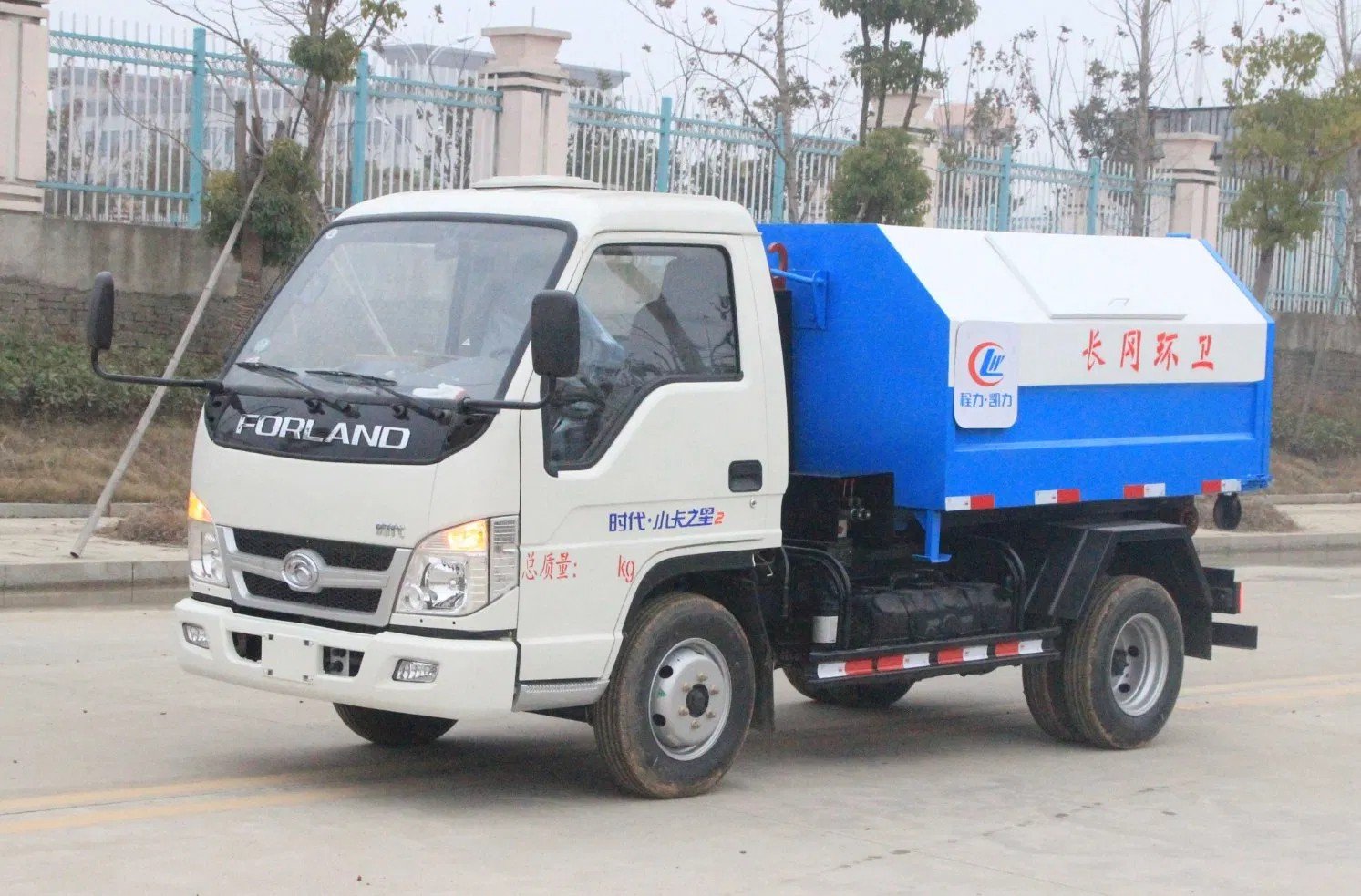

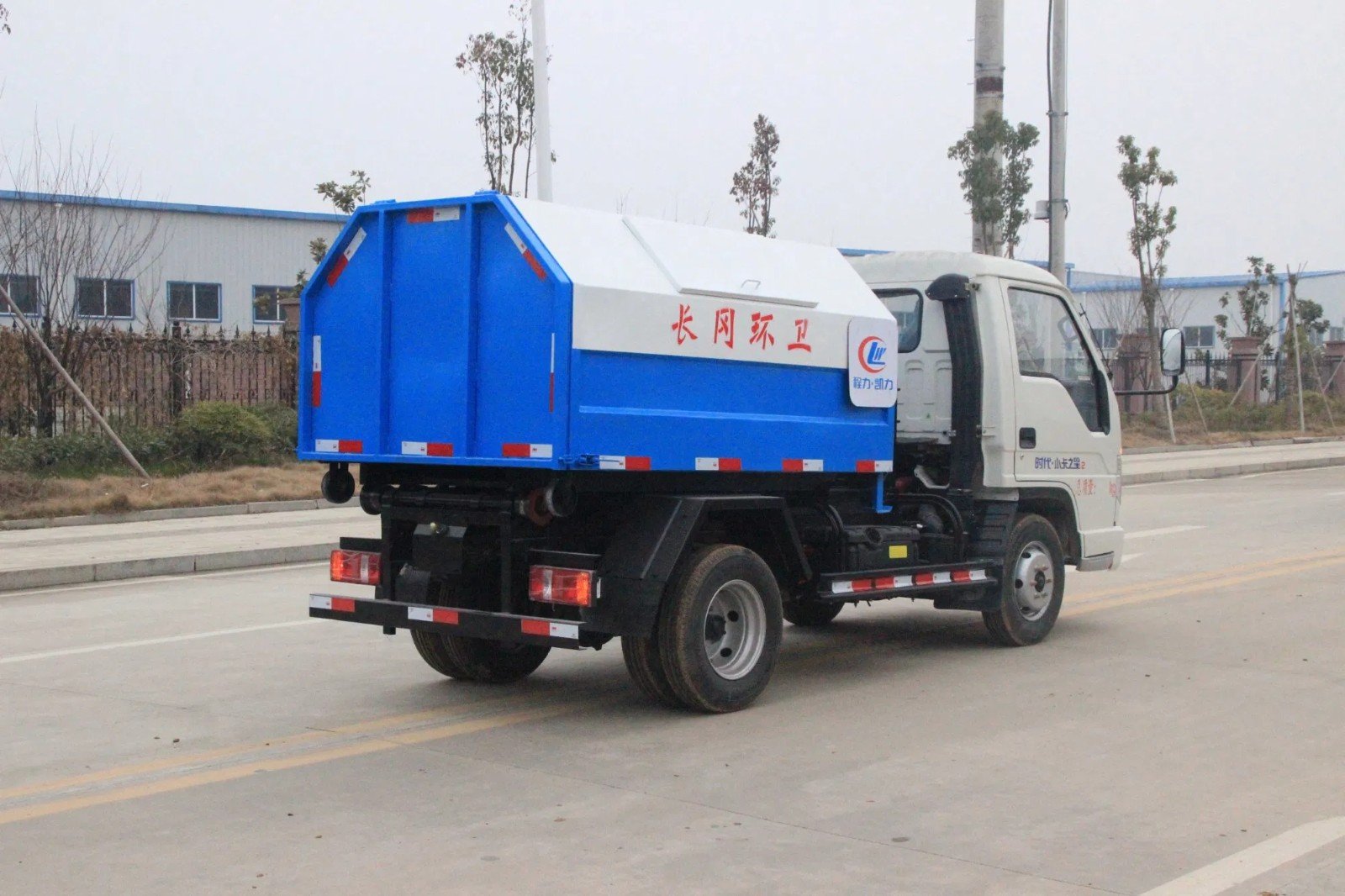

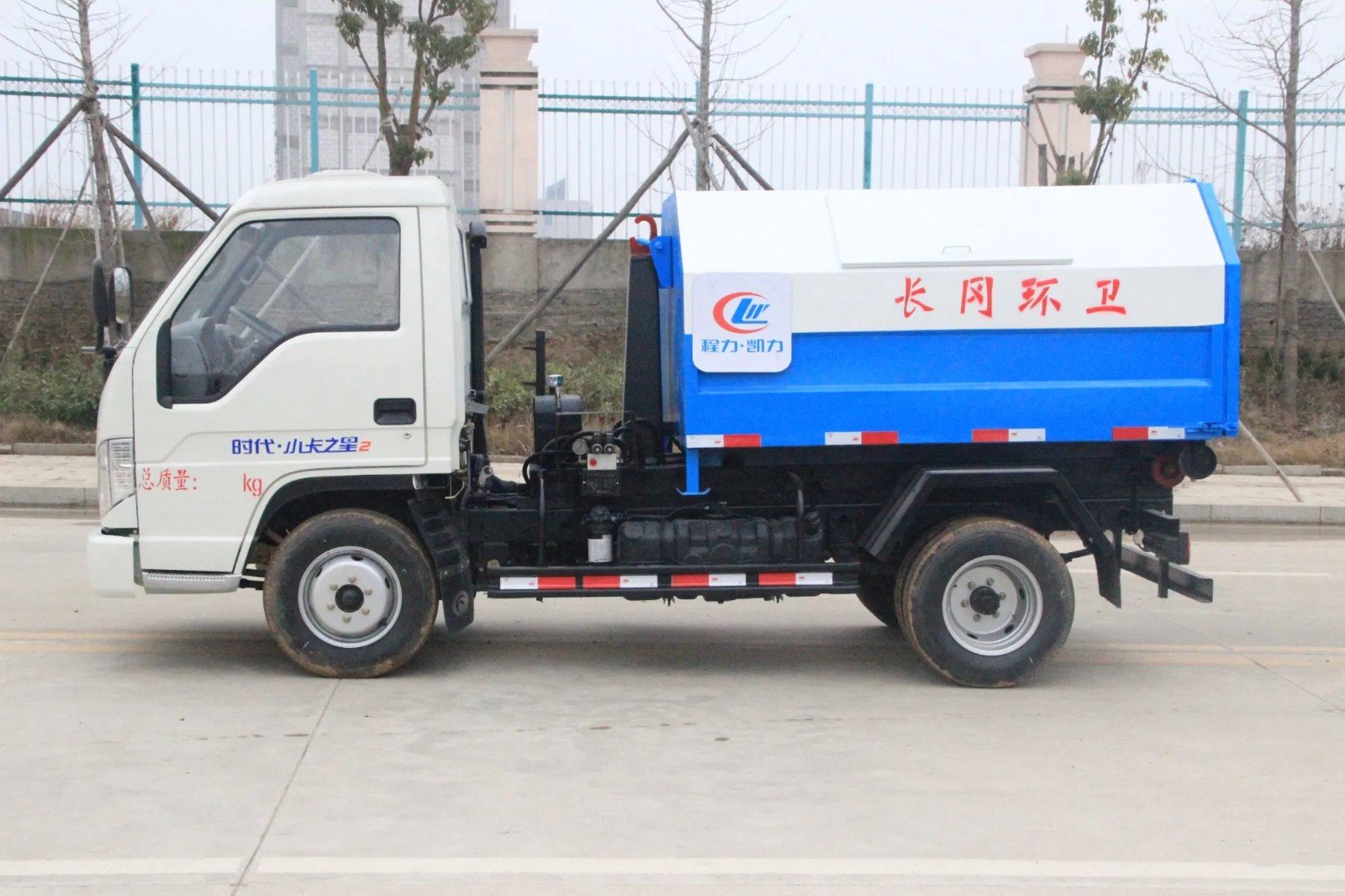

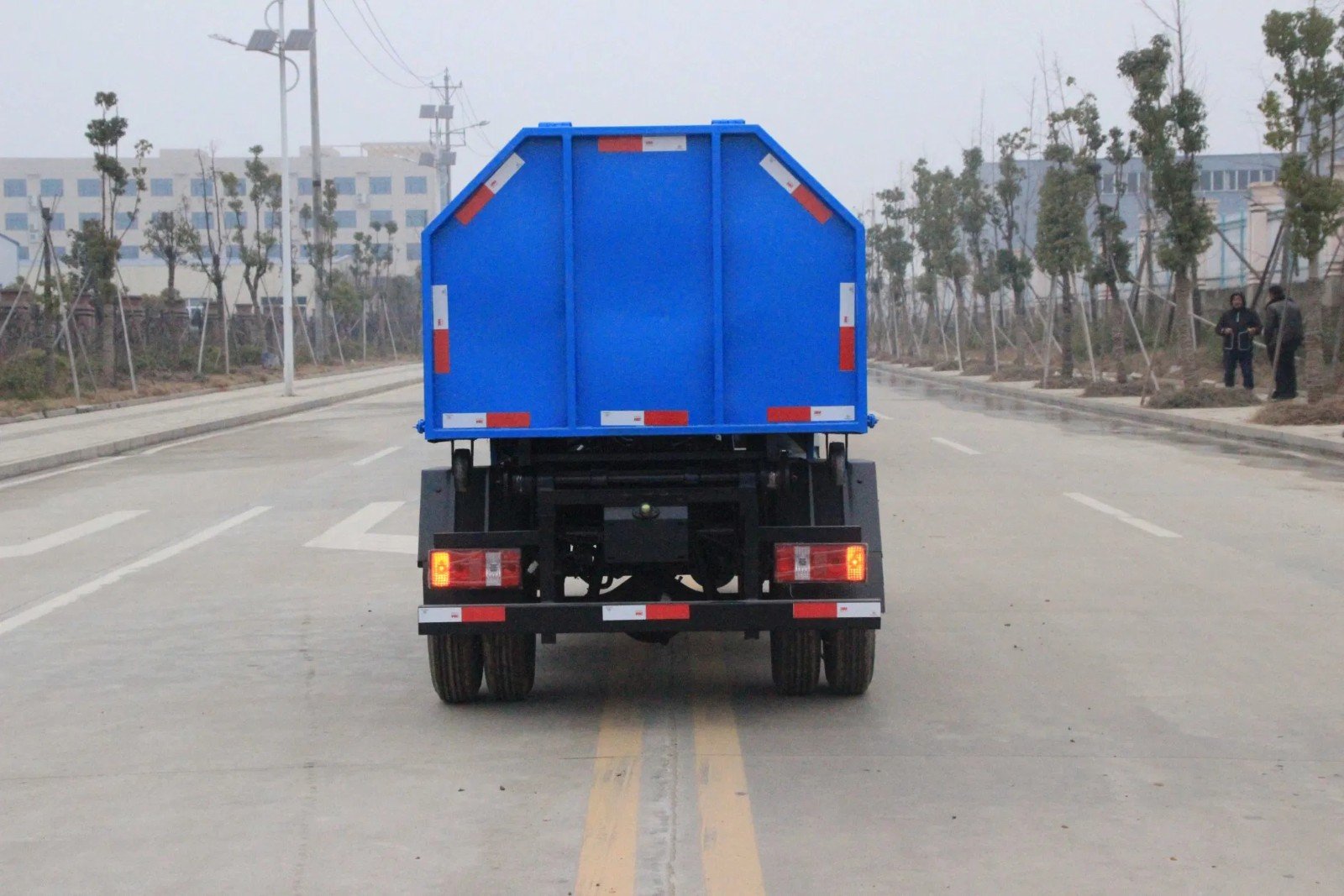

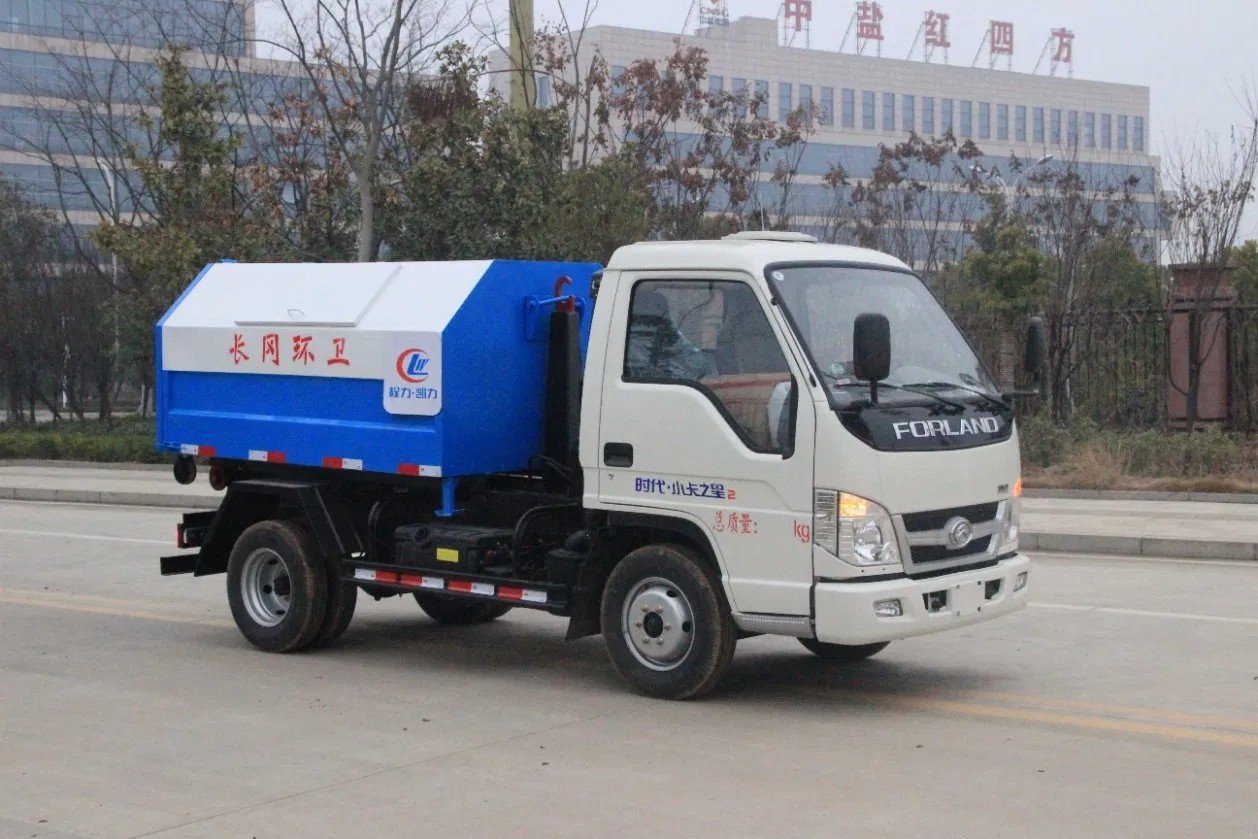

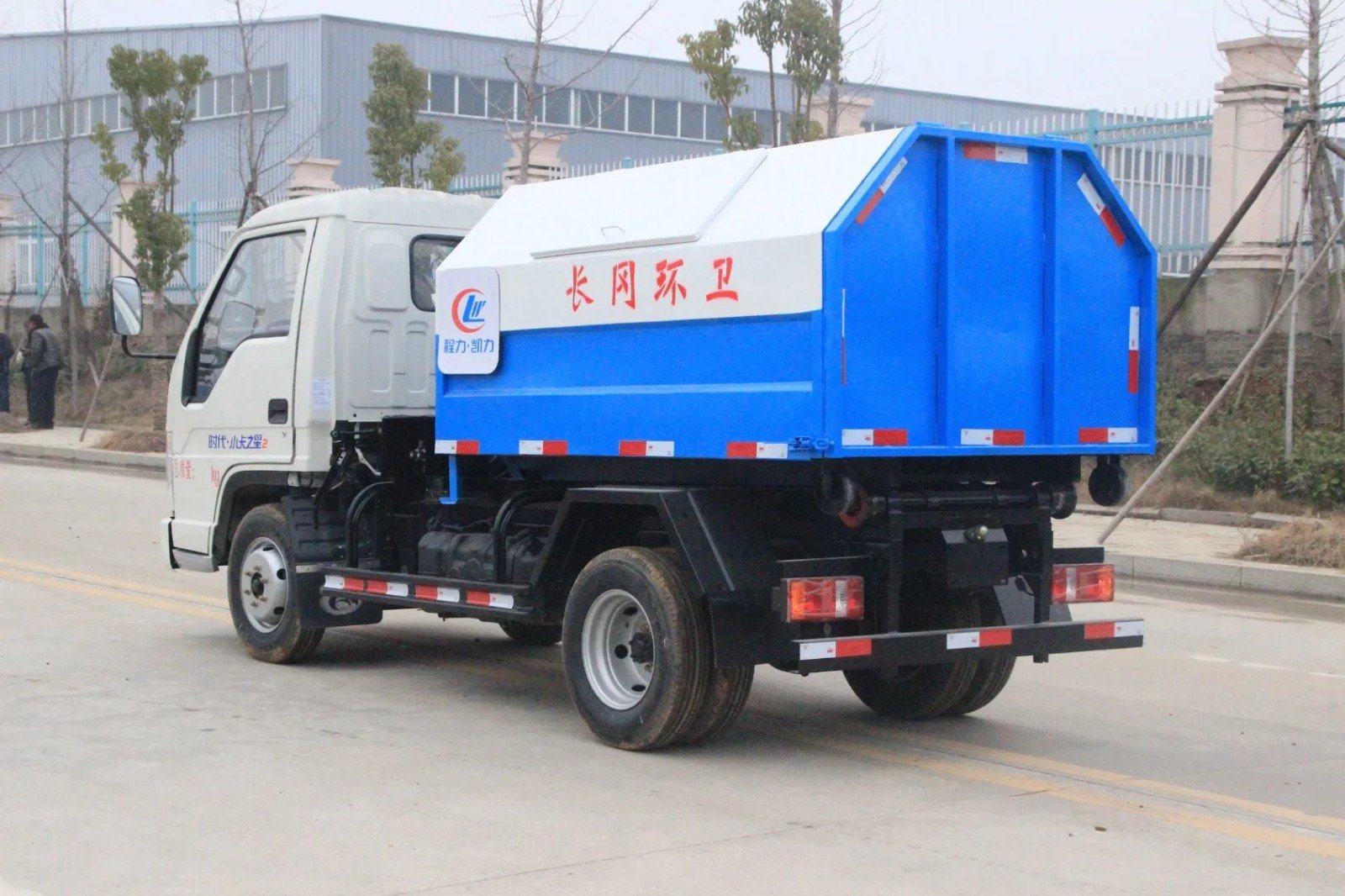

Forland 3 m³ Mini Hook-Lift Garbage Truck – Detachable Container Roll-Off Waste Collector for Sale
Key Features
• Compact Size – 4.8 m overall length, 2.8 m wheelbase, fits alleys & gated communities
• Reliable Hook System – 3 t rated lift, double telescopic cylinders, 50 s roll-on / 50 s roll-off
• Universal Bin – 3 m³ Q235 carbon-steel container, 4 mm floor, trapezoid / boat / square shapes, above/under-ground options
• Euro-IV Power – 68 HP QUANCHAI diesel, 5-speed, power steering, 90 km/h max
• Safety & Stability – Double hydraulic rear landing legs, load-sensing valve, anti-tip geometry
• One-Operator Control – Cab & rear manual valve banks, optional wireless remote
Specifications
| Item | Parameter |
|---|---|
| Drive Type | 4×2, LHD |
| Overall Dimension | 4 835 × 1 870 × 2 120 mm |
| Wheelbase | 2 800 mm |
| Curb Weight | 2 390 kg |
| GVW | 4 015 kg |
| Front / Rear Axle Load | 1 335 kg / 1 340 kg |
| Engine | QUANCHAI 68 HP, Euro-IV |
| Gearbox | 5 fwd + 1 rev |
| Clutch | Reinforced diaphragm |
| Tyres | 6.00R16, 6 + 1 |
| Max Speed | 90 km/h |
| Brakes | Dual-circuit air |
| Steering | Power assisted |
| Fuel Tank | 80 L aluminium |
| Garbage Box | 3 m³, Q235, 4 mm floor |
| Hook Capacity | 3 t |
| Roll-on Time | 50–60 s |
| Roll-off Time | 40–50 s |
| Hydraulic Pressure | 16 MPa |
| Control | Manual + optional wireless remote |
| Colour | Customer choice |
Optional Upgrades
• 5 m³ or 8 m³ bins
• Stainless-steel 304 container for food waste
• 90 HP Euro-V engine
• Hydraulic bin washing system
• GPS bin tracking & camera system
Typical Applications
• Urban residential & commercial waste collection
• Campus & hospital waste transfer
• Small construction site debris removal
• Rural skip-bin service
Contact us for pricing and configuration options!
