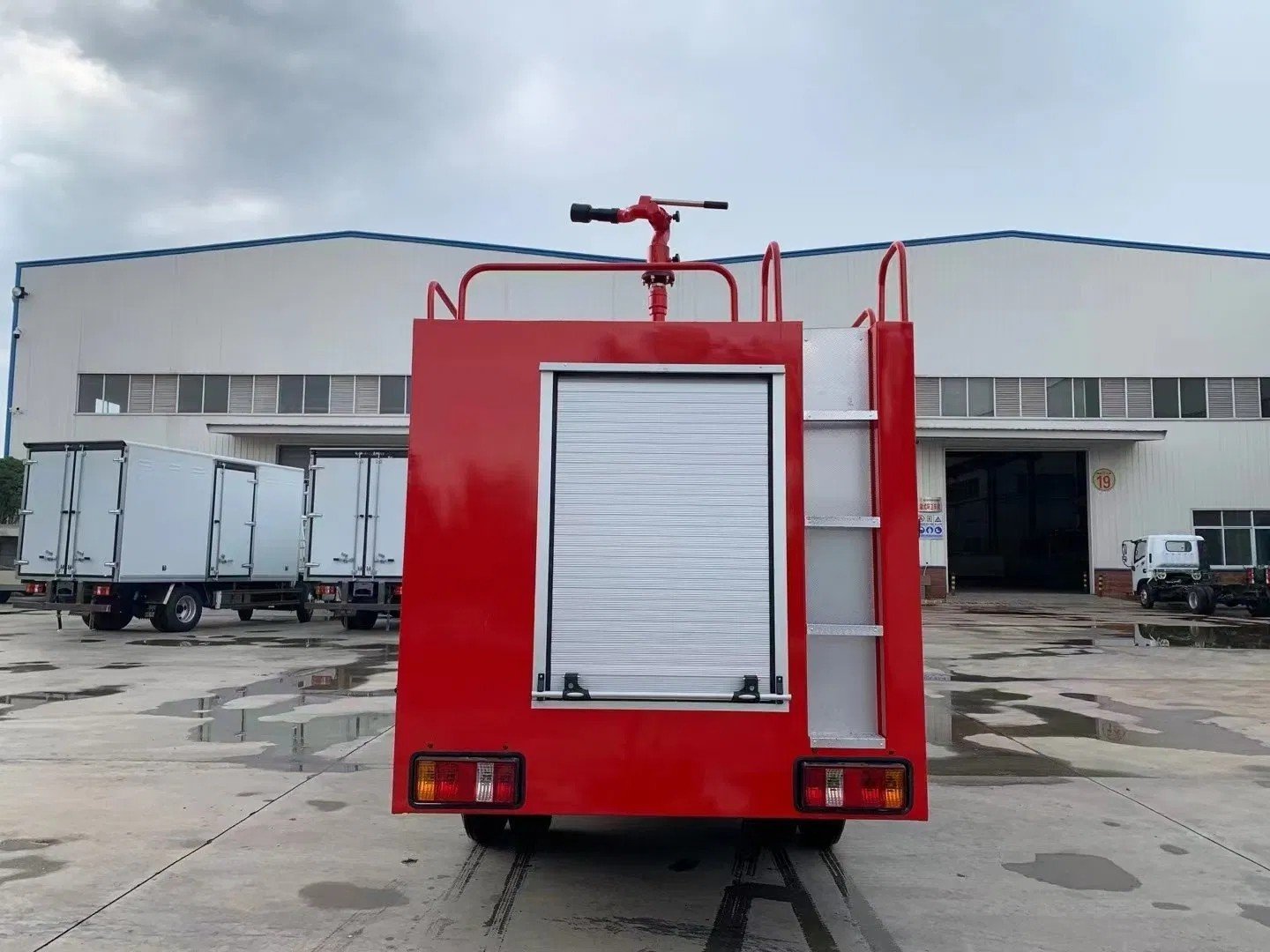

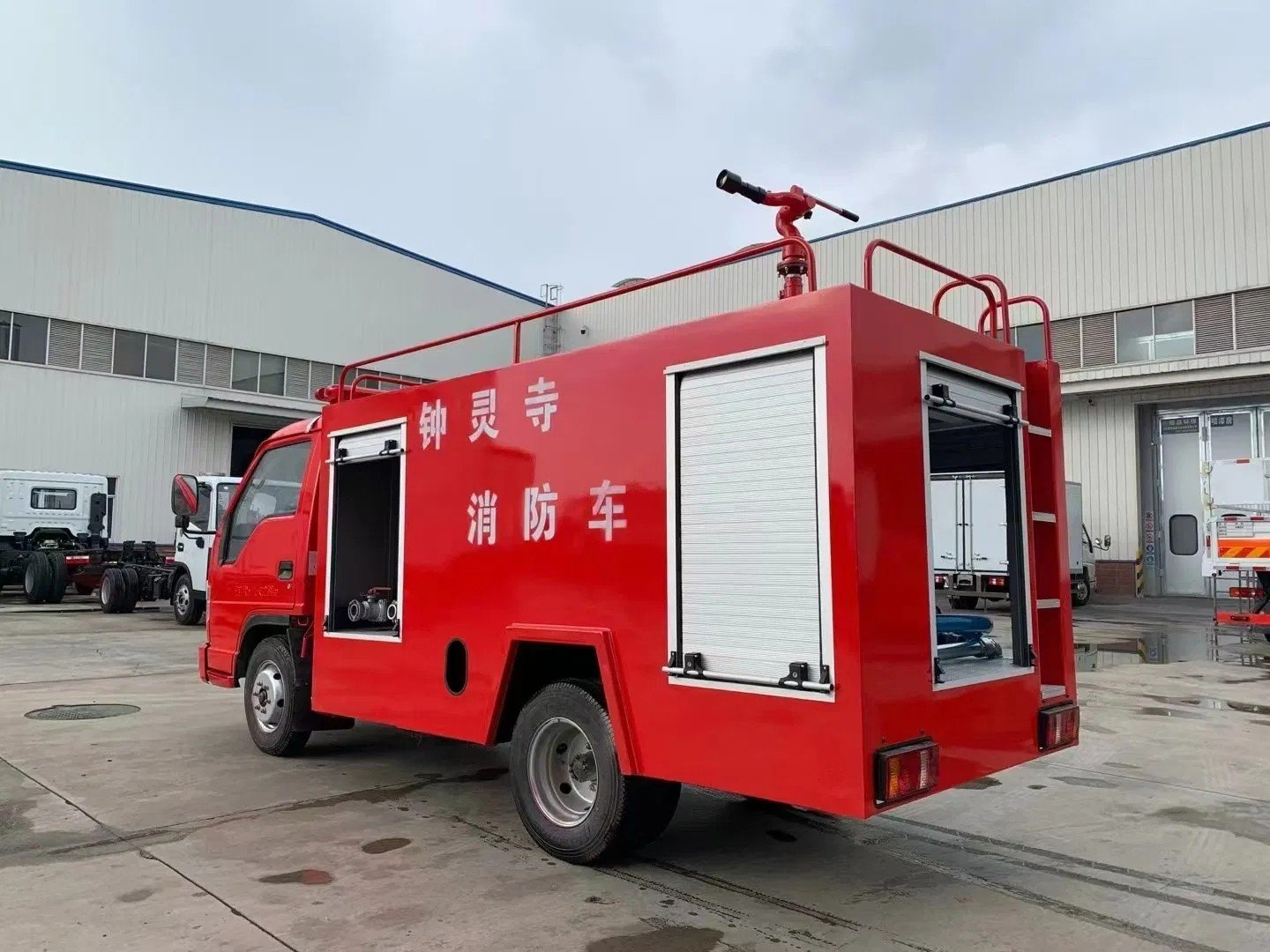

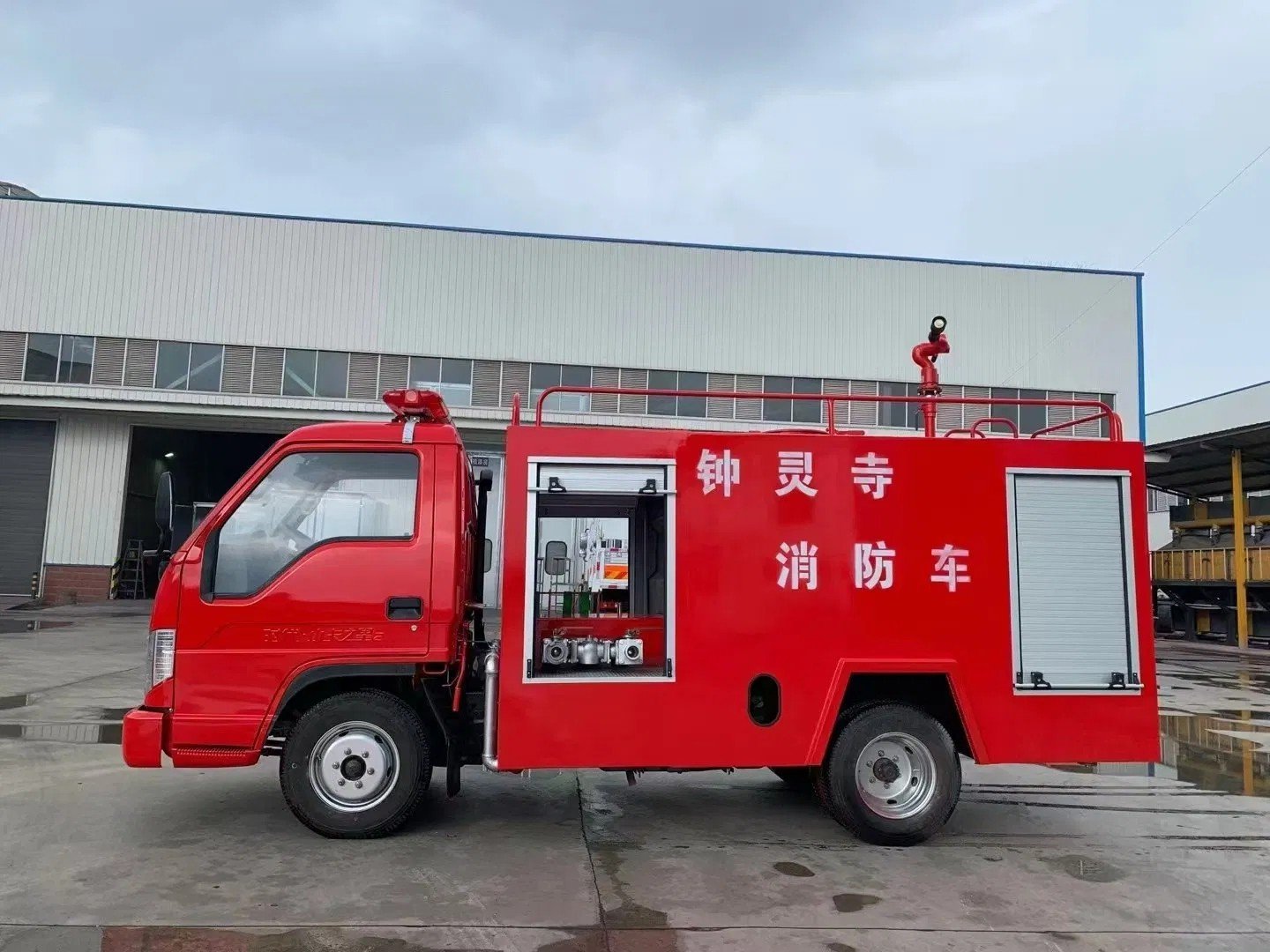

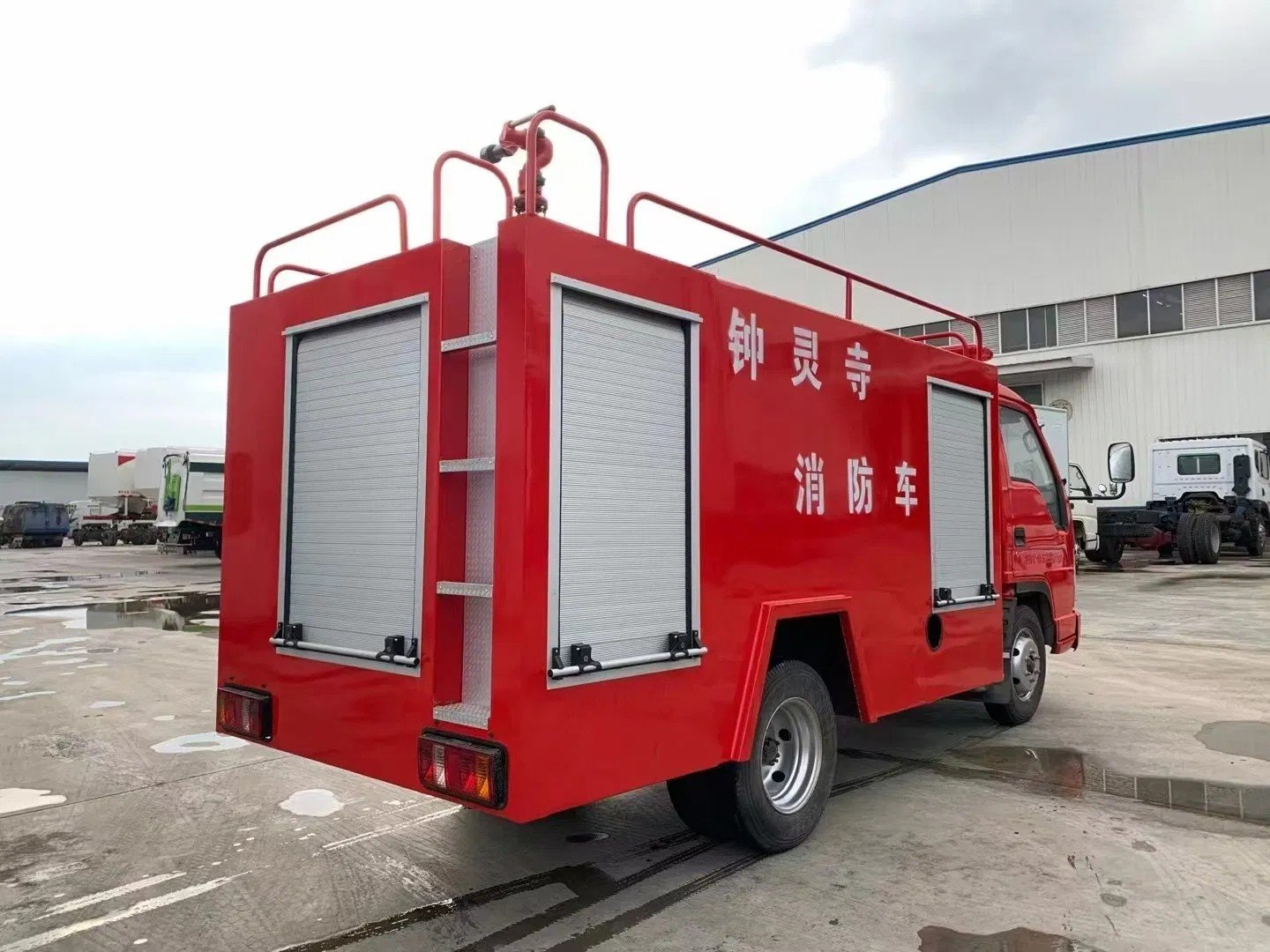

1. Dongfeng 4x2 95 HP 1.5 m³ Small Water Tank Fire Truck 1.5-ton Community / Factory Emergency Fire Pumper for Sale

Key Features

• Ultra-compact 5.75 m length, 1.77 m width and 2.55 m height for tight community roads and basement access.

• 1500 L water + 1000 L foam tanks, 4 mm carbon-steel base, internal baffled anti-swing plates.

• CB10/30 single-stage centrifugal pump: 20 L/s @ 1.0 MPa; 35 s priming time at 7 m suction.

• PS30 manual monitor: 40 L/s flow, 60 m range, 360° horizontal, –30°–+80° elevation.

• Quanchai 95 HP Euro III diesel, 5-speed manual, 95 km/h top speed, low operating cost.

• Vehicles Parameters
  Dimensions	Length/mm			5750
  	Width/mm			1770
  	Height/mm			2550
  	Wheelbase/mm			2800
  	Front/Rear Thread/mm			1835/1640
  	Approach/Departure Angle/°			20/13
  	Front/Rear Overhang/mm			1180/1715
  Chassis	Brand			Dongfeng
  	Driven Mode			2x4, LHD
  	Front Axle Load/kg			2000
  	Rear Axle Load/kg			3000
  	Braking System			Air Break
  	Tyre			185r14, 6 pcs and one spare
  	Gear Box			5forwards 1 backward
  	Max Speed/ km/h			95
  	Beam			140mm Cross Beam
  Cab	3+3 passengers
  Engine	Model				QUANChai
  	Horsepower/HP				95
  	Displacement/L				2.5
  	Max Torque				350N·m
  	Speed at Max Torque/rpm				1500
  Fire Fighting System
  Fire Pump	Model		CB10/30
  	Flow/ L/s		20
  	Pressure/MPa		1.0
  	Water Suction Time/s		Less than 35(when height is 7m)
  	Installation Mode		Rear-mounted
  Fire Monitor	Model		PS30
  	Pressure/MPa		1.0
  	Flow/ L/s		40
  	Range/m		More than 60
  	Horizontal Rotating Angle/°		360
  	Pitching Rotating Angle/°		-30~80
  	Operation Mode		Manual
  Pipeline Systems	Internal Inflow Pipe		One pc φ125mm pipe with one  pc φ125mm flygate
  	External Inflow Pipe		Installed behind the pump,    φ125mm, with 4 pcs 2m water suction pipes
  	Water Outlet Pipe		-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves -One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
  	Water Injection Pipe		-One pc φ50mm internal water injection pipe -One pc φ65mm external water injection pipe
  	Cooling Water Pipe		Equipped with stainless steel ball valve
  	Drain Pipe		In the lowest position of the pipe
  Water Tank	Loading Capacity/kg		1500
  	Material		Quality Carbon Steel Plate
  	Thickness		Baseboard and Endplate: 4mm Side plate and top plate: 3mm
  	Structure		Welded Type, Anti-swing Plate Inside -One Manhole, with fast lock & unlock device -One Overflow Device -One Level Indication Device -One Drain Hole, controlled by manual valve
  Electrical System	-Above the driving room are lightbar & 12V/60W fire scene light -Above both sides of the vehicle are two flash lights -100W alarm light -Switches of all the lights, alarms and pumps on the control panel.
  Foam Tank	Structure	Connected
  	Capacity/kg	1000
  	Material	Quality
  	Base: Side Plate: Anti-swing Plate	4:4:3
  	Other Detail	-One Manhole, with fast lock & unlock and pressure-release device -One Overflow Device: DN50mm -One Drain Hole with ball valve: DN40
  Powder Cylinder	Power System	Including Pressed Nitrogen and Burned Gas
  	Capacity/kg	2000

• Full lighting: roof light-bar, 12 V/60 W scene lights, 100 W siren and alarm system.
