Model name

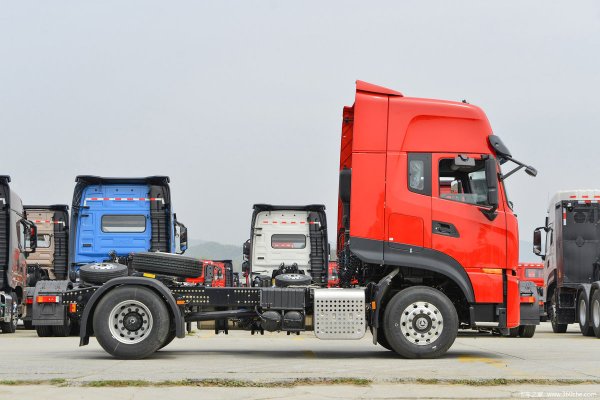

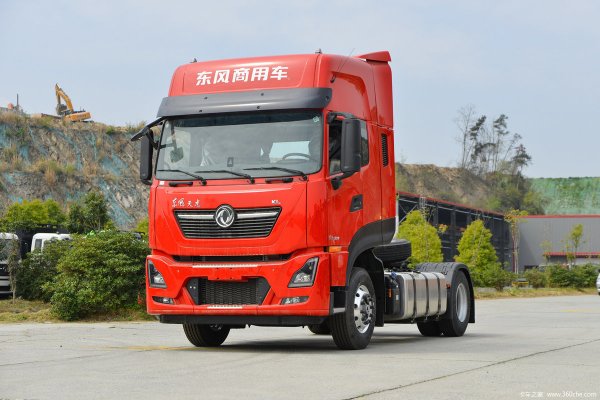

DNGFENG TIANLONG TRACTOR TRUCK

Model number

DFH4180D4

Driving type

Left hand drive

Traction type

4X2

Scope of application

Transportation of industrial and daily   necessities

Color

Optional

Weights

Gross Vehicle Weight(kg)

Approx.8300

Gross Combination Weigh(kg)

Approx.41500

Dimensions

Wheelbase(mm)

4000mm

Overall dimension(mm)

Approx. 6560×2550×3660

Engine

Engine model

Dongfeng Cummins；

Z14NS6B480；

480HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

13.48L / Diesel

Max. output (kw)

358kW

Fuel Tanker

800L Aluminum fuel tank

Drive Line

Gearbox

Dongfeng

DA1425 DD

16 forwards, 2 reverse gear,

AMT geabox

Steering

Power steering, Bosch steering gear

Brake

Front and rear drum brakes

Cab

Cabin

High roof, double sleeper, airbag seats

Can be tipped forwardly, with inner A/C

One and a half rows

Ride for 2

Standard configuration

Air container,

Equipped with air deflector and side air   deflector

Axle

Front axle

Axle load 6500kg

Rear axle

465-Axle load 11500kg

with inter-wheel & inter-axle differential   locks

Double reduction pneumatic brake

Speed ratio

2.643

Tire specification

Tire specification

295/80R22.5

6 tires+1 spare part

Parameter

Maximum   speed (km/h)

89

Max. Gradeability

35(%)

Front track   width

2010mm

Rear track   width

1860mm

Suspension

Front   few leaf springs (2);

Rear   air suspensio(-)

Frame(mm)

TGA technology frame - version B

Saddle

50# JOST saddle

Bumper

Low bumper (non-metallic)

Fender

Integral fender

Power System

180AH battery

Safety   devices

ABS

Imaging   system

Four directional camera

exhaust   system

Standard version exhaust system
