Model name

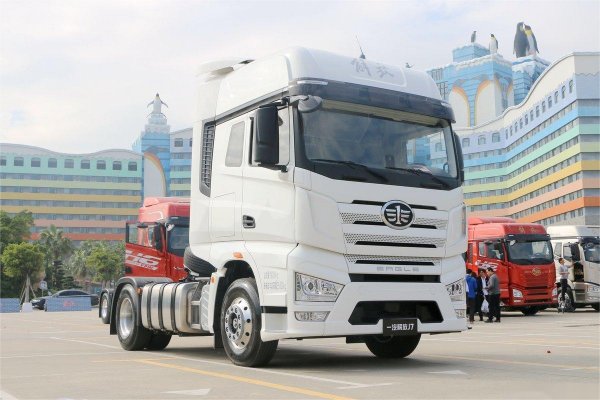

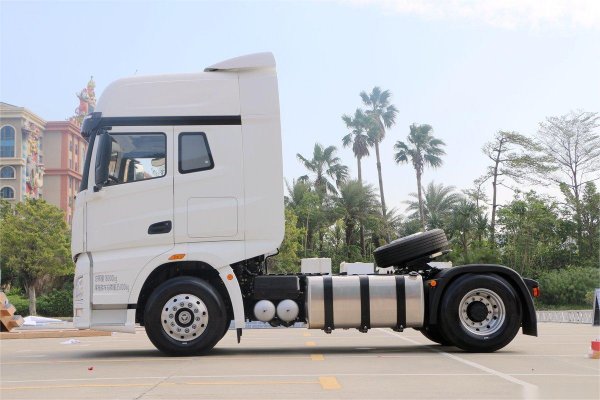

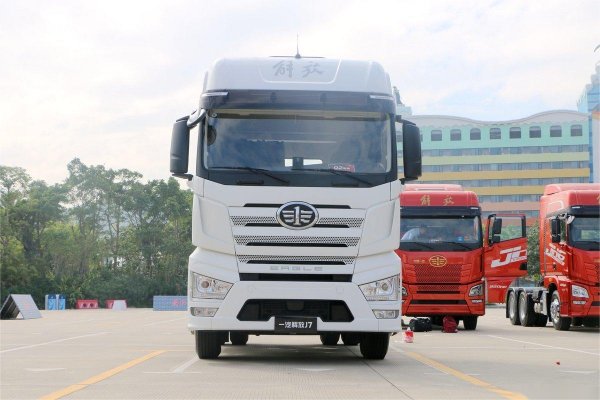

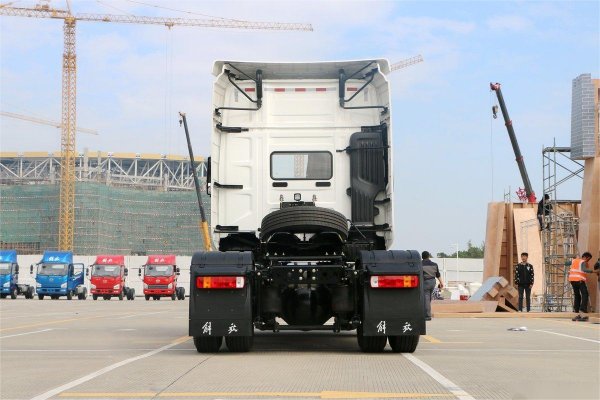

FAW   J7 Tractor   truck

Model

CA4180P77K25E5

Driving type

LHD/   RHD

Traction type

4x2

Color

optional

Weights

Gross Vehicle Weight(kg)

Approx.7000

Dimensions

Wheelbase(mm)

4000

Overall dimension(mm)

Approx. 6300×2500×3800

Engine

Engine model

CA6DM3-55E52(FCRI+SCR)

550HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled,   inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

12.4 / Diesel

Max. output (kw)

404

Fuel Tanker（L）

700L+700L

Drive   Line

Gearbox

ZF-12TX2621TD, AMT gearbox

12 forwards, 2 reverse gear

Retarder

ZF Friedrichshafen hydraulic   retarder

Maximum input torque

1900N.m

Steering

Power steering

Brake

Air brake, engine exhaust   brake

Clutch

430 diaphragm

Cab

Cabin

J7 high roof large row semi   flat floor cab // electric sunroof // top cover clothes drying pole //   sunshade // electric glass lifting // electric heated rearview mirror // full   LCD instrument panel // 8-inch Beidou compatible touch type car terminal //   leather multifunctional steering wheel // with trailer braking // 220V car   power supply (1000W inverter) // integrated control switch // driver's   high-end air seat (Grammer, adjustable deep sponge seat, armrest, ventilation   and heating function) // Front passenger mechanical damping seat // high-end   sleeper // large air deflector // lower sleeper with drawers and guardrails   // driver's side window sunshade

Can be tipped forwardly,   with inner A/C and double sleeper bed

Standard configuration

Two point spiral spring   suspension at the rear of the cab

Metal bumper

Axle

Front axle

2055 front axle

Rear axle

Cast iron improved wheel   reduction axle

double reduction pneumatic   brake, double reduction driving axles with inter-wheel & inter-axle   differential locks

axle ratio

2.688

Tire   specification

Tire specification

295/80R22.5  tubeless   tyre

standard tire,6 tires+1   spare part

Parameter

Economic speed/maximum speed(km/h)

45～75/90

Max. Gradeability

45(%)

Rear overhang(mm)

890

Saddle

Ф50

Suspension

2/- (4 airbags)

Safe system

EBS+ESC//

FCW+LDW//

ACC+AEBS//

Frame(mm)

300×80×8

Color

Customized
