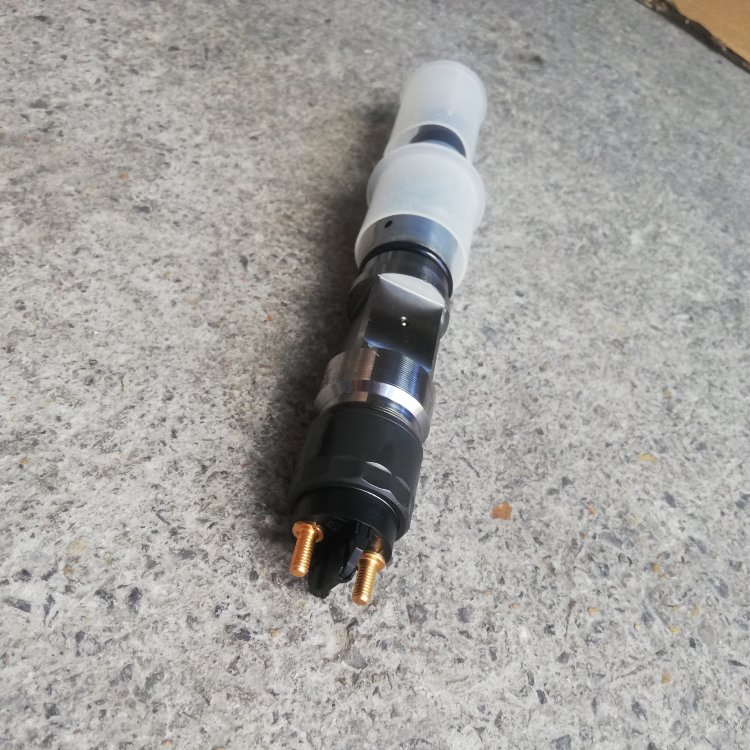

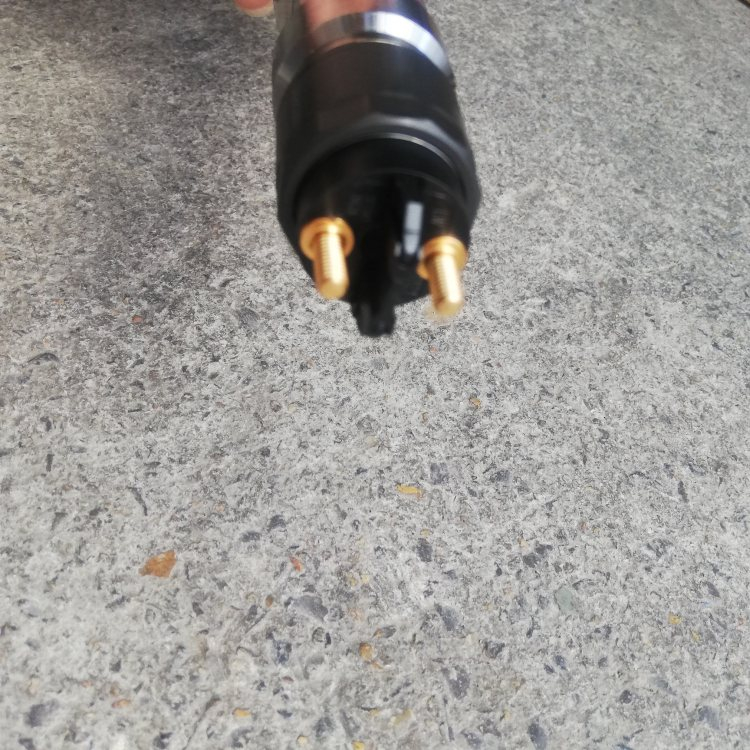

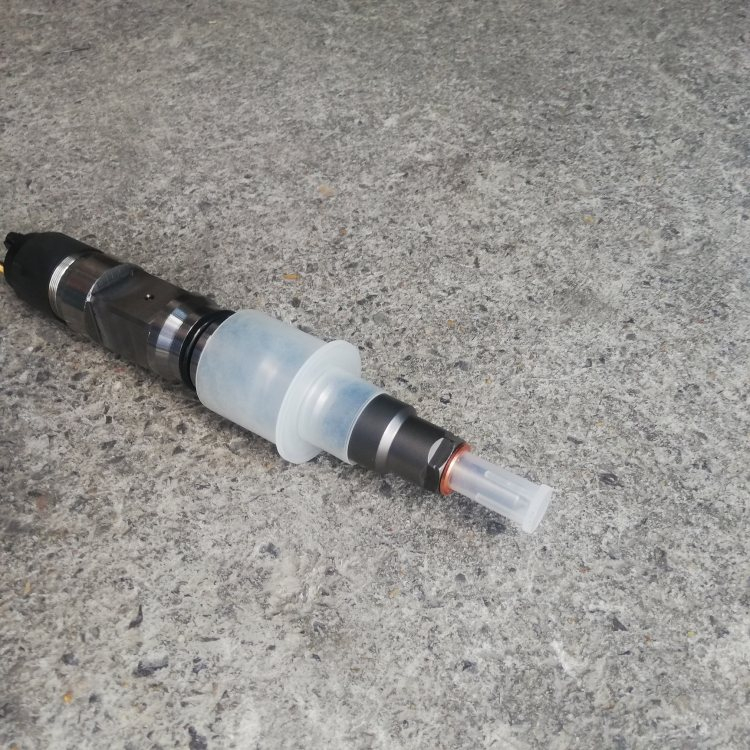

Cummins ISLe L9 QSL Engine Common Rail Fuel Injector 0445120321 Hot Sale
No.:
Vehicle Type: Cummins parts
Brand Name: WEICHAI
Person in charge: William Du
Cel: 8619050562894
Whatsapp: 8619050562894
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Premium 0445120321 Common Rail Fuel Injector for Cummins Engine Series
1.Product Description
In high-load logistics, severe mining, and harsh engineering machinery environments running with Cummins-powered equipment and trucks, the fuel injector is the precision core of the engine's combustion efficiency. It injects ultra-high-pressure fuel directly into the combustion chamber with micro-second accuracy to guarantee smooth power output.
When a common rail injector begins to degrade due to fuel contamination or wear, it triggers a costly, high-risk chain reaction:
Phase 1: Nozzle Needle Wear – Micro-particles in low-grade fuel erode the needle valve seat, causing fuel weeping and imprecise spray patterns.
Phase 2: Fuel Atomization Loss – Instead of a fine mist, the injector drips raw fuel, leading to incomplete combustion, heavy black smoke, and high fuel consumption.
Phase 3: Control Valve Leakage – Excessive fuel returns to the tank via the backleak line, dropping common rail pressure and throwing dashboard warning codes.
Phase 4: Cylinder Knocking & Misfires – Uneven fuel distribution causes severe thermal imbalances, engine vibrations, and immediate power derating.
Phase 5: Piston Melting (Catastrophic) – Continuous fuel dripping creates localized hot spots on the piston crown, resulting in melted pistons and complete engine seizure.
Critical Fleet Impact: For global logistics operators and construction site project managers, a failing injector means sudden vehicle downtime, delayed project timelines, failed emissions inspections, and thousands of dollars in emergency engine overhauls.
2.Technical Parameters
| Item | Specification |
| Part Number | 0445120321 / 0 445 120 321 |
| Cross Reference | Cummins 4945969 / 5256034 / C5256034 Series |
| Product Name | Common Rail Fuel Injector Assembly |
| Quality Tier | Original Factory Standard (原厂品质) |
| Application Sector | Engineering Machinery, Excavators, Mining Trucks, Heavy-Duty Trucks |
| Engine Compatibility | Cummins ISLe / L9 / QSL / QSL9 8.9L & 9.0L Heavy-Duty Engines |
| System Pressure | High-pressure common rail system up to 1600-1800 bar |
| Material | Premium anti-friction core alloy steel with coated nozzle needle |
| Control Unit | Fast-response electronic solenoid valve actuator |
| Packing | VCI anti-rust sealed inner bag with rigid original-style shock-absorbing outer boxing |
| Stock Status | In Stock / Ready for Immediate Worldwide Dispatch |
3. Fitment Problem — Make Sure It Works
Fitment Models
| Brand / Sector | Model Series | Engine Platform | Fitment |
| Engineering Machinery | Heavy Excavators, Cranes, Rotary Drilling Rigs, Mining Equipment | Cummins QSL9 / QSL Series | Direct Fit |
| SINOTRUK | HOWO / SITRAK Specialized Models | Cummins ISLe Powertrain Options | Direct Fit |
| SHACMAN | Delong Series Trucks | Cummins Engine Configurations | Direct Fit |
| FAW JIEFANG | J6P / Heavy Duty Cargo Models | Cummins ISLe / L9 Series | Direct Fit |
(1) How to verify part’s fitment?
Common rail injectors look visually identical from the outside but carry completely different internal calibration shims, nozzle spray angles, and solenoid response profiles. Installing a visually similar but incorrect injector number will lead to severe engine hunting, heavy smoke, or immediate ECU error faults.
Do not rely on look. Confirm by engine data plates and laser-stamped codes.
Checks Before Purchase
[ ] Exact 10-digit Bosch part number stamped on the body: 0445120321
[ ] Cummins OEM engine part number (e.g., 4945969 / 5256034)
[ ] Complete machinery or truck chassis VIN number plate
[ ] Engine rating tag details (e.g., Cummins QSL9 / ISLe340)
[ ] Cylinder arrangement and fuel rail design variant
（2）OEM Cross Verification
| Compatibility Status | Target Heavy-Duty Platforms & Conditions | Engineering Fitment Action |
| Direct Fit | • Genuine Cummins ISLe/QSL engine platforms configured specifically for 0445120321 injector maps. • Standard common rail setups matching factory ECU calibration codes. | 100% Drop-In Replacement Standard workshop installation. Injector trimming code coding recommended after fitting. |
| Can Be Adapted | • Specific regional industrial machinery configurations where alternative high-pressure line fittings are utilized. | Verification Setup Requires matching injector trim codes with the local engine management system. |
| Similar But NOT Compatible | • Alternative injectors designed for Weichai WP10/WP12 or MAN MC11 engine blocks. • Injector numbers like 0445120391 or 0445120224. | DO NOT INSTALL (CRITICAL) Immediate failure to start, fuel delivery mismatch, and severe engine combustion damage risks. |
4.Common Field Failure Case
（1）Case Study Item
| Case Study Item | Field Operational Profiles & Technical Realities |
| Vehicle Fleet Model | Heavy Excavator / Mining Truck (Cummins QSL9 Engine) |
| Service Life / Usage | Approx. 8,500 Operating Hours (Heavy-duty mining/construction site operation) |
| Field Problem Manifestation | Extreme difficulties with cold starts, rough idling, thick black smoke under acceleration, and clear loss of hydraulic lifting power. |
| Technical Root Cause | • Use of low-grade, poorly filtered site diesel fuel led to severe water-induced corrosion on the needle seat. • High internal backleak volume prevented the fuel rail from reaching firing pressure quickly. • Blocked nozzle spray orifices distorted the fuel atomization profile. |
| Engineering Solution | Complete cleaning of the common rail system, replacement of all fuel filtration elements, and installation of a fresh set of genuine 0445120321 Fuel Injectors. |
| Proven Customer Benefits | • Instant optimization of cold start timing, getting the machinery back to work fast. • Eradication of thick exhaust smoke, passing strict commercial site environmental checks. • Restored full factory torque output while protecting the pistons from catastrophic heat cracking. |
（2）Smart Buying Guide (Don't Waste Money on Wrong Repairs)
Table A: Symptom Recognition — The "Misfire Smoke vs. Rail Pressure Loss" Logic
(Who should read: Operators, Drivers, and Maintenance Mechanics / When to use: Diagnostic trouble shooting)
| Equipment Operating Condition | What the Engine Does (Symptom) | Technical Reality (What It Really Means) | Action & Maintenance Rule |
| Normal Site Operation | Engine pulls smoothly, fuel consumption is steady, no dashboard warning lamps. | Injector valve response timing and nozzle spray volumes are perfectly within factory limits. | Safe to Run: The injection system is maintaining ideal air-fuel ratios. |
| Heavy Load / Digging | Heavy black smoke pours from exhaust; noticeable lag in throttle response. | Nozzle Needle Wear / Dripping: The injector is failing to atomize the fuel properly, shooting raw liquid droplets. | Stop & Check: Inspect injector nozzle tips for carbon buildup or spray distortion. |
| Cranking to Start | Engine turns over for a long time but fails to fire; "Low Rail Pressure" warning on dash. | Excessive Injector Backleak: Internal control valves are worn, venting fuel pressure straight back to return lines. | Critical Risk: Run an injector leak-back test immediately. Replace faulty units to protect starter motor. |
Table B: Misdiagnosis Risk — Stop Changing the Wrong Parts!
(Who should read: Maintenance Workshop Managers & Sourcing Officers / When to use: Before ordering parts)
| What You Think Is Broken (Wrong Judgment) | The Real Root Cause (What You Actually Need to Fix) | Money-Saving Tip |
| "The high-pressure fuel pump is broken because the common rail cannot maintain pressure!" | One or more 0445120321 injectors have worn control valves that are continuously dumping fuel back into the return circuit. | Perform a bottle leak-back test! Replacing a highly expensive common rail pump won't fix a leaking injector valve. Find the leaking cylinder first. |
| "The engine turbocharger has failed because the machine is losing power and smoking heavily!" | The injector nozzle tip orifices are worn or clogged, destroying fuel atomization and causing bad combustion. | Check smoke properties first! If smoke smells heavily of unburnt raw diesel, test the fuel injectors before replacing a perfectly good turbocharger. |
Table C: Fake/Remanufactured vs. Our Original Factory Quality (原厂品质) Injector
(Who should read: International Parts Procurement Managers and Regional Distributors)
| Inspection Indicator | Cheap Copy / Bad Remanufactured Risk | Our Original Factory Quality (原厂品质) | Why It Matters for Your Business |
| 1. Internal Valve Set | Reused old valve balls or low-grade aftermarket control valves that fail within short hours. | Brand-new premium alloy valve sets designed to withstand continuous 1800-bar cycling shocks. | Prevents early backleak failure, keeping engine fuel economy and starting performance stable. |
| 2. Nozzle Needle Core | Standard steel needles without high-temp wear coatings, leading to quick nozzle clogging. | Precision-coated anti-friction nozzle needles providing extreme wear and heat resistance. | Guarantees consistent micro-mist spray patterns and prevents catastrophic piston melting. |
| 3. Calibration Coding | Fake or generic calibration codes laser-etched on the body that do not match internal realities. | Accurate, factory-tested trim calibration codes for precise cylinder balance tuning. | Ensures the engine ECU controls fuel delivery smoothly, eliminating rough idling and engine vibration. |
5.Risk Control —— Make sure everything goes well
| Supply Chain Risk | Customer Operational Concern | Our Proactive Quality Assurance Solution |
| Mismatched Calibration Matching | The engine runs rough or knocks immediately after new injector installation due to code differences. | Precise Coding & VIN Audit: We verify your engine series and supply injectors with crisp, readable factory calibration codes for direct ECU synchronization. |
| Internal Component Corrosion | High-precision internal micro-valves seize up due to moisture ingress during sea container shipping. | VCI Vacuum Packaging: Every injector is dipped in light calibration fluid, sealed inside a volatile corrosion-inhibiting (VCI) bag, and boxed securely. |
| Incorrect Model Variants | The parts arrive on-site but cannot be fitted because the fuel inlet pipe angle or plug pins don't match. | Part Number Verification: We match your target number 0445120321 directly via production line databases to eliminate mix-ups with similar models. |
| Physical Tip Damage | Ultra-fine nozzle spray holes are scratched or bent due to rough shipping handling. | Rigid Tip Armor Caps: Each injector tip is fitted with a specialized plastic protective sleeve inside heavy shock-absorbent custom foam inserts. |
6.Supplier Stability and Procurement Value —— Make More Profit in Your Market.
| Who Are You | Troubles We Save For You | Real Money & Business Value |
| For Machinery Owners & Workshop Engineers | • Stop repeating labor-intensive injector teardown jobs caused by short-lived knock-off components. • Instant access to Ready Stock (现货发货), keeping your heavy logistics trucks and site machinery working. | Lower Maintenance Costs: True drop-in fitment. Lowers fuel consumption through optimal atomization, maximizes engine uptime, and extends piston service life. |
| For Regional Parts Dealers & Wholesalers | • Eliminates costly warranty claims and customer arguments about smoking engines or hard starting. • Broad market compatibility covering top-tier Cummins-powered heavy vehicles and machinery. | Boost Commercial Reputation: Premium original-tier injectors delivered in clean, securely branded packaging. Perfect for winning high-volume fleet supply contracts. |
7.Related Engine Parts —— Buy More, Save More, Earn More Profit!
| Part Category | Exact Engine Parts | Official OEM / Part No. | Why You Should Buy Together? |
| 1. Directly Associated Parts | • Fuel injection high-pressure pipe • Common rail fuel pressure sensor • High-pressure fuel rail limiter valve | Cummins Engine Pipe Series 0281002937 / 3974093 1110010015 / 4938005 | Ensure High Pressure Safety: Old high-pressure pipes can distort at the joints after removal. Replacing them ensures zero leakage at 1800 bar. |
| 2. Same System Core Parts | • Primary fuel-water separator filter • Secondary fine fuel filter element • Common rail high-pressure fuel pump | FS19732 / FS36247 FF5421 / FF5488 0445020150 / 4945978 | Protect Your New Injectors: New injectors installed into a dirty system with old filters will clog immediately. Always swap Fleetguard fuel filters when changing injectors! |
| 3. Frequently Ordered Consumables | • Injector copper sealing washers • Injector hold-down clamp bolt sets • Fuel return line connector o-rings | Standard Copper Shim Sets High-Tensile Flange Bolts Cummins O-Ring Kit | Essential for Leak-Free Rebuilds: Never reuse old copper washers. Fresh shims and bolts guarantee a perfect gas-tight compression seal in the cylinder head. |
| 4. Often Forgotten Small Parts | • Fuel rail pressure control valve (MPROP) • Cylinder head valve cover gasket • Fuel inlet connector tube (feeding pipe) | 0928400746 / 5257595 3968474 / L9 Gasket Series 3975703 Connector Tube | Zero Down-Time in Workshop: A leaking fuel feeding tube or torn valve cover gasket can stall a high-value repair job. Sourcing them together ensures seamless assembly! |
