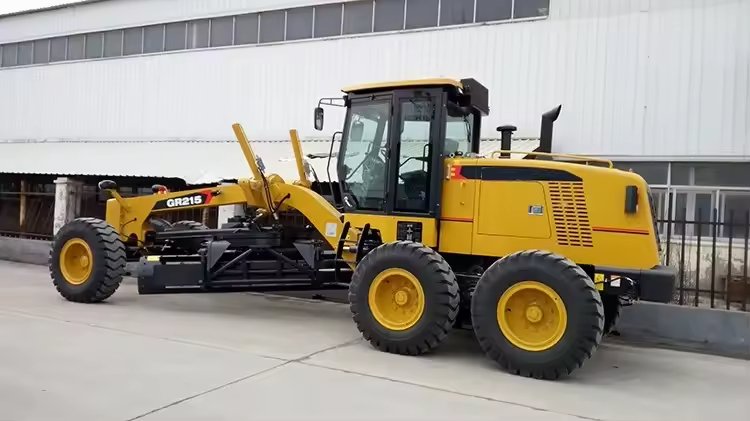

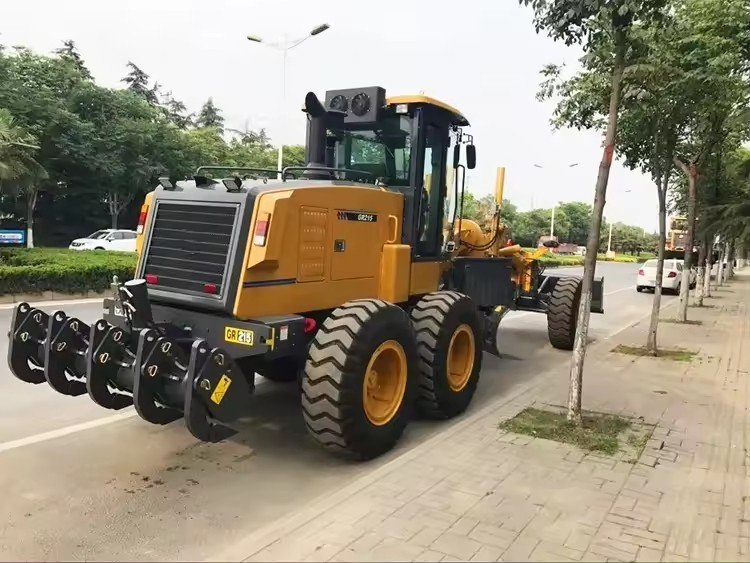

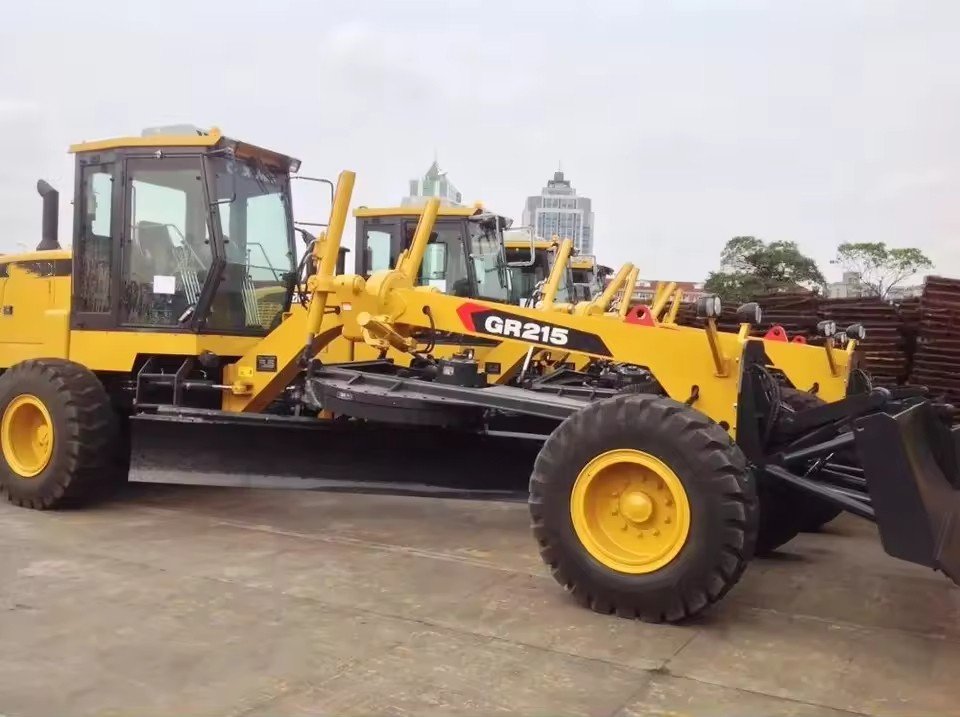

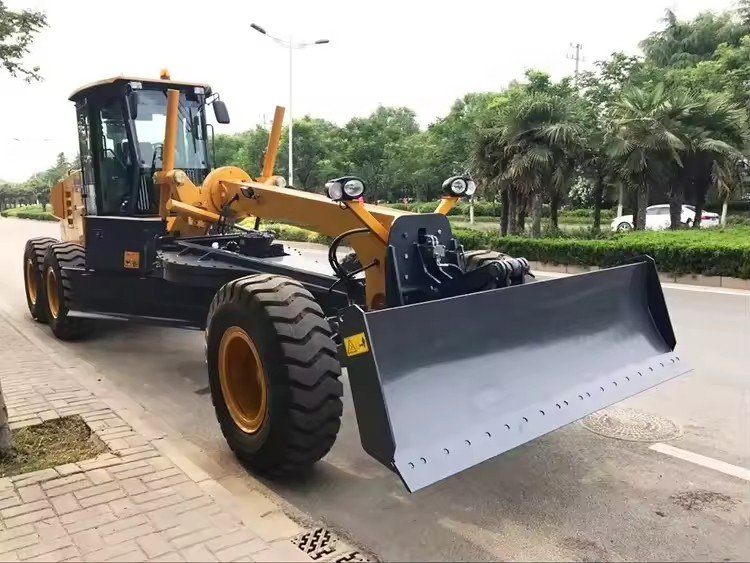

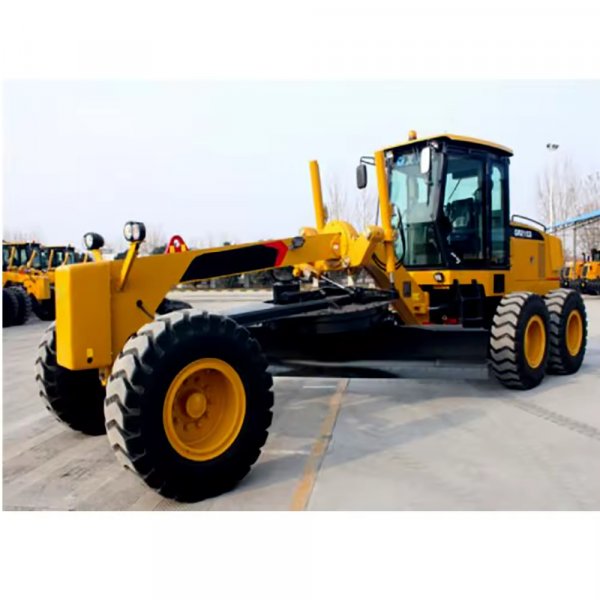

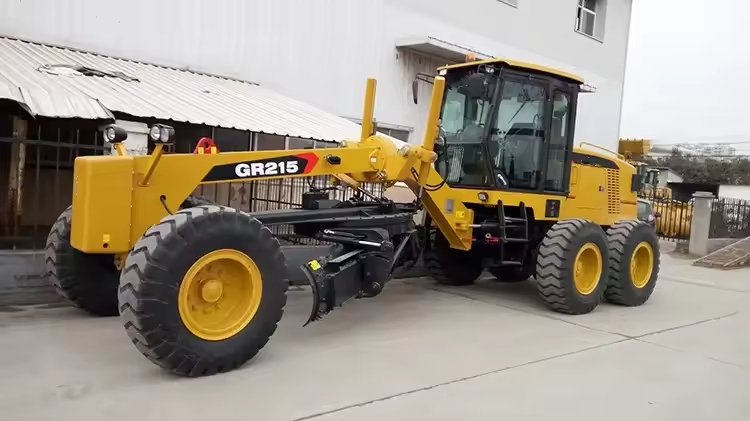

GR215 Grader Specifications

The GR215 Grader is a high-performance machine designed for road construction, grading, and earthmoving applications. It offers robust performance, versatility, and reliability in demanding environments, making it ideal for various infrastructure projects.

Basic Parameters

• Item: GR215

• Engine Model: 6CTA8.3-C215

• Rated Power/Speed: 160 kW / 2200 rpm

• Overall Dimension (Standard): 8970 mm x 2625 mm x 3420 mm

• Total Weight (Standard): 16500 kg

• Tire Specification: 17.5-25

• Ground Clearance (Front Axle): 430 mm

• Space of Front and Rear Axles: 6219 mm

• Space of Middle and Rear Wheels: 1538 mm

Performance Parameters

• Forward Velocity: 5, 8, 11, 19, 23, 38 km/h

• Reverse Speed: 5, 11, 23 km/h

• Tractive Effort (f=0.75): 87 kN

• Maximum Gradeability: 20%

• Tire Inflation Pressure: 260 kPa

• Working System Pressure: 16 MPa

• Transmission Pressure: 1.3—1.8 MPa

Working Parameters

• Maximum Steering Angle of Front Wheel: ±50°

• Maximum Slant Angle of Front Wheel: ±17°

• Maximum Oscillating Angle of Front Axle: ±15°

• Maximum Oscillating Angle of Equilibrium Box: Forwards 15°, Reverse 15°

• Maximum Steering Angle of Frame: ±27°

• Minimum Turning Radius: 7.3 m

Scrape Knife

• Maximum Lift Height: 450 mm

• Maximum Cutting Depth: 500 mm

• Maximum Tilt Angle: 90°

• Cutting Angle: 28°—70°

• Angle of Revolution: 360°

• Length & Chord Height: 4270 mm x 610 mm

Oil Filling Amount

• Coolant: 50 L

• Fuel Tank: 280 L

• Engine: 24 L

• Transmission: 38 L

• Equilibrium Box: 46 L

• Coolant: 28 L

• Hydraulic Oil: 110 L

Applications

• Road Construction: Ideal for grading and leveling roads.

• Earthmoving Projects: Efficient in land clearing and site preparation.

• Infrastructure Development: Suitable for various civil engineering tasks.

• Landscaping: Precision grading and shaping of terrain.
