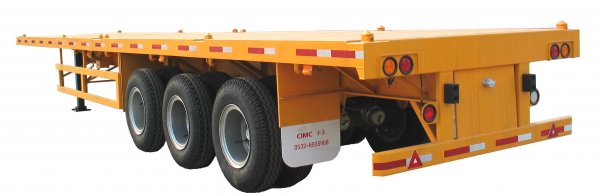

CIMC 3 axles container semitrailer
No.: vicky-A004
Vehicle Type: Container Semi-trailer
Brand Name: CIMC
Details
CIMC 3 axles container semitrailer
Total mass: 40000kg
Kerb mass: 11000kg
Rated mass: 29000kg
Axles: 3
Brand: FUWA (13 tons loading ability)
Wheel base(mm): 7150+1310+1310
Spring: 8/8/8
Tyre: 11.00-20
Quantity of tyre: 12
Brand: Triangle
Rear track(mm): 1830/1830/1830
Front overhang(mm):1080
Rear overhang(mm): 2150
Departure angle: 14
K-pin: 2.0
Dimension(mm):13000x2500x2800
Inner size(mm): 12700x2300x1200-(1600 option)
Capacity: 35.052CBM
