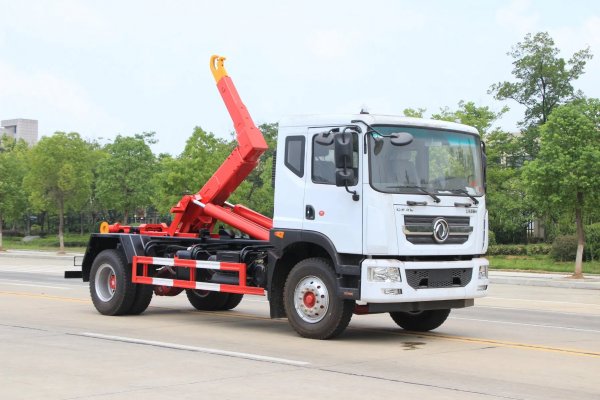

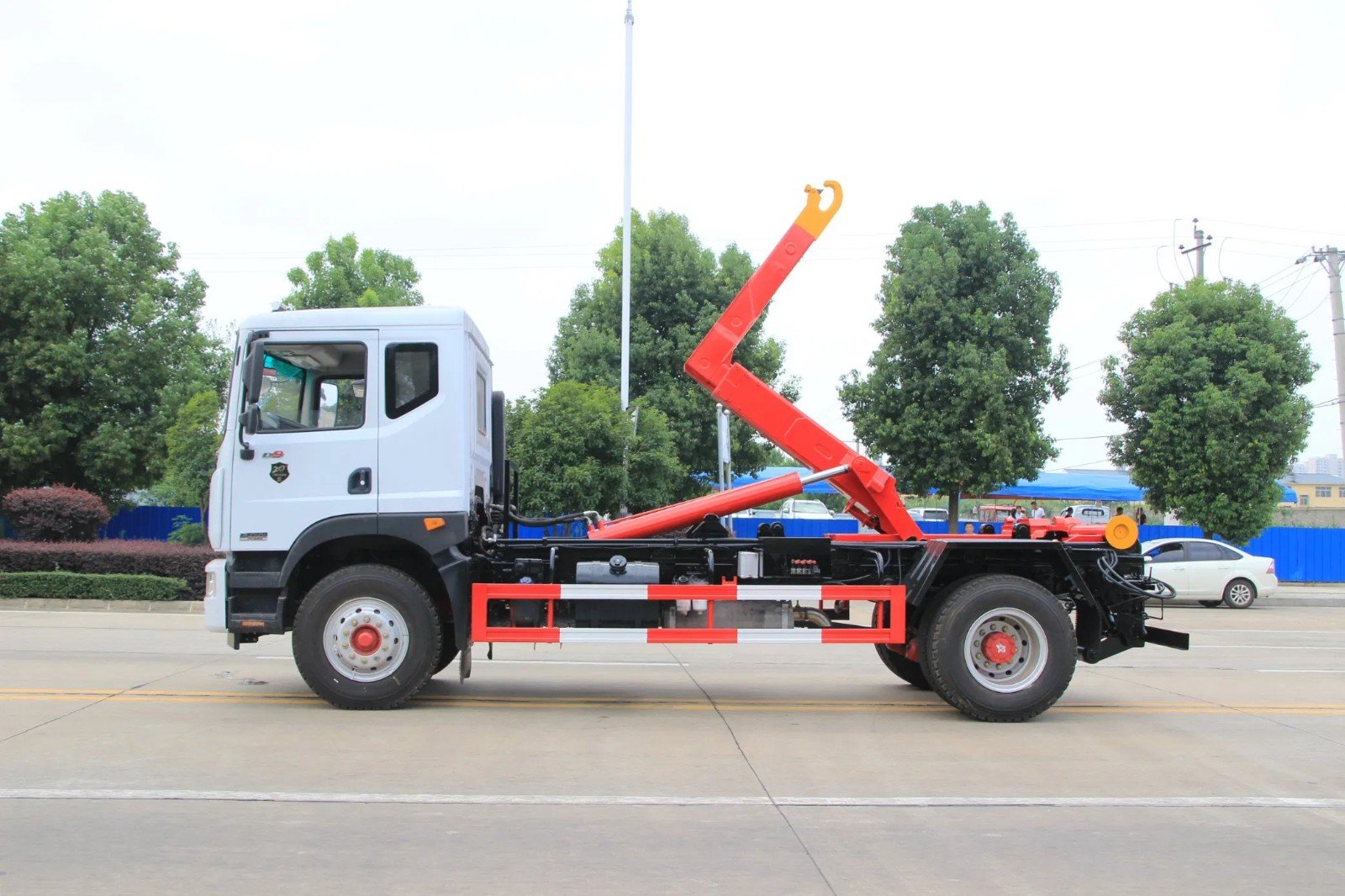

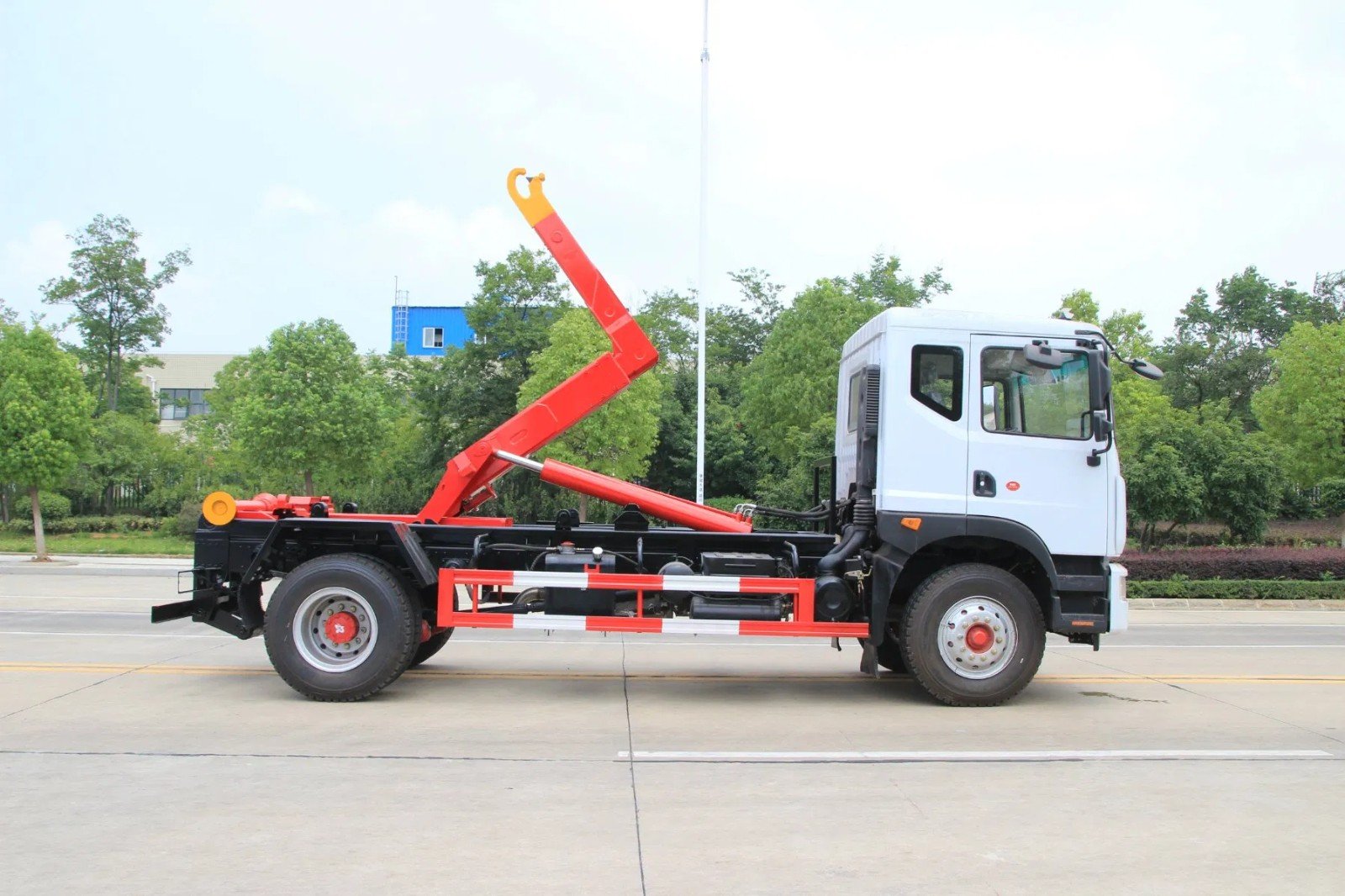

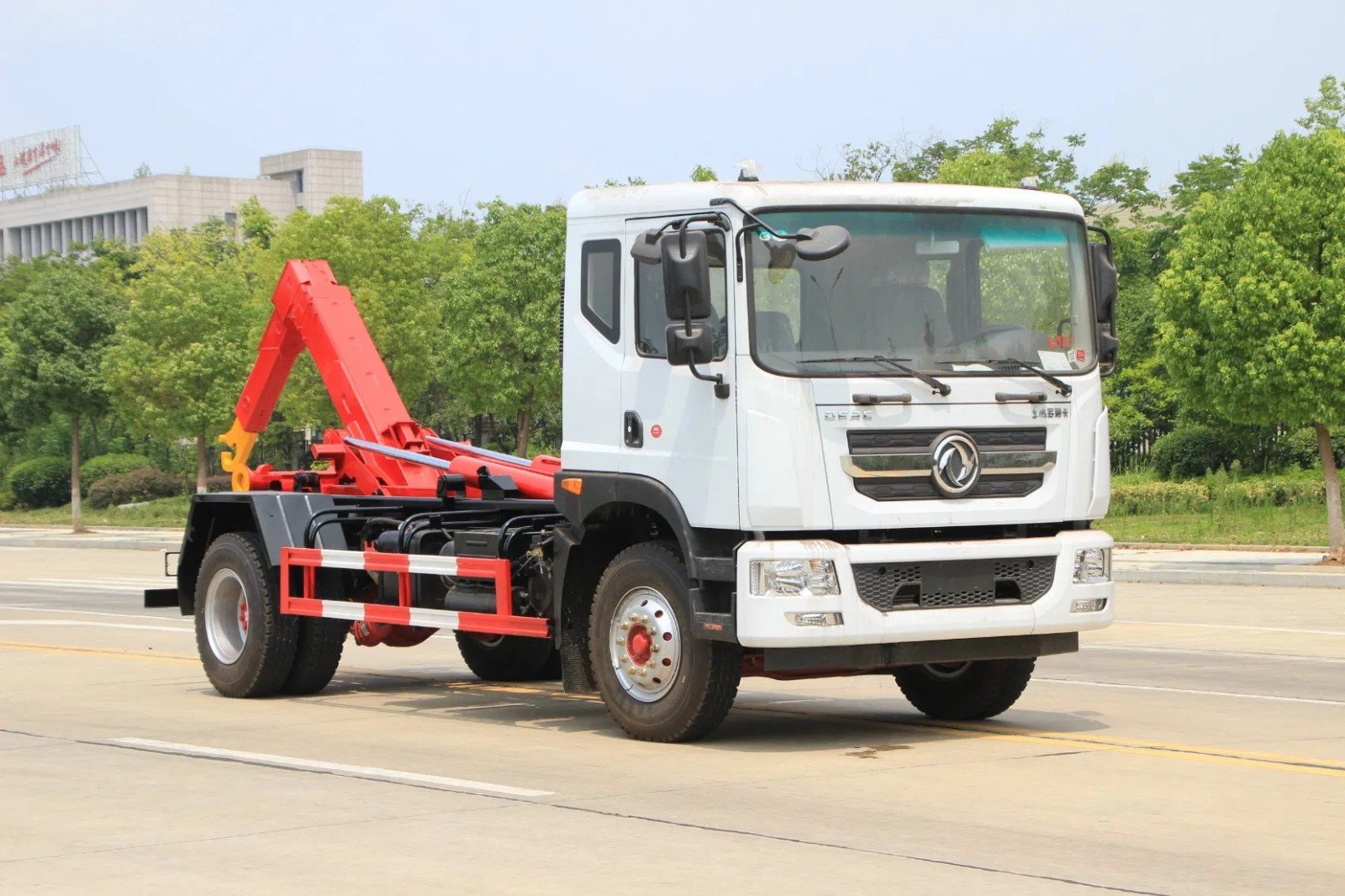

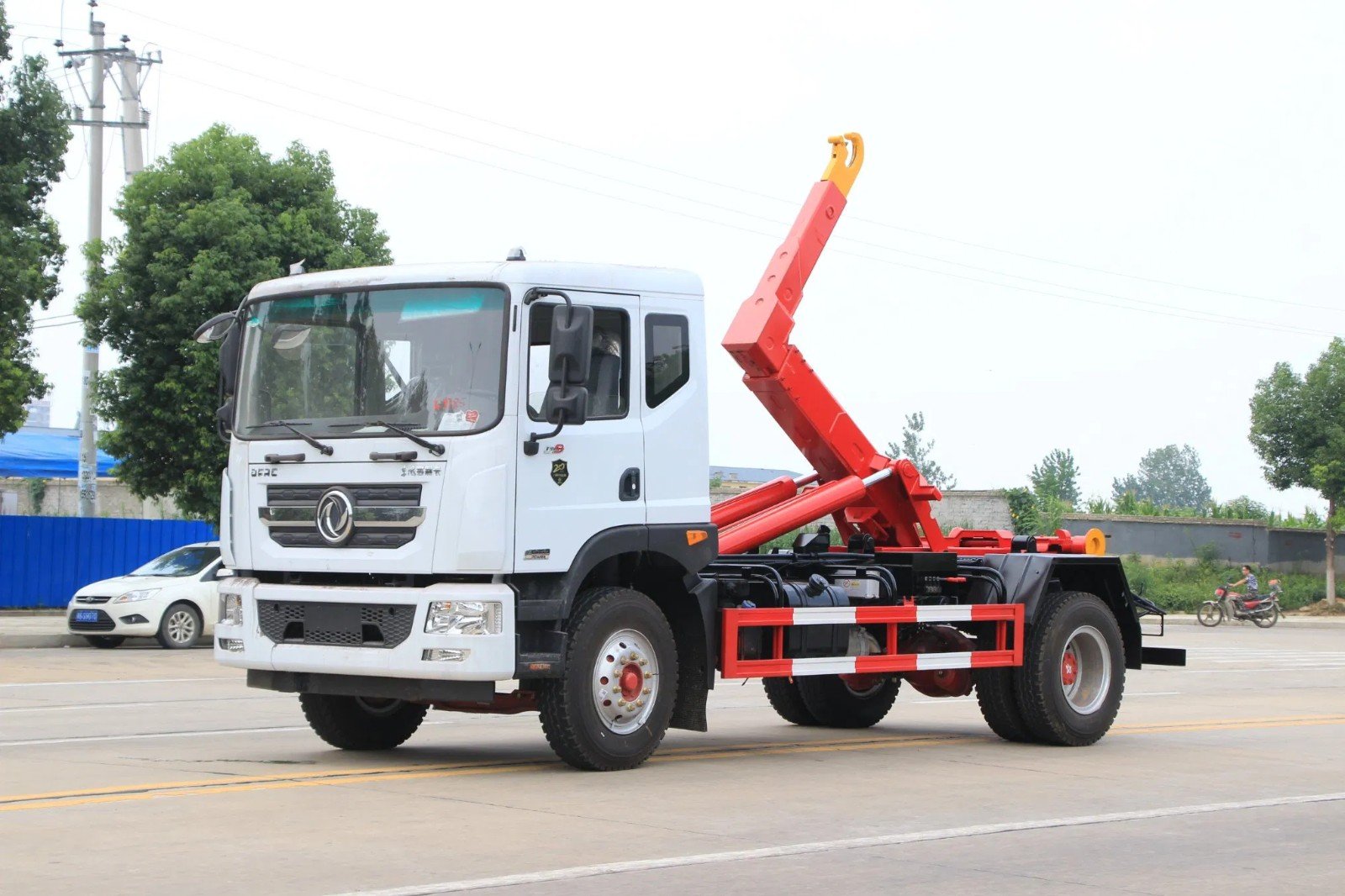

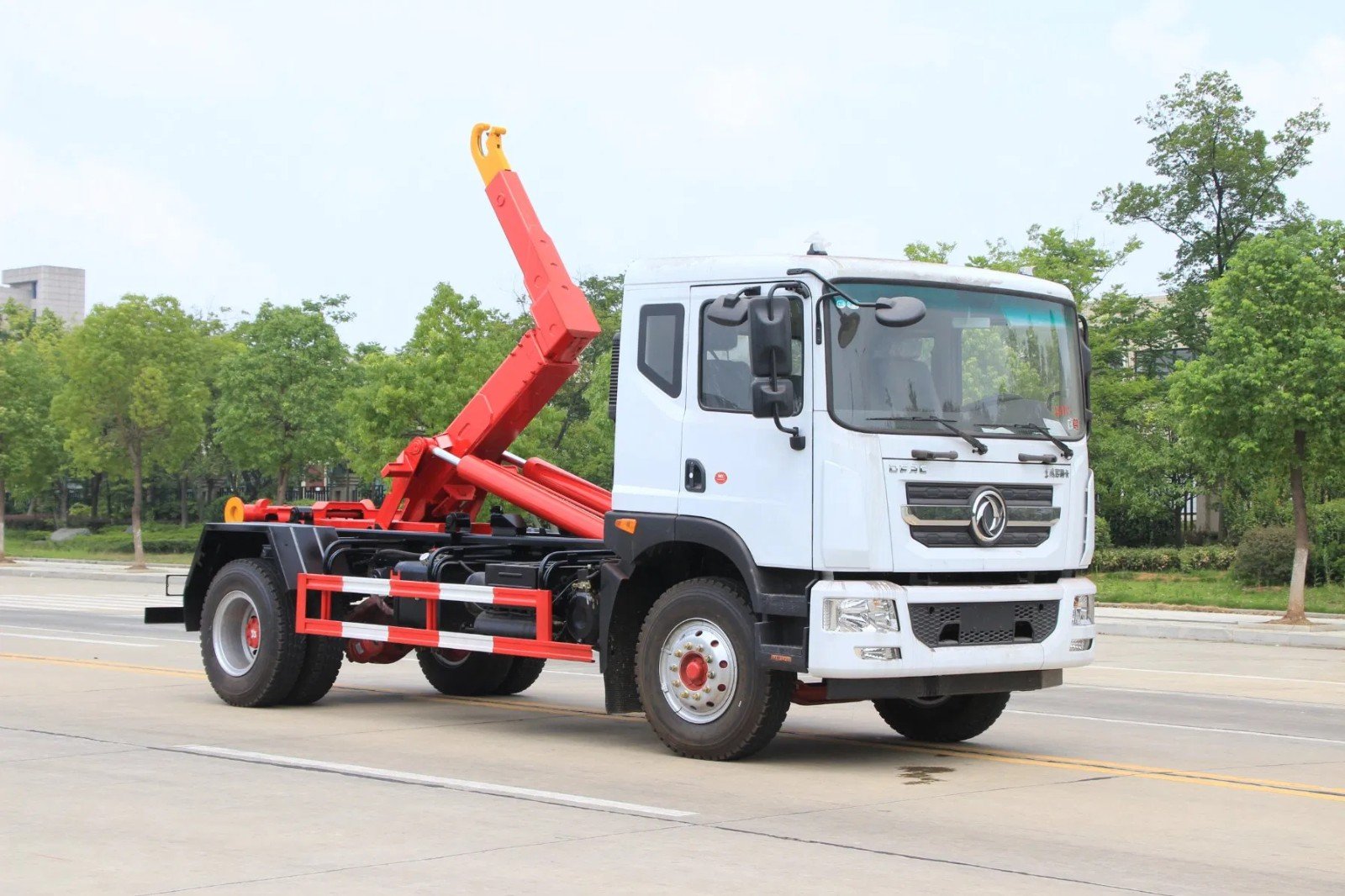

China Factory Price 5-7 Ton Hook-Arm Garbage Truck 7 m³ Roll-Off Waste Collection Vehicle for Sale
No.:
Vehicle Type: Garbage Truck
Brand Name: DONGFENG
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
China Factory Price 5-7 Ton Hook-Arm Garbage Truck – 7 m³ Roll-Off Waste Collection Vehicle for Sale
Key Features
• Multi-Brand Chassis – Dongfeng, Isuzu, Hino, Sinotruk, JAC, FAW, Foton 4×2 platforms all available
• 7 m³ Roll-Off Bin – 2 000 mm entrance width, trapezoid / boat / square shapes, above/under-ground options
• High Hook Capacity – 3-4 t rated lift, double hydraulic cylinders, 19.6 MPa max pressure
• Fast Cycle – ≤30 s loading, ≤45 s discharging, 1:4 compression ratio
• Stable Operation – Double rear hydraulic landing legs, automatic levelling valve
• Operator-Friendly – Rear manual + optional wireless remote control, emergency stop lever
• Leak-Proof – Full-welded 4 mm Q345 bin floor, side walls 3 mm, integral sewage sump
Specifications
| Item | Parameter |
|---|---|
| Overall Dimension | 7 080 × 2 500 × 3 200 mm |
| Tank Cubage | 7 m³ |
| Entrance Width | 2 000 mm |
| Loading Capacity | 3–4 t |
| Max Loading Mass | 8 660 kg |
| Gross Vehicle Weight | 16 000 kg |
| Curb Weight | 7 200 kg |
| Wheelbase | 4 500 mm |
| Front / Rear Axle | 4.5 T / 10 T |
| Engine | Cummins 180 HP, Euro-3/4/5 |
| Fuel Type | Diesel |
| Max Speed | 90 km/h |
| Compress Ratio | ≥1:4 |
| Max Hydraulic Pressure | 19.6 MPa |
| Loading Cycle | ≤30 s |
| Discharge Time | ≤45 s |
| Control | Manual + optional wireless remote |
| Colour | Customer choice |
| Logo | Custom decals available |
Typical Applications
• Urban residential waste bin service
• Construction site debris removal
• Factory recyclable collection
• City centre roll-on/roll-off skip service
Optional Upgrades
• 10 t hook for 12 m³ bin
• 220 HP Euro-5 engine
• Stainless-steel bin for corrosive waste
• Container washing system
• GPS bin tracking & camera system
Contact us for pricing and configuration options!
