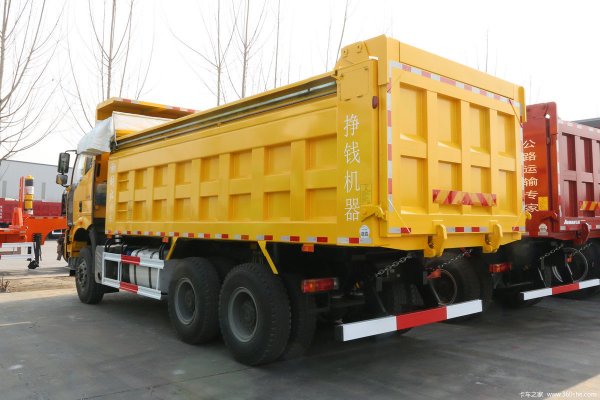

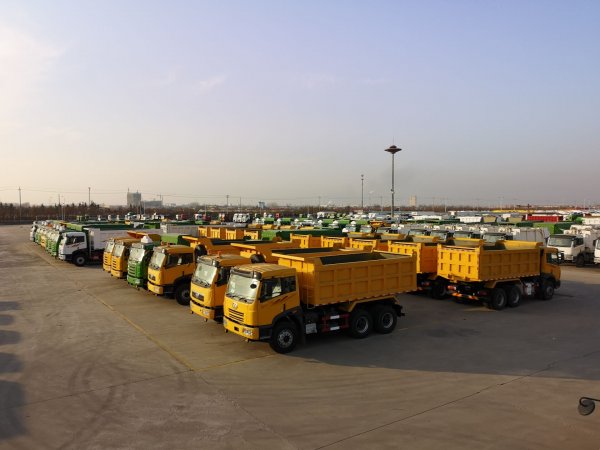

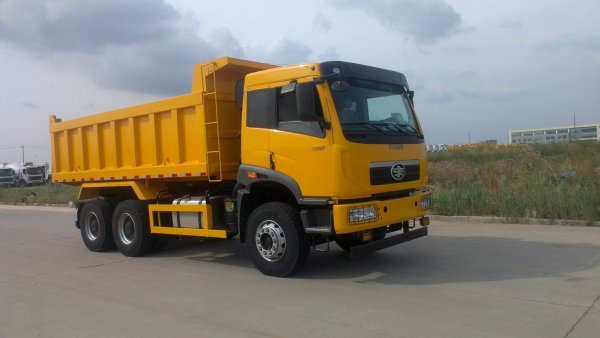

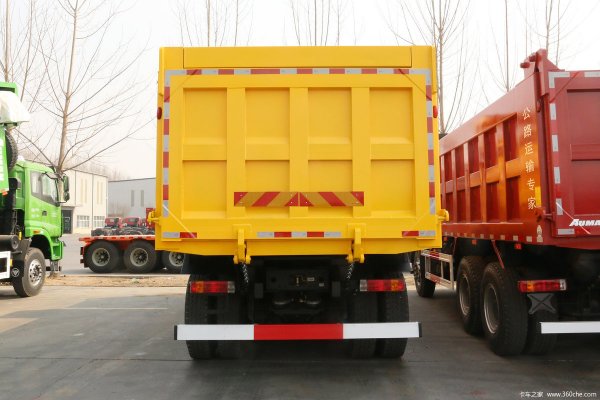

Brand New Faw J5P Dump Trucks 6x4 370HP 30Tons Dump Truck For Central Asia

No.: Xeno_35

Vehicle Type: Dump Truck

Brand Name: FAW

FAW Trucks

Person in charge: Marc Zhou

Cel: 8617664086916

Whatsapp: 8617664086916

E-mail: sales3@chinatruk.cc

FREE GET QUOTE
_20230914234530

Details


Main Technology Parameter

Model name

FAW J6P dump truck

Model

CA3250P66K2T1E5

Driving type

Left hand drive

Traction type

6×4

Color

optional

Weights

Gross Vehicle Weight(kg)

Approx.12300

Dimensions

Wheelbase(mm)

4050+1350

Overall dimension(mm)

Approx. 8800х2550х3680

Engine

Engine model

 Xi chai CA6DL2-37E5 (BOSCH common rail+SCR)

 370HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

8.6 / Diesel

Max. output (kw)

279

Fuel TankerL

400L aluminum fuel tank

Drive   Line

Gearbox

FAST 12JSD160T transmission

(spline output power   take-off)

12 forwards, 2 reverse gear, manual gearbox

Maximum input torque

1600N.m

Steering

Power steering

Brake

Air brake, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

J6P fully floating flat top row half cab, LCD   instrument panel, electric window regulator, manual rearview mirror, and   dedicated seats

Standard configuration

Automatic air conditioning, two point spiral   spring suspension at the back of the cab, electric hydraulic lifting device,   "engine running time" function can be viewed through the instrument   panel, and reflective signs in the cab

Axle

Front axle

2020 front axle

Rear axle

Axle ф 300 cast wheel reduction axle (automatic   adjustment arm, imported ABS, 8-hole V-rod)

double reduction pneumatic brake, double   reduction driving axles with inter-wheel & inter-axle differential locks

axle ratio

5.263

Tire   specification

Tire specification

12.00R20

standard tire,10 tires+1   spare part

Parameter

Economic speed/maximum speed(km/h)

4055/75

Max. Gradeability

45(%)

Rear overhang(mm)

1000

Suspension

Leaf spring, 13/14

Frame(mm)

300×80×(8+8+5)

Color

Customized

Other

Front lower protection device,   iron bumper, desert air filter, suspension with front/rear multiple, raised   hydraulic support, rear suspension with 1000mm, 180Ah battery, TRW steering   gear, long-term fuel prefilter module, vehicle speed limit of 89km/h, adjustment   of ABS solenoid valve bracket installation direction (flipped 180 ° on the   existing foundation), reserved compartment floor heating interface on the   muffler, with interface plug cover, and reserved emergency call system   interface

Body parameters

Body dimension(mm)

5800x2300x1500

Body volume(m3)

20

Material

Carbon steel plates

Lifting method

Front hydraulic lifting system
