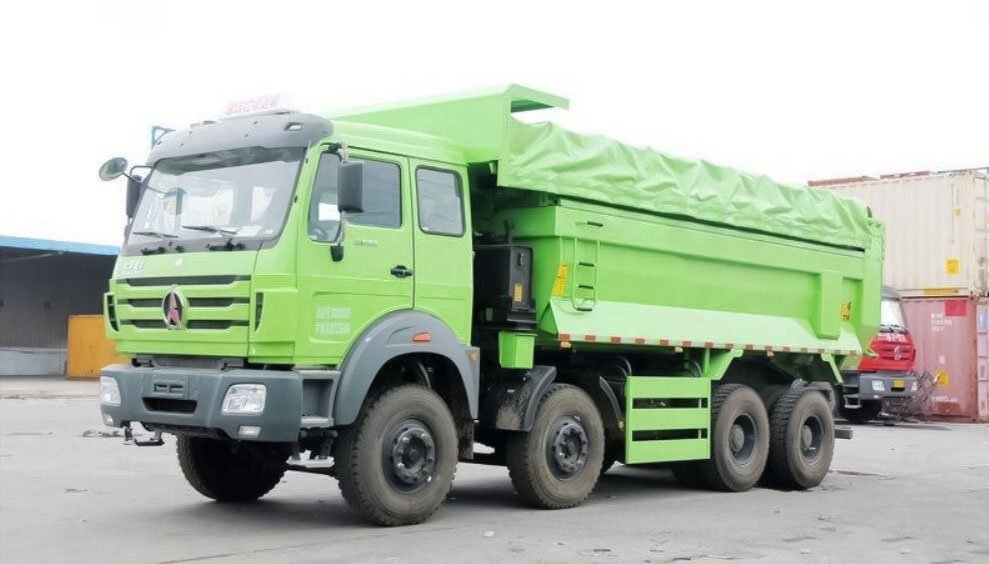

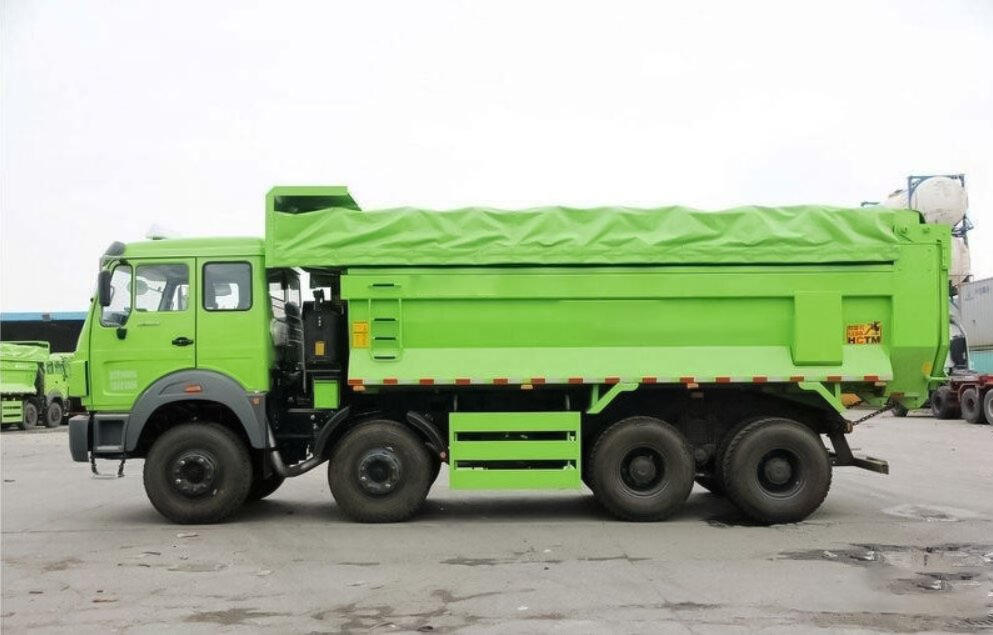

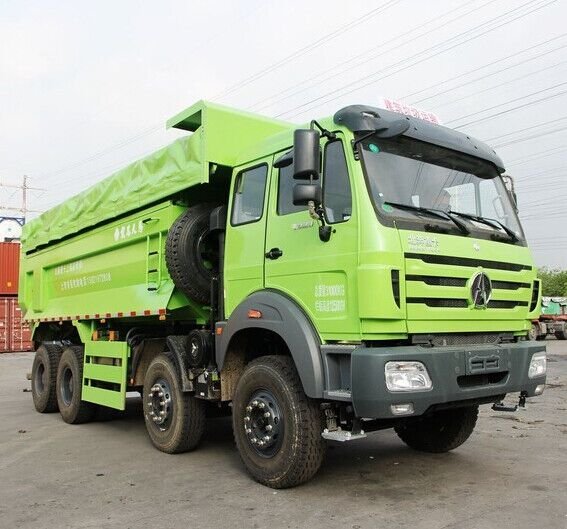

Beiben NG80B Heavy LNG Dump Truck 350HP 8X4 9.4m
No.:
Vehicle Type: Dump Truck
Brand Name: BEIBEN
Person in charge: Aria Dong
Cel: 8617667810120
Whatsapp: 86153364889276
E-mail: sales12@chinatruck.cc
FREE GET QUOTE
Details
The Beiben NG80B series ND33103D46J is an 8x4 truck with a front four and rear eight configuration. It is equipped with a Weichai WP12NG350E40 natural gas engine (350 horsepower), a 9.4-meter long cargo box, a rated load of 15.72 tons, a Fast 12-speed gearbox, meets China IV emission standards, is energy-saving and environmentally friendly, and is suitable for urban construction waste, heavy-duty mining, long-distance transportation, and is a popular LNG heavy truck for export.
specifications:
raction type | 8x4 | |
Drive System | LHD/RHD | |
Cabin | NG80B long handlebar, flat top. Frame dimensions (mm): 300×90×8+6+8 | |
Engine | Brand | WEICHAI |
Model | WP12NG350E40 | |
Rated power | 350hp | |
Engine displacement | 10.8 liters | |
Gearbox | FAST 12JS160T | |
Tire | 12.00R20 | |
Fuel tank | 400L | |
Kerb weight (kg) | 15150 | |
Total mass (kg) | 15720 | |
Wheel base (mm) | 1950+400+1450 | |
Overhang (mm) (front/rear) | 2045/2045 | |
Track (mm) (front/rear) | 1872/1872 | |
Approach / departure angle(°) | 26/20 | |
Dimensions(L*W*H)(mm) | Overall | 1187x2500x3484 |
Dump body | 9400x2300x900(18.6cbm) | |
Hydraulic lifting system | Side-tipping self-unloading | |
![]()
![]()
![]()
