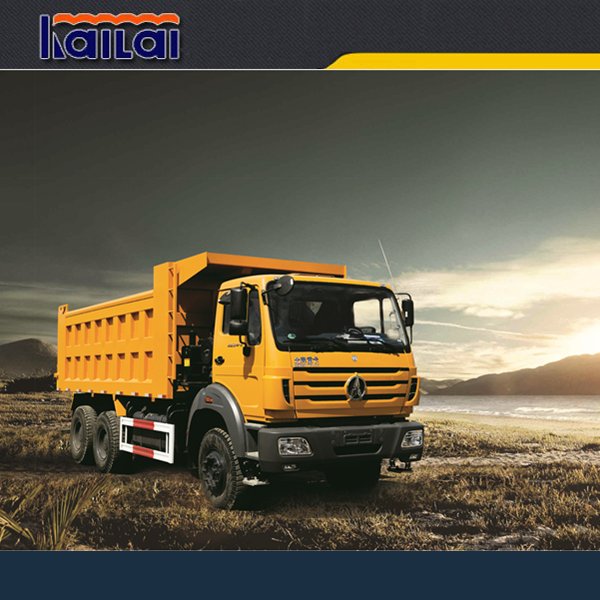

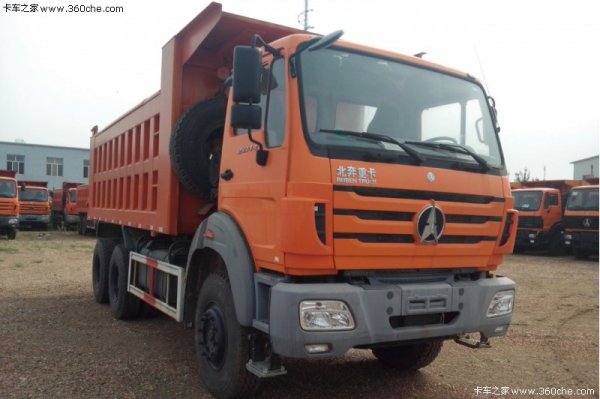

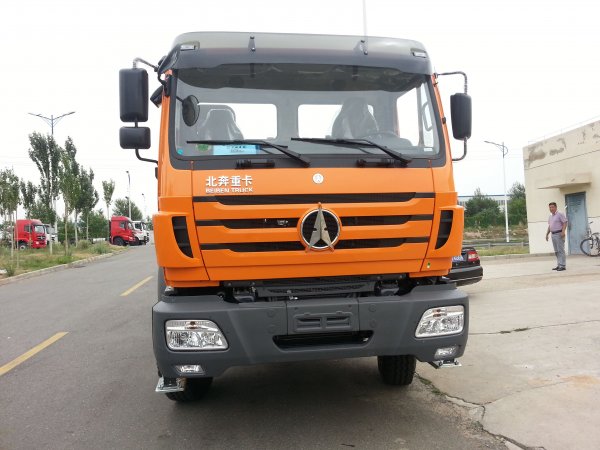

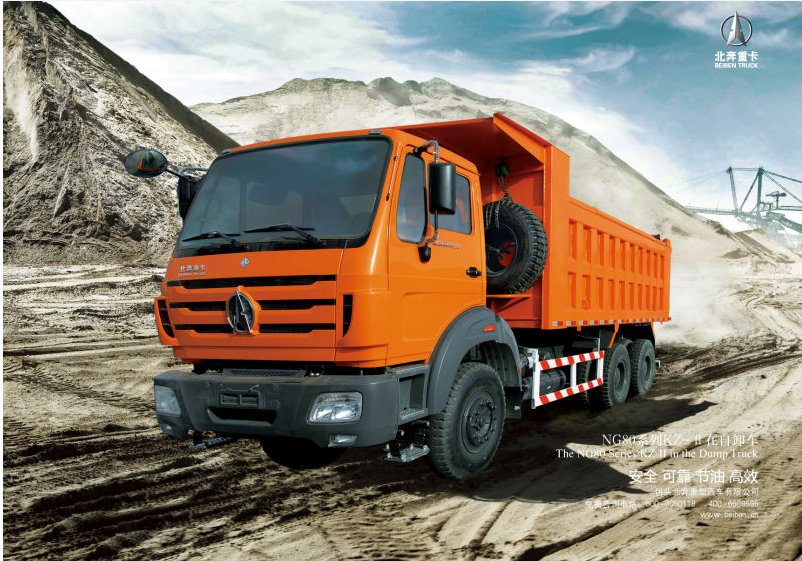

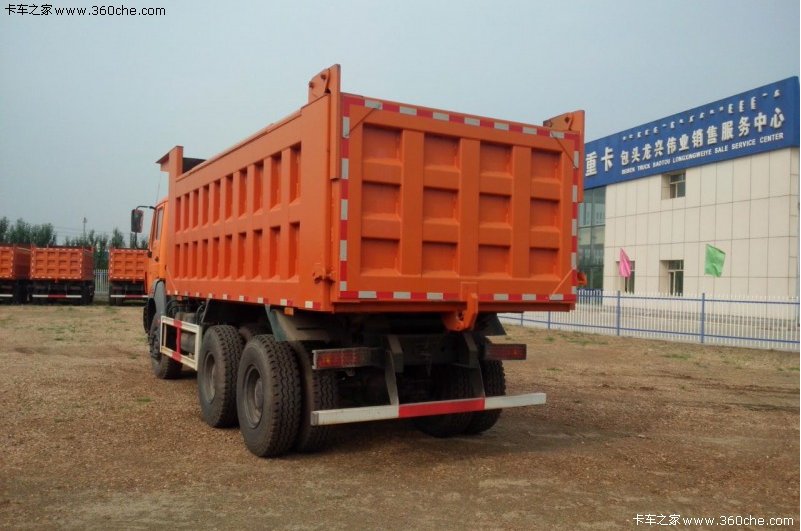

Beiben NG80 heavy-duty truck, 6×4, mining dump truck, heavy-duty transportation
No.:
Vehicle Type: Dump Truck
Brand Name: WEICHAI
Person in charge: Aria Dong
Cel: 8617667810120
Whatsapp: 86153364889276
E-mail: sales12@chinatruck.cc
FREE GET QUOTE
Details
Beiben NG80 heavy truck ND3250BD5J6Z10, 6×4 rear eight-wheel dump truck, Weichai 350/375 horsepower, Fast gearbox, strong heavy load capacity, good passability, special for mining and slag transportation, National V emission standard, preferred for export to Africa and Central Asia, Beiben quality is durable and reliable.
Specifications:
| Basic Information | Chassis Model | ND3250BD5J6Z10 |
| Drive type | 6x4 | |
| Driving mode | Left Hand Driving | |
| Horsepower(ps) | 375 | |
| Dimension | Length Estimated(mm) | 9675 |
| Width Estimated (mm) | 2550 | |
| Height Estimated (mm) | 3430 | |
| Wheelbase Estimated(mm) | 4750+1450 | |
| Upper body | Dump body size (mm) | 6500X2350X1500 |
| Thickness of body steel (mm) | Floor 8 mm; side 6 mm | |

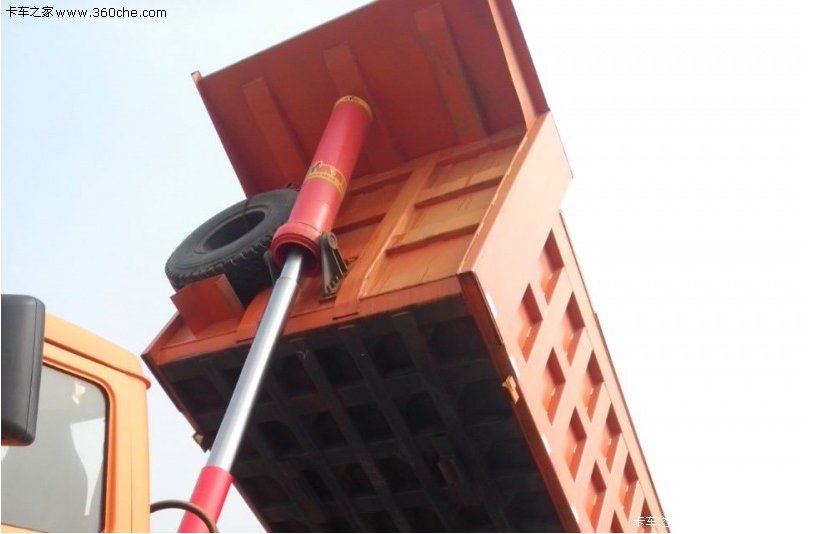

| Tipping system | Front tipping system | |
| Engine | Brand | WEICHAI |
| Model | WP12.375E50 | |
| Emission standard | Euro Ⅲ | |
| Axles | Rear axle(kg) | 13t BEIBEN double reduction |
| Rate | 5.263 | |
| Transmission | FAST12JS200T | |
| Suspension | Front and rear reinforced multi springs (10/12) | |
| Tyre | 12.00R20（10+1) Pieces | |
| Tank capacity | 300L | |
| Tank Material | Iron tank | |
| Electrics | 24V | |
| Cab | NG80B Long-Driving Flat-Top | |
