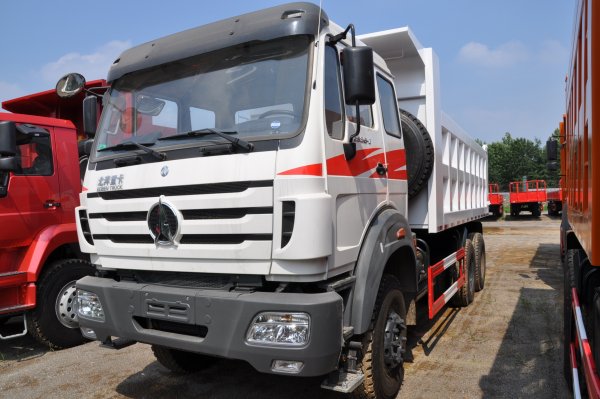

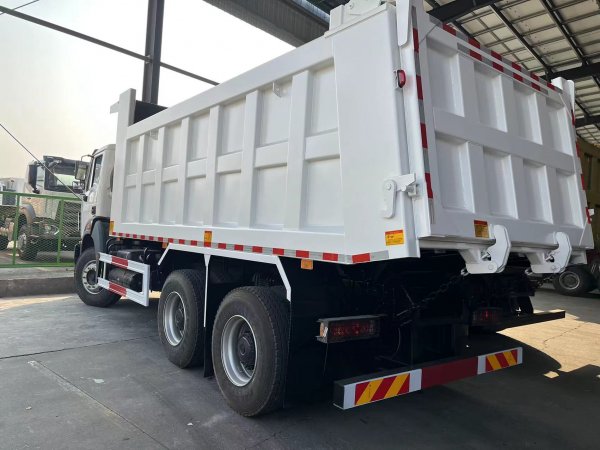

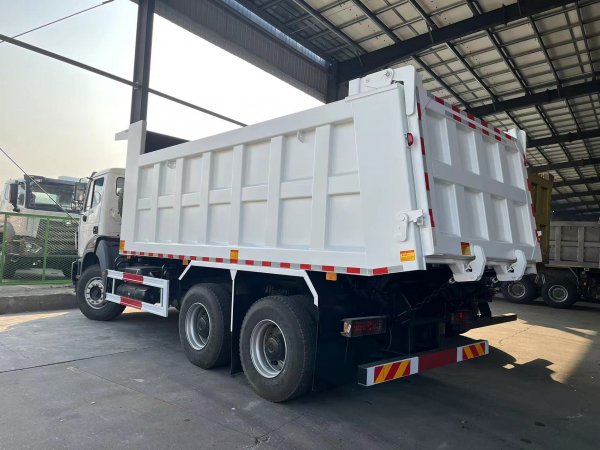

Beiben NG80 dump truck, 6×4 rear eight-wheel, 336 horsepower construction site transport heavy truck.
No.:
Vehicle Type: Heavy Duty Truck
Brand Name: WEICHAI
Person in charge: Aria Dong
Cel: 8617667810120
Whatsapp: 86153364889276
E-mail: sales12@chinatruck.cc
FREE GET QUOTE
Details
NORTH BENZ 6X4 TIPPER Truck | |
Model | ND32500B45J |
Driving type | LHD (Right Hand Drive is optional) |
Driver's cab | Long cabin, single sleeper |
Engine | Maker: WEICHAI |
Water-cooled, four-stroke, with exhaust valve braking, direct injection, turbocharged and intercooled. | |
Engine model: WP10.336E40 EURO 4 emission standard | |
Maximum output: 336hp | |
Number of cylinder:4 | |
Displacement: 9.726L | |
Clutch | 430mm, hydraulically operating with air assistance |
Transmission | FULLER Brand transmission. |
Front Axle | Benz front axle 6.5 tons |
Rear Axle | Benz TYPE double reduction drive axle |
Steering | FAST 12JS160T |
Wheel & Types | Tyres: 12.00R20 |
Optional: 12R22.5 | |
Radial tire and tubeless tire is optional | |
Electrics | Operating voltage: 24V, negative grounded |
Dimensions in mm | Wheel base: 4450+1450mm |
Overall size: 9410*2500*3430mm | |
Weight in kg | Kerb weight 12190 |
Permissible trailing capacity 40000 | |
Performance | Maximum driving speed(km/h) 90 |
Body mm | 6500*2300*1000 Floor 8 side&back4, front tipping type |
The manufacture reserves the right of technical alteration/change for better improvement prior notice | |
