Shacman F3000 6x4 8x4 Euro2 20-40ton Dump Truck
No.: Jim-240428
Vehicle Type: Dump Truck
Brand Name: SHACMAN
Person in charge: Jim yao
Cel: 0086 181 5320 9775
Whatsapp: 8618153209775
E-mail: sales29@chinatruck.cc
FREE GET QUOTE
Details
Specification
| Name | Shacman F3000 6×4 Dump Truck Cummins Weichai Engine | |
| Driving model | LHD/RHD (left hand drive or right hand drive) | |
| Overall dimension | 8545x2496x3350mm (Length x width x height) | |
| Dump body | Type of body | ”田” |
| Body size | 5600 x 2300 x 1500mm | |
| Body thickness | 8mm at the bottom, 6mm at both sides | |
| Lifting system | Front hydraulic system or middle hydraulic system | |
| Cabin | F3000 One Sleeper Cabin | |
| Tires | 10+1 spare tyre with rim | |
| 12.00R20 radial tyre, 18PR, mixed pattern | ||
| Wheelbase | 3800+1350mm | |
| Axle | MAN7.5 front axle，MAN 13 rear axle | |
| Engine | Model | WP10.380E22, Euro II, Diesel |
| Engine power | 280KW (380HP) @ 2200 tr / min | |
| Max torque | 1600 N.m @ 1500-1800 tr / min | |
| Air intake type | turbo-charge and inter-cool | |
| Fuel injection type | Direct injection | |
| Gearbox | 10JS180 gearbox 10 forward speeds + 2 reverse speeds | |
| Braking system | Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | |
| Suspension system | Strengthen heavy duty Leaf spring type | |
| Frame | Double-layer frame (8 + 8/300) | |
More Detail Photo:
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
You May Like:
Sinotruck NX 6X4 400HP HOWO New and Used Heavy Duty Dump Truck 20CBM Low Price Tipper Vehicle
More Detail

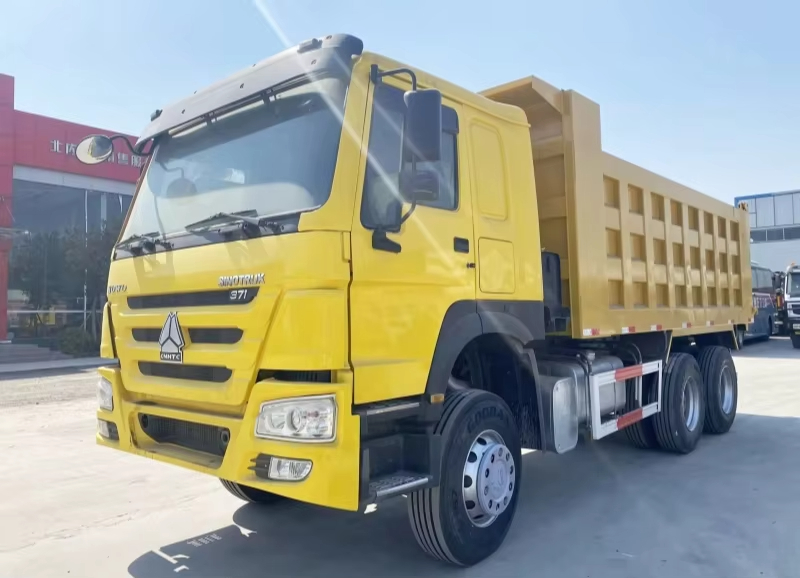

China Sinotruk HOWO Truck 6x4 Model Truck 30 Ton 10 Wheeler 371 375HP Used Tipping Heavy Dump Truck for Sale
